SRAM
(IC1812)
DDS
(IC1703)
MAIN CPU
(IC1806)
R8 LINE CONTROLLER
(IC1804)
D/A CONVERTER
(IC1815)
LEVEL CONVERTER
(IC1817)
LEVEL CONVERTER
(IC1818)
SERIAL TO PARALLEL
CONVERTER
(IC1105)
2ND RX IF AMP
(Q1413)
2ND RX IF AMP
(Q1415)
2ND TX IF AMP
(Q1417)
2ND RX IF FILTER
(FI1402)
???????

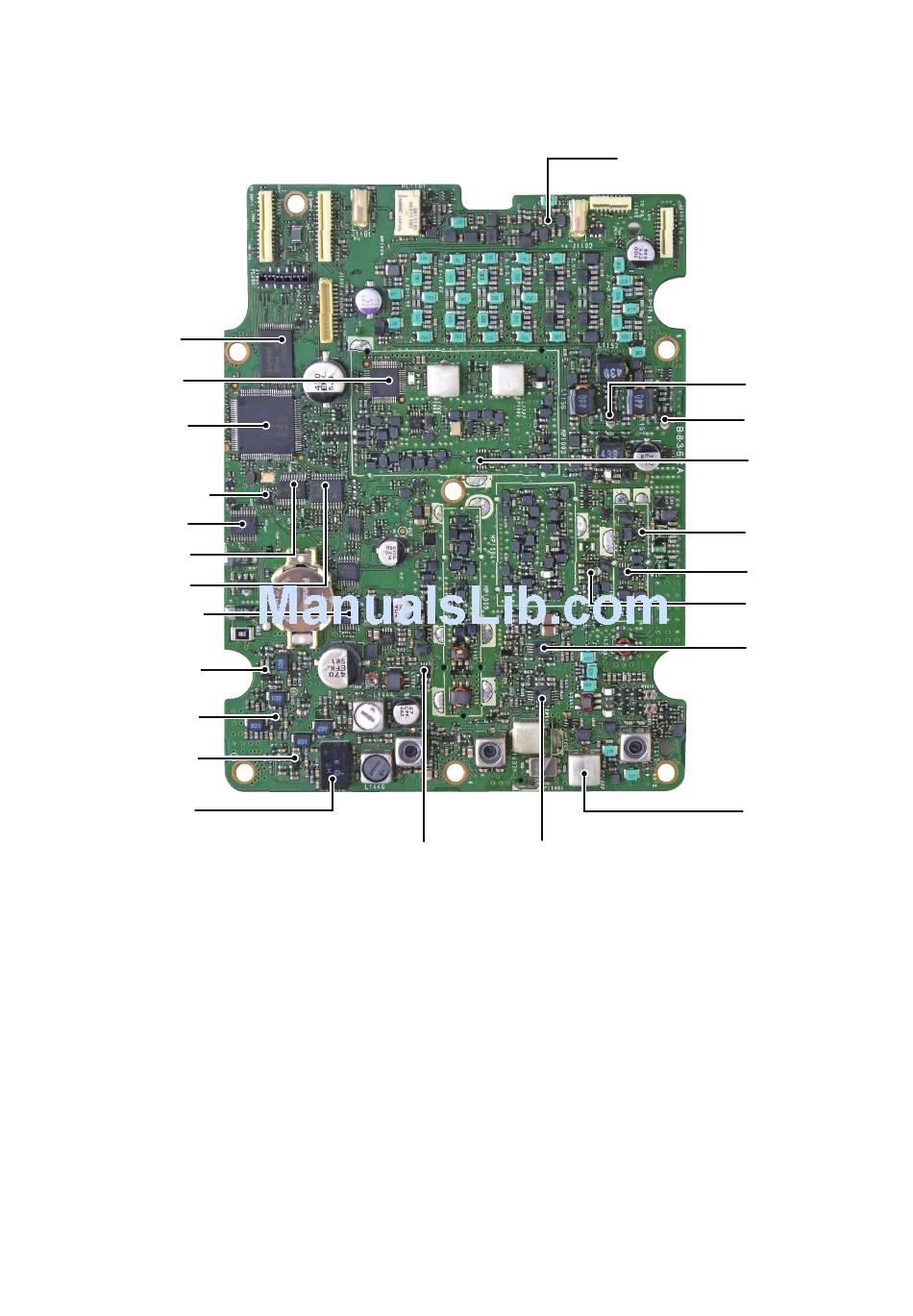

• MAIN-A UNIT
(???)
RSSI METER AMP
3RD TX IF MIXER
(IC1103)
(IC1402)
2-2
(???)
YGR AMP
(IC1101)
RF AMP
(Q1116)
RF AMP
(Q1117)
1/2 PRESCALER
(IC1603)
1ST TX IF BUFFER
(Q1401)
1ST TX IF MIXER
(IC1401)
1ST LO AMP
(Q1410)
ALC AMP
(IC1102)
1ST TX/RX IF BPF
(FI1401)
???????
(???)
