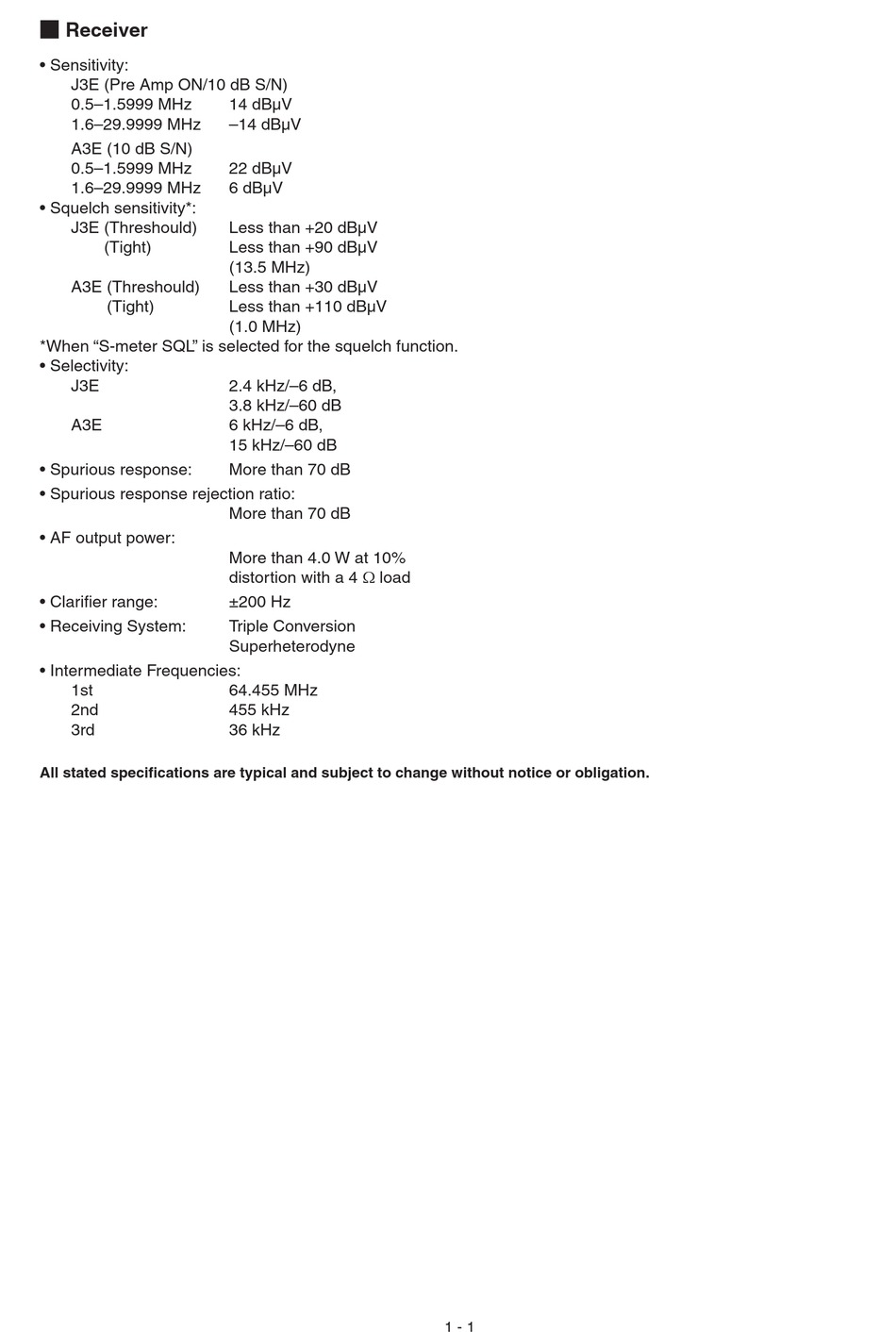

M Receiver
• Sensitivity:
J3E (Pre Amp ON/10 dB S/N)
0.5–1.5999 MHz
1.6–29.9999 MHz
A3E (10 dB S/N)
0.5–1.5999 MHz
1.6–29.9999 MHz
• Squelch sensitivity*:
J3E (Threshould)
(Tight)
A3E (Threshould)
(Tight)
*When "S-meter SQL" is selected for the squelch function.
• Selectivity:
J3E
A3E
• Spurious response:
• Spurious response rejection ratio:
• AF output power:
• Clarifi er range:
• Receiving System:
• Intermediate Frequencies:
1st
2nd
3rd
All stated specifi cations are typical and subject to change without notice or obligation.
