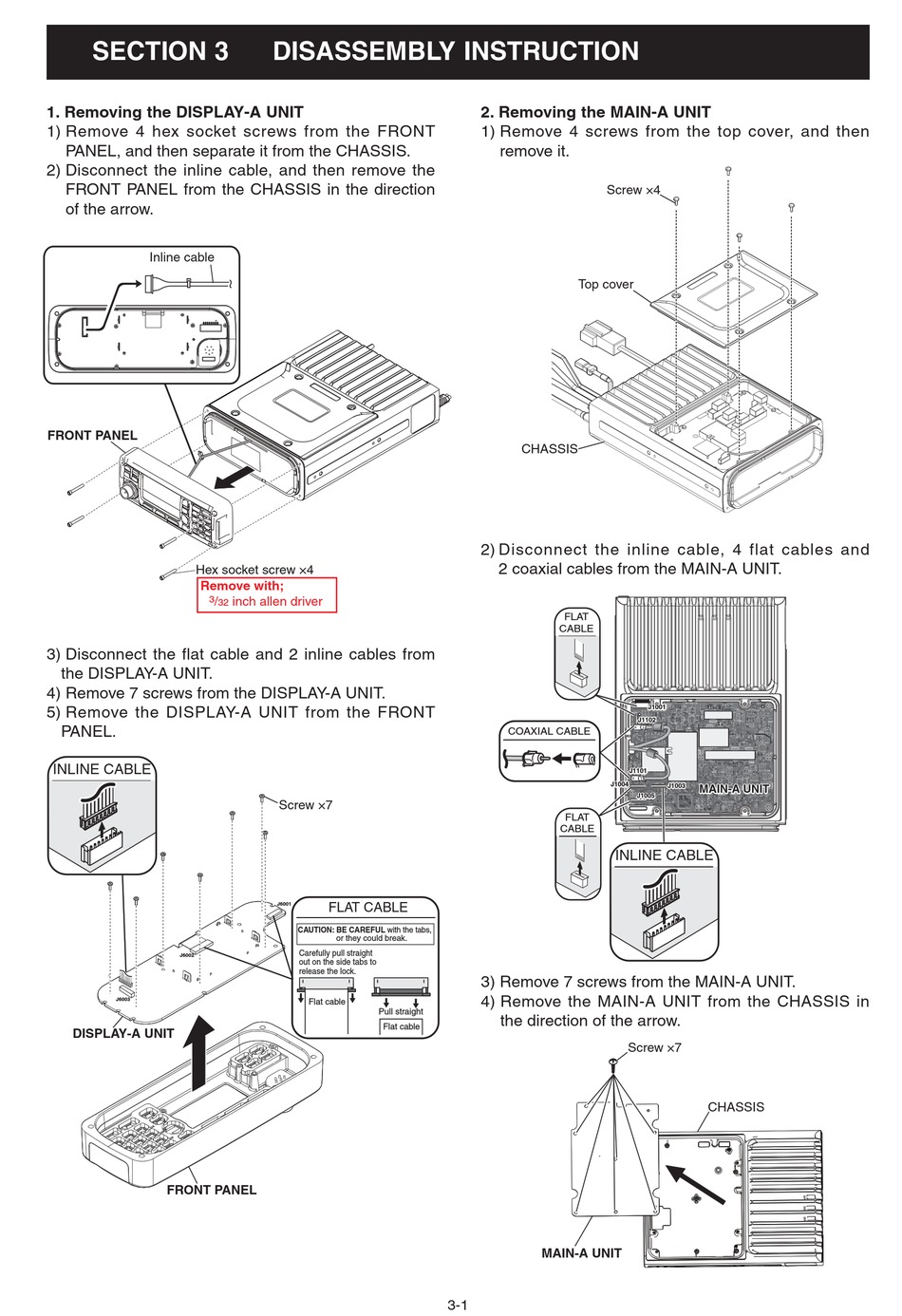

SECTION 3.
1. Removing the DISPLAY-A UNIT
1) Remove 4 hex socket screws from the FRONT
PANEL, and then separate it from the CHASSIS.
2) Disconnect the inline cable, and then remove the
FRONT PANEL from the CHASSIS in the direction
of the arrow.
Inline cable
FRONT PANEL
Hex socket screw ×4
Remove with;
3
/
32
3) Disconnect the flat cable and 2 inline cables from
the DISPLAY-A UNIT.
4) Remove 7 screws from the DISPLAY-A UNIT.
5) Remove the DISPLAY-A UNIT from the FRONT
PANEL.
INLINE CABLE
J6002
J6003
DISPLAY-A UNIT
FRONT PANEL
DISASSEMBLY INSTRUCTION
inch allen driver
Screw ×7
J6001
FLAT CABLE
CAUTION: BE CAREFUL with the tabs,
or they could break.
Carefully pull straight
out on the side tabs to
release the lock.
Flat cable
flat cable
Pull straight
Flat cable
2. Removing the MAIN-A UNIT
1) Remove 4 screws from the top cover, and then
remove it.
Screw ×4
Top cover
CHASSIS
2) Disconnect the inline cable, 4 flat cables and
2 coaxial cables from the MAIN-A UNIT.
FLAT
CABLE
COAXIAL CABLE
J1005
J1005
J1004 J1005
J1005
J1005
FLAT
J1005
CABLE
J1005
INLINE CABLE
3) Remove 7 screws from the MAIN-A UNIT.
4) Remove the MAIN-A UNIT from the CHASSIS in
the direction of the arrow.
MAIN-A UNIT
3-1
J1005 J1001
J1005 J1102
J1005
J1005
J1101 J1005
J1003 J1005
J1005 MAIN-A UNIT MAIN-A UNIT
J1005 J1005
J1005
MAIN-A UNIT
J1005
J1005
MAIN-A UNIT
J1005
J1005
J1005
J1005
J1005
J1005
J1005
J1005
Screw ×7
J1005
J1005
J1005
MAIN-A UNIT
J1005
CHASSIS
MAIN-A UNIT
