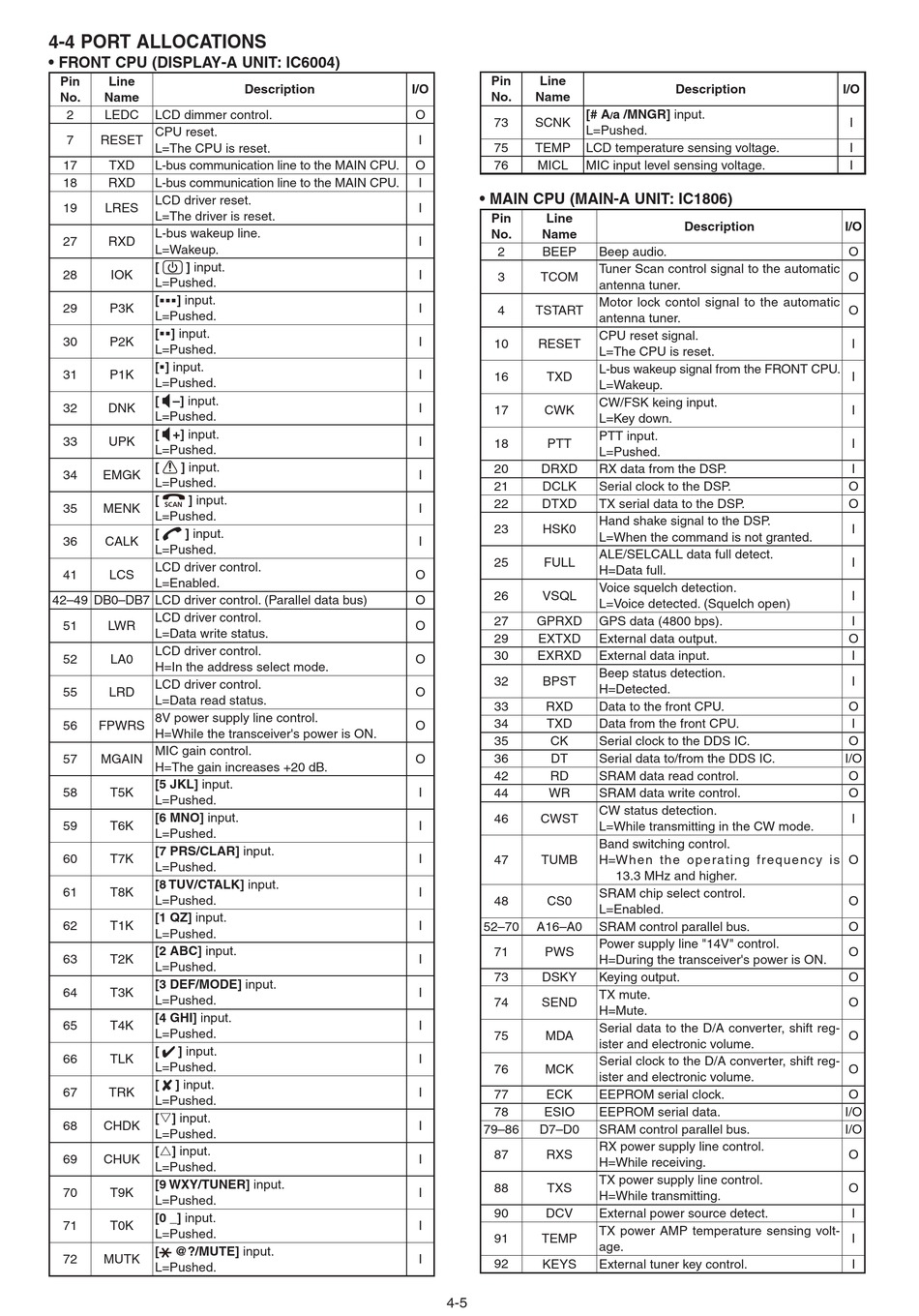

4-4 PORT ALLOCATIONS

• FRONT CPU (DISPLAY-A UNIT: IC6004)
Pin Line
No. Name
2 LEDC LCD dimmer control.
CPU reset.
7 RESET
L=The CPU is reset.
17 TXD L-bus communication line to the MAIN CPU.
18 RXD L-bus communication line to the MAIN CPU.
LCD driver reset.
19 LRES
L=The driver is reset.
L-bus wakeup line.
27 RXD
L=Wakeup.
[ ] input.
28 IOK
L=Pushed.
[] input.
29 P3K
L=Pushed.
[] input.
30 P2K
L=Pushed.
[] input.
31 P1K
L=Pushed.
[ –] input.
32 DNK
L=Pushed.
[ +] input.
33 UPK
L=Pushed.
[ ] input.
34 EMGK
L=Pushed.
[ ] input.
35 MENK
L=Pushed.
[ ] input.
36 CALK
L=Pushed.
LCD driver control.
41 LCS
L=Enabled.
42–49 DB0–DB7 LCD driver control. (Parallel data bus)
LCD driver control.
51 LWR
L=Data write status.
LCD driver control.
52 LA0
H=In the address select mode.
LCD driver control.
55 LRD
L=Data read status.
8V power supply line control.
56 FPWRS
H=While the transceiver's power is ON.
MIC gain control.
57 MGAIN
H=The gain increases +20 dB.
[5 JKL] input.
58 T5K
L=Pushed.
[6 MNO] input.
59 T6K
L=Pushed.
[7 PRS/CLAR] input.
60 T7K
L=Pushed.
[8 TUV/CTALK] input.
61 T8K
L=Pushed.
[1 QZ] input.
62 T1K
L=Pushed.
[2 ABC] input.
63 T2K
L=Pushed.
[3 DEF/MODE] input.
64 T3K
L=Pushed.
[4 GHI] input.
65 T4K
L=Pushed.
[ ] input.
66 TLK
L=Pushed.
[ ] input.
67 TRK
L=Pushed.
[] input.
68 CHDK
L=Pushed.
[] input.
69 CHUK
L=Pushed.
[9 WXY/TUNER] input.
70 T9K
L=Pushed.
[0 _] input.
71 T0K
L=Pushed.
[ @?/MUTE] input.
72 MUTK
L=Pushed.
Description I/O
O
O
O
O
O
O
O
O
O
Pin Line
No. Name
[# A
73 SCNK
L=Pushed.
I
75 TEMP LCD temperature sensing voltage.
76 MICL MIC input level sensing voltage.
I
• MAIN CPU (MAIN-A UNIT: IC1806)
I
Pin Line
No. Name
I
2 BEEP
I
3 TCOM
I
4 TSTART
I
10 RESET
I
16 TXD
I
17 CWK
I
18 PTT
20 DRXD
I
21 DCLK
22 DTXD
I
23 HSK0
I
25 FULL
26 VSQL
27 GPRXD
29 EXTXD
30 EXRXD
32 BPST
33 RXD
34 TXD
35 CK
36 DT
42 RD
I
44 WR
46 CWST
I
I
47 TUMB
I
48 CS0
I
52–70 A16–A0
71 PWS
I
73 DSKY
I
74 SEND
I
75 MDA
I
76 MCK
I
77 ECK
78 ESIO
I
79–86 D7–D0
87 RXS
I
88 TXS
I
90 DCV
I
91 TEMP
I
92 KEYS
