Installation

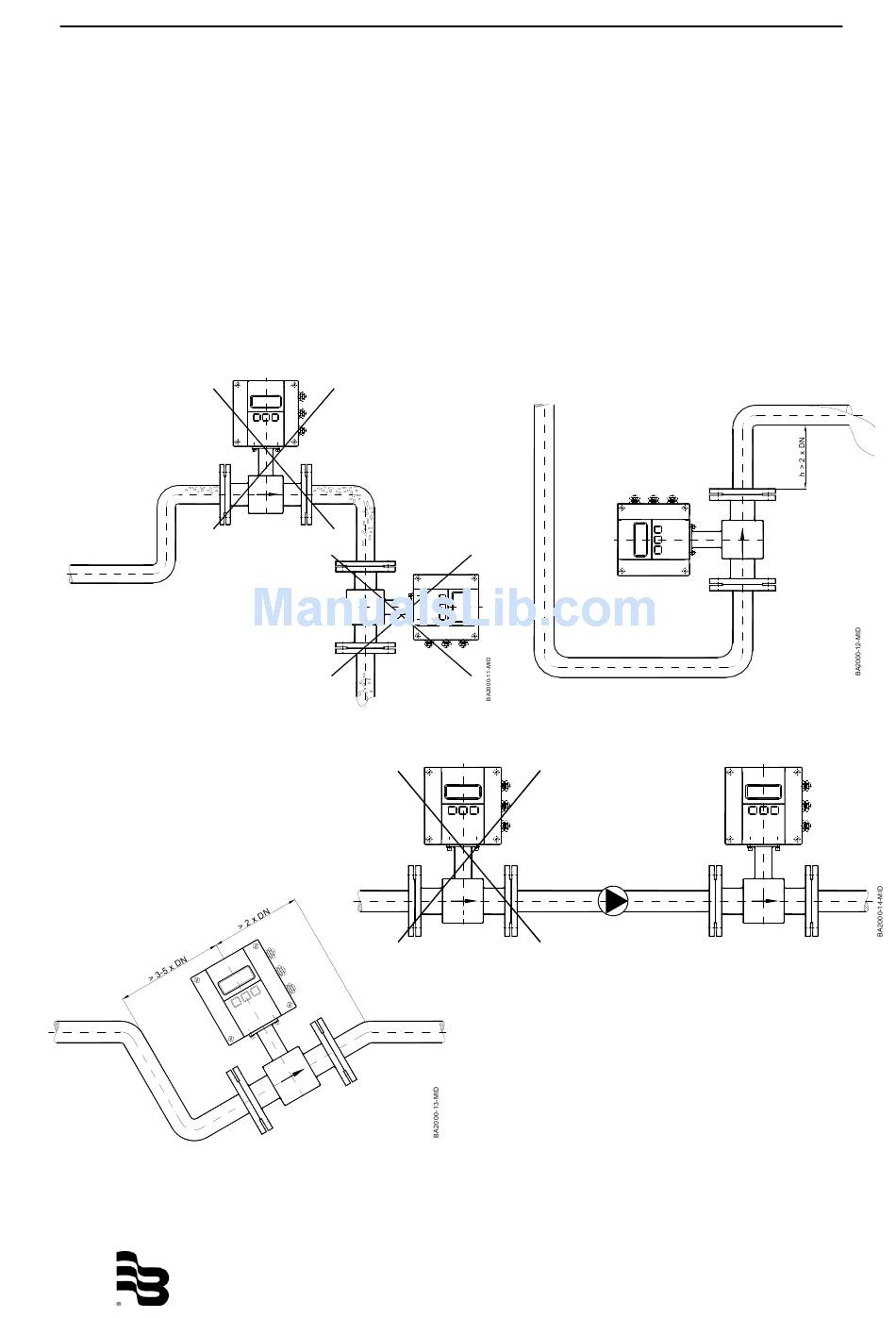

3.2.3 Meter location
Caution: •
•
•
•
•
Do not install the detector on the suction sides of pumps. This could
damage the liner (in particular PTFE liners).
Verify that the pipeline is always filled on the measuring point, if not - a
correct or accurate measurement is not possible.
Do not install the detector on the highest point of a pipeline system.
Gas accumulation may follow.
Do not install the detector in downcomer pipes with free outlet.
Do not install the detector on pipes with vibrations. If pipes are strongly
vibrating, make sure that detector and amplifier are separated
(separate version).
MID_M2000_BA_02_1004
Page 5/44
