Badger Meter Europa GmbH
®
®

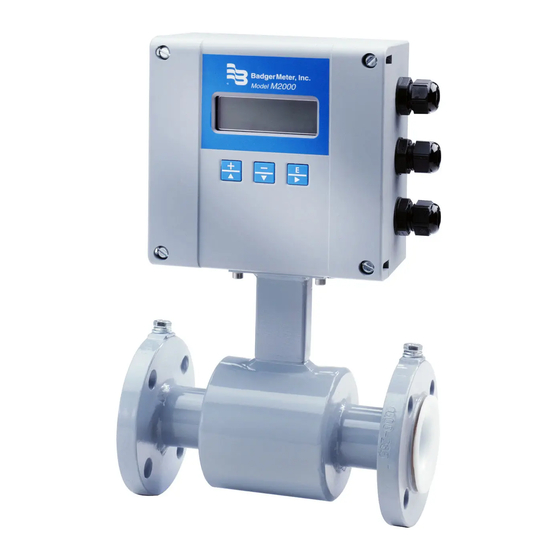

ModMAG
M2000
®
ModBus
memory map
USER MANUAL
May 2018
MID_M2000_BA_MODBUS_02_1805

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ModMAG M2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Badger Meter ModMAG M2000

Summary of Contents for Badger Meter ModMAG M2000

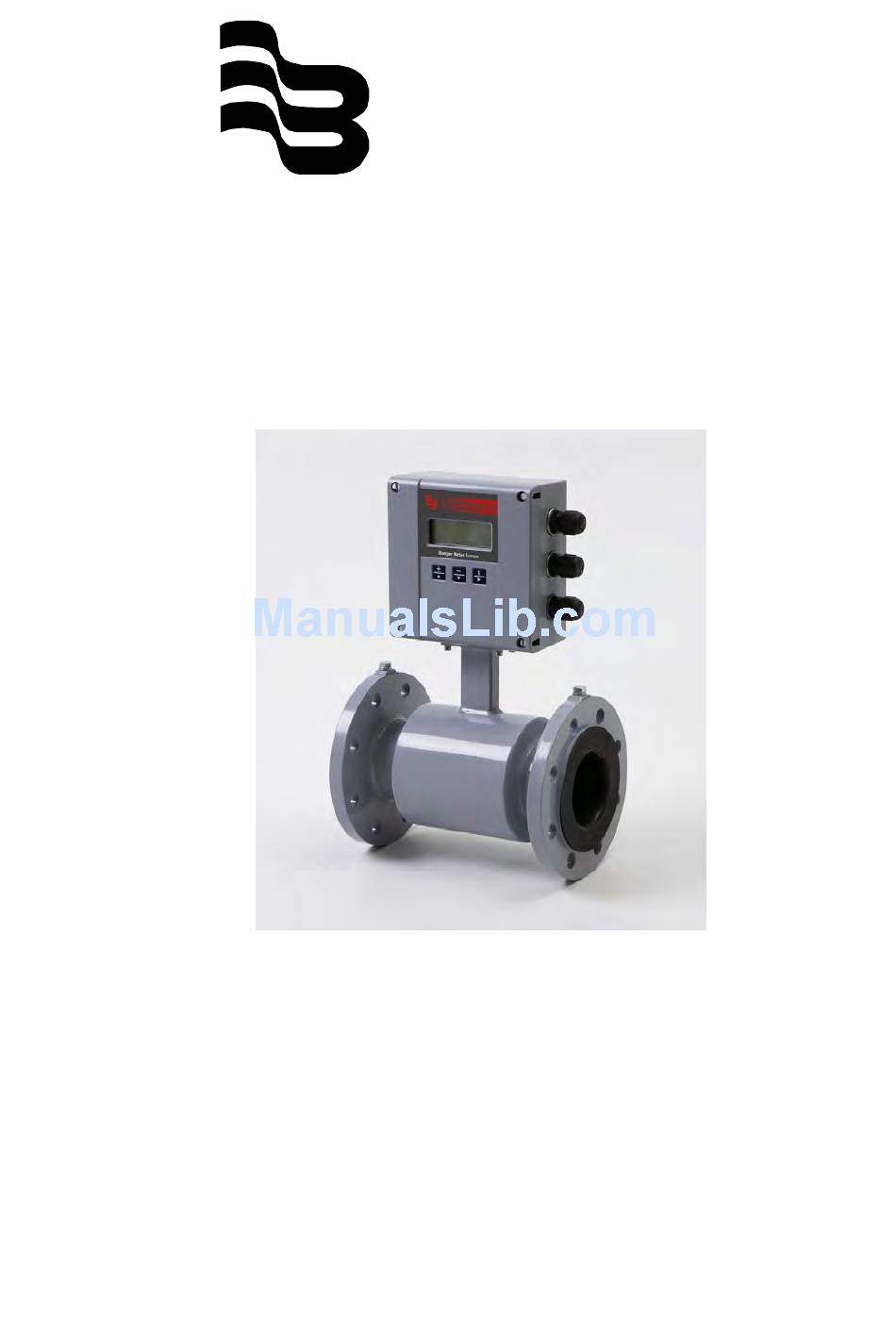

  • Page 1 Badger Meter Europa GmbH ® ® ModMAG M2000 ® ModBus memory map USER MANUAL May 2018 MID_M2000_BA_MODBUS_02_1805...

  • Page 2: Table Of Contents

    Contents 1. Overview .......................... 3 Write security ......................3 Register name ......................4 Register address ..................... 4 Register type ......................4 Read / Write ......................4 FNC support ......................4 2. Memory maps by category ..................... 6 Product identification ....................6 Meter calibration ......................

  • Page 3: Overview

    • Read the random value register (address 0x012B). • Perform necessary calculations (contact Badger Meter for details). • Write the remote login register (address 0x012F). It is advised that a support application is written to perform this process and embed- ded within the main application software used to access the flow meter.

  • Page 4: Register Name

    Overview Page 4/30 Register name When applicable, describes the parameter so it can be associated within the display menu items. Please note, not all registers are directly modifiable via the menu mana- ger. Also, some registers are not accessible via the menu manager. Register address Register address defines the physical address that is required to be transmitted over ®...
  • Page 5 Overview Page 5/30 ® ModBus function code Description 0x03 Read holding register 0x04 Read input register 0x06 Preset single register (write) 0x10 Preset multiple registers (write multiple) Important: Write function codes are not accepted while menu navigation is in process. Write function codes update only the working register located in volatile memory.

  • Page 6: Memory Maps By Category

    Memory maps by category Page 6/30 2. Memory maps by category Product identification Write Register Read / Register name Register Type FNC support security address Write Firmware Product code 0x0000 UINT16 Read only 0x03, 0x04 Firmware Product name 0x0001 UCHAR16[8] Read only 0x03, 0x04 Firmware...

  • Page 7: Meter Calibration

    Memory maps by category Page 7/30 Meter calibration Write Register Register Read / Register name FNC support security address Type Write Admin Detector diameter 0x03, 0x04, 0x006F UINT16 0x06, 0x10 Admin Detector diameter 0x03, 0x04, 0x0070 UINT16 Other [mm] 0x06, 0x10 Admin Detector factor 0x03, 0x04,...

  • Page 8: Digital Input

    Memory maps by category Page 8/30 Digital input Write Register Register Read / Register name FNC support security address Type Write Digital input: 0x03, 0x04, 0x06, Service 0x0094 UINT16 Input operation 0x10 Firmware Read only Digital input: Status 0x0155 UINT16 0x03;...

  • Page 9: Output #1

    Memory maps by category Page 9/30 Output #1 Write Register Register Read / Register name FNC support security address Type Write Output #1: Service 0x0098 FLOAT32 0x03, 0x04, 0x10 Pulses per unit [m Output #1: Service 0x009C FLOAT32 0x03, 0x04, 0x10 Pulses per unit [User units] Output #1: 0x03, 0x04, 0x06,...

  • Page 10: Output #3

    Memory maps by category Page 10/30 Output #3 Write Register Register Read / Register name FNC support security address Type Write Output #3: 0x03, 0x04, 0x06, Service 0x00B2 UINT16 Full scale frequency [Hz] 0x10 Output #3: 0x03, 0x04, 0x06, Service 0x00B3 UINT16 Flow alarm minimum [%]...

  • Page 11: Port A Diagnostic Counters

    Memory maps by category Page 11/30 2.10 Port A diagnostic counters Write Register Register Read / Register name FNC support security address Type Write Port A: Firmware 0x00BD UINT16 Read only 0x03, 0x04 Packets processed Port A: Firmware 0x00BE UINT16 Read only 0x03, 0x04 Bradcast packets...

  • Page 12: Measurements

    Memory maps by category Page 12/30 2.12 Measurements Write Register Register Read / Register name FNC support security address Type Write T1/T+[m FLOAT32 Firmware 0x00CF Read only 0x03, 0x04 T1/T+ [User units] FLOAT32 Firmware 0x00D3 Read only 0x03, 0x04 Firmware T1/T+ Display string 0x0137 UCHAR16[8]...

  • Page 13: Meter Diagnostic Counters

    Memory maps by category Page 13/30 2.13 Meter diagnostic counters Write Register Register Read / Register name FNC support security address Type Write UINT16 Firmware Power up counter 0x00F5 Read only 0x03, 0x04 UINT16 Firmware Detector error counter 0x00F6 Read only 0x03, 0x04 UINT16 Firmware...

  • Page 14: Miscellaneaous

    Memory maps by category Page 14/30 2.14 Miscellaneaous Write Register Register Read / Register name FNC support security address Type Write Firmwar Power loss totalizer UINT16 0x0107 0x03, 0x04 [seconds] 0x03, 0x04, 0x06, UINT16 User Display backlights mode 0x010F 0x10 FLOAT32 Service Preset batch amount [m...

  • Page 15: Control Commands

    Memory maps by category Page 15/30 2.17 Control commands Write Register Register Read / Register name FNC support security address Type Write Command action 0x03, 0x04, 0x06, UINT16 None 0x0125 request 0x10 0x03, 0x04, 0x06, SINT16 Service Flow simulation 0x012A 0x10 2.18 Security...

  • Page 16: M2000 Memory Map By Register Address

    M2000 memory map by register address Page 16/30 3. M2000 memory map by register address Register address Register name Register type 0x0000 Product code UINT16 0x0001 Product name UCHAR16[8] 0x0009 Firmware name UCHAR16[16] 0x0013 Reserved UINT16 0x0019 Application Version UCHAR16[10] 0x0023 Compile Date [MM:DD:YYYY] UCHAR16[16]...
  • Page 17 M2000 memory map by register address Page 17/30 Register address Register name Register type 0x0094 Digital input: Input operation UINT16 0x0095 Analog output range UINT16 0x0096 Analog output offset FLOAT32 0x0098 Output #1: Pulses per unit [m FLOAT32 0x009A Reserved (to addr 0x09B) UINT16 [2] 0x009C Output #1: Pulses per unit [User unit]...
  • Page 18 M2000 memory map by register address Page 18/30 Register address Register name Register type 0x00FD ADC interrupt counter UINT16 0x00FE ADC range counter UINT16 0x00FF WDT resets counter UINT16 0x0100 WDT location UINT16 0x0101 System error # UINT16 0x0102 Reserved UINT16 0x0103 Reserved...
  • Page 19 M2000 memory map by register address Page 19/30 Register address Register name Register type 0x00C9 Port B: Packets received UINT16 0x00CA Port B: Packets sent UINT16 0x00CB Port B: Parity errors UINT16 0x00CC Port B: Framing errors UINT16 0x00CD Port B: Overrun errors UINT16 0x00CE Port B: Break detects...
  • Page 20 M2000 memory map by register address Page 20/30 Register address Register name Register type 0x0131 Analog output slope FLOAT32 0x0133 Analog customer offset 4 mA [A] FLOAT32 0x0135 Analog customer offset 20 mA[A] FLOAT32 0x0137 T1 /T+ Display string UCHAR16 [8] 0x013F T2 /T- Display string UCHAR16 [8]...

  • Page 21: M2000 Register Write Properties

    M2000 register write properties Page 21/30 4. M2000 register write properties ** Req. Register Min. Value Register name Max. value Action address value definition request 0 = Other 1 = DN6 2 = DN8 3 = DN10 4 = DN15 5 = DN20 6 = DN25 7 = DN32...
  • Page 22 M2000 register write properties Page 22/30 ** Req. Register Min. Max. Register name Value definition Action address value value request Detector current [mA] 0x007D Power line frequency 0 =50 Hz 0x0081 [Hz] 1 = 60 Hz 0 = 1 Hz Excitation frequency 1 = 3.125 Hz or 3.75 Hz 0x0082...
  • Page 23 M2000 register write properties Page 23/30 ** Req. Register Min. Max. Register name Value definition Action address value value request 0 = Off 1 = 1 unit 10 = 10 units 100 = 100 units 1000 = 1000 units Unit multiplier 0x0085 32771 10000 = 10000 units...
  • Page 24 M2000 register write properties Page 24/30 ** Req. Register Min. Register name Max. value Value definition Action address value request Analog output 0x0126 0.024 calibration point A [A] Analog output 0x0128 0.024 calibration point B [A] Analog customer 0x0133 0.024 offset 4 mA [A] Analog customer 0.024...
  • Page 25 M2000 register write properties Page 25/30 ** Req. Register Min. Register name Max. value Value definition Action address value request 0 = Off 1 = Flow alarm 2 = Empty pipe alarm 3 = Error alarm 4 = Forward pulse Output #1: 5 = AMR pulse 0x00A4...
  • Page 26 M2000 register write properties Page 26/30 ** Req. Register Min. Max. Register name Value definition Action address value value request Output #3: Full scale frequency 0x00B2 10000 [Hz] Output #3: 1 = 1% Flow alarm minimum 0x00B3 100 = 100% Output #3: 1 = 1% Flow alarm...
  • Page 27 M2000 register write properties Page 27/30 ** Req. Register Register Min. Max. Value definition Action name address value value request Output #4: 1 = 1% Flow alarm 0x00B8 100 = 100% minimum [%] Output #4: 1 = 1% Flow alarm 0x00B9 100 = 100% maximum [%]...
  • Page 28 M2000 register write properties Page 28/30 Full pipe 0x0122 calibration [volts] 0 = Off Empty pipe mode 0x0124 1 = On 2-5 = Reserved 0 = No action 1 = Save RAM to EEPROM 2 = Load EEPROM to 3 - 5 = Reserved 6 = Save totalizers to EEPROM 7 = Clear T1 or T+...

  • Page 29: Troubleshooting

    Troubleshooting Page 29/30 5. Troubleshooting ® ModBus transmissions can be rejected for various reasons: • Write request received while menu navigation is in process. • Write request received with an invalid value (out-of range value). • Write request received to a secured meter. •...

  • Page 30: Return Of Goods For Repair / Harmlessness Declaration

    Return of goods for repair / Harmlessness declaration Page 30/30 6. Return of goods for repair / Harmlessness declaration Please refer to our claims return form/harmlessness declaration under www.badgermeter.de/service/return of goods. MID_M2000_BA_MODBUS_02_1805...
  • Page 31 MID_M2000_BA_MODBUS_02_1805...
  • Page 32 Hotline Phone +49-7025-9208-0 or -30 +49-7025-9208-15 Badger Meter Europa GmbH ® Subsidiary of Badger Meter, Inc., USA Nürtinger Strasse 76 72639 Neuffen (Germany) E-mail: badger@badgermeter.de www.badgermeter.de...
