METER LOCATION, ORIENTATION AND APPLICATIONS

The M5000 provides two amplifier mounting options: a meter mounted option and a remote option .
Meter mounted option

Remote Option

Use a remote amplifier in the following situations:
• Detector protection class IP 68
• Detector to be mounted in a vault (see note on previous page)
• Fluid temperature is greater than 212° F (100° C)
• Strong vibrations at meter location
Remote Amplifier Outdoor Location
The amplifier can be installed and operated outdoors . However, it must be protected from the elements, as follows:
• The ambient environment/temperature rating for the unit is –4...140° F (–20...60° C) .
• If an indoor location is within 100 feet (30 meters) of the detector, consider increasing the cable length (up to 100 ft)and
mounting the amplifier indoors .
• At minimum, fabricate a roof or shield over and/or around the amplifier to protect the LCD display screen from
direct sunlight .
• Do not install the signal cable close to power cables, electric machines, and more .
• Secure the signal cables . Due to capacity changes, cable movements may result in incorrect measurements .

Temperature Ranges

• To prevent the meter from any damage, strictly observe the amplifier's and detector's maximum temperature ranges .
• In regions with extremely high ambient temperatures, it is recommended to protect the detector .
• In cases where fluid temperature exceeds 212° F (100° C), use the remote amplifier option .
Amplifier
Detector
June 2021

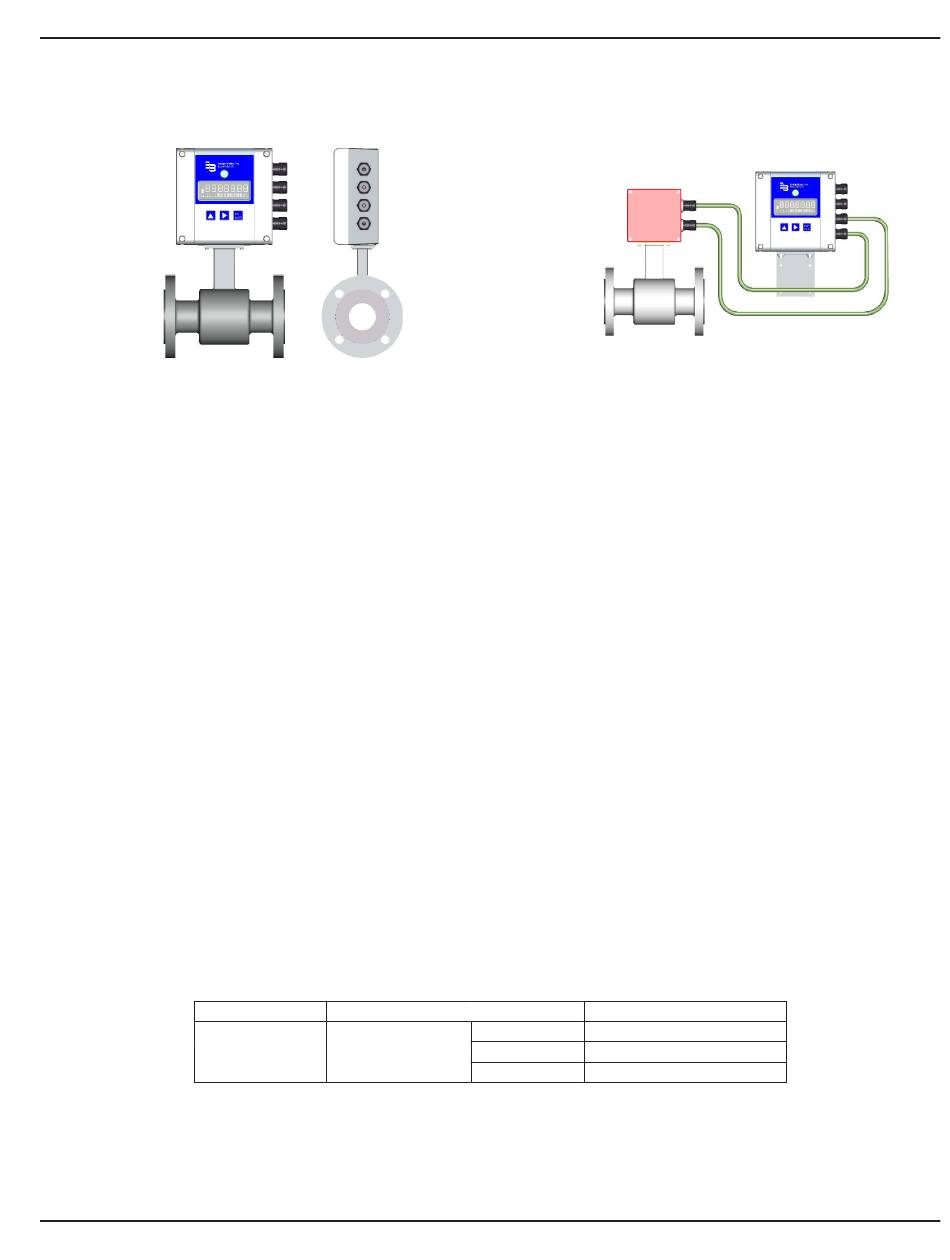

Figure 5: Amplifier mounting options
Ambient temperature
PTFE / PFA
Fluid temperature Hard rubber
Soft rubber
MAG-UM-00219-EN-17
Meter Location, Orientation and Applications
Remote option
–4...140° F (–20...60° C)
–40...302° F (–40...150° C)
32...176° F (0...80° C)
32...176° F (0...80° C)
Page 9
