Page 1: User Manual

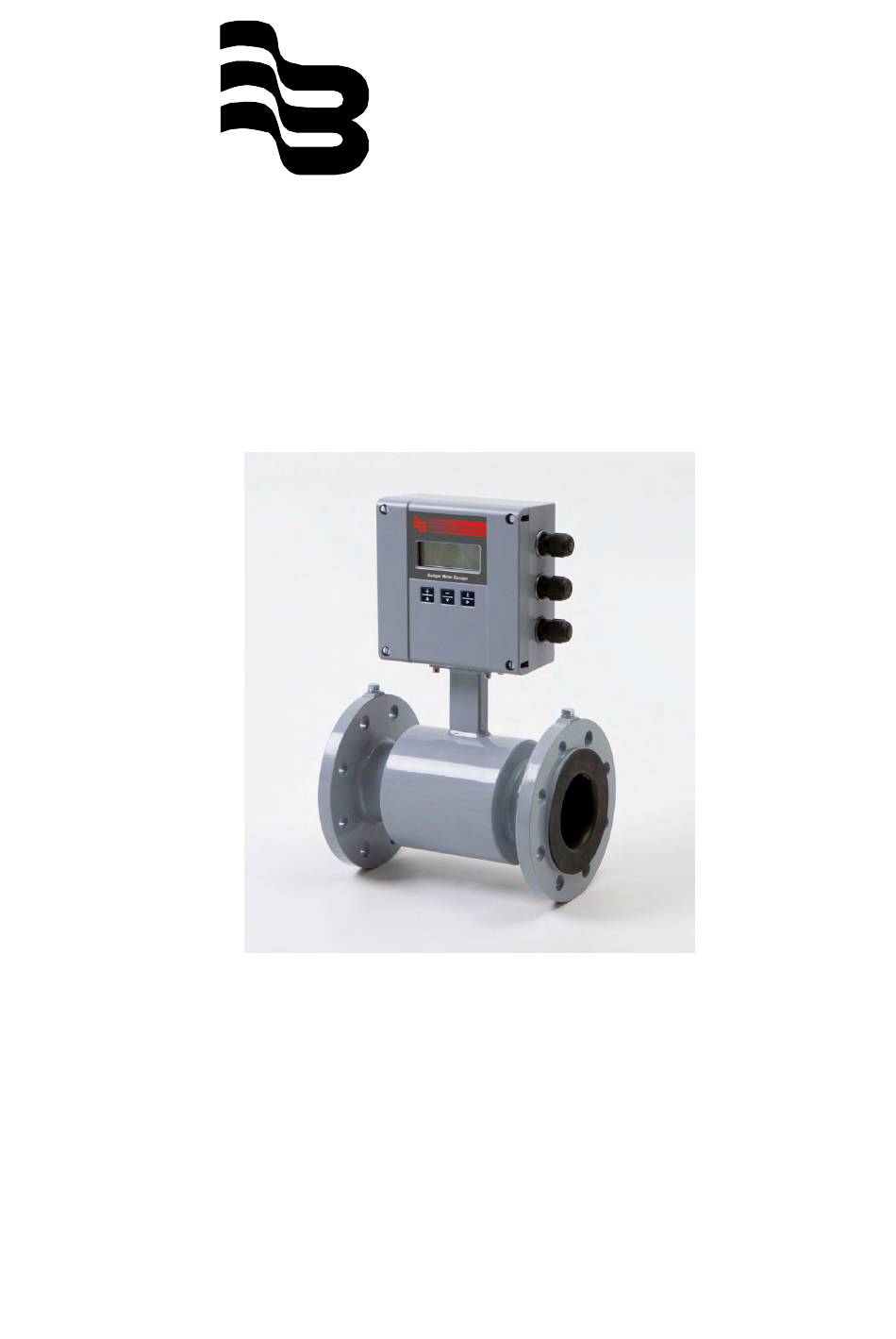

® Badger Meter Europa GmbH ® ModMAG M2000 M-Bus interface User manual May 2018 MID_M2000_BA_MB_02_1805... -
Page 2: Table Of Contents
Contents Page 1. Basic safety recommendation ..................3 2. Introduction ........................3 3. Hardware ......................... 4 3.1. Electrical connection ....................4 Port settings ......................5 4. M-Bus addressing ......................5 Primary address ...................... 5 Secondary address ....................5 M-Bus commands ....................5 Setting primary address .................. -
Page 3: Basic Safety Recommendation
Basic safety recommendation / Introduction Page 3/14 Basic safety recommendation Please see “Basic safety recommendations” in installation and operation manual ModMAG ® M2000. Introduction The ModMAG ® M2000 M-Bus module is providing a EN13757 compatible M-Bus interface to the Badger ModMAG M2000 flow meter with the following features: ®... -
Page 4: Hardware
Hardware Page 4/14 Hardware The additional M-Bus interface board is plugged in the communication socket (right lower corner) of the ModMAG ® M2000 main board. The interface board is supported by a pad to the wall of the enclosure. A grounding strap connect the interface board terminal 63 to the nearest screw of the main board. -
Page 5: Port Settings
Hardware / M-Bus addressing Page 5/14 Port settings Verify or configure the ModMAG M2000 communication port B. Access the ® port settings at main menu > communications > port B settings. Parameter Value Comments Port address Mandatory value of 001 Extended port Application specific. -
Page 6: Setting Primary Address
M-Bus addressing Page 6/14 Setting primary address The default (factory setting) primary address of the module is 0 (zero). You may program any other primary address in the range of 1 to 250 by using the standard M-Bus SND_UD command for primary address setting: Request (values in hex): 68 06 06 68 73/53 PAddr 51 01 7A NewAddr ChkS 16 Answer (values in hex):... -
Page 7: Changing M-Bus Response Telegram
M-Bus addressing Page 7/14 Changing M-Bus response telegram The module may answer a M-Bus REQ_UD2 (request user data 2) telegram with one of five different M-Bus RSP_UD (respond user data) telegrams, (according to EN13757-3 chapter 4.22 table 2): • All •... -
Page 8: Send Modbus ® Commands
M-Bus addressing Page 8/14 Please note that writing to the configuration area is under any circumstances limited to 20 times per 24 hours. Even with the above mentioned command it is not possible to write more often. Send ModBus ® commands Since not all of the ModBus ®... -
Page 9: M-Bus Req_Ud2 Answer „All
M-Bus addressing Page 9/14 Calibration: Contains the meter calibration registers of the ModMAG ® M2000 Manufacturing: Contains the product identification registers of the ModMAG ® M2000 Please note, that the module may also answer with a "busy" telegram in case the answer telegram has been changed by the user and not all of the new data values have been received from the ModMAG ®... -
Page 10: M-Bus Req_Ud2 Answer „Instantaneous
M-Bus addressing Page 10/14 4.9.2 M-Bus REQ_UD2 answer „Instantaneous“ N° Unit Tariff Storage Data Value Funct. VIB REAL4 1.854350e-003 Inst. Volume [m REAL4 0.000000e+000 Inst. Volume [m REAL4 1.854350e-003 Inst. Volume [m REAL4 0.000000e+000 Inst. Volume Flow [1/sec] ->*10E3 INT2 Inst. -
Page 11: M-Bus Req_Ud2 Answer "Calibration
M-Bus addressing Page 11/14 0x0101 System error # 0x0109 Action request overflows 0x010A Measurement overflows 0x0154 Remote resets 0x0107 Power loss totalizer in seconds 4.9.4 M-Bus REQ_UD2 answer “Calibration” N° Unit Tariff Storage Data Value Funct. VIB INT2 Inst. INT2 Inst. -
Page 12: M-Bus Req_Ud2 Answer "Manufacturing
M-Bus addressing Page 12/14 4.9.5 M-Bus REQ_UD2 answer “Manufacturing” N° Unit Tariff Storage Data Value Funct. VIB INT2 Inst. Model / Version Var. M2000 Inst. Model / Version Var. M2000 TMS320F2811 Inst. Model / Version Var. N-Series v1.09 Inst. Software version # Var. -
Page 13: Technical Data
Technical data Page 13/14 Technical data The ModMAG ® M-Bus module is providing a EN13757 compatible M-Bus interface to the Badger ModMAG ® M2000 flow meter Product ModMAG ® M2000 M-Bus module Power supply 2 x +5V from M2000 internal module interface (+5 V digital, +5V field) Current 1 mA from +5V digital... -
Page 14: Return Of Goods For Repair / Harmlessness Declaration
Return of goods for repair / Harmlessness declaration Page 14/14 Return of goods for repair / Harmlessness declaration Please refer to our claims return form/harmlessness declaration under www.badgermeter.de/service/return of goods. MID_M2000_BA_MB_02_1805... - Page 16 (aktiv) usgang Durchflußrichtung rückw Durchflußrichtung rückw 500 mA (passiv) tsRelais 1 Skalen- endwert Hotline Phone +49-7025-9208-0 or -30 +49-7025-9208-15 Badger Meter Europa GmbH ® Subsidiary of Badger Meter, Inc., USA Nürtinger Strasse 76 72639 Neuffen (Germany) E-mail: badger@badgermeter.de www.badgermeter.de...
