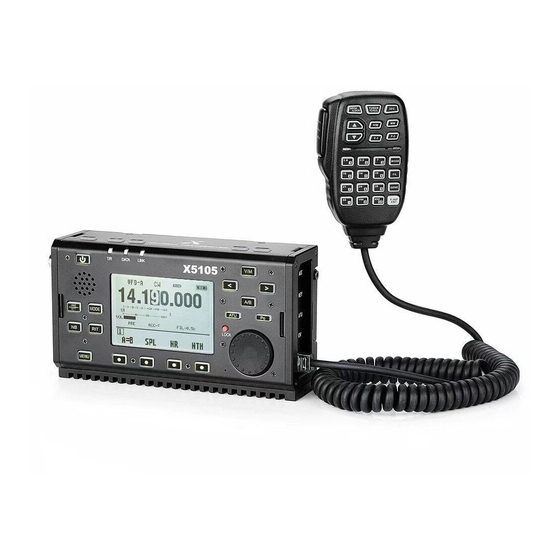

XIEGU X5105 Instruction Manual
Hf+50mhz portable hf transceiver
Hide thumbs
Also See for X5105:
- Operation manual (62 pages) ,
- Instruction manual (31 pages) ,
- Manual (21 pages)
Related Manuals for XIEGU X5105
Summary of Contents for XIEGU X5105

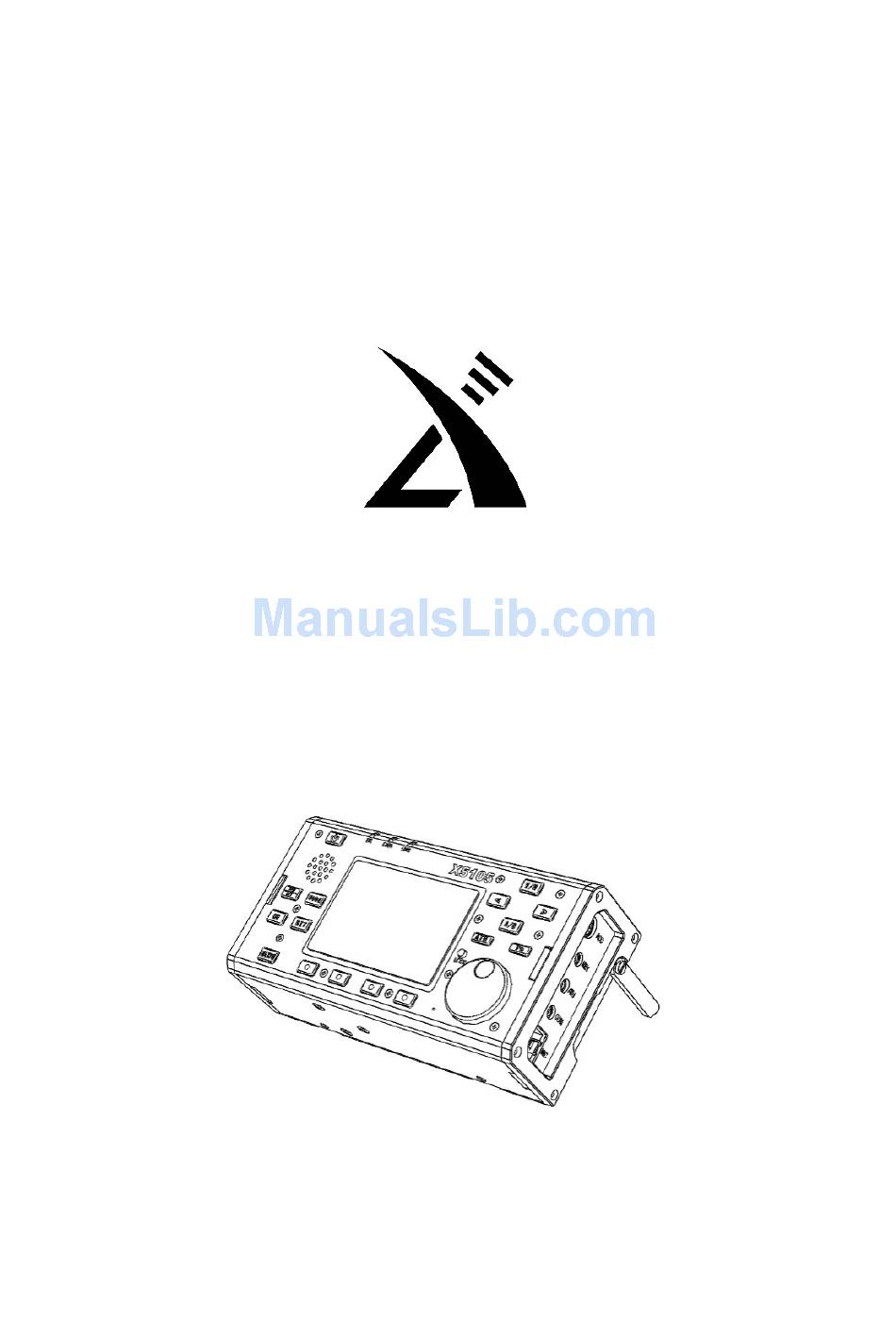

- Page 1 XIEGU COMMUNICATION X5105 HF+50MHz Portable HF Transceiver Instruction Manual Chongqing Xiegu Technology Co.,Ltd. www.cqxiegu.com...
-
Page 2: Packing List
Very small in size and ultra portable Note RF high-voltage of antenna connector! ① Packing list: ① X5105.......... 1 ② Power supply cable......1 ③ Hand microphone......1 ④ USB Cable..........1 ⑤... - Page 3 1 X5105 Specifications Basic Specifications Frequency range: Receive: 1MHz-55MHz Transmitting: 160 meters -6 meters (Amateur band only) Operating mode: A1A(CW)，A3E(AM)，J3E(USB/LSB)，F3E(FM) minimum frequency stepping: 1Hz Antenna impedance: 50Ω Operating temperature range: -10℃ ~ +60℃ Frequency stability: after turn on the radio 1-60 minutes is ± 2ppm, @25℃：1ppm/hour...
- Page 4 Receiving parameters Circuit type: double frequency conversion superheterodyne + audio DSP IF frequency: first IF: 70.455MHz second IF: 10.695MHz third IF: 455kHz（FM） Sensitivity SSB/CW 500kHz-1.8MHz 10uV 1.8MHz-28MHz 0.25uV 28MHz-30MHz 0.25uV 0.35uV 50MHz-54MHz 0.25uV 0.35uV (PRE=on，ATT=off，NB=off，NR=off，SSB/CW/AM = 10dB S/N，FM = 12dB SINAD) Image rejection: 70dB If Rejection: 60dB Selectivity: SSB：-6dB:2.4kHz/-60dB:4.6kHz...
- Page 5 Interface definition...
- Page 6 3 Charging time is 10 hours. By then, the charge will automatically stop. When the battery is powered for X5105, when the battery power is about to run out, the power indication sign on the upper right corner of the screen is displayed as .
-
Page 7: Description Of Equipment
○ 1 1 Major tuning knob The main tuning knob of X5105, can be used either for frequency regulation or for menus. ○ 1 2 ATU button When the key is pressed for a short time, the automatic antenna tuner will be connected... - Page 8 With this key, you can increase current volume. ○ 2 2 PTT button Press and hold this button, X5105 will go into the transmit state. ○ 2 3 LOCK button If you press this button for a short time, you will lock all buttons and knobs on the panel;...
- Page 9 B DATA indicator When the data signal or channel are busy, the indicator light flashes. C LINK indicator When the host is connected with the external equipment, the indicator light will shine. Function menu corresponding to 4 multi-function buttons below screen. Copy VFOA to VFOB Split On/Off Digital noise...
- Page 10 Set CW message Set CW message Set CW message 1(Press this button 2(Press this button 3(Press this button for a long time to for a long time to for a long time to enter the CW enter the CW enter the CW message content message content message content...
- Page 11 ③ IF signal output port The first IF signal is output for use by the XDT1. * XDT1 is a data terminal equipment of Xiegu. ④ External speaker / earphone interface This interface is 3.5mm stereo socket (3 line, left and right channel machine linked together), it can connect external speaker (impedance 4-16) or earphone.
- Page 12 ① ACC interface The interface is a 8PIN micro DIN interface, it can be used for external power amplifier, ALC control, PTT control, band signal transmission, it can also be used to communicate with the computer for PSK communication when the audio signal input / output. ②...
- Page 13 3.3 Operating frequency band selection The frequency range of X5105 covers 0.5~54MHz. The amateur frequencies in this range are divided into multiple frequency bands and can be switched in a number of different ways. You can complete the equipment operation according to the operation instructions...
- Page 14 Operation method: press DN or UP key to switch to the next or last operation band respectively. 3.5MHz 5.2MHz 14MHz 1.8MHz 7.0MHz 10MHz 50MHz 28MHz 21MHz 24MHz 18MHz A. The opening of the 5MHz frequency band is based on the regulations of the country (or region) where it is located.
- Page 15 B. Speaking into the built-in MIC hole, can be completed communications. 3.8 Set operating frequency There are two ways to set the X5105 operating frequency, use the big knob to set the frequency, or use the multi-function mic to set the frequency.
- Page 16 B. Use a multi-function microphone for frequency setting Press the [F-INP ENT] button on the cursor, and the X5105 enters the frequency setting. The cursor appears on the left of the frequency display bit. Enter the desired frequency value in turn, and then press [F-INP ENT] button again to complete the frequency setting.
- Page 17 3.11 Automatic gain control (AGC) By adjusting the proper recovery time parameters of the AGC automatic gain control system, the receiver can achieve the optimum state effect. Operation method: A. Switch to the second page menu, press the corresponding multi-function button to select the AGC function.
- Page 18 NR noise reduction function. 3.14 Pilot frequency operation SPL and VFOA/B setting There are two independent VFO in X5105 transceiver, which can set different frequencies and modes respectively. Set the VFO reasonably, and with the menu SPL function, you can easily achieve pilot frequency transceiver operation mode.
- Page 19 B. In the current mode, press the [V/M] button, and then switch to another mode. 3.17 Lock button operation The lock key (LOCK) can avoid the incorrect triggering of the transceiver and the microphone during outdoor operation. Operation method: A. Press the [Lock] button for a long time to start the lock. B.
- Page 20 value is 800Hz. ④ After you complete the operation, press the [SAVE] button briefly, save the new settings and exit the menu mode. Using the built-in automatic key controller makes it easy to generate CW points, with the following methods of operation: ①...
- Page 21 E. Turn the knob again, select letters, numbers, characters, and press [>] to enter the next letter position. F. Repeat fifth steps until the tag editing is complete. Press the [MENU] key for a second, save the contents of the set tag and return to the normal operating state. In channel mode, press the [MENU] button briefly, switch to the third page menu, press the TAG function key, and display the label named for this channel.
- Page 22 B. Use ACC plug (MINI-DIN8) to connect the computer audio output to X5105. The computer end is a stereo plug. C. The data line is used to connect the X5105 to the computer and to ensure that the driver is properly installed. The HRD software can control the X5105 transceiver.
- Page 23 If the product needs warranty repair within two weeks of receiving the product, XieGu will pay for the shipping both ways. After two weeks XieGu will pay only for return shipping. If the product is not covered under warranty, the customer pays for shipping both ways plus the cost of the repair.
- Page 24 3. The scanning receiver in this equipment is incapable of tuning, or readily being altered, by the User to operate within the frequency bands allocated to the Domestic public Cellular Telecommunications Service in Part 22. FCC ID: 2ANLH‐X5105 ...
- Page 25 Xiegu communication www.cqxiegu.com...
