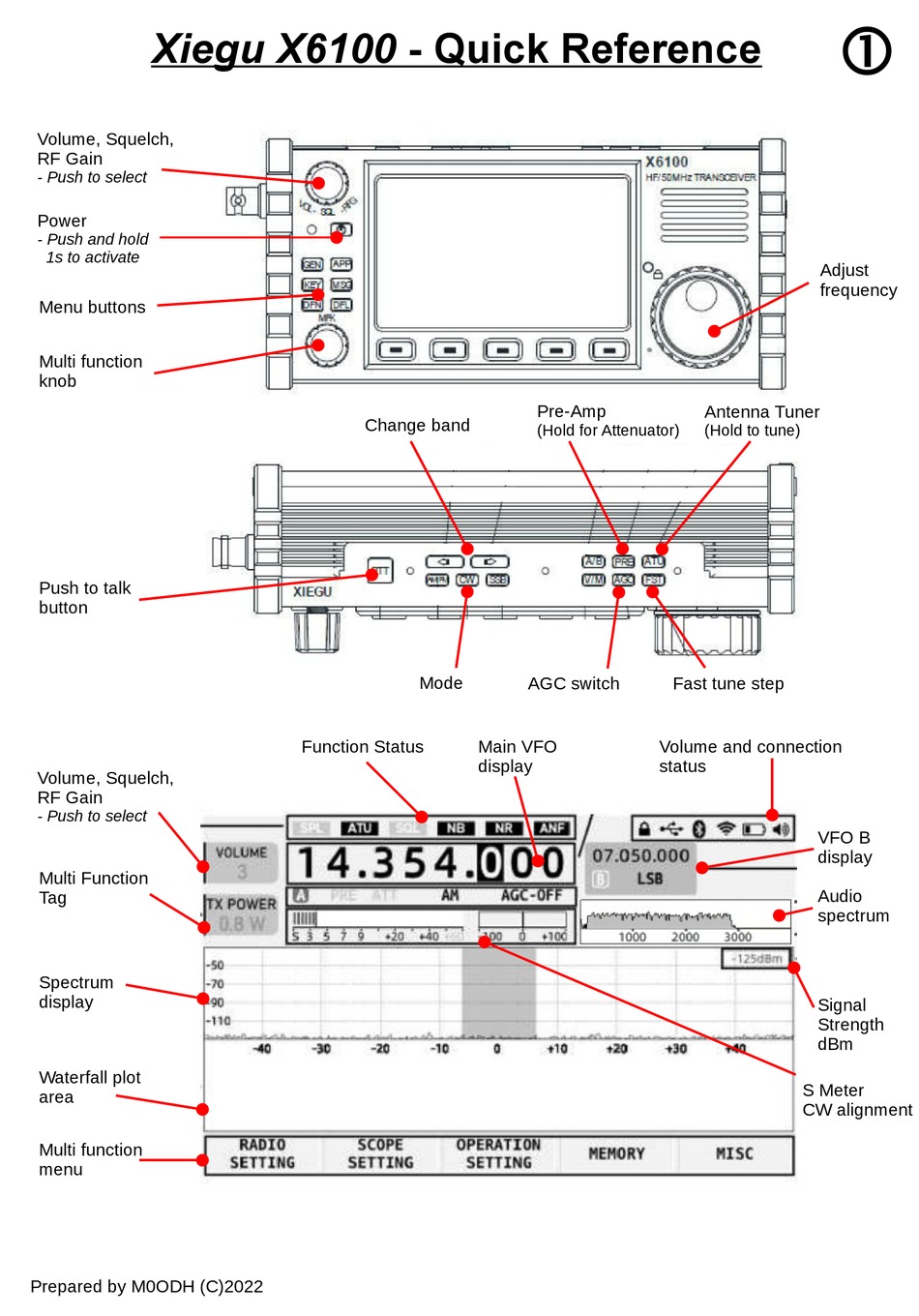

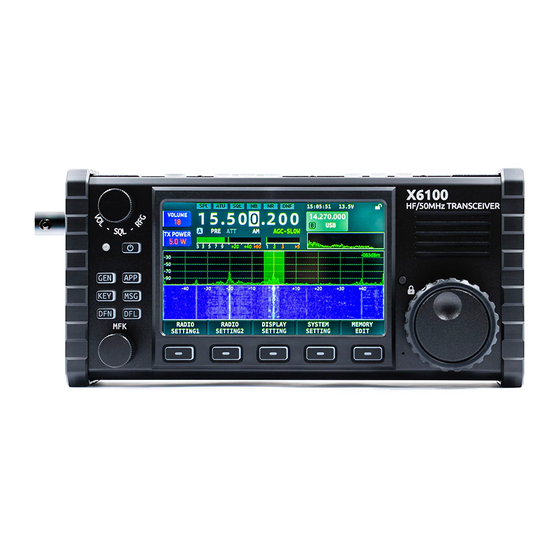

Xiegu X6100 - Quick Reference
Volume, Squelch,
RF Gain
- Push to select
Power
- Push and hold
1s to activate
Menu buttons
Multi function
knob
Push to talk
button
Volume, Squelch,
RF Gain
- Push to select
Multi Function
Tag
Spectrum
display
Waterfall plot
area
Multi function
menu
Prepared by M0ODH (C)2022
Change band
Mode
Function Status
Pre-Amp
(Hold for Attenuator)
AGC switch
Main VFO
display
Adjust
frequency
Antenna Tuner
(Hold to tune)
Fast tune step
Volume and connection
status
VFO B
display
Audio
spectrum
Signal
Strength
dBm
S Meter
CW alignment
