XIEGU X108G Operating Manual

Hide thumbs Also See for X108G:

Advertisement

Quick Links

Download this manual See also: Service Manual
HFTRANSCEIVER
X108G
Operating Manual
XIEGU TECH
V1.01A
Outdoor Version
Revise: 2016-1
Copyright © 2016, XIEGU, Inc.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the X108G and is the answer not in the manual?

Questions and answers

Related Manuals for XIEGU X108G

Summary of Contents for XIEGU X108G

  • Page 1 HFTRANSCEIVER X108G Operating Manual XIEGU TECH V1.01A Outdoor Version Revise: 2016-1 Copyright © 2016, XIEGU, Inc.

  • Page 2: All Rights Reserved

    All Rights Reserved Security considerations: Important reminder: Before operating the equipment, please read our operating manual carefully and keep the manual, so as not to lose. Do not use equipment during a lightning Features: storm. noise, single conversion transceiver .Double balanced diode mixer for extended dynamic range.
  • Page 3 一、Specification’s Basic specifications Frequency range: Receive:0.5~30MHz （ Continuous ） Transmitting: All HF Amateur bands including WARC bands Operating mode: SSB（J3E） CW （A1A） AM （A3E） minimum frequency stepping: 1Hz Antenna impedance: 50Ω Operating temperature range: -10℃ ~ +60℃ Frequency stability: ±0.5ppm @ Open the power about 5 minute , -10℃~+60℃ Operating voltage: 12~14.5V DC Current draw: Receiving:...

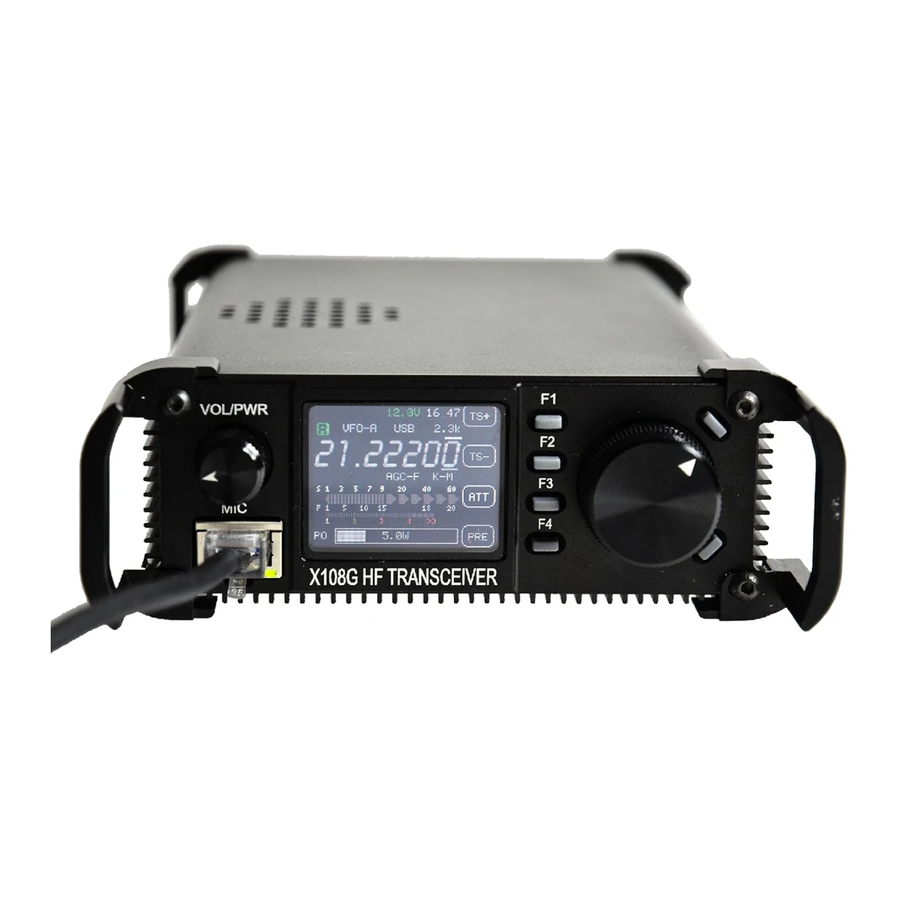

  • Page 4 Dynamic range:Better than 90db RIT Frequency controlrange: ±1kHz audio output: 0.5W@8Ω 二、 Description of equipment 2.1Front panel Description 1. Metal handle 2. Power switch/Volume knob 3. Color OLED display screen 4. Microphone port 5. UP Key 6. Multi-function Key 7. Main knob 8.
  • Page 5 2.3 Microphone 1. Lock button/Press it unlock again 2. PTT button 3. Up / Down frequency/channel 4. Receiving indicator 5. Multifunction 6. Filter selection buttons 7. Mode selection button 8. No indication 9. F1/F2 Custom set key 10. Memory write button 11.
  • Page 6 【AGC】 Select AGC level – FAST/SLOW/OFF. 【NB】 Select NB level between 1 and 4. 【A/B】 Switch between VFO A & VFO B. 【A=B】 Set VFO A the same as VFO B. 【SPLT】 Select SPLIT operating mode. 【RIT】 Select RIT mode – adjust via selector knob B,setting shown on RIT display in OLED. 【POW】...
  • Page 7 【SQL】 Select to adjust Squelch level via selectorknob B, level shown on line display in OLED. voice compression settings 【VCMP】 3.2.2: Mode Switching Method 1: Press the frequency knob to switch the current menu page, then press [MODE].Press corresponding multifunction button, to complete mode switching. Method 2: On the multifunction digital microphone in hand, press to complete the mode switching.
  • Page 8 When the attenuator is on, ATT will be highlighted green. When the attenuatoris off, ATT will appear dark. The attenuator provides 10 dB attenuation. 3.2.6: Automatic Gain Control on/off Press the frequency knob to switch the current menu page, then press [AGC]. AGC options are Fast or Slow with the screen showing the current status.
  • Page 9 Press the frequency knob, switch to the [POW] menu page, then pressing the corresponding function key, you can enter the transmit power settings.At this point, the power set on the screen will display Po, press [UP/DOWN] key, you can change the transmission power value and save it.

  • Page 10: Extended Interface

    3.2.18: Automatic telegraph key rate Press the frequency knob, switch to [KSPD] menu page, then pressing the corresponding function key, press the [UP/DOWN] key， set the automatic key rate. 3.2.19: Set the local time Press the frequency knob to switch the current menu page, then press [TIME]. Then press the corresponding number keys on the microphone to set the local time.
  • Page 11 【AUX】No function 【SPK】External speaker output Speaker or Headphone(3.5 stereo Socket); Otherwise it will damage the rig. Before using the headphone, please decrease the volume. 【KEYER】TelegraphKey The telegraph key is automatic and manual integration.You can switch in the menu. 【ACC】ACC port Pin Definitions 1：...

  • Page 12: Advanced Menu Settings

    All firmware updates and changes to settings are done at owners risk and may void warranty. All firmware updates and changes to settings are done at owners risk and may void warranty. Please use the firmware which be provided by Xiegu. ease use the firmware which be provided by Xiegu.
  • Page 13 In the shutdown state, press and hold the F1 key on the host and turn on (note, do not release) until the screen displays the data of the engineering menu, as shown below: 1. IF SSB: SSB IF 2. IF CW: CW IF 3.
  • Page 14 When buyer from the point of sale who has obtained the authorization of XIEGU to buy our products, in more than two weeks and within a year, if host, multifunctional microphone, shell structure of the host, the USB data lines, power lines appear the performance fault of non-human damage, the buyer have the right to enjoy free repair service.
  • Page 15 E． Product’s serial number, after sales service card serial number does not correspond, missing, is torn or blurred; F． Products belong to seller who did not obtain the authorization of XIEGU. Meet one of the following conditions, it does not belong to the scope of the warranty: Damage caused by improper use of the user；...
  • Page 16 Note Contact us: Xiegu official website: http://www.cqxiegu.com/index.php?route=common/home XIEGU authorized distributor’s list: http://www.cqxiegu.com/index.php?route=information/information&mid Xiegu Tech...
  • Page 17 XIEGU TECH 无线科技，无限创造 www.cqxiegu.com...
