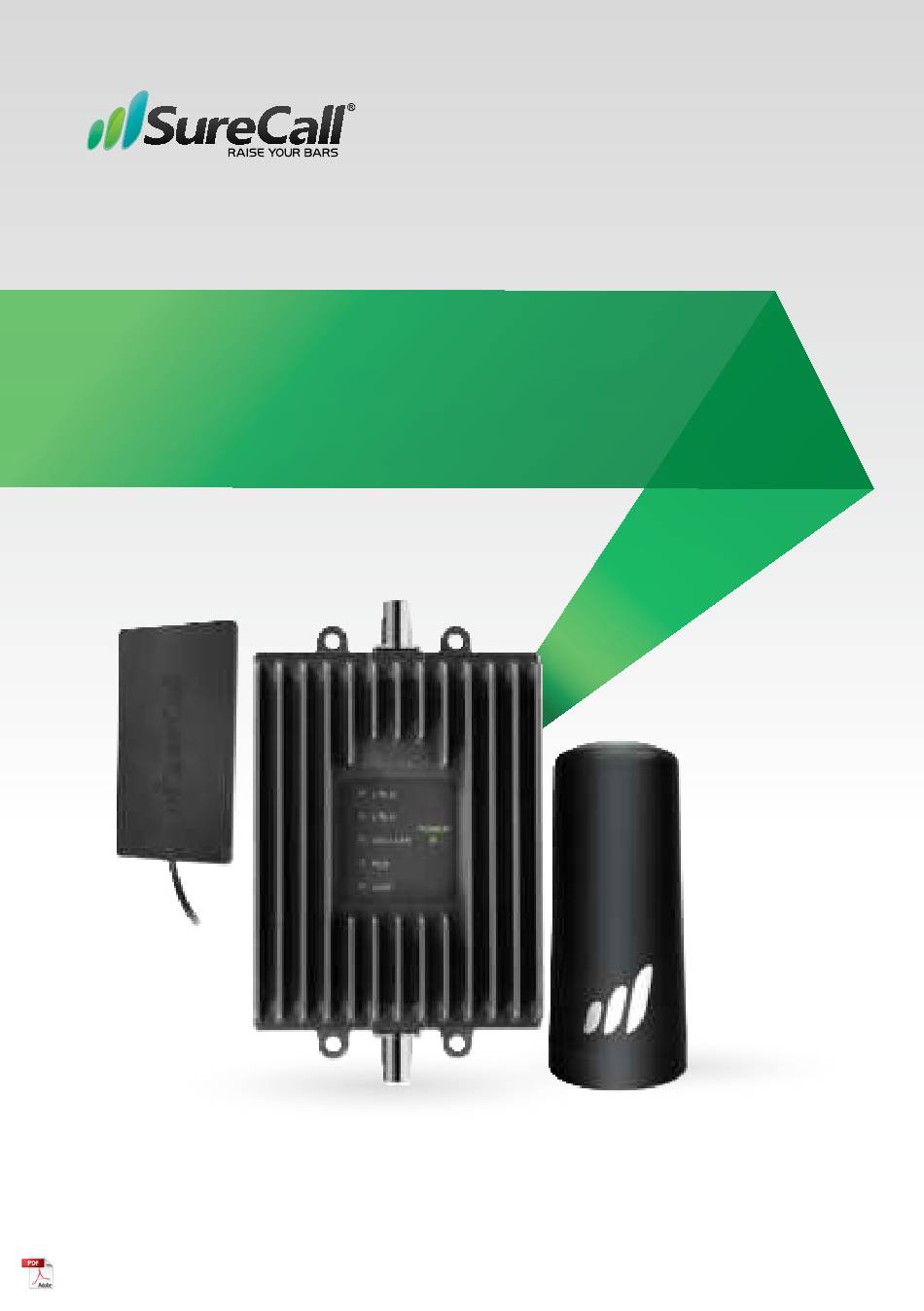

- Page 1 Fusion2 Go 3.0 Fleet ™ Vehicle Voice and 4G LTE Data Signal Booster U se r M a nua l 05.30.2019...
-
Page 2: Table Of Contents
SureCall Fusion2Go 3.0 Fleet Thank you for purchasing SureCall’s Fusion2Go 3.0 cell phone signal booster kit. Fusion2Go 3.0 Fleet provides enhanced voice, text and 4G data signal for any vehicle. If you have any questions during setup, please reach out to our US-based experienced support technicians: •... -
Page 3: How It Works
SureCall Fusion2Go 3.0 Fleet How It Works The SureCall Fusion2Go 3.0 Fleet is a high-quality bidirectional booster that enhances cellular signals for vehicles. The Fusion2Go 3.0 Fleet works with two antennas: • An inside antenna that communicates with your cell phone. -
Page 4: Package Contents
Purchase Date: ________________________________________________________________ • Keep the carton and packing material to store the product in case you need to return it. Your Fusion2Go 3.0 Fleet signal booster package includes the following items: One SureCall Fusion2Go 3.0 signal booster 12v Hardwire power supply... -
Page 5: Step 1: Mount Outside Antenna
SureCall Fusion2Go 3.0 Fleet Step 1: Mount Outside Antenna Identify a location on the vehicle’s roof that (1) has at least a 12-inch radius clear of obstructions and other radiating elements, such as a radio antenna and (2) at least 6 inches away from any windows. -
Page 6: Step 2. Install The Inside Patch Antenna
SureCall Fusion2Go 3.0 Fleet Step 2. Install the Inside Patch Antenna Identify a location for the inside antenna on or near your front dashboard that is Within 2-3 feet of the typical cell phone location At least 8 inches (20cm) from cellular devices and... -
Page 7: Step 4. Connect Power
SureCall Fusion2Go 3.0 Fleet Step 4. Connect Power Before and while wiring the power supply, disconnect vehicle battery. Hardwire installation requirements vary by vehicle. The following is only a general guide. Check with your manufacturer’s vehicle for specific electrical placement or requirements. -
Page 8: Led Indicators
SureCall Fusion2Go 3.0 Fleet LED Indicators Place a call in a location you have previously experienced poor signal and confirm that your phone is receiving a boosted signal. Normal operation is indicated by Green LEDs (both flashing and solid). In the event Red LEDs appear, antenna adjustments may be needed. -
Page 9: Specifications
SureCall Fusion2Go 3.0 Fleet Specifications Product Fusion2Go 3.0 Fleet Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included) Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included) 50 Ω... -
Page 10: Antenna Kitting Information
*All equivalent antennas and cables are suitable for use with the Fusion2Go 3.0 * Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. - Page 11 SureCall Fusion2Go 3.0 Fleet PreAGC PreAGC Pulse GSM 4.1 MHz AWGN Frequency Input Output Gain Input Output Gain (MHz) (dBm) (dBm) (dB) (dBm) (dBm) (dB) Uplink: 1710-1755 -27.2 20.0 47.2 -25.3 20.7 46.0 Uplink: 1850-1915 -25.6 20.9 46.5 -25.9 19.6 45.5...
-
Page 12: Consumer Guidelines
SureCall Fusion2Go 3.0 Fleet Consumer Guidelines This is a CONSUMER device BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. -
Page 13: Three-Year Product Warranty
Buyers may obtain an RMA number for warranty returns by calling the SureCall Return Department toll-free at 1-888-365-6283. Any returns received by SureCall without an RMA number clearly printed on the outside of the shipping container will be returned to sender. In order to receive full credit for signal boosters, all accessories originally included in the signal booster box must be returned with the signal booster. - Page 14 48346 Milmont Drive Fremont, California 94538, USA 888.365.6283 www.surecall.com...
