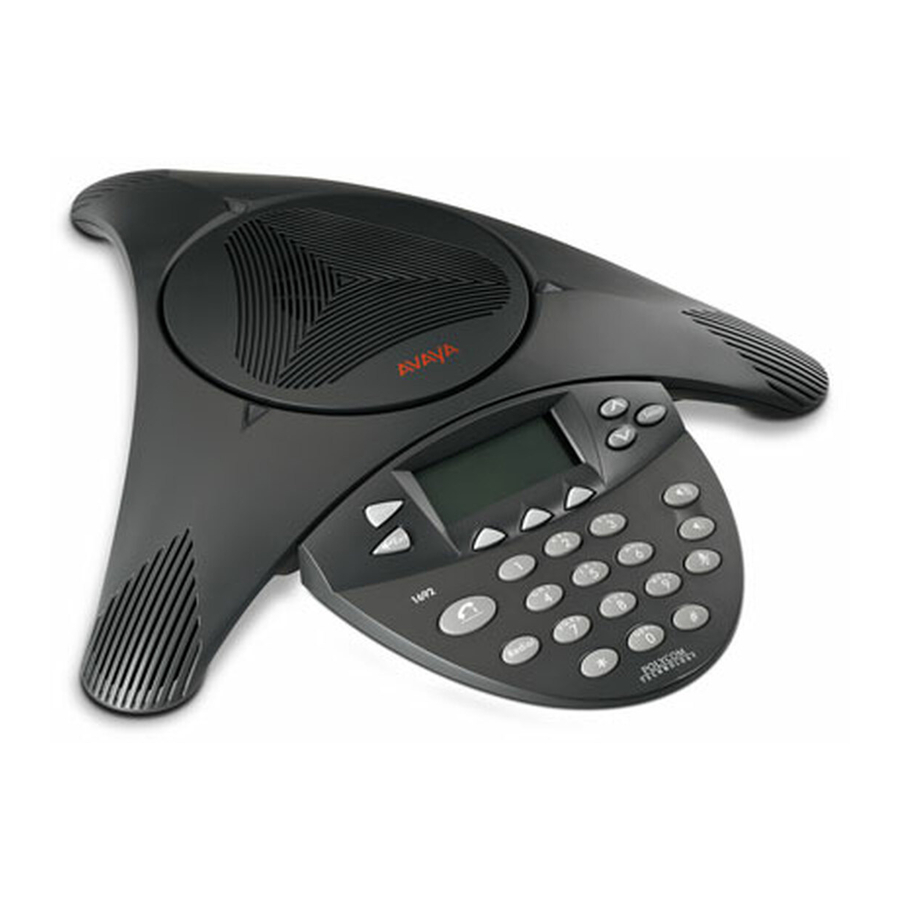

Avaya 1692 IP Conference Telephone
Quick Start Guide for Installation,
Configuration, and Software Upgrades
(R1.1)
















16-603718
Issue 1
October 2010

Advertisement

Table of Contents
loading

Related Manuals for Avaya 1692 IP

Summary of Contents for Avaya 1692 IP

  • Page 1   Avaya 1692 IP Conference Telephone Quick Start Guide for Installation, Configuration, and Software Upgrades (R1.1)             16-603718                   Issue 1 October 2010...
  • Page 2 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Issue 1, September 2010...
  • Page 3 FROM AVAYA INC., ANY AVAYA AFFILIATE, OR AN express written consent of Avaya can be a criminal, as well as a AUTHORIZED AVAYA RESELLER (AS APPLICABLE) UNDER civil, offense under the applicable law.
  • Page 4 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Preventing toll fraud Avaya are the parties. Users are not permitted to use such “Toll fraud” is the unauthorized use of your telecommunications Marks without prior written consent from Avaya or such third system by an unauthorized party (for example, a person who is party which may own the Mark.

  • Page 5: Table Of Contents

    Static configuration with no file server ..............12 Static configuration with file server ..............12 DHCP server requirements.................. 12 Configuring the Avaya 1692 IP Conference Phone ..........13 Overview ......................13 Automatic (DHCP) Configuration ................. 13 Procedure for Static Configuration............... 14 Upgrading ......................19...

  • Page 6: Installation

    Avaya 1692 IP Conference Phone ‐ 25 foot Cat 5 Network cable Additional Accessories The following items are additional products for your Avaya 1692 IP Conference Phone. They may be purchased by contacting your Avaya Service Representative. ‐ AC Power Kit with:...

  • Page 7: 1692 Features And Key Map

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide 1692 Features and Key Map   Component Description Select a highlighted item from a menu or Select Key list. Up/Down Scroll Keys Access call appearances or scroll through displayed menus or lists.

  • Page 8: Initial Setup

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Initial Setup This section describes how to install your conference phone and the optional extension microphones. Connecting Network and Power Sources Your conference phone can obtain power from either the network through the network cable, called Power over Ethernet (PoE), or from an AC adapter.

  • Page 9: Ac Power

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide AC Power To connect your phone to the network using AC power, you will need to purchase the optional AC Power Kit. The following diagram shows how to connect your phone to the network using optional AC power.
  • Page 10 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Connect the free end of the extension microphone cable to one of the microphone connectors on the bottom side of the conference phone. You will repeat this for the second microphone.

  • Page 11: Configuration

    1692 IP address, subnet mask, and router. Note that a file server is required to upgrade the firmware on the phone. DHCP server. When configuration values are set locally as in #1 above, DHCP is disabled and this step is bypassed.

  • Page 12: Static Configuration With No File Server

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide by the phone. The phone will copy files from and write files to the file server directory. If network access configuration prevents copying or writing files there may be issues including an inability of the 1692 to complete the boot process and register successfully.

  • Page 13: Configuring The Avaya 1692 Ip Conference Phone

    The Directory path can include sub-directory structure. Avaya 1692 supports DHCP SSON 242 by default. It can be configured to any other value as per DHCP standards. Configuring the Avaya 1692 IP Conference Phone...

  • Page 14: Procedure For Static Configuration

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Once the phone has booted, you will be prompted for the Avaya call server extension and password to complete the registration process. If the file server type is something OTHER than HTTP a new phone cannot be upgraded and will not access the 46xxsettings file without manual intervention.
  • Page 15 NOTE: If the 1692 phone does not find an Avaya Communication Manager, the phone will display “Discovering <Call Server IP address>” and will stay in this mode until the connection issue is resolved and the phone is rebooted.
  • Page 16 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Enter the File Server type NOTE: Type 2 – HTTP is the default setting (starting with R1.1.) NOTE: If you select FTP, the following two screens will appear so you can enter the FTP ID and Password.
  • Page 17 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide NOTE: Options are 0-4095. Both 0 and 4095 are restricted to data VLAN NOTE: This is the value for VLAN tagging packets being sent by the phone and packets to be accepted by the phone.
  • Page 18 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide b. Enter the EAP Password. Save all the options you have selected The conference phone will reboot automatically. Issue 1, September 2010...

  • Page 19: Upgrading

    NOTE: If downloading files from a Microsoft IIS file server you must register “.cfg” and “.ID” files as new MIME-Types ‘text/plain’. Download the upgrade file in zip or tar format from the Avaya web site. www.avaya.com/support Clear the previous versions of code used exclusively by the 1692 conference phones.
  • Page 20 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide The directory should look like this: The 1692upgrade.txt file contains the lines noted below. Do NOT modify this file in any way. SET APPNAME 1692_000xxx.bin GOTO 46xxsettings.txt A 46xxsetttings.txt file must exist in your deployment environment if you wish to use a language other than the English default.

  • Page 21: Software Upgrade Procedure

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Software Upgrade Procedure NOTE: Always ensure power is available to the phone throughout the entire upgrade procedure. Do not unplug the phone during this procedure. Please be aware that the entire upgrade procedure can take up to 15 minutes.
  • Page 22 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide The new application software starts to load. Note: This process will take up to five minutes Note: This process will take up to 10 minutes The new software is activated.
  • Page 23 Telephone and the Call Server - The telephone is an H.323 station and the call server is the Avaya Communications Manager In this step, the telephone and the call server exchange a series of messages, which cause the display on the telephone to prompt the user.

  • Page 24: Appendix A: Dhcp Scope Options

    Avaya Communications Manager Gatekeeper IP address(es) H.323 only. • Avaya Communications Manager Gatekeeper port H.323 only. Although this can be a value between 0 and 65535, the default value is 1719. Do not change the default value unless that value conflicts with an existing port assignment.
  • Page 25 Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide A new window will appear as shown below. Check Option 242. Enter the Required String into the provided text box. Example: MCIPADD=x.x.x.x, MCPORT=1719,TFTPSRVR=y.y.y.y Click OK to save. Issue 1, September 2010...

  • Page 26: Win-2003 Server - Dhcp Scope Creation

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide The screen below shows Scope Option 242 configuration for VLAN-14 The screen below shows the Scope Option 242 configuration for Data VLAN i.e. VLAN-148 Win-2003 server – DHCP scope creation.

  • Page 27: Appendix B: Factory Defaults

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Appendix B: Factory Defaults Factory Defaults NOTE: Mute/CLEAR (25327) resets the 1692 phone to factory defaults. Conference Phone IP Address 0.0.0.0 Call Server IP Address 0.0.0.0 Call Server Port...

  • Page 28: Appendix C: Power Classification

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Appendix C: Power Classification The 1692 IP Conference Phone is an 802.3af Power Class 3 device. The information below provides background details on this classification. Conference Typical – Phone...

  • Page 29: Appendix D: Language Options

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Appendix D: Language Options Language options are configured using 46xxsettings.txt file. The language is loaded when the 1692 phone queries the file server for a copy of this file.

  • Page 30: Appendix E: Troubleshooting

    Avaya 1692 IP Conference Phone Installation, Configuration and Software Upgrade Guide Appendix E: Troubleshooting If the 1692 connects to the defined file server, the reboot time will only take two minutes. If it cannot connect to the file server, the reboot time will take 10 minutes.
