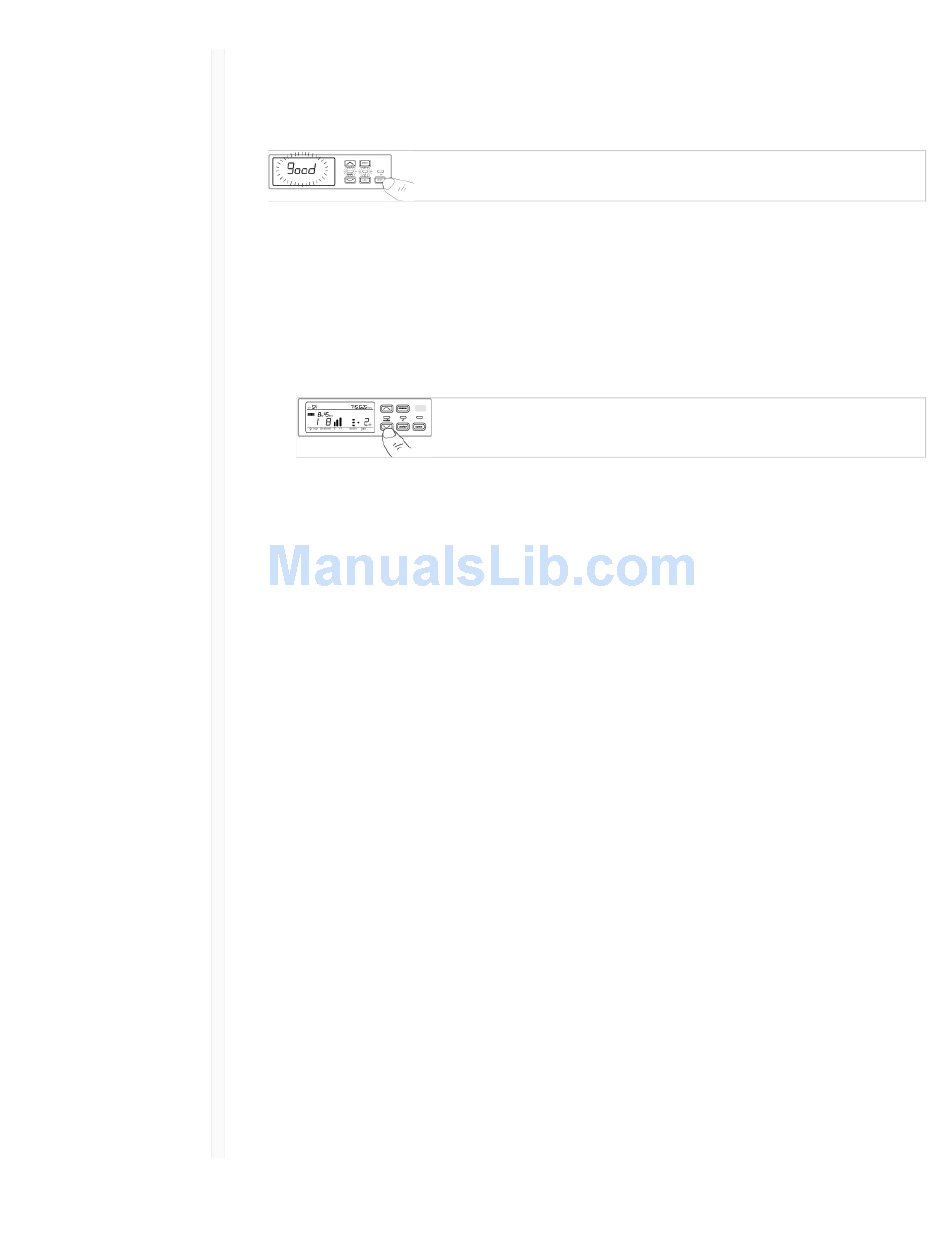

4. sync good appears on the display when IR sync is complete. The blue rf LED will illuminate
indicating that the transmitter is within range of the receiver.
Note: If the IR sync fails, repeat the IR sync procedure, carefully maintaining alignment between
the IR windows of the transmitter and receiver.
Step 5: Sound Check and Gain Adjustment
1. Test the transmitter at performance levels while monitoring the audio meter and the audio LED.
The audio meter should display at least 3 bars and the audio LED should be green. Reduce the
gain if there is audible distortion of the audio.
2. Increase or decrease the gain if necessary by pressing the arrow buttons on the receiver front
panel.
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, the belt should be pressed against the base of the clip.
