Summary of Contents for Shure SLXD4
- Page 1 SLXD4 Shure SLX-D Digital Wireless Shure SLX-D Digital Wireless quick start guide: how to set up receiver, check sound and gain, and see groups and channels. Version: 5.0 (2023-K)
-
Page 2: Table Of Contents
Shure Incorporated Table of Contents Set Up the Receiver SLXD4 Shure SLX-D Digital Wireless Install Transmitter Batteries IMPORTANT SAFETY INSTRUCTIONS What are Groups and Channels? Using the Guided Frequency Setup WARNING Manual Frequency Selection Important Product Information Sound Check and Gain Adjustment... -
Page 3: Slxd4 Shure Slx-D Digital Wireless
Shure Incorporated SLXD4 Shure SLX-D Digital Wireless IMPORTANT SAFETY INSTRUCTIONS READ these instructions. KEEP these instructions. HEED all warnings. FOLLOW all instructions. DO NOT use this apparatus near water. CLEAN ONLY with dry cloth. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer’s instructions. -
Page 4: Warning
Important Product Information LICENSING INFORMATION Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability de pends on the user’s classification and application, and on the selected frequency. Shure strongly urges the user to contact the ... -
Page 5: System Components

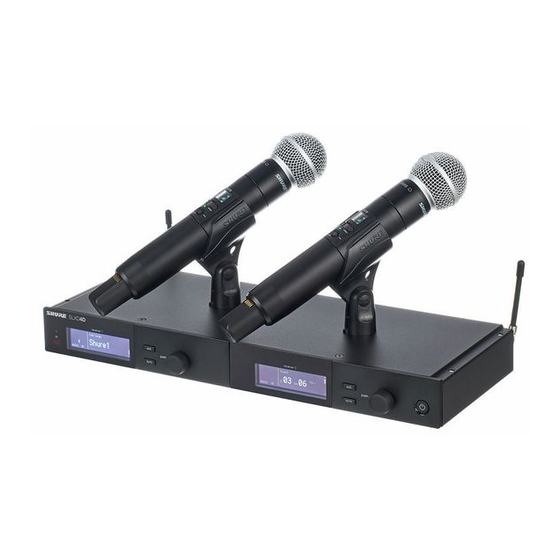

เครื ่ อ งโทรคมนาคมและอุ ป กรณ์ น ี ้ ม ี ค วามสอดคล้ อ งตามมาตรฐานหรื อ ข้ อ กำหนดทางเทคนิ ค ของ กสทช. System Components All systems include: ① Rack mounting hardware ② ¼-wave antennas (2) ③ Power supply ④ 1.5V AA batteries (2) ⑤ SLXD4 or SLXD4D receiver 5/14... - Page 6 Shure Incorporated Guitar system includes: ⑥ ¼" to mini 4-pin guitar cable ⑦ SLXD1 bodypack transmitter 6/14...
- Page 7 Shure Incorporated Vocal system includes: ⑧ Microphone clip ⑨ ® ® ™ ™ SLXD2 handheld transmitter with microphone cartridge (choice of SM58 , SM86, Beta 58A , Beta 87A , Beta 87C , or KSM8/B*) *KSM8/B availability depends on region.
-
Page 8: Set Up The Receiver
Shure Incorporated ⑫ SM35 headset microphone ⑬ ™ Beta 98H/C instrument microphone ⑭ MX153 earset headworn microphone Combo system includes: ⑦ SLXD1 bodypack transmitter ⑨ Handheld transmitter with SM58 microphone head ⑪ WL185 lavalier microphone Set Up the Receiver Attach the included antennas to the back of the receiver. -
Page 9: Install Transmitter Batteries
Press the power button on the receiver. Use the menu to set the system to microphone (mic) or instrument (line) level as appropriate. Install Transmitter Batteries Important: To avoid damaging transmitters, only use Shure SB903 Li-ion rechargeable batteries or 1.5V AA batteries. Bodypack: Push the tab up and open the battery door to access the battery compartment. -
Page 10: What Are Groups And Channels
Replace the battery cover. What are Groups and Channels? To minimize interference, Shure wireless systems organize RF bands into predefined groups and channels. A group is a set of compatible frequencies within a frequency band. A single frequency within a group is a channel. Tune a receiver and trans mitter to the best available channel within its group to set up your system. -
Page 11: Using The Guided Frequency Setup
Shure Incorporated Turn off all transmitters for the systems you are setting up. This prevents them from interfering with the frequency scan. Turn on the following devices so they are operating as they would be during the presentation or performance. This will allow the scan to detect and avoid any interference from these devices: •... -
Page 12: Manual Frequency Selection
Shure Incorporated Push the control knob and select 1. Frequency Setup > 1.1 Guided Frequency Setup. Select Add Receiver to My System. To change the group, rotate the control knob to select G:, push to select, rotate to change the number, push again to confirm. Select start scan. After the scan completes, push the control knob to apply the receiver channel. -
Page 13: Sound Check And Gain Adjustment
Navigate to the receiver's Gain screen to test the transmitter at performance levels. Adjust the gain to keep the audio indicator within the optimal range. Reduce the gain if there is audible distortion of the audio. More Information Available Online A comprehensive online user guide is available at pubs.shure.com. Certifications Information to the user This device complies with part 15 of the FCC Rules. - Page 14 This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking. CE Notice: Hereby, Shure Incorporated declares that this product with CE Marking has been determined to be in compliance with European Union requirements. The full text of the EU declaration of conformity is available at the following site: https:// www.shure.com/en-EU/support/declarations-of-conformity.
