Transmitter Menu Options and Navigation

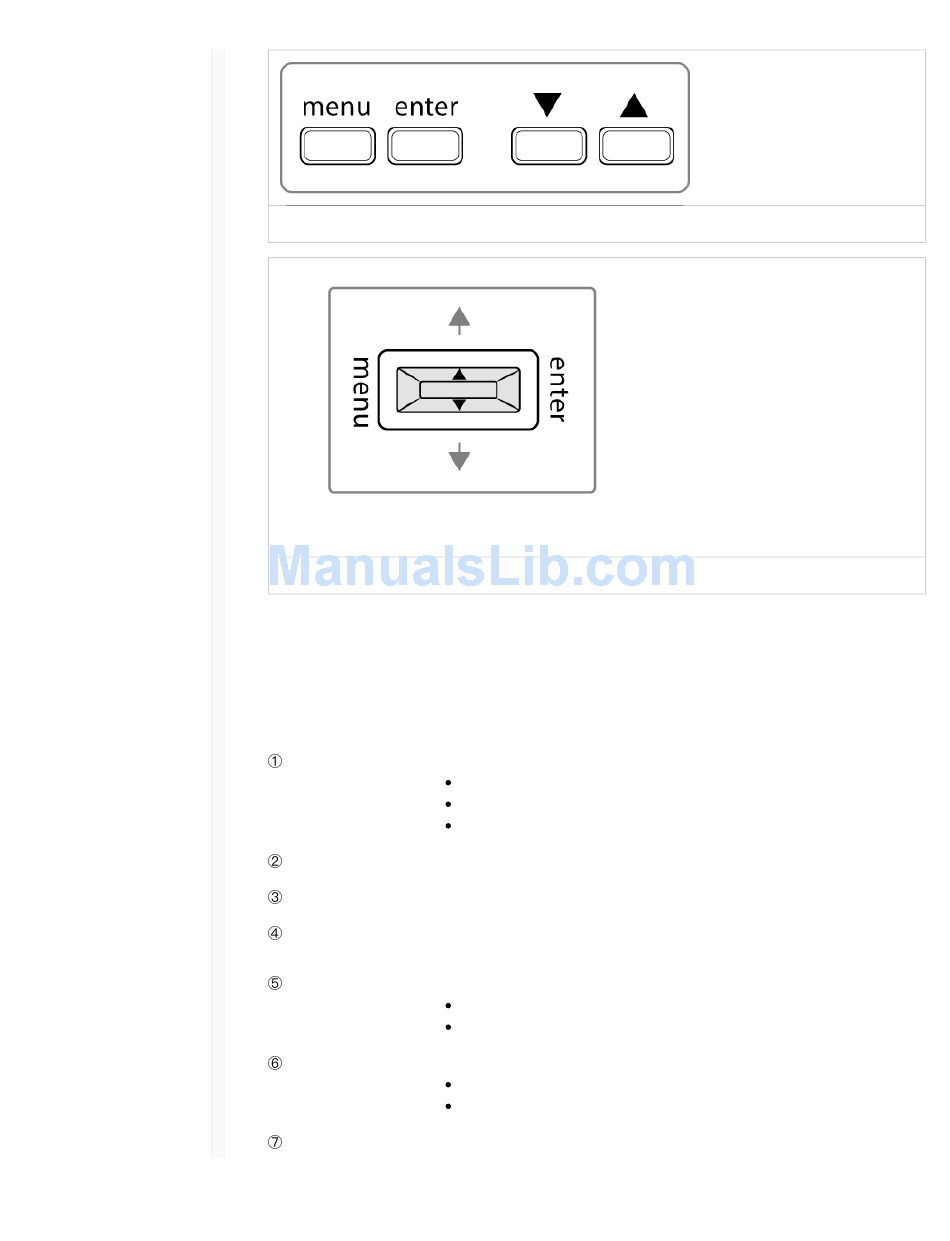

The transmitter features individual menu screens for setting up and adjusting the transmitter. To access
the menu options from the home screen, press the menu button. Each additional press of the menu
button advances to the next menu screen.
Home Screen Use the arrow keys to select one of the following home screen displays:
group Use the arrow buttons to scroll through the groups.
channel Use the arrow buttons to scroll through the channels.
frequency Use the arrow buttons to adjust the frequency. Press and hold for faster
scrolling.
lock Select a lock option:
rf power Select an rf power setting:
mic offset dB Use to match audio levels between two transmitters used in a combo
Bodypack
Handheld
Battery Icon/group and channel
Battery Icon/frequency
Battery Icon/Battery Runtime (SB900 installed)
On = controls locked
OFF = controls unlocked
Lo = 1 mW
Hi = 10 mW
