Page 1: User Guide

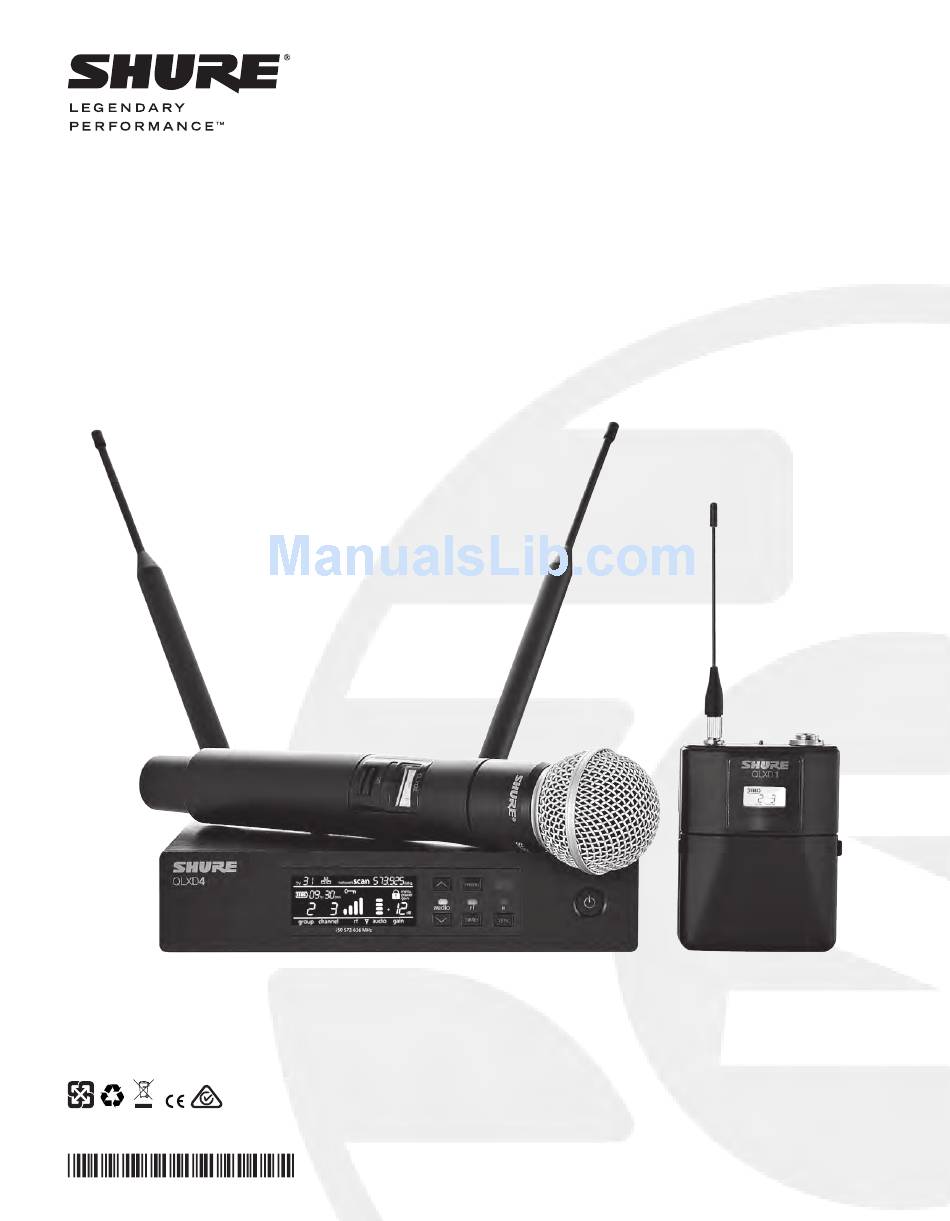

WIRELESS SYSTEM QLX-D USER GUIDE Le Guide de l’Utilisateur Bedienungsanleitung Manuale d’uso Guia del Usuario Guida dell’Utente Руководство пользователя © 2014 Shure Incorporated Printed in U.S.A 27A22352 (Rev. 2) Gebruikershandleiding... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 14. REFER all servicing to qualified service personnel. Servicing is required when the ap- paratus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been READ these instructions. -
Page 3: Istruzioni Importanti Per La Sicurezza
ISTRUZIONI IMPORTANTI PER LA SICUREZZA 13. Durante i temporali o in caso di inutilizzo prolungato dell'apparecchio, SCOLLEGATELO dalla presa di corrente. 14. Per qualsiasi intervento, RIVOLGETEVI a personale di assistenza qualificato. È neces- LEGGETE queste istruzioni. sario intervenire sull'apparecchio ogniqualvolta è stato danneggiato, in qualsiasi modo; CONSERVATELE. -
Page 4: Важные Инструкции По Технике Безопасности
ВАЖНЫЕ ИНСТРУКЦИИ ПО ТЕХНИКЕ БЕЗОПАСНОСТИ 13. ОТСОЕДИНЯЙТЕ прибор ОТ СЕТИ во время грозы или если он не используется длительное время. ПРОЧИТАЙТЕ эти инструкции. 14. ПОРУЧИТЕ все обслуживание квалифицированному техническому персоналу. СОХРАНИТЕ эти инструкции. Обслуживание требуется при каком-либо повреждении прибора, например, при ОБРАЩАЙТЕ... - Page 5 • Do not short circuit; may cause burns or catch fire • Ne pas court-circuiter ; cela risque de causer des brûlures ou un incendie • Do not charge or use battery packs other than Shure rechargeable batteries • Ne pas charger ou utiliser des accus autres que les accus rechargeables Shure •...
- Page 6 60°C (140°F) ni incinere erhitzen oder verbrennen. • Siga las instrucciones del fabricante • Die Anweisungen des Herstellers befolgen. • Utilice únicamente el cargador Shure para cargar las baterías • Nur Shure-Ladegerät zum Aufladen von wiederaufladbaren Shure- recargables Shure. Akkus verwenden.
- Page 7 A licença do equipamento de dall'applicazione e dalla frequenza selezionata. La Shure microfone sem fio da Shure é de responsabilidade do usuário e suggerisce vivamente di rivolgersi alle autorità competenti per a licença depende da classificação e aplicação do usuário e da le telecomunicazioni riguardo alla concessione della licenza freqüência selecionada.
- Page 8 In Nederland а также от выбранной частоты. Компания Shure настоятельно is in de band 470 tot 790 Mhz geen vergunning nodig. Shure рекомендует пользователю, прежде чем выбирать и заказывать raadt de gebruiker dringend aan contact op te nemen met de частоты, обратиться...
-
Page 9: System Overview
Shure digital wireless technology enables QLX-D to transmit clearly detailed audio with extended, virtually flat frequency response. Designed to be highly RF spectrum efficient, QLX-D can operate more than 60 compatible channels simultaneously in a single frequency band. Automatic channel scan and IR sync make finding and assigning an open frequency quick and easy. -
Page 10: Quick Start
Press the side tabs on the bodypack or unscrew the - AA Batteries: Place batteries (note polarity markings) and AA Adaptor as shown - Shure SB900 Battery: Place battery as shown (note polarity markings), remove AA Adaptor from cover on the handheld as shown to access the battery bodypack transmitter, stow AA Adaptor in door for handheld transmitter compartment. -
Page 11: Receiver Front And Back Panels
Receiver Front and Back Panels 6 7 8 9 ① Display ⑦ Menu Button - Press to access or select menu screens Shows menu options, receiver and transmitter settings. - Press to cancel pending changes ② Arrow Buttons - Press and hold to return to the home screen Adjust gain setting or change menu parameters. -
Page 12: Setting The Aa Battery Type
- AA Batteries: Place batteries (note polarity markings) and AA Adaptor as shown Press the side tabs on the bodypack or unscrew the - Shure SB900 Battery: Place battery as shown (note polarity markings), remove AA Adaptor cover on the handheld as shown to access the battery from bodypack transmitter, stow AA Adaptor in door for handheld transmitter compartment. -
Page 13: Transmitter Display
Use to set the battery type to match the installed AA battery type to ensure accurate battery metering. Menu is not • To increase, decrease or change a parameter, use the arrow buttons displayed when Shure SB900 batteries are installed. • To save a menu change, press enter •... -
Page 14: Receiver Display
⑧ Frequency Setting When the transmitter is powered by Illuminates to indicate which antenna is active. Selected frequency (MHz). a Shure SB900 rechargeable battery, ④ RF Signal Meter remaining runtime is displayed in ⑨ Encryption Status Number of bars displayed corresponds to RF signal hours:minutes. -
Page 15: Aa Batteries And Transmitter Runtime
0:20 to 0:00 Shure SB900 Rechargeable Battery Shure SB900 lithium-ion batteries offer a rechargeable option for powering the QLX-D transmitters. Batteries quickly charge to 50% capacity in one hour and reach full charge within three hours. Single chargers and multiple bay chargers are available to recharge the Shure batteries. -
Page 16: Creating Audio Channels
Creating Audio Channels A wireless audio channel is formed when a receiver and transmitter are tuned to the same frequency. To ease setup, frequencies available to the QLX-D system are organized into groups and channels. Each group contains a number of channels, and each channel is assigned to a specific preset frequency. -
Page 17: Receiver Gain Adjustment
Audio Compatibility Update transmitter and receiver firmware to the latest version. Err.001 Encryption Mismatch between Set encryption to off for components from different Shure products lines, such as QLX-D and ULX-D. Err.002 Shure product lines Encryption Mode Mismatch Perform an IR sync between the transmitter and receiver to clear the error. -
Page 18: Troubleshooting
Troubleshooting Issue See Solution... No Sound Power, Cables, or Radio Frequency Faint sound or distortion Gain, Cables, Reducing Interference or Radio Frequency Lack of range, unwanted noise bursts, or dropouts Cannot turn transmitter off or change frequency settings, or can't program Interface Locks receiver Receiver display shows FAIL after encryption is disable... -
Page 19: Audio Output
0 to 21 dB (in 3 dB steps) W x D Battery Type Battery Type Weight Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V Shure SB900 Rechargeable Li-Ion or AA batteries 1.5 V 777 g (1.71 lbs), without antennas Battery Runtime Battery Runtime... -
Page 20: Frequencies For European Countries
Certified by IC in Canada under RSS-210. Conforms to electrical safety requirements based on IEC 60065. Complies with and/or is certified to RSS-210, RSS-GEN. The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance Authorized European representative: Shure Europe GmbH Headquarters Europe, Middle East &...
