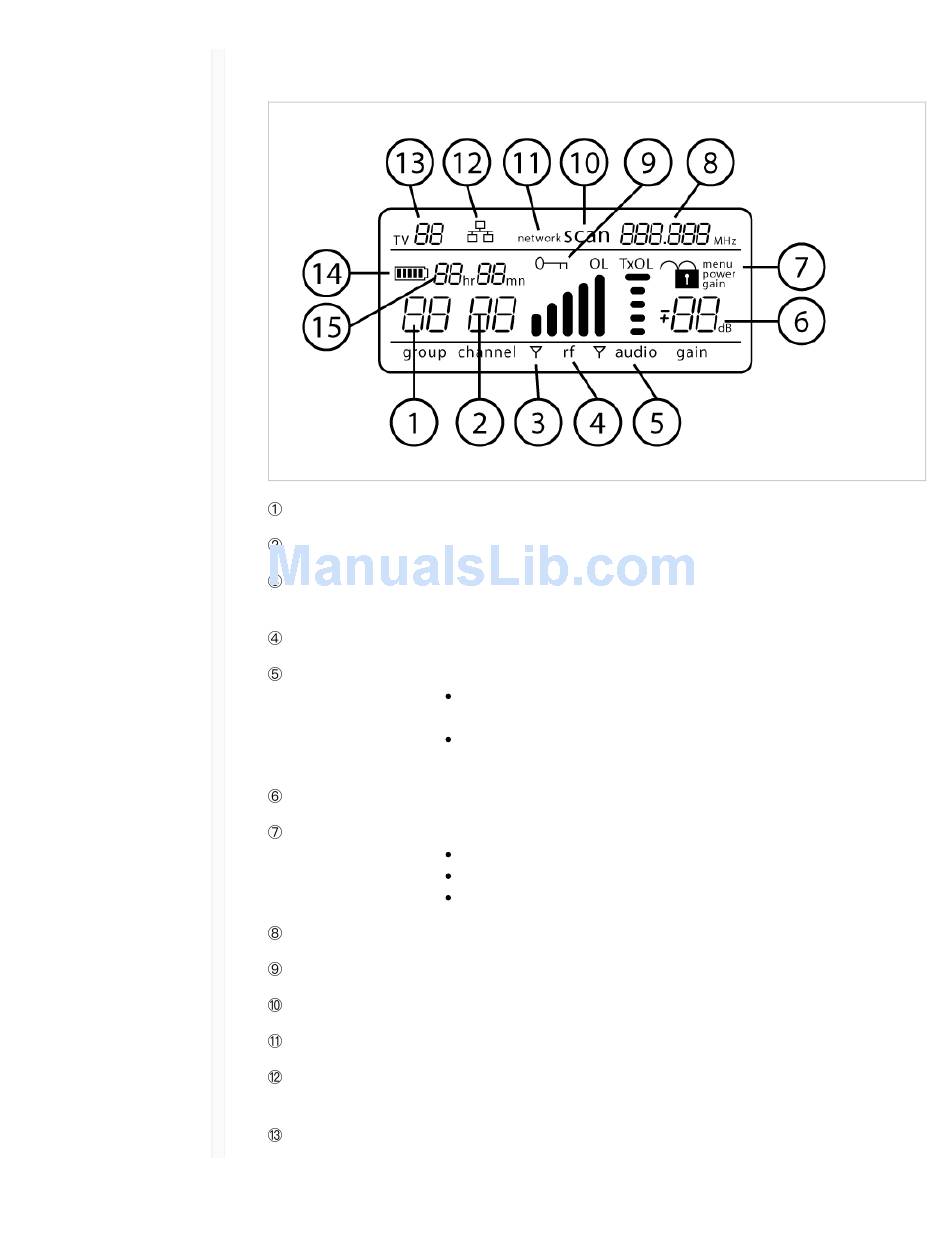

Receiver Display
Group Displays group setting.
Channel Displays channel setting.
Active Antenna Illuminates to indicate which antenna is active.
Indicator
RF Signal Meter Number of bars displayed corresponds to RF signal level - OL = overload.
Audio Meter Number of bars displayed corresponds to audio level.
Gain Level Displays receiver gain setting in 1 dB increments.
Receiver Lock Status Lock icon and name of locked control:
Frequency Setting Selected frequency (MHz).
Encryption Status Illuminates when encryption is enabled.
Scan Displayed when scan function is active.
Network Scan Displayed when network scan function is active in multi-receiver systems.
Network Connection Illuminates when additional Shure components are detected on the
Indicator network.
TV Channel Displays the number of the TV channel containing the selected frequency.
OL = Illuminates when receiver audio limiter is active to prevent
clipping
TxOL = Illuminates when transmitter input is overloaded. Reduce input
from microphone or instrument to prevent clipping.
menu
power
gain
