Enter Button
Press to save menu or parameter changes.
Sync Button
Press to activate IR sync.
Power Switch
Powers receiver on or off.
Audio LED
Menu Button
RF LED
Illuminates when RF link with transmitter is active.
IR Window
Align with the transmitter IR window during an IR sync to automatically
program transmitters.
Sync LED

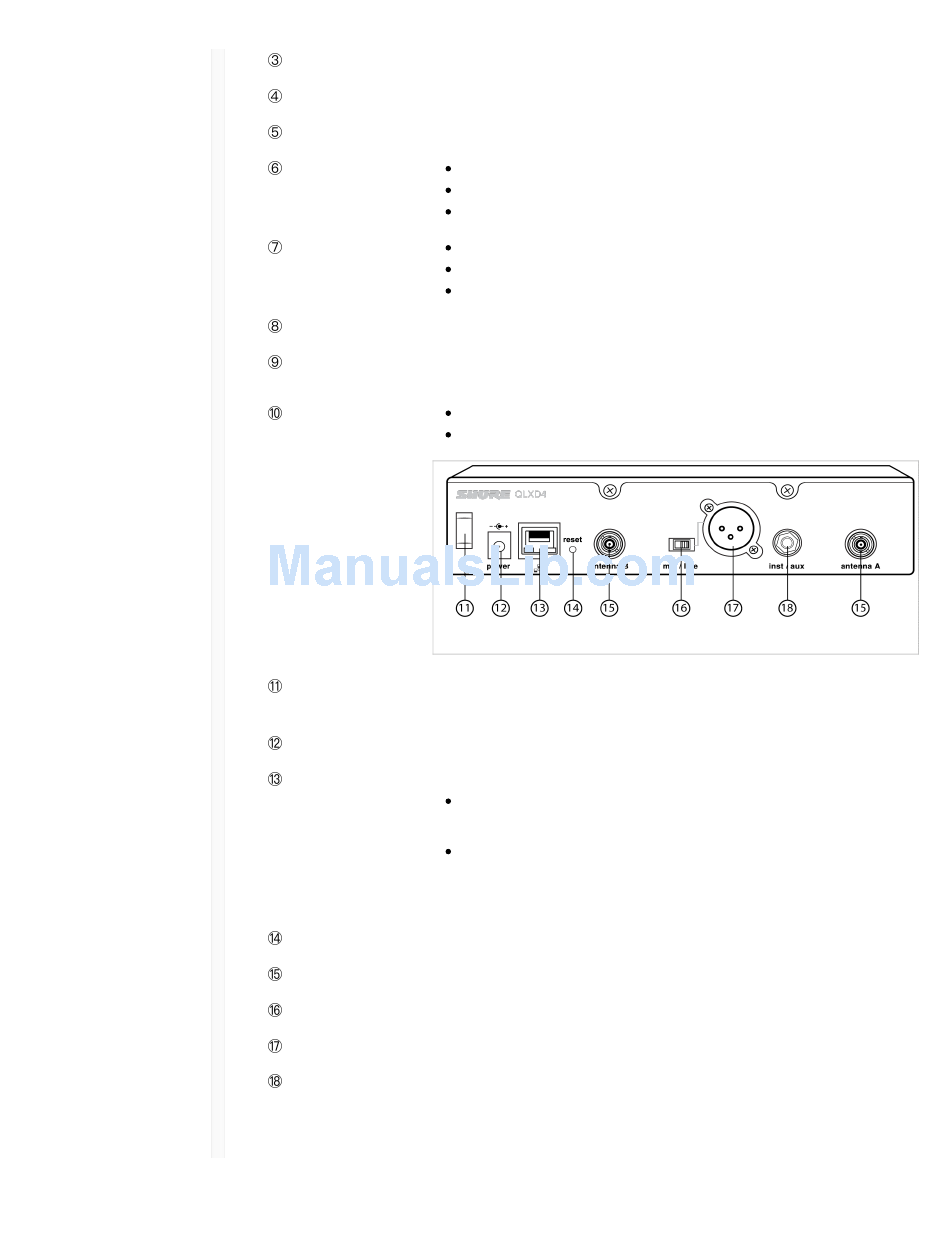

Power Cord Strain
Secures power cord.
Relief
Power Supply Jack
Connection point for DC power supply.
Ethernet Port
For network connection.
Receiver Reset
Press to restore receiver default settings.
Antenna Connectors BNC connector for receiver antennas
Mic/Line Switch
Sets output level to microphone or line.
XLR Audio Output
Balanced (1: ground, 2: audio +, 3: audio - )
1/4"
Impedance Balanced (Tip: audio, Ring: no audio, Sleeve: ground)
Instrument/Auxiliary
Output
Green = normal
Yellow = signal approaching limiter threshold
Red = limiter engaged to prevent clipping
Press to access or select menu screens
Press to cancel pending changes
Press and hold to return to the home screen
Blinking: IR sync mode is enabled
On: Receiver and transmitter aligned for IR sync
Amber LED (network speed):
off = 10 Mbps, on = 100 Mbps
Green LED (network status):
off = no network link, on = network link active
flashing = rate corresponds to traffic volume
