Shure SLX-D, SLXD1, SLXD14 Manual

Overview

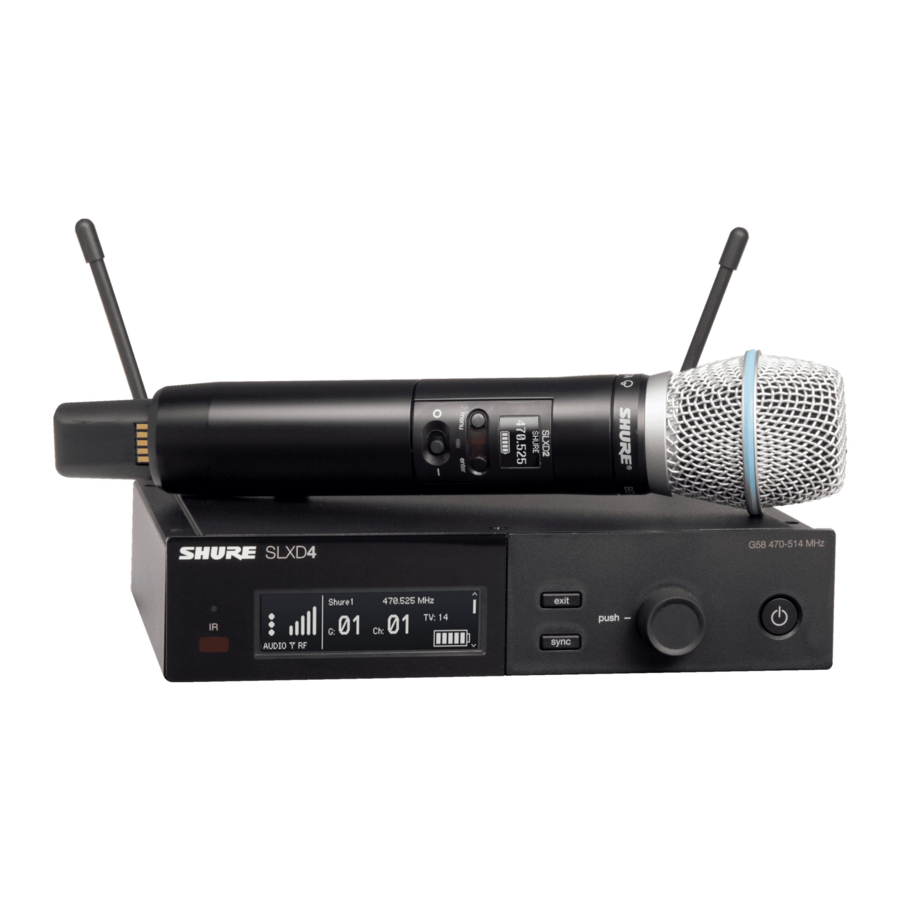

SLX-D Digital Wireless delivers clear audio and stable RF performance with easy setup and rechargeability options. SLX-D is built to handle a wide range of applications, from day-long conferences to nighttime performances.
Automatic channel scan and IR sync are even easier with a guided setup feature programmed into each SLX D wireless receiver. Manage multiple-system group scans and firmware updates with third-party setup and control via Ethernet. Operate up to 32 compatible systems per 44 MHz band for up to 8 hours from 2 AA batteries, or add Shure SB903 rechargeable batteries and charger accessories. SLX D provides >120 dB dynamic range and stable, efficient RF transmission for a selection of handheld, lavalier and headset microphones.

Features

• Transparent 24-bit digital audio
• Extended 20 Hz to 20 kHz frequency range (microphone dependent)
• 120 dB dynamic range
• Digital predictive switching diversity
• 44 MHz tuning bandwidth (region dependent)
• 32 available channels per frequency band (region dependent)
• Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
• Easy pairing of transmitters and receivers over IR scan and sync
• Automatic channel scan
• Link multiple receivers for group scan and firmware updates via Ethernet port
• Third-party setup and control via Ethernet
• Elegant and easy-to-use interface with high-contrast LCD menu
• Guided setup mode installed in each SLX-D receiver
• Transmitters use 2 AA batteries or Shure SB903 rechargeable battery
• System configurations include handheld transmitters with interchangeable microphone capsules, bodypacks with a range of lavalier, headset and instrument microphones and single and dual rack-mountable receivers.

System Components

All systems include:

1. Rack mounting hardware
2. ¼-wave antennas (2)
3. Power supply
4. 1.5V AA batteries (2)
5. SLXD4 or SLXD4D receiver

Guitar system includes:

6. ¼" to mini 4-pin guitar cable
7. SLXD1 bodypack transmitter

Vocal system includes:

8. Microphone clip
9. SLXD2 handheld transmitter with microphone cartridge (choice of SM58^®, SM86, Beta 58A^®, Beta 87A^™, Beta 87C^™, or KSM8/B*)
   *KSM8/B availability depends on region.

Lavalier, Headworn, and Instrument systems include bodypack transmitter (7) and one of the following:

10. WL183/WL185 lavalier microphone
11. WL93 miniature lavalier microphone
12. SM35 headset microphone
13. Beta 98H/C^™ instrument microphone
14. MX153 earset headworn microphone

Combo system includes:

7. SLXD1 bodypack transmitter
9. Handheld transmitter with SM58 microphone head
11. WL185 lavalier microphone

Set Up the Receiver

1. Attach the included antennas to the back of the receiver.

2. Connect the power supply to the receiver and plug the cord into an AC power source.

3. Connect the audio output to an amplifier or mixer.

4. Press the power button on the receiver. Use the menu to set the system to microphone (mic) or instrument (line) level as appropriate.


Wearing the Bodypack Transmitter

Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, the belt should be pressed against the base of the clip.

Hardware Interface

Receiver Front and Back Panels

1. Sync LED
   • Flashing: IR sync mode is enabled
   • Solid: Receiver and transmitter aligned for IR sync
2. IR Port
   Align with the transmitter IR port during an IR sync to program transmitters.
3. Display
   Shows menu options, receiver and transmitter settings.
4. Sync Button
   Press to activate IR sync.
5. Exit Button
   Press to cancel and exit the current operation.
6. Control Knob
   Change menu parameters, push knob to confirm.
7. Power Button
   Powers receiver on or off.

8. Power Supply Jack
   Connection point for DC power supply.
9. Ethernet Port
   For network connection.
   • Amber LED (network speed): off = 10 Mbps, on = 100 Mbps
   • Green LED (network status): off = no network link, on = network link active
     flashing = rate corresponds to traffic volume
10. XLR Audio Output
    Balanced (1: ground, 2: audio +, 3: audio - )
11. 1/4" Instrument/Auxiliary Output
    Impedance Balanced (Tip: audio+, Ring: audio-, Sleeve: ground)
12. Antenna Connectors
    BNC connector for receiver antennas

Navigating the Receiver Menus

The receiver has a main menu for setup and configuration and an advanced menu to access additional receiver functions. Use the control knob to navigate menu screens and confirm selections; use the exit button to return to the previous level.

Main Menu
Push the control knob button to access the menu, and rotate to advance to the next menu screen.

Transmitters

1. Power LED
   • Green = unit is powered on
   • Red = low battery
2. On/Off Switch
   Powers the transmitter on or off.
3. Display:
   View menu screens and settings. Press any control button to activate the display.
4. IR Port
   Align with the receiver IR port during an IR sync for automated transmitter programming.
5. Menu Navigation Buttons
   menu = Use to navigate between menu screens.
   enter = Press to confirm and save parameter changes.
6. Battery Compartment
   Requires 2 AA batteries or a Shure SB903 rechargeable battery.
7. Battery Cover
   Screws into place to protect battery compartment during use.
8. Bodypack Antenna
   For RF signal transmission.
9. Handheld Integrated Antenna
   For RF signal transmission.
10. Microphone Cartridge
    Interchangeable with a variety of Shure cartridges.
11. TA4M Input Jack
    Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.

Transmitter Menu Options and Navigation

The transmitter features individual menu screens for setting up and adjusting the transmitter. To access the menu options from the home screen, press the menu button. Each additional press of the menu button advances to the next menu screen. Use the enter button to select and confirm options on the active menu screen.

	Home Screen	Use the enter button to select one of the following home screen displays: Channel name/Group and channel/Battery icon Channel name/Frequency/Battery icon Channel name/Battery icon/Group and channel Channel name/Battery icon
1	Mic Offset	Match audio levels between two transmitters used in a combo system. Range is 0 to 21 dB (3 dB increments).
2	RF Power	Select an RF power setting: High = 10 mW Low = 1 mW
3	High Pass	Turn the high pass filter On or Off
4	Battery	To ensure accurate battery metering, set the battery type to match the installed AA battery type. Note: Menu is not selectable when Shure rechargeable batteries are installed.
5	Auto Lock	Turn the transmitter auto lock on or off
6	Lock Type	Determine auto lock behavior: Menu Only: Locks the menu to prevent transmitter settings from being changed Menu & Power: Locks the menu and disables the power switch
7	About	Displays the firmware, hardware, and band information

Locking and Unlocking the Receiver Controls

The following control lock options can be accessed under 5. Advanced Settings > 5.1 Device Lock:

• Unlock: receiver controls are unlocked
• Lock Menu: prevents access to menu items (receiver can still be powered off)
• Lock Menu & Power: disables the power switch as well as menu controls

Select the desired option and press the control knob to confirm.

Transmitter Auto Lock

The transmitter controls can be locked or unlocked by selecting On (locked) or Off (unlocked) from the transmitter Auto Lock menu. When auto lock is enabled, the transmitter controls lock when you return to the home screen.

Note: The enter button can still be used to change the home screen display on a locked transmitter.

To activate auto lock:

1. Press the menu button to navigate to the Auto Lock settings.
2. Use the enter button to edit and the menu button to select On.
3. Press enter to save. The lock icon appears on the display to confirm that the control locks are enabled.

To unlock the transmitter and deactivate auto lock:

1. Press enter then menu to unlock the transmitter controls.
2. Navigate to the Auto Lock settings and select Off.
3. Press enter to save. The transmitter will no longer lock when you return to the home screen.

Batteries and Chargers

Install Transmitter Batteries

To avoid damaging transmitters, only use Shure SB903 Li-ion rechargeable batteries or 1.5V AA batteries.

Bodypack:

1. Push the tab up and open the battery door to access the battery compartment.
2. Place a Shure SB903 Li-ion rechargeable battery or 2 AA batteries in the compartment.
3. Close the battery door.


Handheld:

1. Remove the battery cover to access the battery compartment.
2. Lift the battery door to open the battery compartment.
3. Place a Shure SB903 Li-ion rechargeable battery or 2 AA batteries in the compartment.
4. Replace the battery cover.


Setting the AA Battery Type

To ensure accurate display of transmitter runtime, set the battery type in the transmitter menu to match the installed AA battery type (the default setting is Alkaline). If a Shure rechargeable battery is installed, selecting a battery type is not necessary and the battery type menu will not be displayed.

1. Press the menu button to navigate to the Battery screen.
2. Press enter, then use the menu button to select the installed battery type:
   • Alkaline = Alkaline
   • NiMH (nickel metal hydride)
   • Lithium (non-rechargeable, 1.5V max)
3. Press enter to save.

Shure SB903 Rechargeable Battery

The SB903 lithium-ion rechargeable battery powers the SLX-D transmitters. Use the SBC10-903 single bay or SBC203 dual bay chargers to recharge SB903 batteries.

Always fully charge a new battery before first use.

To fully charge a new SB903 battery, it must be placed directly in the charger. After the first charge, the battery can be charged by docking the transmitter in the SBC203 dual-bay charging station.

Single Bay Charger

The SBC10-903 single bay charger offers a compact charging solution.

1. Plug the charger into an AC power source or USB port.
2. Insert a battery into the charging bay.
3. Monitor the charging status LEDs until charging is complete.


Charging Status LEDs

Description	Color	State
Ready for Use	Green (solid)	Device is fully charged
Charging	Red (flashing)	Charging
Error	Yellow (quick flashing)	Battery or power supply error
Not charging	Off	Power supply is disconnected, or no device is docked in the charging bay

Dual Bay Chargers

The SBC203 dual-bay charger can charge individual batteries or batteries installed in transmitters.

1. Plug the charger into an AC power source.
2. Insert batteries or transmitters into the charging bay.

   Insert transmitters facing forward to avoid damage.
3. Monitor the charging status LEDs until charging is complete.

Charging Status LEDs

Description	Color	State
Ready for Use	Green (solid)	Device is fully charged
Charging	Red (flashing)	Charging
Error	Yellow (quick flashing)	Battery or power supply error*
	Yellow (slow flashing)	Outside of operating temperature range
Not charging	Off	Power supply is disconnected, or no device is docked in the charging bay

* If an error occurs when a transmitter is docked in the charger, remove the battery from the transmitter and place directly into the charger. If the error persists, contact Shure Technical Support.

Important Tips for Care and Storage of Shure Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.

• Always store batteries and transmitters at room temperature
• Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
• During storage, check batteries every 6 months and recharge to 40% of capacity as needed

Average Charging Times

SBC10-903

Time Charging	Operating Runtime	Capacity
1 hour	1 hour	15%
3 hours	4 hours	50%
5 hours: 30 minutes	>8 hours	100%

SBC203

Time Charging	Operating Runtime	Capacity
30 minutes	1 hour	15%
1 hour: 15 minutes	4 hours	50%
2 hours: 30 minutes	>8 hours	100%

*based on battery with 100% health

Sound Check and Gain Adjustment

Navigate to the receiver's Gain screen to test the transmitter at performance levels. Adjust the gain to keep the audio indicator within the optimal range. Reduce the gain if there is audible distortion of the audio.

System Set Up

Creating Audio Channels

A wireless audio channel is formed when a receiver and transmitter are tuned to the same frequency. The SLX D system provides 3 methods for tuning the receiver and transmitter to the same frequency:

• Guided Frequency Setup: A step-by-step guide to walk you through the process
• Scan and IR Sync: The receiver scans the RF spectrum for the best available frequency and an IR sync automatically tunes the transmitter to the receiver frequency
• Manual Group, Channel, or Frequency Assignment: Manually set the receiver and transmitter to the same group and channel number, or frequency

What are Groups and Channels?

To minimize interference, Shure wireless systems organize RF bands into predefined groups and channels. A group is a set of compatible frequencies within a frequency band. A single frequency within a group is a channel. Tune a receiver and transmitter to the best available channel within its group to set up your system.

Note: Because groups are band dependent, some systems don't have multiple groups. Single group bands have the same RF performance as those with multiple groups.

All receivers in the same band should be set to the same group. You can set them manually, or use the Guided Frequency Setup to walk you through the process.

Connect all the receivers in your system using Ethernet cables. For best results, use a network switch when connecting 3 or more receiver units.

To avoid interference, before you begin:

Turn off all transmitters for the systems you are setting up. This prevents them from interfering with the frequency scan.

Turn on the following devices so they are operating as they would be during the presentation or performance. This will allow the scan to detect and avoid any interference from these devices:

• Configured wireless systems or devices
• Computers
• Large LED panels
• Effects processors
• CD players

Using the Guided Frequency Setup

Set up a new system:

1. Push the control knob on the receiver and select Frequency Setup > 1.1 Guided Frequency Setup.
2. Select Initialize My System and push the control knob to continue.
3. Turn off all transmitters you plan to use with your system.
4. Select start scan.
5. After the scan is done, push the control knob to assign frequencies to the receiver.
6. Turn on the transmitter you plan to use with this receiver.

7. Align the infrared (IR) ports on the transmitter and receiver, and push the sync button.

8. Once the sync is complete, the system is ready for use.

Add a new receiver to your system:

1. Push the control knob and select 1. Frequency Setup > 1.1 Guided Frequency Setup.
2. Select Add Receiver to My System.
3. To change the group, rotate the control knob to select G:, push to select, rotate to change the number, push again to confirm.
4. Select start scan.
5. After the scan completes, push the control knob to apply the receiver channel.
6. Turn on the transmitter you plan to use with this receiver.
7. Align the infrared (IR) port on the transmitter with that on the receiver, and push the sync button.
8. Once the sync is complete, the system is ready for use.

Manual Frequency Selection

To manually adjust group, channel or frequency:

1. Select 1. Frequency Setup > 1.4 Manual Frequency Setup from the receiver menu.
2. Use the control knob to select and adjust the group (G), channel (C), or frequency (MHz).
3. Select apply and push the control knob to save.

Linking Two Transmitters to a Receiver

Linking two transmitters to a receiver offers the flexibility to provide a performer with either a handheld or bodypack transmitter to meet their preference. For performances requiring instrument changes, two bodypack transmitters can be linked to a single receiver.

Note: Only turn on and operate one transmitter at a time to prevent interference between the transmitters.

Syncing the Transmitters to the Receiver

Both transmitters must be individually linked to the receiver by performing an IR Sync.

1. Turn on the first transmitter and perform an IR Sync with the receiver.
2. Perform a sound check and adjust the transmitter gain if necessary. When finished, turn off the transmitter.
3. Turn on the second transmitter and perform an IR Sync with the receiver.
4. Test the transmitter at performance conditions and adjust the transmitter gain if necessary. When finished, turn off the transmitter.

Matching Audio Levels with Mic Offset

When linking two transmitters to a receiver, there may be a difference in volume levels between microphones or instruments. If this occurs, use the Mic Offset function to match the audio levels and eliminate audible volume differences between transmitters. If using a single transmitter, set Mic Offset to 0 dB.

1. Turn on the first transmitter and perform a sound check to test the audio level. Turn off the transmitter when finished.
2. Turn on the second transmitter and perform a sound check to test the audio level.
3. If there is an audible difference in the sound level between the transmitters, navigate to the Mic Offset menu on the transmitter to increase or decrease the Mic Offset to match the audio levels.


Adding SLX-D to Other Shure Wireless Systems

Use Shure's Wireless Workbench frequency coordination tool to find compatible frequencies across different Shure wireless systems. To get started, download the software from http://www.shure.com/wwb. For additional assistance, please visit http://www.shure.com/contact.

Radio Frequency (RF) Settings

Setting the Transmitter RF Power

The transmitter offers two RF power settings which determine the transmitter range.

• Low = 1 mW
• High = 10 mW

Use the Low setting when the transmitter and receiver are in close proximity.

1. Navigate to the transmitter RF power menu.
2. Use the menu button to select High or Low.
3. Press enter to save.

Networking

The receiver uses an Ethernet connection to network with other components and includes an internal DHCP client for automatic network configuration when connected to a DHCP enabled router.

Connecting to a Network

1. Insert an Ethernet cable in the Ethernet port on the rear of the receiver.
2. Connect the cable to a computer or router.
3. The port LEDs on the receiver will illuminate to indicate network connectivity and network traffic.

Automatic IP Addressing

1. Enable a DHCP service on the server or use a DHCP enabled router.
2. When the receiver is powered on, the DHCP server will automatically assign an IP address to the receiver.

Configuration Tips

• Use shielded Cat 5 or better Ethernet cables to ensure reliable network performance
• The LEDs on the Ethernet port illuminate indicating a network connection is active
• The network icon illuminates when the receiver detects additional Shure devices on the network
• All components must operate on the same subnet
• Use multiple Ethernet switches to extend the network for larger installations

Network Troubleshooting

• Use only one DHCP server per network
• All devices must share the same subnet mask
• All receivers must have the same level of firmware version installed
• Check the LED status of the network icon on the front panel of each device.
  • If the network icon is not illuminated, check the cable connection and the LEDs on the Ethernet port.
  • If the Ethernet port LEDs are not illuminated and the cable is plugged in, replace the cable and recheck the LEDs and network icon.

Connecting to an External Control System

The SLX-D receiver is compatible with external control systems such as AMX or Crestron via Ethernet. Use only one controller per system to avoid messaging conflicts.

• Connection: Ethernet (TCP/IP; SLX-D receiver is the client)
• Port: 2202

For a comprehensive list of SLX-D command strings, visit https://pubs.shure.com/command-strings/SLXD/en-US.

Firmware Updates

Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are developed to incorporate additional features and enhancements. To take advantage of design improvements, new versions of the firmware can be uploaded and installed directly through Designer.

• Designer checks for new firmware updates every time you open it as long as there is an internet connection.
• You can turn on automatic downloads at Main menu > Settings. Devices are not automatically updated, the firmware files are only automatically downloaded to your Designer PC.

1. Designer alerts you to available updates for Designer-supported devices at the bottom tool bar in the application.
2. Navigate to Online devices to download new firmware files and to update firmware. You can update devices that are on the same subnet and cross-subnet.

Note: You cannot update IntelliMix^™ Room from Designer 4.2.

Shure Update Utility

For those devices unsupported by Designer, use the Shure Update Utility (SUU) to update the firmware. Download the SUU from https://www.shure.com/en-US/products/software/shure_update_utility.

Perform the following steps to update the firmware:

Ensure the device has a stable network connection during the update. Do not turn off the device until the update is complete.

1. Connect the device and computer to the same network (set to the same subnet).
2. Open the SUU application.
3. Click the Updates button at the top of the window to open the Download Manager.
   Note: This button will be labeled either "Check for updates..." or "[#] updates available"
4. From the Download Manager, select the desired firmware versions.
   Tip: The dropdown in the upper right allows you to quickly Select: All or Select: None.
   Note: After updating, you may need to clear your browser's cache to display updates to the device's web application.
5. Click Download, and then Close the Download Manager. Downloaded firmware is listed and can be viewed and managed in the Firmware tab.
6. From the Update Devices tab, select the new firmware and press Send Updates to begin the firmware update, which overwrites the existing firmware on the device.

Firmware Release Requirements

The recommended best practice is that all devices are on the most current release of their respective firmware. To view the firmware version of each device on the network, navigate to Online devices.

Mount the SLX-D Receiver in a Rack

All accessories are supplied:

Installing Footpads

Accessories

Optional Accessories

Batteries and Chargers

Shure Lithium-Ion Rechargeable Battery	SB903
Dual Docking Charger	SBC203-AR
	SBC203-AZ
	SBC203-BR
	SBC203-CN
	SBC203-E
	SBC203-IN
	SBC203-J
	SBC203-K
	SBC203-TW
	SBC203-UK
	SBC203-US
Single Battery Charger	SBC10-903-AR
	SBC10-903-AZ
	SBC10-903-BR
	SBC10-903-CN
	SBC10-903-E
	SBC10-903-IN
	SBC10-903-J
	SBC10-903-K
	SBC10-903-TW
	SBC10-903-UK
	SBC10-903-US

UHF Antenna Power Distribution Amplifiers

Antenna/Power Distribution System 470-960 MHz	UA844+SWB
	UA844+SWB-AR
	UA844+SWB-AZ
	UA844+SWB-BR
	UA844+SWB-C
	UA844+SWB-E
	UA844+SWB-J
	UA844+SWB-K
	UA844+SWB-TW
	UA844+SWB-UK
	UA844+SWB-IN
Antenna/Power Distribution System, Less cable 470-960 MHz	UA844+SWB/LC
	UA844+SWB/LC-AR
	UA844+SWB/LC-BR
	UA844+SWB/LC-C
	UA844+SWB/LC-E
	UA844+SWB/LC-UK
Ultra Wideband Antenna/Power Distribution System 174-1805 MHz	UA845UWB
	UA845UWB-AR
	UA845UWB-AZ
	UA845UWB-BR
	UA845UWB-C
	UA845UWB-E
	UA845UWB-IN
	UA845UWB-J
	UA845UWB-K
	UA845UWB-TW
	UA845UWB-UK
Ultra Wideband Antenna/Power Distribution System, Less cable 174-1805 MHz	UA845UWB/LC
	UA845UWB/LC-AR
	UA845UWB/LC-BR
	UA845UWB/LC-BR
	UA845UWB/LC-E
	UA845UWB/LC-UK

UABIAST

In-Line Power Supply	UABIAST-US
	UABIAST-UK
	UABIAST-BR
	UABIAST-AR
	UABIAST-E
	UABIAST-CHN
	UABIAST-IN
	UABIAST-K
	UABIAST-J
	UABIAST-AZ
	UABIAST-TW

In-Line Amplifiers and Antennas

In-Line Antenna Amplifier, 470-900 MHz	UA834WB
In-Line Antenna Amplifier, 902-960 MHz	UA834XA
Active Directional Antenna 470-790 MHZ	UA874E
Active Directional Antenna 470-698 MHZ	UA874US
Active Directional Antenna 470-900 MHZ	UA874WB
Active Directional Antenna 925-952 MHZ	UA874X
Directional Wideband Antenna for PSM Systems 470-952 MHz	PA805SWB
Directional Wideband Antenna for PSM Systems 650-1100 MHz	PA805X
Passive Omnidirectional Antenna 470-1100 MHz	UA860SWB
UHF Passive Antenna Splitter	UA221
Front Mount Antenna Kit (Includes 2 Cables And 2 Bulkhead)	UA600
Remote Antenna Bracket With BNC Bulkhead Adaptor	UA505
Helical Antenna, 470-900MHZ	HA-8089

Cables and Connectors

Coaxial Cable, BNC-BNC, RG58C/U TYPE, 50 OHM, 2 FT Length (0.6 M)	UA802
Coaxial Cable, BNC-BNC, RG58C/U TYPE, 50 OHM, 6 FT Length (2 M)	UA806
Coaxial Cable, BNC-BNC, RG8X/U TYPE, 50 OHM, 25 FT Length (7.5 M)	UA825
Coaxial Cable, BNC-BNC, RG8X/U TYPE, 50 OHM, 50 FT Length (15 M)	UA850
Coaxial Cable, BNC-BNC, RG213/U TYPE, 50 OHM, 100 FT Length (30 M)	UA8100
Ethernet Jumper Cable, 8"	C8006
Ethernet Cable, 3 FT.	C803
Ethernet Cable, 10 FT.	C810
Ethernet Cable, Ruggedized, 25 FT.	C825
Ethernet Cable, Ruggedized, 50 FT.	C850
Ethernet Cable, Ruggedized, 100 FT.	C8100

1/2 Wave Omnidirectional Receiver Antennas

470-542 MHz	UA8-470-542
500-560 MHz	UA8-500-560
518-598 MHz	UA8-518-598
554-638 MHz	UA8-554-638
596-698 MHz	UA8-596-698
670-742 MHz	UA8-670-742
690-746 MHz	UA8-690-746
694-758 MHz	UA8-694-758
710-790 MHz	UA8-710-790
740-814 MHz	UA8-740-814
750-822 MHz	UA8-750-822
774-865 MHz	UA8-774-865
00-1000 MHz	UA8-900-1000

Specifications

System

RF

RF Carrier Frequency Range
470–937.5 MHz, varies by region (See Frequency Range and Output Power table)

Working Range
100 m (328 ft)

RF Tuning Step Size
25 kHz, varies by region

Image Rejection
>70 dB, typical

RF Sensitivity
−97 dBm at 10^-5 BER

Audio

Latency
3.2 ms

Audio Frequency Response
20 Hz – 20 kHz (+1, -2 dB)

Audio Dynamic Range
120 dB at 1% THD, A-weighted, typical

Total Harmonic Distortion
<0.02%

System Audio Polarity
Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.

Mic Offset Range
0 to 21 dB (in 3 dB steps)

Temperature Range

Operating Temperature Range
-18°C (0°F) to 50°C (122°F)

Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)

SLXD4 / SLXD4D

Dimensions

SLXD4	42 x 197 x 152 mm (1.65 x 7.76 x 5.98 in.), H x W x D
SLXD4D	42 x 393 x 152 mm (1.65 x 15.47 x 5.98 in.), H x W x D

Weight

SLXD4	816 g, without antennas
SLXD4D	1451 g, without antennas

Housing
Galvanized Steel

Power Requirements
15 V DC @ 600 mA, supplied by external power supply (tip positive)

RF Input

Spurious Rejection
>75 dB, typical

Connector Type
BNC

Impedance
50 Ω

Phantom Power Protection

1/4" (6.35 mm)	Yes
XLR	Yes

Audio Output

Gain Adjustment Range
-18 to +42 dB in 1 dB steps

Configuration

1/4" (6.35 mm)	Balanced (Tip = audio +, Ring = audio -, Sleeve = ground)
XLR	Balanced (1=ground, 2=audio +, 3=audio −)

Impedance

1/4" (6.35 mm)	1.3 kΩ (670 Ω Unbalanced)
XLR (line)	400 Ω (200 Ω Unbalanced)
XLR (mic)	150 Ω

Full Scale Output

1/4" (6.35 mm)	+15 dBV differentially (+9 dBV single)
XLR	LINE setting= +15 dBV, MIC setting= -15 dBV

Networking

Network Interface
Single Port Ethernet 10/100 Mbps

Network Addressing Capability
DHCP or Manual IP address

Maximum Cable Length
100 m (328 ft)

SLXD1

Battery Type
Rechargeable Li-Ion or 1.5 V AA batteries

Dimensions
98 x 68 x 25.5 mm (3.86 x 2.68 x 1 in.), H x W x D

Weight
89 g

Housing
PC/ABS

Audio Input

Connector
4-Pin male mini connector (TA4M)

Configuration
See drawing for details

Impedance
1 MΩ

Maximum Input Level
8.2 dBV (2.57 Vrms, 7.27 Vpp)

Preamplifier Equivalent Input Noise (EIN)
-118 dBV

RF Output

Antenna Type
1/4 wave

Occupied Bandwidth
<200 kHz

Modulation Type
Shure proprietary digital

Power
1 mW or 10 mW

SLXD2

Battery Type
Rechargeable Li-Ion or 1.5 V AA batteries

Dimensions
37.1 x 176 mm (1.46 x 6.93 in.), D x L

Weight
147 g

Housing
Aluminum

Audio Input

Configuration
See drawing for details

Maximum Input Level
8.2 dBV (2.57 Vrms, 7.27 Vpp)

RF Output

Antenna Type
Integrated Single Band Helical

Occupied Bandwidth
<200 kHz

Modulation Type
Shure proprietary digital

Power
1 mW or 10 mW

SB903

Charge Voltage
4.2 V (±0.03 V)

Charge Current

SBC10-903	220 mA
SBC203	625 mA (normal), 250 mA (reduced)

Nominal Voltage
3.6 V

Nominal Capacity
1200 mAh

Housing
Molded Polycarbonate

Charging Temperature Range

SBC10-903	10°C to 45°C (50°F to 113°F)
SBC203	0°C to 10°C (32°F to 50°F), reduced, and 10°C to 45°C (50°F to 113°F), nor mal

Dimensions
14.5 x 32.5 x 55.5 mm (0.57 x 1.28 x 2.19 in.), H x W x D

Weight
28 g

SBC10-903

Battery Charger
DC Input Voltage Range
5 V DC

Charge Current
USB-powered
220 mA

Charge Time
50% = 3 hours; 100% = 5 hours: 30 minutes

Charge Voltage
4.2 V

Operating Temperature Range
10°C to 45°C (50°F to 113°F)

Dimensions
20.5 x 37.5 x 79.5 mm (0.81 x 1.48 x 3.13 in.), H x W x D

Weight
39 g

Housing
Molded Polycarbonate

Power Supply

Input Voltage Range
100 to 240 V AC

Operating Frequency
50 Hz to 60 Hz

Maximum Input Power
0.2A

Output Voltage
4.75 to 5.25 V DC

Maximum Output Power
1.0 A

Operating Temperature Range
0°C to 60°C (32°F to 140°F)

SBC203

Charge Current
625 mA or 250 mA

Charge Time
50% = 1 hour: 15 minutes; 100% = 2 hours: 30 minutes

External Power Supply
SBC10-USB15W or SBC10-USB15WS

Power Requirements
5 V DC, 3 A max.

Charging Temperature Range for Battery
0°C to 45°C (32°F to 113°F)

Dimensions
66 x 99 x 165 mm (2.6 x 3.9 x 6.5 in.), H x W x D

Weight
284 g

Housing
ABS

Power Supply
Input Voltage Range
100 to 240 V AC

Operating Frequency
50 Hz to 60 Hz

Maximum Input Power
0.6 A

Output Voltage
4.75 to 5.25 V DC

Maximum Output Power
3.0 A

Operating Temperature Range
0°C to 60°C (32°F to 140°F)

Receiver Output Connectors

Transmitter Input

1. Ground
2. Bias Voltage
3. Audio Input
4. Active Load

Frequency Range and Transmitter Output Power

Band	Frequency Range (MHz)	Power ( mW RMS )* (Low/High)
G58	470 to 514	1 / 10
G59	470 to 514	1 / 10
G60	470 to 510	1 / 10
G61	479 to 523	1 / 10
G62	510 to 530	1 / 10
H55	514 to 558	1 / 10
H56	518 to 562	1 / 10
H57	520 to 564	1 / 10
J52	558 to 616	1 / 10
J53	562 to 606	1 / 10
J54	562 to 606	1 / 10
JB	806 to 810	1 / 10
K59	606 to 650	1 / 10
L55	646 to 690	1 / 10
L56	650 to 694	1 / 10
L57	650 to 694	1 / 10
L58	630 to 674	1 / 10
L59	654 to 698	1 / 10
M55	694 to 703, 748 to 758	1 / 10
S50	823 to 865	1 / 10
X51	925 to 937.5	1 / 10

* Power delivered to the antenna port

Note: Frequency bands might not be available for sale or authorized for use in all countries or regions.

Frequencies for European Countries

	Country Code	Frequency Range
SLXD- G59 470-514 MHz, max. 1/10 mW	A, B, BG, CH, CY, CZ, D, EST	470 - 514 MHz*
	F, GB, GR, H, I, IS, L, LT	470 - 514 MHz*
	NL, P, PL, S, SK, SLO	470 - 514 MHz*
	DK, FIN, M, N	470 - 514 MHz*
	HR, E, IRL, LV, RO, TR	470 - 514 MHz*
SLXD- H56	A, B, BG, CH, CY, CZ, D, EST	518 - 562 MHz*
518 - 562 MHz, max. 1/10 mW	Country Code	Frequency Range
	F, GB, GR, H, I, IS, L, LT	518 - 562 MHz*
	NL, P, PL, S, SK, SLO	518 - 562 MHz*
	DK, FIN, M, N	518 - 562 MHz*
	HR, E, IRL, LV, RO, TR	518 - 562 MHz*
SLXD- J53 562-606 MHz, max. 1/10 mW	A, B, CH, CZ, D, E, EST	562–606 MHz*
	F, GB, GR, H, I, IRL, L	562–606 MHz*
	LT, M, NL, P, PL, SLO	562–606 MHz*
	DK, FIN, N, S	562–606 MHz*
	CY, LV, SK	562–606 MHz*
SLXD- K59 606– 650 MHz, max. 1/10 mW	A, B, CH, CZ, D, E, EST	606–650 MHz*
	F, GB, GR, H, I, IRL, L	606–650 MHz*
	LT, M, NL, P, PL, SLO	606–650 MHz*
	DK, FIN, N, S	606–650 MHz*
	CY, LV, SK	606–650 MHz*
SLXD- L56 650 - 694 MHz, max. 1/10 mW	A, BG, CH, CY, CZ, D, EST	650 - 694 MHz*
	F, GB, GR, H, I, IS, L, LT	650 - 694 MHz*
	P, PL, S, SK, SLO	650 - 694 MHz*
	B, DK, FIN, M, N, NL	650 - 694 MHz*
	HR, E, IRL, LV, RO, TR	650 - 694 MHz*
SLXD- S50 823– 832 863-865 MHz max. 1/10 mW	A, BG, CH, CY, CZ, D, EST	823–832 MHz *
	F, GB, GR, H, I, IS, LT	823–832 MHz *
	P, PL, S, SK, SLO	823–832 MHz *
	B, DK, E, FIN, HR, IRL, L	823–832 MHz *
	LV, M, N, NL, RO, TR	823–832 MHz *

* This equipment may be capable of operating on some frequencies not authorized in your region.

IMPORTANT SAFETY INSTRUCTIONS

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance with the manufacturer's instructions.
8. DO NOT install near any heat sources such as open flames, radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not place any open flame sources on the product.
9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. ONLY USE attachments/accessories specified by the manufacturer.
12.
    USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.
14. REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the apparatus.
16. The MAINS plug or an appliance coupler shall remain readily operable.
17. The airborne noise of the Apparatus does not exceed 70dB (A).
18. Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.
19. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
20. Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
21. Operate this product within its specified operating temperature range.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accom panying this unit.

• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
•
  Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable batteries
• Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
• Do not immerse the battery in liquid such as water, beverages, or other fluids.
• Do not attach or insert battery with polarity reversed.
• Keep away from small children.
• Do not use abnormal batteries.
• Pack the battery securely for transport.

Documents / Resources

References

• Wireless Workbench 7 - WWB7 - Shure USA
• Service
• SLX-D Command Strings - Shure
• SUU - Shure Update Utility - Shure USA

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Shure SLX-D, SLXD1, SLXD14 Manual
