3.3.2 Program operation the 1
▶ It is the screen for measured data, setting data, control output quantity and operation state.
▶ The pattern No. cannot be set during operation.
①
②
③
④
⑤
⑥
⑦
⑧
① It displays the current operation status.
② It displays current pattern No. and SEG No.
③ It displays the current measured data.
④ It displays the current measured data of the sub channel.
⑤ It displays current program pattern No. and SEG No.
⑥ It displays the pattern repetitions state.
☞ [Pattern repetition frequency : 000/000] The front digits show the repletion frequency and the rear
digits show the set repetition frequency.
⑦ The No. of PID zone is expressed which is being adopted currently.
⑧ It displays the processing time and setting time of the segments which are being progressed.
☞ [SEG time : 000H00M00S/000H00M00S] The time in the front means the segment processing time
and the time in the back means the setting time in the [5.1 Program pattern setting].
⑨ It means current date/time and the LCD screen blinks when it is pressed.
☞ The red lamp is ON when the date/time button is pressed on the operation still screen.
☞ The green lamp is ON when the date/time button is pressed on the operation screen.
⑩ It moves to the [Fig. 3-1 Main screen].
☞ The key pad to input the password is displayed at the main button restriction setting.
⑪ It moves from the current screen to the other screen.
⑫ The partial repetition state is displayed.
☞ [SEG repetition frequency : 00/00] The front digits show the repeated processing frequency and the
rear digits display the set repetition frequency.
⑬ The program operation processing time is displayed.
2nd Edition of TEMP2000M_Series IM : April. 8. 2014
st
still screen

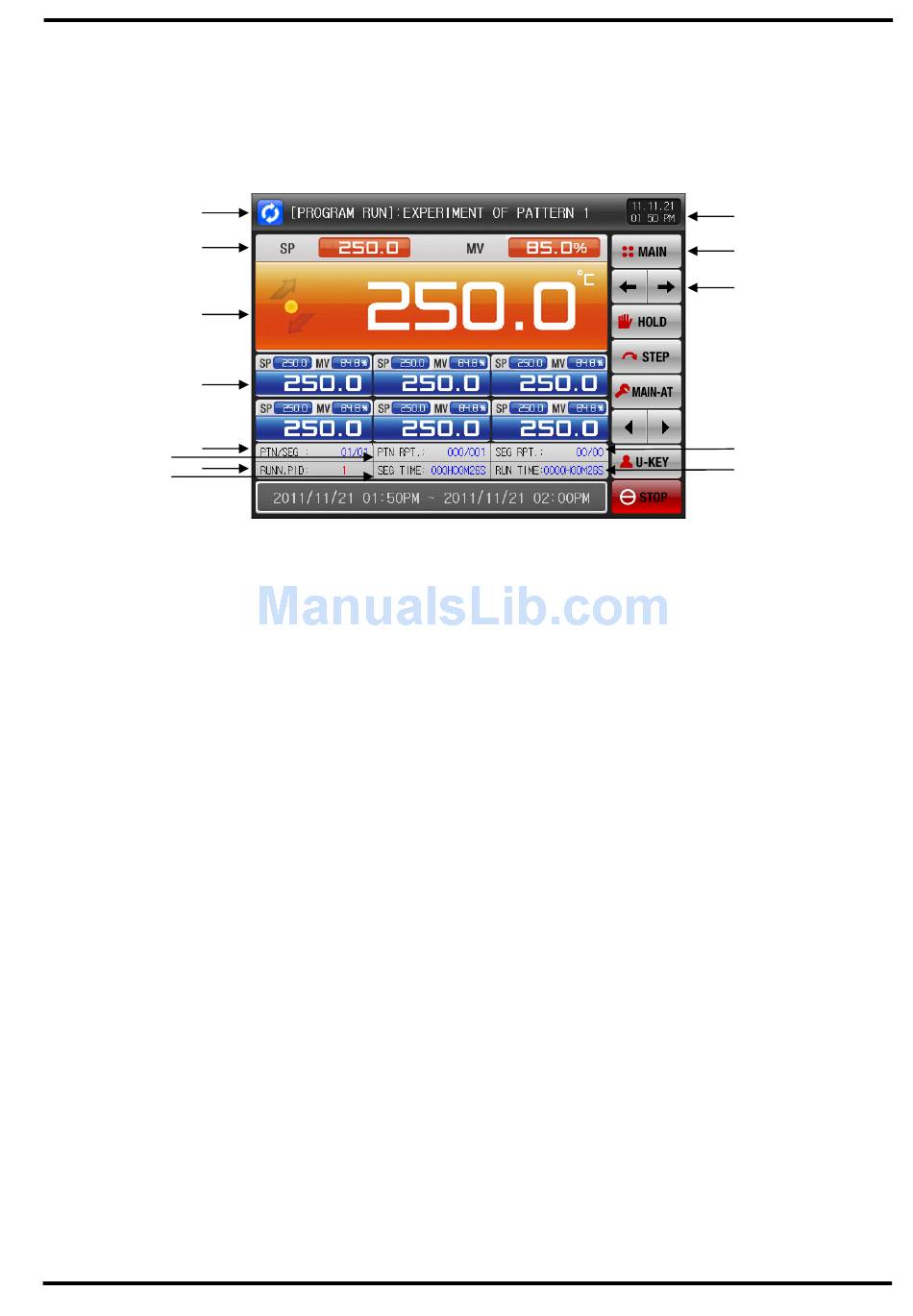

[Fig. 3-13] Program operation the 1
