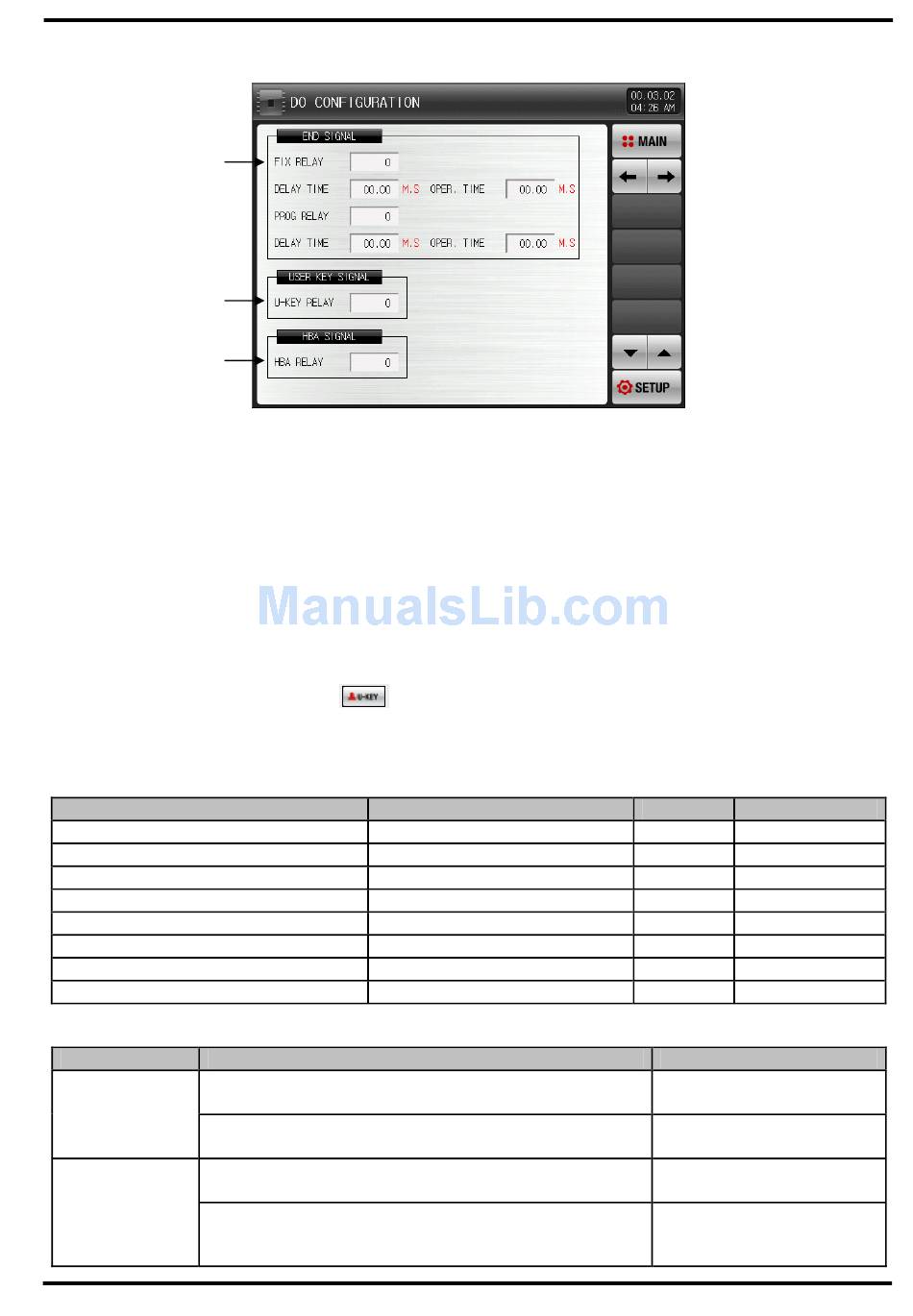

▶ It is a screen to set the operation termination signal and U-KEY relay.
▶
①
②
③
① Setting the stationary operation, program operation termination relay and delay time operation
timeWhen the use is set for the user button, the corresponding button is displayed at the operation
screen.
☞ FIX relay: The set relay is "ON" when the stationary time set operation is terminated.
☞ PROG relay: The set relay is "ON" when the program operation is terminated.
☞ Delay time: The set relay is "ON" when the set delay time is passed.
☞ Operation time: The relay is "OFF" when the stationary or program termination signal relay is "ON"
after the set operation time is passed.
② Setting the user button relay.
☞ Y/N for use of the button is set in [13. System initial setting]
☞ When the user button is set, the user can use the wanted relay by setting in [10. DO relay output] and
the set relay is operated when
and the corresponding button is displayed on the operation screen
③ Setting the HBA signal relay.
Table 13-10. Other signal relay setting the 3
Parameter
FIX relay
FIX relay delay time
FIX relay operation time
PROG relay
PROG relay delay time
PROG relay operation time
User button output relay
HBA signal relay
* The relay No. 13~32 can be used when I/O2 BOARD option is added.
Table 13-11. Definition of relay operation time for each signal
Signal
In case of deleting the message by touching the screen
Termination after the set relay operation time after creation.
signal
In case of deleting the message by touching the screen
during the set relay operation time after creation.
Error signal In case of recovery after the set relay operation time
Sensor after creation.
disconnection
In case of recovery during the set relay operation time
signal
after creation.
Standby signal
