22.5 Sub channel relay No. setting

22.5.1 Sub channel control output setting screen
▶ It is a screen to set the alarm signal in sub channel.
▶ It selects the sub channel DO relay setting in [Fig. 22-2 Sub channel control output setting screen].
①
① It sets the alarm signal relay in sub channel. .
② It moves the screen to the next and previous screen.
Table 22-4 Sub channel control output setting screen parameter
Parameter
SCH#n AL1 relay
SCH#n AL1 relay
* #n = It can be set in 1 ~ 6.
2nd Edition of TEMP2000M_Series IM : April. 8. 2014

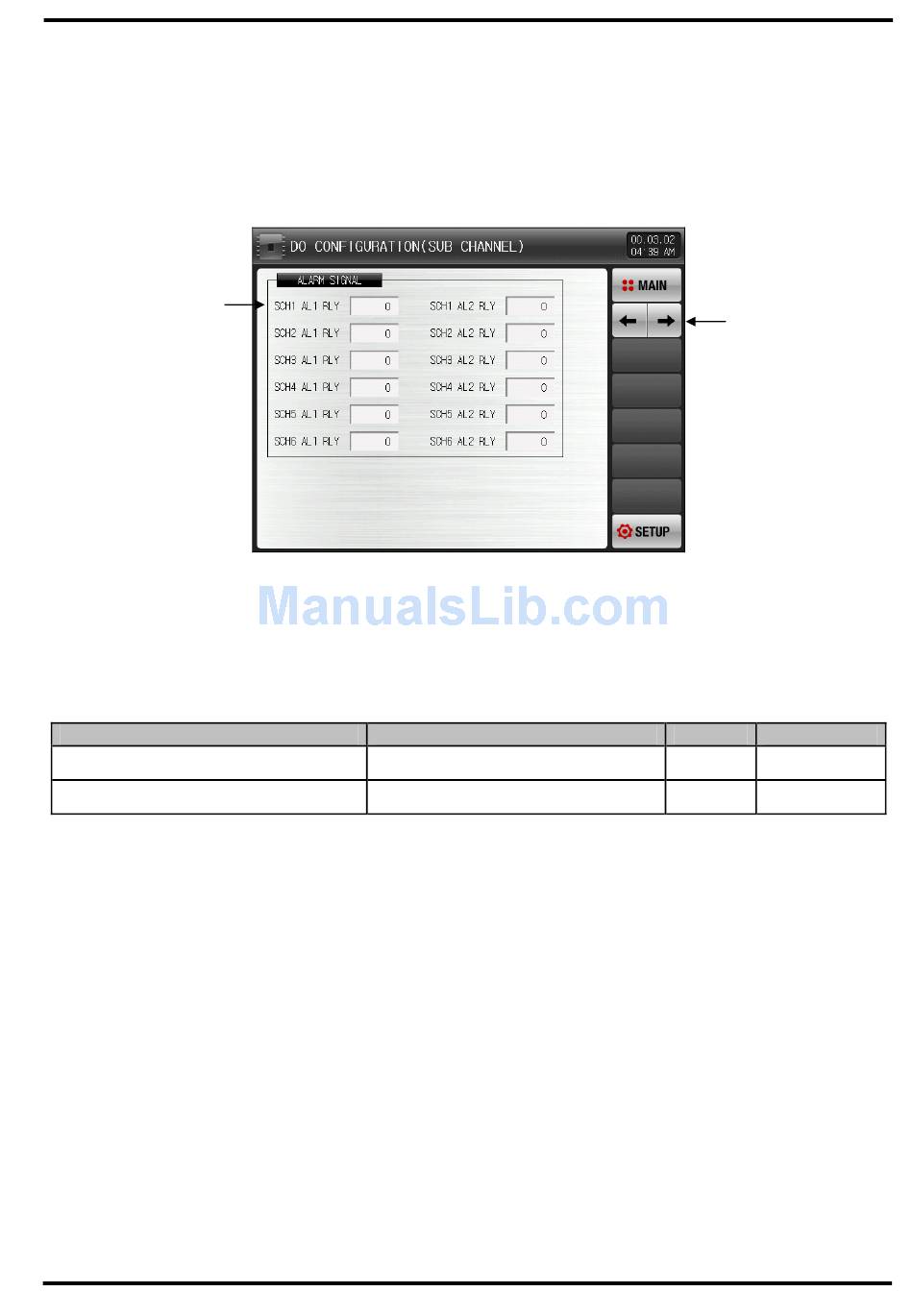

[Fig. 22-9] Sub channel control output setting screen
Setting range
0~32
0~32
②
Unit Initial data
ABS 0
ABS 0
