▶ In case of installing on the wall directly,

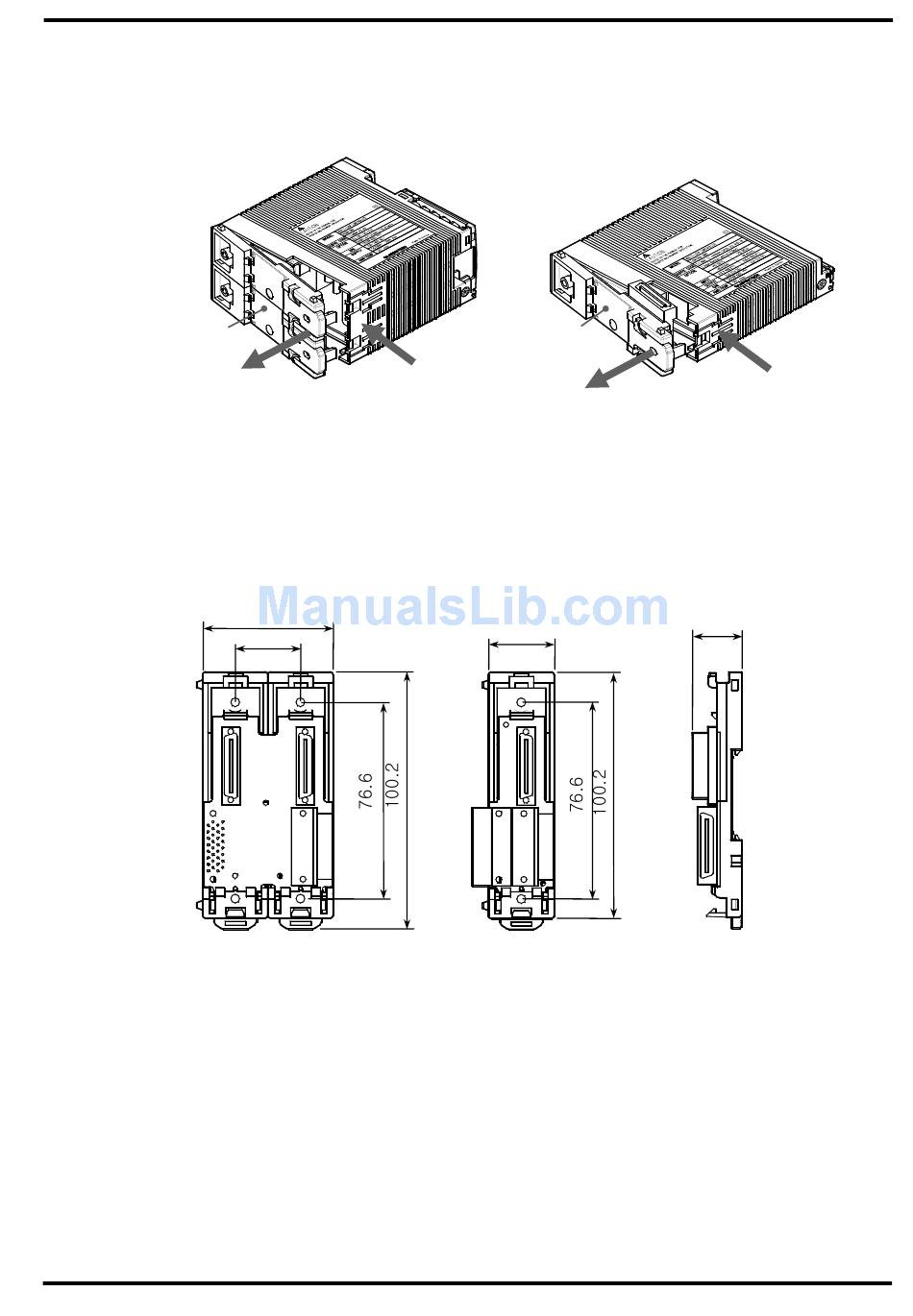

1) Disassemble the back cover of main and sub unit as follows.
Main unit
Back cover
▪ Disassemble the back cover by pulling part ②after pressing part ① of main unit.
▪ Check the space to install in consideration of external dimension of screw hole and back cover.
2) Check the space to install in consideration of external dimension of screw hole and back cover.
Main unit back cover
2nd Edition of TEMP2000M_Series IM : April. 8. 2014
Main unit
① pushing
② Pulling
51
25.5
Sub unit
Back cover
② Pulling
Sub unit back cover
25.5
Sub unit
① Pushing
24.87
