  • Page 1: Lcd Monitor

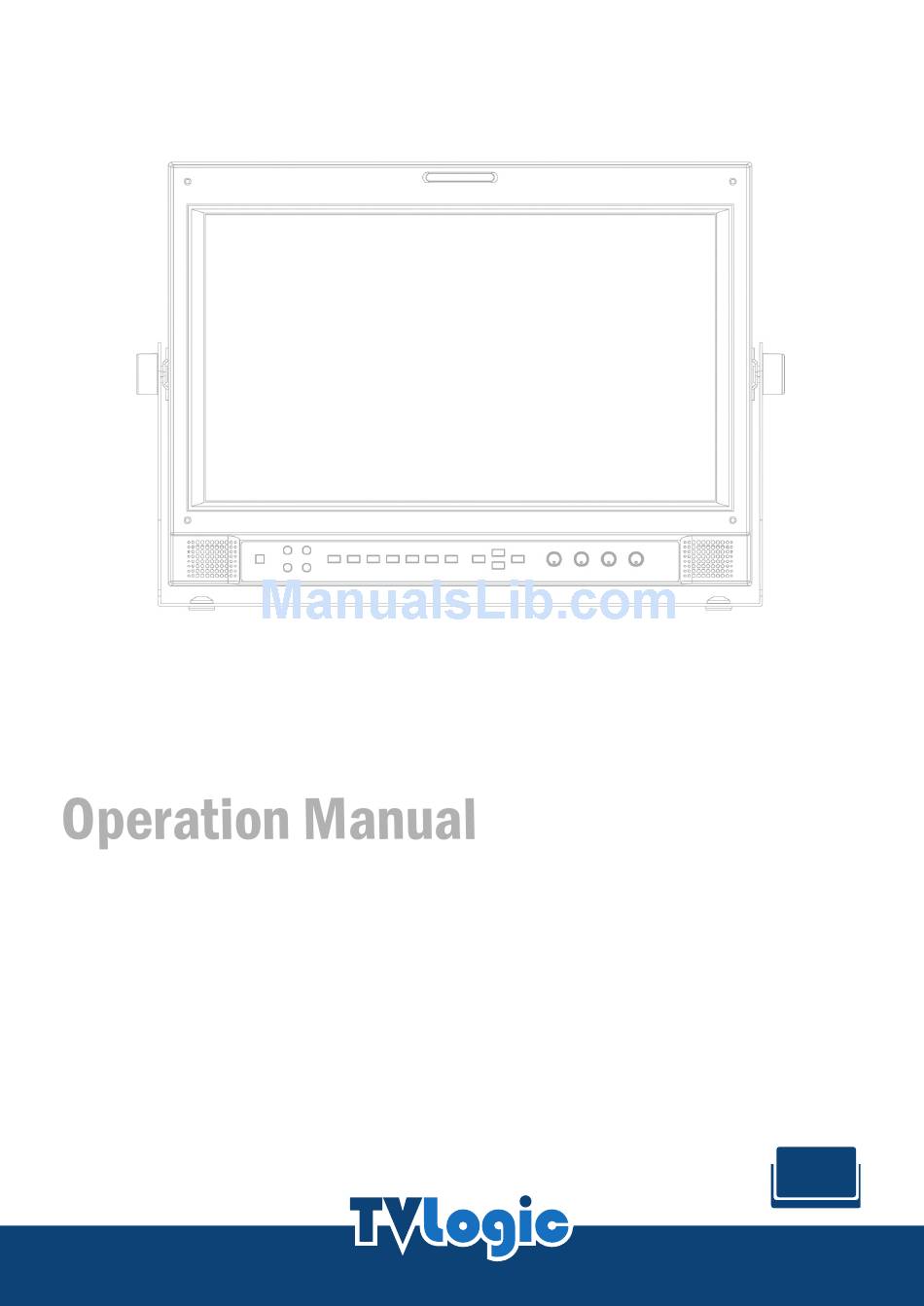

    Multi Format LCD Monitor LQM Series LQM-171W multi...

  • Page 3: Table Of Contents

    Contents Caution Features Controls, Indicators and Connections Menu Organization & Adjustment Menu Contents Optional Accessories...

  • Page 4: Caution

    Caution Power Requirements ◦ - AC 100 ~ 240V - DC 12V/24V ◦ All operating instructions must be read and understood before the product is operated. These safety and operating instructions must be kept in safe place for future reference. ◦...
  • Page 5 Caution In case the product needs service, consult an authorized TVLogic Reseller. ◦ Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean ◦ the product. Do not use liquid cleaners or aerosol cleaners.

  • Page 6: Features

    Features LQM-071W/LQM-171W MONITORS CONTAIN THE FOLLOWING FEATURES AND ADVANTAGES : 4 x SDI Inputs. ◦ 4 x Analog CVBS Inputs. ◦ HD-SDI, SD-SDI, CVBS Auto-detecting. ◦ 1 x SD/HD SDI Output. ◦ Embedded Audio Level Meter. ◦ Built in audio disembedder and internal speakers. ◦...

  • Page 7: Controls, Indicators And Connections

    Controls, Indicators and Connections LQM-071W : FRONT TALLY SELECT ETHERNET LED MARKER MENU /BRIGHT CHROMA USB LED CH SEL SDI OUT UP F1 ENCODER ENCODER POWER CONFIG LED PEAKING WAVE INTENSITY ENTER LEFT CONTRAST MENU RIGHT SPEAKER STATUS LED DISPLAY MODE VOLUME DN/F2 ENCODER...
  • Page 8 Controls, Indicators and Connections 2. BUTTON FUNCTION [DISPLAY MODE] Used to select display mode. (See Chart 2.) ◦ [CH SEL] Used to select active input channel. ◦ ◦ [PEAKING] Used to control the sharpness of the selected input display. [MARKER] Used to select Marker On/Off of the selected input channel. ◦...
  • Page 9 Controls, Indicators and Connections 3. LED INDICATOR [USB] Indicates the connectivity between USB Port and PC. The LED will start to blink when ◦ transmitting data with the PC to indicate the current status. [ETHERNET] Indicates the connectivity between Ethernet Port and Network. The LED will start to ◦...
  • Page 10 Controls, Indicators and Connections LQM-171W : REAR ETHERNET FACTORY PGM RS 232 SDI OUT SDI1/CVBS1 INPUT SDI2/CVBS2 INPUT SDI3/CVBS3 INPUT SDI4/CVBS4 INPUT DC 12V RS 422 REMOTE AUDIO OUTPUT AUDIO INPUT INPUT INPUT IN/OUT <LQM-171W-REAR>...
  • Page 11 Controls, Indicators and Connections 1. SDI IN/OUT [SDI/CVBS INPUT] HD-SDI. SD-SDI, CVBS Signal input terminal. ◦ ◦ LQM-171W detects the input source automatically and displays the source format for SDI and “NTSC” or “PAL” for CVBS HD-SDI. ◦ [SDI OUTPUT] SDI output terminal. If the selected input channel is in HD-SDI, the output is in HD-SDI and if the selected input channel is in SD-SDI input channel, the output is in SD-SDI.

  • Page 12: Menu Organization & Adjustment

    Menu Organization & Adjustment The product may be controlled and set system-wise through OSD displayed on the screen. 1) Menu Organization Below is the organization of the product’s menu. P IC TU R E B R IG H T C H 1 C H 1 C O LO R C O N T R A S T...

  • Page 13: Menu Contents

    Menu Contents [1] PICTURE Below is the description for each function of the PICTURE menu. 1. BRIGHT - Application: For each input channel. - Value Range: -50 ~ 49 - Default Value: 0 - Function v: Controls the brightness of the selected input display. 2.
  • Page 14 Menu Contents [2] COLOR Below is the description for each function of the COLOR menu. 1. COLOR TEMP - Application: For all available inputs. - Value Range: “3200K”, “5000K”, “5600K”, “6500K”, “9300K”, “CUSTOM1”, “CUSTOM2”, “CUSTOM3” - Default Value: “6500K” - Function: Controls Color Temperature of display. Selected color temperature applies for all input channels.
  • Page 15 Menu Contents [3] MARKER Below is the description for each function of the MARKER menu. 1. MARKER DISPLAY - Application: For each input channel. - Value Range: “OFF”, “ON” - Default Value: “OFF” - Function: Displays Marker for selected channel. 2.
  • Page 16 Menu Contents 7. USER MARKER H - Application: For all available inputs. - Value Range: 0 ~ 99 - Default Value: 99 - Function: Controls the position of user defined Horizontal Marker lines. 8. USER MARKER V - Application: For all available inputs. - Value Range: 0 ~ 99 - Default Value: 99 - Function: Controls the position of user defined Vertical Marker lines.
  • Page 17 Menu Contents [4] REMOTE Below is the description for each function of the GPI menu. Display Function NONE No REMOTE function assigned. R TLY C1 RED TALLY ON for CH1. R TLY C2 RED TALLY ON for CH2. R TLY C3 RED TALLY ON for CH3.
  • Page 18 Menu Contents 5. PIN5 - Application: For all available inputs. - Value Range: See Chart 1. - Default Value: “G TLY C4” - Function: Selects function for REMOTE PIN5. 6. PIN6 - Application: For all available inputs - Value Range: See Chart 1. - Default Value: “ACT SEL”...
  • Page 19 Menu Contents [5] DISPLAY 4P1W1V C H2 C H1 C H2 C H1 C H3 C H4 C H3 C H4 C H1 C H 1 W AVEF OR M T OR 4P3W 3P1W C H2 C H1 C H2 C H1 C H3 C H4...
  • Page 20 Menu Contents 2P2W 2P2V C H1 C H2 C H1 C H2 C H1 C H 2 C H1 C H 2 W AVEF OR M W AVEF OR M VEC T OR VEC T OR 1P1W C H1 C H1 C H1 W AVEF OR M 1P1W1V...
  • Page 21 Menu Contents 1. DISPLAY MODE - Application: For all available inputs. - Value Range: “4P”, “4P1W1V”, “4P3W”, “3P1W”, “3P1V”, “2P1W1V”, “2P2W”, “2P2V”, “1P”, “1P1W”, “1P1W1V”, “1P3W” - Default Value: “4P” - Function: Selects the image Display Mode. See Chart 2. Value “P”...
  • Page 22 Menu Contents “SPACE” ! " # $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M N O P Q R S T U V W X Y Z[ \ ] ^ _ ` a b c d e f g h I j k l m n o p q r s t u v w x y z { | } ~ <SRC ID String ASCII Characters>...
  • Page 23 Menu Contents [6] SYSTEM Below is the description for each function of the SYSTEM menu. 1. SET DEFAULT - Application: For all available inputs. - Value Range: “NO” , “YES” - Default Value: “NO” - Function: Initializes all fixed values back to default setting. * Exception: Custom 1~3 in Color menu.
  • Page 24 Menu Contents 6. SDI OUT SEL - Application: For all available inputs - Value Range: “CH1” , “CH2” , “CH3” , “CH4” - Default Value:“CH1” - Function: Selects the input source to use with SDI Output. If the selected input channel is in HD-SDI, the output is in HD-SDI, and if the selected input channel is in SD-SDI input channel, the output is in SD-SDI.
  • Page 25 MENU CONTENTS Display Menu Function ASPECT PICTURE -> ASPECT RATIO Change the Aspect Ratio. COLTEMP COLOR -> COLOR TEMP Select the Color Temperature. MARKTYP MARKER -> MARKER TYPE Select the MARKER type. SAFETYP MARKER -> SAFETY AREA Select the SAFETY AREA value. LCD BLT SYSTEM ->...

  • Page 26: Optional Accessories

    Optional Accessories ND Filter External Filter Rack Mountable Kit Tripod Head V-Mount Hood Carrying Case RACK MOUNT ANY DISPLAY UP TO 24” 8.4 inch 9 inch 7 inch 15 inch 17 inch 24 inch...
  • Page 28 Developed by 12F ACE HIGH-END TOWER 8, Gasan-Dong, Geumchoen-Gu, Seoul, Korea, 153-802 #914 Namsung Plaza(Ace Techno Tower 9), 345-30 Gasan-dong, Geumcheon-gu, Seoul, Tel : +82-70-8668-6611, Fax : 82-2-2026-1339, Email : support@tvlogic.co.kr 153-782, KOREA Tel : +82-2-2026-1333, Fax : +82-2-2026-1339, Email: support@tvlogic.co.kr...
