Emerson Rosemount 5708 Quick Start Manual

3d solids
Hide thumbs Also See for Rosemount 5708:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
Quick Start Guide
00825-0100-4570, Rev CB
July 2017
™
Rosemount
5708 3D Solids Scanner

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 5708

Summary of Contents for Emerson Rosemount 5708

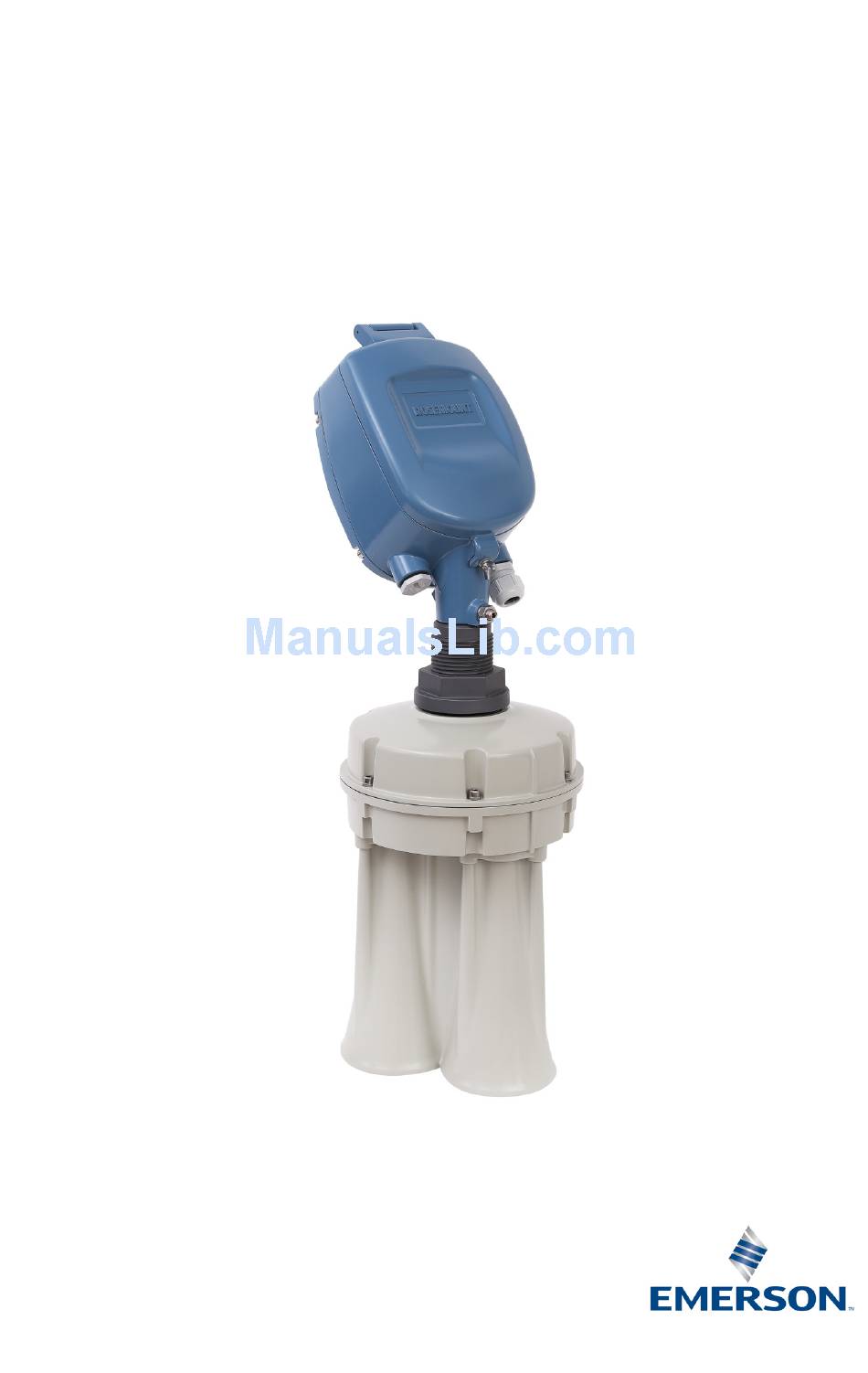

  • Page 1 Quick Start Guide 00825-0100-4570, Rev CB July 2017 ™ Rosemount 5708 3D Solids Scanner...

  • Page 2: Table Of Contents

    Product certifications ....29 Configuration using the LCD display ..15 Rosemount 5708 Declaration of Conformity 35 Configuration using Rosemount 3DVision . . 23...

  • Page 3: Site Preparations

    Prepare a 24 Vdc power supply near the device mounting location.  Make sure that you use proper cables for wiring. The Rosemount 5708 is a  4-wire device. The voltage supply and data output (4-20 mA) are carried along two separate two-wire connection cables.
  • Page 4 July 2017 Quick Start Guide Vessel type and dimensions   Vessel details Vessel type Cylindrical Rectangular   Flat Flat   Cone Pyramid Height (A): ______ X: ______ Y: ______ Top diameter (A): ______ Height (B): ______ Top shape ...
  • Page 5 The full and empty calibration levels represent the 20 mA (100%) and 4 mA  (0%) of the volume respectably. The Rosemount 5708 has a 20 in. (0.5 m) dead zone starting from the top  part of the antenna assembly.
  • Page 6 Figure 2. Full and Empty Calibration in Rectangular and Cylindrical Vessels Full calibration: Empty calibration: Application process Maximum filling rate: lbs/hour tons/hour Maximum emptying rate: lbs/hour tons/hour Total capacity when vessel is full: tons Mounting location Mount Rosemount 5708 perpendicular to the ground.  90°...
  • Page 7 Quick Start Guide July 2017 Keep necessary distance from side wall.  Minimum 24 in. (600 mm) Keep necessary distance from filling points.  Minimum 24 in. (600 mm) Make sure there is no obstacle below the device.  In the case of standpipe mounting, assemble and position the Rosemount ...

  • Page 8: Physical Mounting

    July 2017 Quick Start Guide Physical mounting Step 1: Check power and cables 1. Check the 24 Vdc with a voltmeter. 2. Check the resistance of the data communication lines. 3. Verify 60 Ω of resistance when connecting the 120 Ω resistors at both ends. Step 2: Install the mounting plate 1.
  • Page 9 Quick Start Guide July 2017 5. Lower the antenna and mounting plate into the fitting location on the silo. 6. Bolt the mounting plate onto the flange of the silo. Step 3: Rotate antenna toward silo center 1. Slightly loosen the nut that connects the antenna with the mounting plate. 2.
  • Page 10 July 2017 Quick Start Guide 3. Verify the presence of the O-ring on the tube neck. 4. Gently insert the antenna cable through the head. Antenna cable 5. Insert the head onto the neck tube. a. Rotate the head to the desired direction. The head may be installed in six different positions.
  • Page 11 Quick Start Guide July 2017 6. Tighten the front screw. Hex key (4 mm) Open wrench (13 mm) 7. Remount the cable clamp. 8. Gently connect the antenna cable connector. Make sure the latch is clicked and locking the connector.
  • Page 12 July 2017 Quick Start Guide Step 5: Wire the Rosemount 5708 1. Verify the power supply is disconnected. 2. Loosen the compression nut of the cable gland entry. 3. Insert the cable into the head. 4. Remove approximately 4 in. (100 mm) of the cable mantle and strip approximately 0.4 in.
  • Page 13 14 different connection methods. Note Ω When connecting the last Rosemount 5708 in the chain, a 120 resistor must be connected as well. Check polarity of the power entity before connecting the device. Feed in power supply 20-32 Vdc...
  • Page 14 Use RS-485 or 4-20 mA connection for communication. ™ Figure 3. Wiring the 4-20mA to Smart Wireless THUM Adapter 250 Ω 24DC A. Rosemount 5708 housing ground shield E. White B. THUM Adapter F. Black C. Green G. Red D. Yellow...

  • Page 15: Configuration Using The Lcd Display

    Quick Start Guide July 2017 Figure 4. Rosemount 5708 Connection Rosemount Rosemount Rosemount Rosemount 5708 n 5708 2 5708 3 5708 1 RS-485 (+) RS-485 (+) 120 Ω 120 Ω RS-485 (-) RS-485 (-) Figure 5. 4-20 mA Connection 4-20 mA...
  • Page 16 July 2017 Quick Start Guide 1. Connect power and open the front cover. A self-test will start and run for about 30 seconds the display remains blank during this time. 2. After initialization, the version screen Rosemount appears. 5708LNN Initialization According to the factory default settings, after power initiation or scanner restart, a screen prompts for...
  • Page 17 Quick Start Guide July 2017 4.2 Setting the polling address Setting the device address is mandatory when multiple devices are connected over an RS-485 Multidrop (daisy chain). Set the addresses prior to use of the Rosemount 3DVision software. 1. From the main screen, press the <tag name>...
  • Page 18 July 2017 Quick Start Guide 3. Set the distance units, either meters (m) or feet (ft). 4. Set Vessel Height from the vessel Set Vessel Height bottom edge to the vessel top edge. 20.000 m Use the key to switch between the two digits.
  • Page 19 Quick Start Guide July 2017 6. If Rectangular is selected, set vessel width first (dimension on the x-axis). a. Use the key to switch between Set Vessel Width the two digits. Use the key to modify the value. Press 010.000 m continue.
  • Page 20 July 2017 Quick Start Guide Advanced Settings configuration After configuring the Basic Settings, perform Advanced Settings configuration. 1. From the main screen, press the <tag name> key to enter the main menu. 3.45m Avg Dist. █████████████▒▒▒▒▒ Menu 2. In the main menu, scroll down to Basic Settings Advanced Settings, using the key.
  • Page 21 Quick Start Guide July 2017 6. Set the process rate using the key. Slow Process Press to continue. Regular Process Fast Process Make sure to always use Regular Process. For the Slow and Fast Process options, contact your local customer service. 7.
  • Page 22 July 2017 Quick Start Guide 3. Select Map False Echoes for Map False Echoes automatically mapping all the false Reset Mapping echoes up to a certain distance. Or select Reset Mapping for deleting the stored mapped false echoes from the memory of the scanner. Use the key to go down the list.

  • Page 23: Configuration Using Rosemount 3Dvision

    Quick Start Guide July 2017 Configuration using Rosemount 3DVision 5.1 Installing the Rosemount 3DVision software The software is comprised of two components: a server and a client. For initial configuration, it is recommended to install both the server and the client on the same computer.
  • Page 24 This step should only be performed if the distance given by the Rosemount is incorrect. When first configuring the Rosemount 5708, it is recommended to perform Echo Curve Analysis. Using the Echo Curve Analysis it is possible to determine if...
  • Page 25 Quick Start Guide July 2017 On the Device menu, select Echo Curve Analysis. Then make sure the  check-box is checked, then select the Start button. Once the Echo Curve Analysis is complete, the echo curve window will pop up. This function is also available via Device >...

  • Page 26: Post Installation Procedures

    Test the device while silo is idle. c. Measure as close to the Rosemount 5708 as possible. d. In some models, the device has minimum and maximum values for distance. Check if the hand dip is between these measurement.

  • Page 27: Rosemount 5708S In A System

    Quick Start Guide July 2017 Rosemount 5708S in a system System components Multiple units of Rosemount 5708S  Display Display PS IN 4...20mA PS OUT RS-485 PS IN 4...20mA PS OUT RS-485 PS IN 4...20mA RS-485 PS IN 4...20mA RS-485 Ω...
  • Page 28 “Rosemount 5708 Connection” on page 4-20 mA connection Since every Rosemount 5708 in the daisy chain outputs the same data, it does not matter which device the 4-20 mA output is derived from. The 4-20 mA output represents the volume calculated by devices in the vessel.

  • Page 29: Product Certifications

    A copy of the EC Declaration of Conformity can be found on page 35. The most recent revision of the EC Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary Location Certification As standard, the transmitter has been examined and tested to determine that the design...
  • Page 30 July 2017 Quick Start Guide Europe I1 ATEX Intrinsic Safety Certificate: BVS14ATEXE060X Standards: EN60079-0:2012, EN60079-11:2012 Markings: II 2 G Ex ib [ia] IIB T4 Gb (-40 °C < T < +85 °C) II 1/2 D Ex ib [ia] IIIC T110 °C Da/Db (-40 °C < T <...
  • Page 31 Quick Start Guide July 2017 International I7 IECEx Intrinsic Safety Certificate: IECEx BVS 15.0042X Standards: IEC 60079-0: 2011, IEC 60079-11: 2011 Markings: Ex ib [ia] IIB T4 Gb (-40 °C < Ta < +85 °C) Ex ib [ia] IIIC T110°C Da/Db (-40 °C < Ta < +85 °C) Table 3.
  • Page 32 July 2017 Quick Start Guide China I3 China Intrinsic Safety Certificate: GB3836.1-2010, GB3836.4-2010, IEC61241-0 - 2004, GB12476.4-2010 Markings: Ex ib/ia IIB Gb T4 Ex ibD/iaD 21/20 T110 °C Special Condition for Safe Use (X): 1. The installation of the product shall provide a degree of protection IP6X according to GB4208-2008, and in such a way that all metallic parts are integrated in the local equipotential bonding.
  • Page 33 Quick Start Guide July 2017 IM Intrinsic Safety by TR CU 012/2011 Markings: 1Ex ib [ia] IIB T4 Gb X (-40 < Tamb < 85 °C) Ex ib [ia] IIIC T110 °C Da/Db X (-40 < Tamb < 85 °C) Table 5.
  • Page 34 Certificate: 15-KA4BO-0298X - ex Standards: IEC 60079-0: 2011, IEC 60079-11: 2011 Markings: Ex ib [ia] IIB T4 Gb, Ex ib [ia] IIIC T110C Da/Db For detailed information on configuring the Rosemount 5708 and Rosemount System Controller, refer to the Rosemount 5708 Reference...
  • Page 35 Quick Start Guide July 2017 Figure 7. Rosemount 5708 Declaration of Conformity...
  • Page 36 July 2017 Quick Start Guide...

  • Page 37: Installation Drawing

    Quick Start Guide July 2017 Installation drawing Figure 8. Wiring Drawing for Intrinsically Safe 3D Solids Scanner...

  • Page 38: Quick Start Guide

    Emerson FZE P.O. Box 17033 and Conditions of Sale page. Jebel Ali Free Zone - South 2 The Emerson logo is a trademark and service mark of Emerson Dubai, United Arab Emirates Electric Co. +971 4 8118100 Rosemount and Rosemount logotype are trademarks of Emerson.
