PACSystems™ RX3i PROFINET Scanner &
Advanced PROFINET Scanner
Firmware Version 3.35

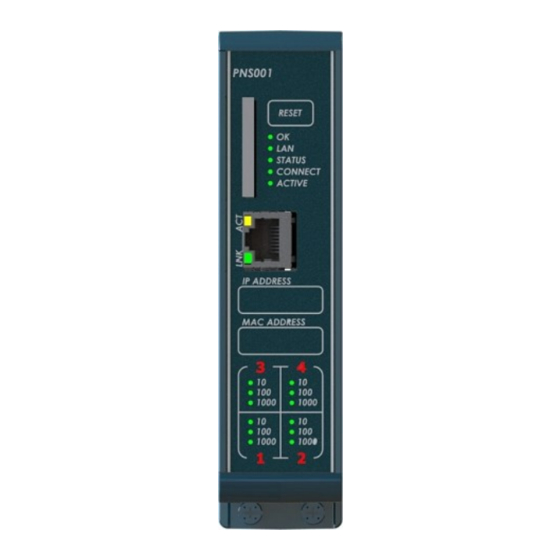

RX3i PROFINET Scanner
IC695PNS001-BGBE
RX3i Advanced PROFINET Scanner
IC695PNS101-AEAC
1
Includes conformal coat and low temperature module variants, if available.
2
The last two characters of the catalog number suffix may not increment with every firmware release beginning with IC695PNS001-BDBE & IC695PNS101-
ACAC Release 3.20.
1 2
1 2
IMPORTANT PRODUCT INFORMATION
GFK-2738AB
Jul 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PACSystems RX3i PROFINET Scanner and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson PACSystems RX3i PROFINET Scanner

Summary of Contents for Emerson PACSystems RX3i PROFINET Scanner

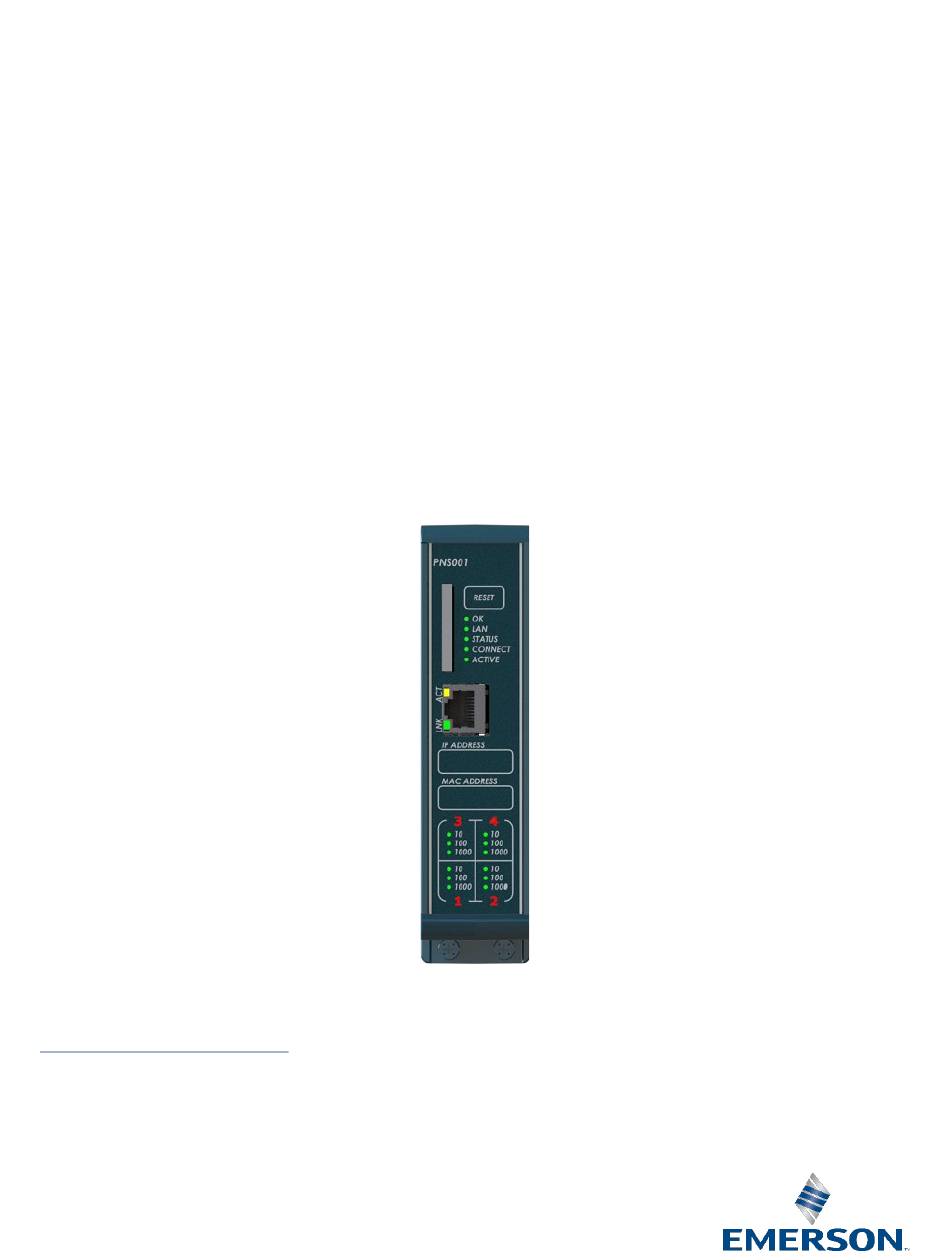

  • Page 1 IMPORTANT PRODUCT INFORMATION GFK-2738AB Jul 2022 PACSystems™ RX3i PROFINET Scanner & Advanced PROFINET Scanner Firmware Version 3.35 RX3i PROFINET Scanner IC695PNS001-BGBE RX3i Advanced PROFINET Scanner IC695PNS101-AEAC Includes conformal coat and low temperature module variants, if available. The last two characters of the catalog number suffix may not increment with every firmware release beginning with IC695PNS001-BDBE & IC695PNS101- ACAC Release 3.20.
  • Page 2 Changes, modifications, and/or improvements to equipment and specifications are made periodically and these changes may or may not be reflected herein. It is understood that Emerson may make changes, modifications, or improvements to the equipment referenced herein or to the document itself at any time. This document is intended for trained personnel familiar with the Emerson products referenced herein.
  • Page 3 PROFINET scanner when Sequence of Events is disabled. Current Release Information PACSystems RX3i PROFINET Scanner (PNS), IC695PNS001, and Advanced PROFINET Scanner IC659PNS101 Release 3.35 add support for MODBUS Master and Slave exchanges using up to four IC695CMM002/004 RX3i Serial Communications Modules and support for the IC695PSD180 Multifunctional 24VDC 80W Power Supply.

  • Page 4: New Features And Enhancements

    PACSystems RX3i PROFINET Scanner Module 10/100/1000 with four Ports IC695PNS001 (two SFP connections, two RJ45 connections) Includes a blank SD card Conformal Coated PACSystems RX3i PROFINET Scanner Module 10/100/1000 with four Ports IC695PNS001CA (two SFP connections, two RJ45 connections) Includes a blank SD card...
  • Page 5 GFK-2738AB Jul 2022 Specifications Descriptions PROFINET Version 2.3 Class A I/O Device PROFINET Support Redundantly controlled operation implements PROFINET V2.3 Type S-2 System Redundancy PAC Machine Edition Version PNS001 & PNS101: Version 8.50 SIM 2 or later Required PNS001-Bxxx or later: PNS001-Axxx: PNS101-Axxx or later: 3.3 Vdc...
  • Page 6 GFK-2738AB Jul 2022...

  • Page 7: Profinet Scanner Status And Control Data

    GFK-2738AB Jul 2022 PROFINET Scanner Status and Control Data The RX3i PROFINET Scanner provides 32 bits of input status data and receives 32 bits of output control data. The application program in the I/O Controller system can monitor the input status bits for the PNS module. The output control bits are reserved for future use and have no function at this time.
  • Page 8 GFK-2738AB Jul 2022 Status Name Description Bits Clock Sync’d PNS101: The internal clock has been synced to the IRIG-B clock source. This bit may take up to 90 seconds to turn on after the IRIG-B clock is available. PNS001: Set to 0 SoEs Avail PNS101: SoE Records are available for upload.

  • Page 9: Leds On The Profinet Scanner Module

    Manual, GFK-2737. Normal Operation of Individual LEDs The PNS’s LEDs can operate in tandem to indicate a fatal error, module location/identification, microprocessor over- temperature, and update conditions. For details on these blink patterns, refer to PACSystems RX3i PROFINET Scanner Manual, GFK-2737.
  • Page 10 GFK-2738AB Jul 2022 OK LED The OK LED indicates whether the module can perform a normal operation. Green, on Not OK LAN LED The LAN LED indicates access to and activity on the PROFINET network. The LAN LED indicates network packets are being processed by the network interface (not just passing through the embedded switch).
  • Page 11 GFK-2738AB Jul 2022 100 Speed LED Green, on Link connected, 100 Mbps. Green, blinking Port active, 100 Mbps The associated Ethernet port is not connected to an active link at 100Mbps 10 Speed LED Green, on Link connected, 10 Mbps. Green, blinking Port active, 10 Mbps The associated Ethernet port is not connected to an active link at 10Mbps...
  • Page 12 Quick Start Guide Installation and initial startup procedures for the PNS include the following steps. Before installing and operating the PNS, refer to PACSystems RX3i PROFINET Scanner Manual, GFK-2737, for detailed information. Pre-Installation Check Upon receiving your RX3i equipment, carefully inspect all shipping containers for damage. If any part of the system is damaged, notify the carrier immediately.
  • Page 13 By default, all ports, including empty, unconfigured SFP cages, are set for Automatic, which enables auto-negotiation for the widest range of options supported by the port. For other options, refer to PACSystems RX3i PROFINET Scanner Manual, GFK-2737. Figure 2: Anatomy of the Module...

  • Page 14: Supported Modules, Power Supplies, And Backplanes

    GFK-2738AB Jul 2022 3. Configuring the PNS and its I/O Modules on a PROFINET network PAC Machine Edition is the primary tool used to configure an RX3i PROFINET network. The PNS must be installed in the slot that is selected in the module’s hardware configuration. The GSDML file for the RX3i PNS is included in the firmware upgrade kit.
  • Page 15 GFK-2738AB Jul 2022 Catalog Number Module Description Distinguishing Classes IC694MDL646 16 Circuit Input 24 Vdc Positive / Negative Logic Fast 16 in IC694MDL648 16 Circuit Input 48 Vdc Positive / Negative Logic Fast 16 in IC694MDL654 32 Circuit Input 5/12 Vdc Positive / Negative Logic 32 in IC694MDL655 32 Circuit Input 24 Vdc Positive / Negative Logic Fast...
  • Page 16 GFK-2738AB Jul 2022 Catalog Number Module Description Distinguishing Classes IC694MDL753 32 Circuit Output 12/24 Vdc 0.5A Positive 32 out IC694MDL754 32 Circuit Output with ESCP none IC694MDL758 none 32 Circuit Output 12/24 Vdc 0.5A Positive with ESCP IC694MDL916 16 Circuit Output 4A Relay none IC694MDL930 8 Circuit Output 4A Relay Isolated...
  • Page 17 GFK-2738AB Jul 2022 Catalog Number Module Description Distinguishing Classes RTD Input Modules IC695ALG508 8 Channel Isolated RTD Input none Thermocouple Input Modules IC695ALG312 12 Point Isolated Thermocouple Input none IC695ALG412 12 Point Isolated High-Speed Thermocouple Input none High-speed Counter Modules IC695HSC304 High-speed Counter Module - 4 Counters None...

  • Page 18: Release History

    3.25 Resolves issues described in the section entitled IC695PNS101-ACAC 2020 Problems Resolved by this Revision Added support for the IC694MDL730 & IC694MDR390, rebranded the PNS001/PNS101 and GSDML to Emerson, and applied patches for VxWorks IC695PNS001-BDBE URGENT/11 vulnerabilities. 3.20 IC695PNS101-ACAC 2019 Resolves issues described in the section entitled Problems Resolved by this Revision.

  • Page 19: Field Upgrade

    GFK-2738AB Jul 2022 Added support for additional RX3i I/O modules (ALG106, ALG312, ALG314, IC695PNS001-ABAJ 2.40 2015 ALG608, ALG628, ALG704, and MDL758) Added support for HART ® Pass-Through feature set using HART-capable RX3i IC695PNS001-ABAH 2.30 Analog modules. Also added support for I/O Module Version information via 2015 Explore PROFINET Networks in PME.
  • Page 20 GFK-2738AB Jul 2022 Problems Resolved by this Revision Cyber Security Updates DE7445 Added security enhancements to harden the product against a malicious DE8516 actor. No LEDs on After Power Cycle DE6793 Quick power cycles or restart after a firmware update could cause the or Firmware Update module to stall during boot with no LEDs turned on.
  • Page 21 PNS001-Bxxx Release 3.25 GSDML-V2.3-IntelligentPlatformsLLC- IC694MDL655 SoE RX3iPNS-20191010.xml PNS101 Release 3.25 IC694MDL730, PNS001-Bxxx Release 3.20 GSDML-V2.3-IntelligentPlatformsLLC- IC694MDR390, RX3iPNS-20190820.xml PNS101 Release 3.20 Emerson rebranding GSDML-V2.3-GEIP-RX3iPNS- GSDML Version PNS101 Release 3.10 PNS101 20180724.xml PNS001-Bxxx Release 3.10 GSDML-V2.3-GEIP-RX3iPNS- IC695HSC304 20180724.xml PNS101 Release 3.10 GSDML-V2.3-GEIP-RX3iPNS- PNS001-Bxxx Release 3.00...

  • Page 22: Operational Notes

    Module blinking. In addition, I/O point faults will be asserted for that module’s I/O. will cause the respective RX3i I/O module to fail configuration Correct the configuration of the I/O module and store HWC again. Refer to the section entitled RX3i PROFINET Scanner Configuration Validation in PACSystems RX3i PROFINET Scanner Manual, GFK-2737.
  • Page 23 GFK-2738AB Jul 2022 Subject Description For analog input and output modules that support alarms, the PNS limits alarm values to the range specified by the High and Low Engineering Unit values. If the High and Low Scale A/D Unit values are not the full range of the analog signal, runtime values reported in Engineering Units may exceed the High or Low Engineering range.
  • Page 24 Refer to section “Media Redundancy Protocol Support” of PACSystems RX3i PROFINET Scanner Manual, GFK-2737, for details on recommended MRP configuration. On power-up, the PNS generates a local security certificate to use with HTTPS Reset Password returns HTTP communications.

  • Page 25: Product Documentation

    Jul 2022 Product Documentation For additional information, please refer to the manuals listed below. Manuals can be downloaded from the support website, http://www.emerson.com/industrial-automation-conrtrols/support PACSystems RX3i, and RSTi-EP CPU Reference Manual GFK-2222 PACSystems RX3i & RSTi-EP PROFINET I/O Controller User Manual...

  • Page 26: General Contact Information

    © 2022 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners.
