The meriSense detachable sensors

Make a pressure connection

Protect your sensors from dust

meriGauge plus System User Manual
info@Meriam-Direct.com
Make a good NPT connection
Each meriSense detachable sensor has a 316 stainless steel
1/4 in. male NPT connection for direct mounting.
• The threads should be coated with a pipe sealant
compound before installation.
• Tighten to finger tight plus 1.5 turns to 3 turns using a
23 mm (7/8 in.) wrench with the notch facing the same
direction as you intend for the display.

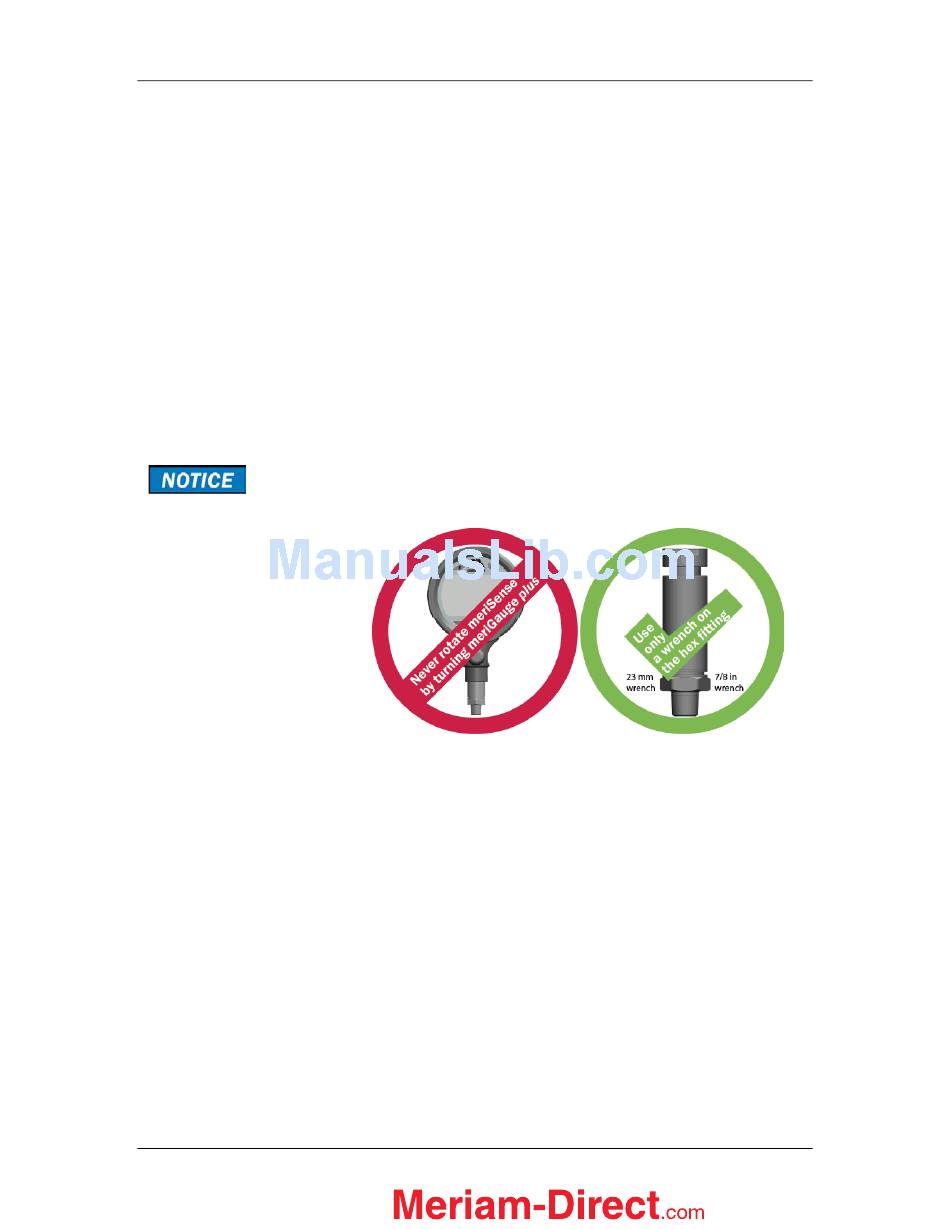

Use only a wrench on the hex fitting
Never rotate a meriSense sensor by turning the meriGauge
plus gauge.
Keep the dust cap on sensors
Make sure you put the dust cap on the sensor to protect the
electrical contacts after the meriGauge plus gauge has been
detached from the sensor.
