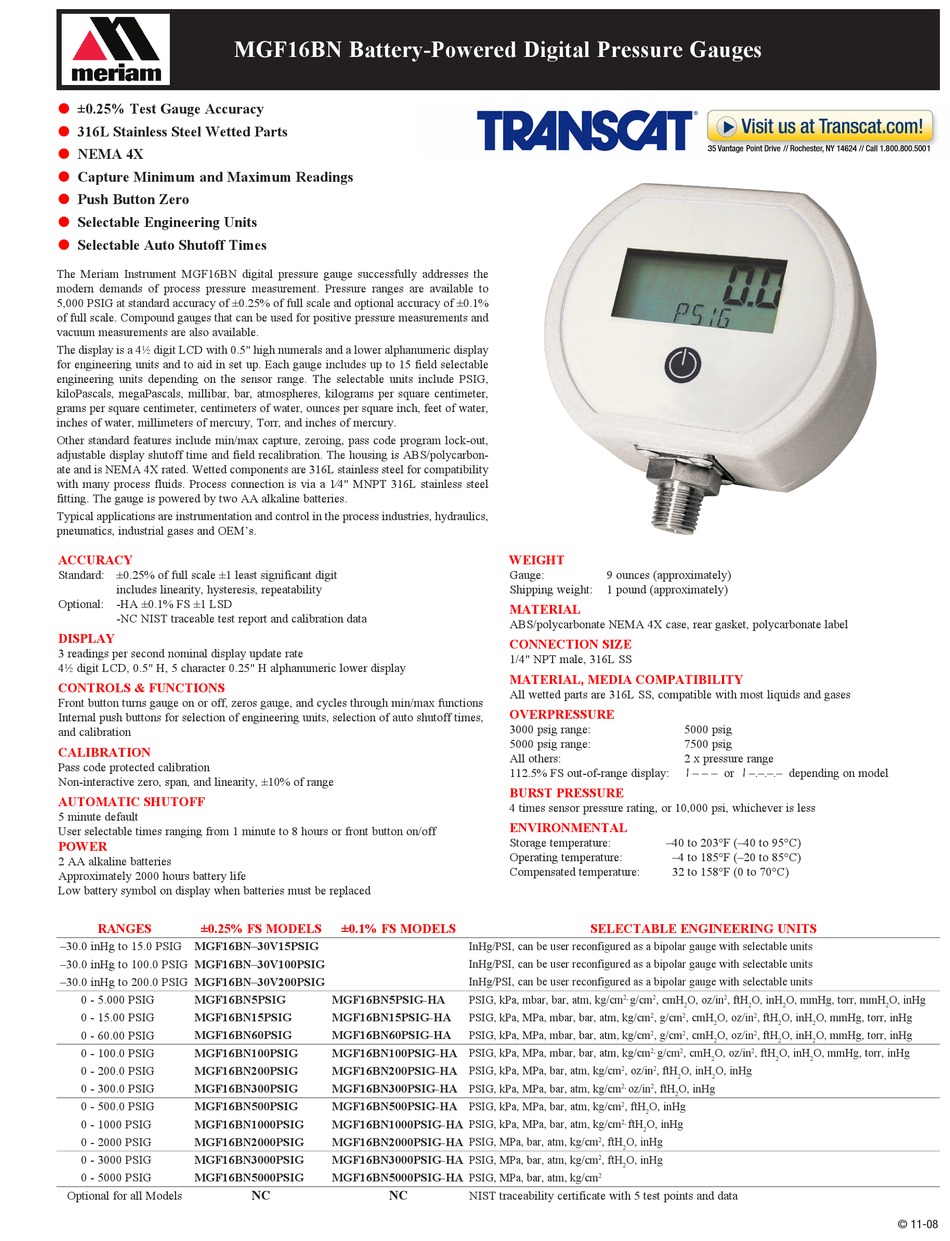

MGF16BN Battery-Powered Digital Pressure Gauges
±0.25% Test Gauge Accuracy
l
316L Stainless Steel Wetted Parts
l
NEMA 4X
l
Capture Minimum and Maximum Readings
l
Push Button Zero
l
Selectable Engineering Units
l
Selectable Auto Shutoff Times
l

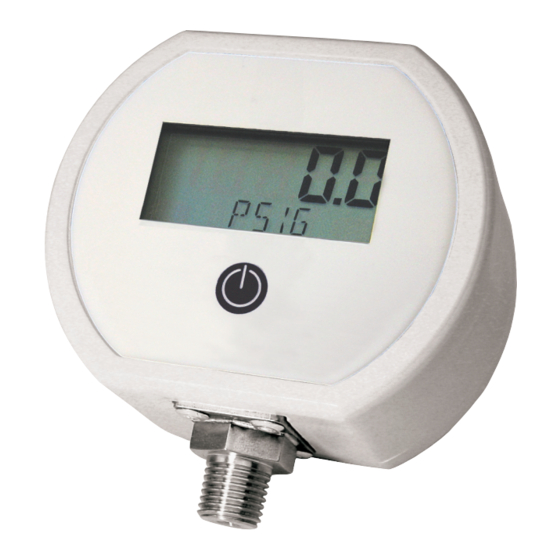

The Meriam Instrument MGF16BN digital pressure gauge successfully addresses the
modern demands of process pressure measurement. Pressure ranges are available to
5,000 PSIG at standard accuracy of ±0.25% of full scale and optional accuracy of ±0.1%
of full scale. Compound gauges that can be used for positive pressure measurements and
vacuum measurements are also available.
The display is a 4½ digit LCD with 0.5" high numerals and a lower alphanumeric display
for engineering units and to aid in set up. Each gauge includes up to 15 field selectable
engineering units depending on the sensor range. The selectable units include PSIG,
kiloPascals, megaPascals, millibar, bar, atmospheres, kilograms per square centimeter,
grams per square centimeter, centimeters of water, ounces per square inch, feet of water,
inches of water, millimeters of mercury, Torr, and inches of mercury.
Other standard features include min/max capture, zeroing, pass code program lock-out,
adjustable display shutoff time and field recalibration. The housing is ABS/polycarbon-
ate and is NEMA 4X rated. Wetted components are 316L stainless steel for compatibility
with many process fluids. Process connection is via a 1⁄4" MNPT 316L stainless steel
fitting. The gauge is powered by two AA alkaline batteries.
Typical applications are instrumentation and control in the process industries, hydraulics,
pneumatics, industrial gases and OEM's.
ACCURACy
Standard: ±0.25% of full scale ±1 least significant digit
includes linearity, hysteresis, repeatability
Optional: -HA ±0.1% FS ±1 LSD
-NC NIST traceable test report and calibration data
DiSPLAy
3 readings per second nominal display update rate
4½ digit LCD, 0.5" H, 5 character 0.25" H alphanumeric lower display
CoNTRoLS & FUNCTioNS
Front button turns gauge on or off, zeros gauge, and cycles through min/max functions
Internal push buttons for selection of engineering units, selection of auto shutoff times,
and calibration
Calibration
Pass code protected calibration
Non-interactive zero, span, and linearity, ±10% of range
AUToMATiC ShUToFF
5 minute default
User selectable times ranging from 1 minute to 8 hours or front button on/off
PoWER
2 AA alkaline batteries
Approximately 2000 hours battery life
Low battery symbol on display when batteries must be replaced
RANGES ±0.25% FS MoDELS
–30.0 inHg to 15.0 PSIG MGF16BN–30v15PSiG
–30.0 inHg to 100.0 PSIG MGF16BN–30v100PSiG
–30.0 inHg to 200.0 PSIG MGF16BN–30v200PSiG
0 - 5.000 PSIG MGF16BN5PSiG
MGF16BN15PSiG
0 - 15.00 PSIG
MGF16BN60PSiG
0 - 60.00 PSIG
0 - 100.0 PSIG MGF16BN100PSiG
0 - 200.0 PSIG MGF16BN200PSiG
0 - 300.0 PSIG MGF16BN300PSiG
MGF16BN500PSiG
0 - 500.0 PSIG
0 - 1000 PSIG MGF16BN1000PSiG
0 - 2000 PSIG MGF16BN2000PSiG
0 - 3000 PSIG MGF16BN3000PSiG
0 - 5000 PSIG MGF16BN5000PSiG
Optional for all Models
±0.1% FS MoDELS
MGF16BN5PSiG-hA
MGF16BN15PSiG-hA
MGF16BN60PSiG-hA
MGF16BN100PSiG-hA
MGF16BN200PSiG-hA
MGF16BN300PSiG-hA
MGF16BN500PSiG-hA
MGF16BN1000PSiG-hA
MGF16BN2000PSiG-hA
MGF16BN3000PSiG-hA
MGF16BN5000PSiG-hA
NC NC
WEiGhT
Gauge: 9 ounces (approximately)
Shipping weight: 1 pound (approximately)
MATERiAL
ABS/polycarbonate NEMA 4X case, rear gasket, polycarbonate label
CoNNECTioN SiZE
1/4" NPT male, 316L SS
MATERiAL, MEDiA CoMPATiBiLiTy
All wetted parts are 316L SS, compatible with most liquids and gases
ovERPRESSURE
3000 psig range:
5000 psig range:
All others:
112.5% FS out-of-range display:
BURST PRESSURE
4 times sensor pressure rating, or 10,000 psi, whichever is less
ENviRoNMENTAL
Storage temperature:
Operating temperature:
Compensated temperature:
SELECTABLE ENGiNEERiNG UNiTS
InHg/PSI, can be user reconfigured as a bipolar gauge with selectable units
InHg/PSI, can be user reconfigured as a bipolar gauge with selectable units
InHg/PSI, can be user reconfigured as a bipolar gauge with selectable units
PSIG, kPa, mbar, bar, atm, kg/cm g/cm
2,
PSIG, kPa, MPa, mbar, bar, atm, kg/cm
PSIG, kPa, MPa, mbar, bar, atm, kg/cm
PSIG, kPa, MPa, mbar, bar, atm, kg/cm
PSIG, kPa, MPa, bar, atm, kg/cm , oz/in
2
PSIG, kPa, MPa, bar, atm, kg/cm oz/in
2,
PSIG, kPa, MPa, bar, atm, kg/cm , ftH
2
2
PSIG, kPa, MPa, bar, atm, kg/cm ftH O, inHg
2,
2
PSIG, MPa, bar, atm, kg/cm , ftH O, inHg
2
2
PSIG, MPa, bar, atm, kg/cm , ftH O, inHg
2
2
PSIG, MPa, bar, atm, kg/cm
2
NIST traceability certificate with 5 test points and data
5000 psig
7500 psig
2 x pressure range
i – – – or i –.–.–.– depending on model
–40 to 203°F (–40 to 95°C)
–4 to 185°F (–20 to 85°C)
32 to 158°F (0 to 70°C)
, cmH O, oz/in , ftH O, inH O, mmHg, torr, mmH
2 2
2 2 2
, g/cm , cmH O, oz/in , ftH O, inH O, mmHg, torr, inHg
2 2 2
2 2 2
, g/cm , cmH O, oz/in , ftH O, inH O, mmHg, torr, inHg
2 2 2
2 2 2
g/cm , cmH O, oz/in , ftH O, inH O, mmHg, torr, inHg
2, 2 2
2 2 2
, ftH O, inH O, inHg
2
2 2
, ftH O, inHg
2
2
O, inHg
O, inHg
2
© 11-08
