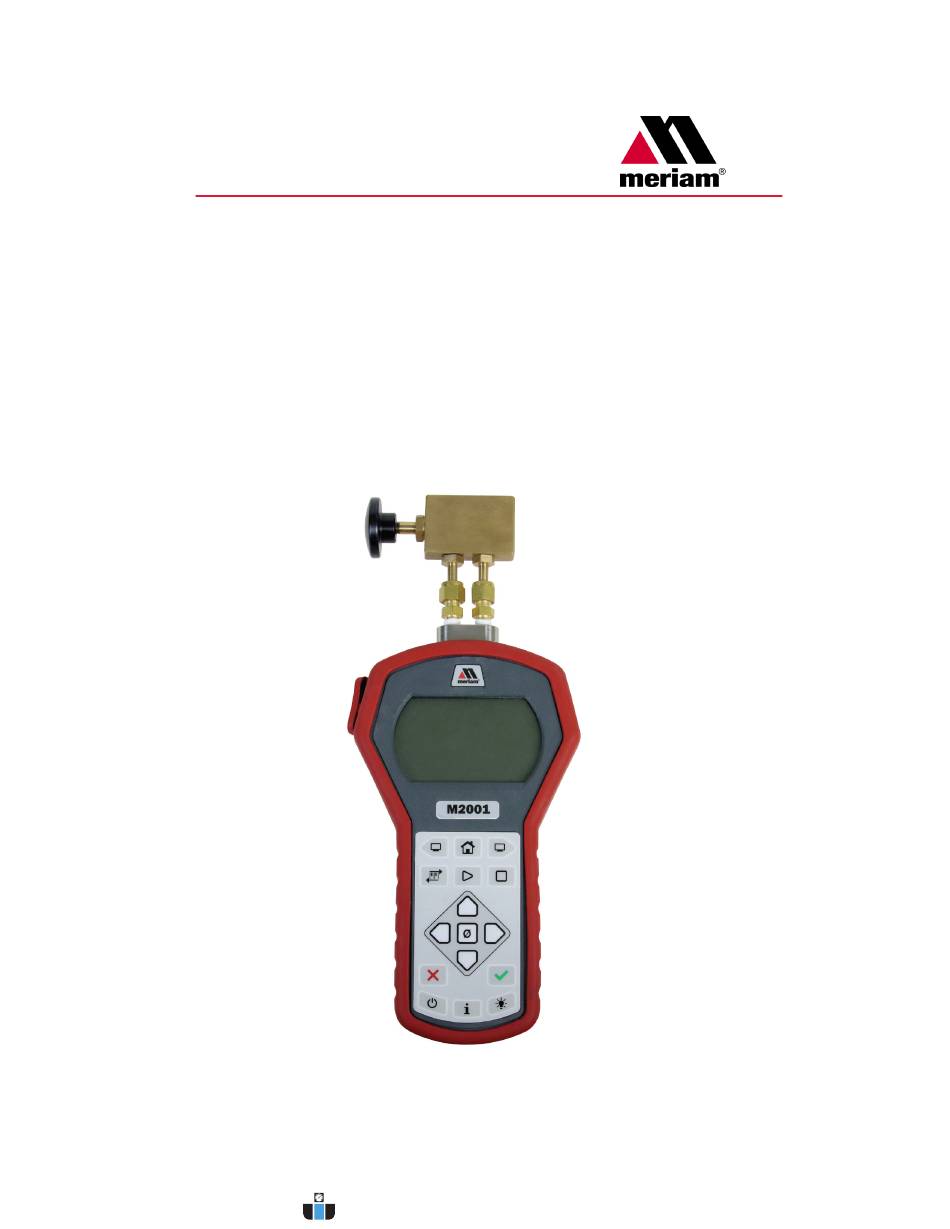

- Page 1 User Manual M2001/M2001X Smart Manometer With Rotary Gas Meter Test Optional Meriam Tethered Sensors with meriSuite CG application 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Table Of Contents
How does meriSuite CG benefit you? ..............30 meriSuite CG and USB Drivers required ............30 Tips for using meriSuite CG ..................31 Connection status......................34 Configuration button ......................36 User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 2 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 3 .......................65 Dimensional specifications ..................65 Dimensional specifications ..................67 Weight ............................68 Enclosure ..........................68 Maintenance and cleaning ........................73 Cleaning ...........................73 Prepare the Smart Manometer for storage ............73 User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 3 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 4: General Information
Meriam or its affiliates. It is not possible for Meriam to identify all foreseeable uses or misuses, therefore all persons involved in commissioning, using, or maintaining this product must satisfy their self that each intended application is acceptable. -
Page 5: Glossary
• Data from the internal and external pressure p1. P 2 sensors display in two lines on the Smart Manometer at the same time. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 5 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 6 Smart Manometer at the same time. • displays on the process readout --out- --out- when the information readout is providing information about exiting tests. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 6 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 7: General Warnings And Cautions
Indicates a potentially hazardous situation CAUTION which, if not avoided, could result in minor or moderate injury. Indicates information essential for NOTICE proper product installation, operation or maintenance. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 7 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 8: Sample Label For General Purpose Smart Manometers
Do not power the Smart Manometer with a combination of ▪ new and old batteries. Do not power the Smart Manometer with a combination of ▪ batteries from different manufacturers. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 8 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 9 9R698-Intrinsically Safe Control Drawing M2001X shipped. Component substitution may impair Intrinsic Safety. • Repairs must be made at Meriam to retain the Intrinsic Safety • Certification. Service gauges only in a safe location. • Replace batteries only in a safe location.
- Page 10 9R699-Intrinsically Safe Control Drawing MTSX shipped. Component substitution may impair Intrinsic Safety. • Repairs must be made at Meriam to retain the Intrinsic Safety • Certification. Service sensors only in a safe location. • User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 10 of 76 1.888.610.7664...
-
Page 11: Do Not Exceed Pressure Limits
Pressure Limits listed in the Specifications ▪ section of this manual. Failure to operate within the specified pressure limit could ▪ result in minor or moderate injury. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 11 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 12: Sensors: Dn And Di
Switch from PSI to INW60F before you begin NOTICE Change the measurement Units from PSI to First time only: INW60F. It will remain INW60F each time you turn it on. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 12 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 13: Drop Test Keys
Start to begin a Drop Test. 2. Press the Stop to stop a Drop Test. Note: The numbers flash to indicate the M2001 has stopped the test. The flashing numbers display the average differential pressure during the test. 3. Press the... -
Page 14: Switch From Drop Test To Mts
9R725-A ECN-18489 January 2020 Switch from Drop Test to MTS Optional: For those of you who purchased Meriam Tethered Sensors (MTS) for the M2001, you can switch from the Drop Test to screens available for the MTS. Attach an MTS to the M2001. -
Page 15: Meriam Tethered Sensors (Mts)
The Smart Manometer will compare its actual measured value with the entered value, and calculate a new zero reference based on the offset. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 15 of 76 1.888.610.7664 www.calcert.com... -
Page 16: Steps For Zeroing Absolute Sensors
User Defined Offset • This refers to (Zero). You u5Er 0 can set an absolute reference point other than zero. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 16 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 17: Smart Manometer
Varta 4906 Note: The Smart Manometer is powered by four 1.5 volt AA size batteries. DANGER For M2001X use only batteries listed on 9R698. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 17 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 18 6. Do not over tighten. NOTICE To prevent internal damage to circuitry, do not substitute screws with lengths that are different from the screws Meriam provided to you. Watch for the low battery indicator The battery indicator on the display shows the current charge.
-
Page 19: The Display
8. Rate (Minimum) DATA LOG (Maximum) 10. LEAK TEST 4. RELIEF VALVE TEST 11. LEAK TEST DURATION + / - (Accuracy) T.OFF, T.ON (Tare) User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 19 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 20: Keypad: Description Of The Keys
Displays information about the Smart Manometer, internal sensor, attached MTS sensor, and the firmware. Backlight • It provides three levels of brightness and off. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 20 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 21 –0 to –1 to –2 to –3 to –4 to –5 to –6 to –7 to –8 to –9. 3. The negative symbol in the display appears in front of the first digit when it is required. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 21 of 76 1.888.610.7664 www.calcert.com...
-
Page 22: The Backlight
Pressure has exceeded the calibrated accuracy of the Smart ▪ Manometer. ▪ Pressure has fallen below the stated accuracy of the M2001. Note: The red backlight overrides the white backlight. Overrange condition During an error or overrange condition, the red backlight overrides the white backlight. -
Page 23: Damping
▫ Exponential damping displays approximately 70 % of a step change in pressure at the next display update. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 23 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 24: Data Logging
Stopping a data log To stop the Data Log at any point or at any time, press and hold Stop key until appears. -- Stopping -- User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 24 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 25: Leak Test
The first zero digit is blinking. 2. Press the Zero key to reset all numbers to zeros and enter a valid number of minutes from 0.1 - 1440. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 25 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 26 Starting. Start see the word In a Leak Test press and release the (the on-screen message refers to this action as TAP). User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 26 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 27 Exit the test during the count down to zero Press the Cancel key or the Accept key to exit the test. Home 2. Press the key to return to the Home screen. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 27 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 28: Relief Valve Test
The test restarts. 3. Press the ✓ to exit the test. The results are lost when OR X you use these keys. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 28 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 29: Auto Off (Automatic Shut Off)
Holding the Zero key The key must be held to perform the Zero or Tare mode. The displayed value(s) dashes out during the zero or tare process. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 29 of 76 1.888.610.7664 www.calcert.com... -
Page 30: Tips For Using Merisuite Cg
Close meriSuite CG first, disconnect the USB, and turn off your ▪ Smart Manometer. ▪ As long as remains visible, Auto Off is USB ACTIVE suspended. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 31 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 31 You may click the Write button to save the changes you made. Note: See the yellow dot on an active tab in the figure below. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 32 of 76 1.888.610.7664 www.calcert.com...
- Page 32 US - Pacific-8:00 US - Central -6:00 US - Alaska -9:00 US - Mountain -7:00 US - Hawaii -10:00 ▪ For example: 15:05:45 UTC (hours:minutes:seconds). User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 33 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 33: Connection Status
See the figure below. No attached devices The meriSuite CG application displays no figure of devices on the right side. See the figure below. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 34 of 76 1.888.610.7664 www.calcert.com... - Page 34 9R725-A ECN-18489 January 2020 No tethered sensor attached Notice the figure of the Smart Manometer and description. See the figure below. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 35 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 35: Configuration Button
Each device can have its password turned on or turned off ▪ independently from any other tethered sensor. meriSuite CG retrieves the passwords stored on the devices. ▪ User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 36 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 36 A recovery password disables the password until you create a new password. You must have the serial number of the device or sensor to ▪ request a recovery password. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 37 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 37 Average. ▪ Rate of Change. Relief Valve Test. ▪ Time & Temp. ▪ ▪ Data Log. Allow zero adjust (Ø). ▪ Leak Test. ▪ User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 38 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 38 ▪ Exponential damping displays approximately 70 % of a step change in pressure at the next display update. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 39 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 39: User Calibration Button
5. Save the point. 6. Repeat steps 2-5 until you are done. (You have to change at least one point.) Apply Click the button. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 40 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 40 Calibration Procedure. It is intended to correct the curve fit if the actual sensor characteristics change slightly over time. For sensors up to 200 psi, Meriam recommends a ± 0.0015 % of reading deadweight tester. For sensors 200 psi and above, a ±...
-
Page 41: Data Log Button
The button displays a to indicate you have changed a setting and you have not yet saved the setting to the Smart Manometer. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 42 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 42 The Temperature ▪ The MTS displays when it is attached (pressure or temperature). Temperature displays only when the MTS RTD is attached. ▪ User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 43 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 43: Tsv File Format
TSV file. 4. Select the file and drag-and-drop it in the middle of the blank spreadsheet. 5. Save it as an Excel file. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 44 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 44 Note: Other spreadsheet applications offer similar features. In the figure below, the file would print on at least four pages. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 45 of 76 1.888.610.7664 www.calcert.com...
- Page 45 Activate Device button to replace Lite with Pro. Note: The Activate Pro button remains unavailable until you enter an activation key number. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 46 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 46 The Auto Off (automatic shutoff) timeout is suspended for Data Logging sessions. Make sure to end the session to restart the Auto Off timeout. ▪ User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 47 of 76 1.888.610.7664 www.calcert.com...
- Page 47 Activation ▪ Key. After you click the Activate Device button, Data Log Pro ▪ automatically replaces Data Log Lite in meriSuite CG dashboard. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 48 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 48 Double click a log to open it in the Preview tab. ▪ Or, you may select a log from the list and click the Preview ▪ to view it. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 49 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 49 The Preview tab contains seven areas of information: Data Log Information list. 2. Sensor Information list. 3. Notes. 4. Legend. 5. Samples table. 6. Navigation bar. Save button. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 50 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 50 3. Notes ▪ Any information that displays here comes from the text you enter in the Notes box in the Data Log Pro Setup tab. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 51 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 51 Save button on the right side and the Save As appears. You can save the file in two file formats: ▪ PDF. TSV. ▪ User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 52 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 52 Manometer for data logging in two ways: The number of data points used out of a maximum of 100 000. 2. The number of logs used out of a maximum of 128. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 53 of 76 1.888.610.7664 www.calcert.com...
- Page 53 Note: If a sensor has a password, then clicking this button requires you to enter a password. This password was created in Configuration tab. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 54 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 54: Application Button
“There is no connection to the update server. This is usually caused by the PC not having internet connectivity or the server may be temporarily unavailable. ” User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 55 of 76 1.888.610.7664 www.calcert.com... -
Page 55: Update Button
“There is no connection to the update server. This is usually caused by the PC not having internet connectivity or the server may be temporarily unavailable. ” User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 56 of 76 1.888.610.7664 www.calcert.com... -
Page 56: Specifications
-14.5 psi to 15 psi Differential Non-Isolated (DN) -DN0001 -1 psi to 1 psi -DN0005 -5 psi to 5 psi -DN0100 -14.5 psi to 15 psi User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 57 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 57: Meriam Tethered Sensors: Type And Range
15 psi -DN0030 –14.5 psi 30 psi -DN0050 –14.5 psi 50 psi -DN0100 –14.5 psi 100 psi RTD Temperature sensor -RTD -50 °C 250 °C User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 58 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 58: Overrange Limit
Storage: –20 °C to 70 °C (–4 °F to 158 °F) ▪ ▪ Operating: –10 °C to 50 °C (14 °F to 122 °F) User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 59 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... -
Page 59: Relative Humidity
Ingress specifications ▪ IP52 for the M2001 IP54 for the MTS ▪ Altitude specifications NOTICE Do not use the M2001 Smart Manometer at an altitude above 2000 m (6561 ft). Keypad Sealed membrane 16 domes. ▪ Media Compatibility Pressure Types ▪... - Page 60 Pi = 1.25W, Ii = 227mA, Ci = 20 μF, Li=0 μH, Ui = 5VDC CE Compliance M2001 and MTS (General Purpose models) CE Compliance Safety User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 61 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 61 The following table identifies model numbers and locations of acceptable use: Non-hazardous location Model Hazardous Number Location (Safe location) location General M2001 Purpose Intrinsically M2001X Safe General Purpose Intrinsically MTSX Safe User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 62 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 62 9R725-A ECN-18489 January 2020 9R698 User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 63 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 63 9R725-A ECN-18489 January 2020 REV. 9R699 User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 64 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 64: Emc Compliance
. Dimensional specifications Push-to-Read valve User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 65 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 65 9R725-A ECN-18489 January 2020 The M2001 with a Differential Isolated (DI) sensor User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 66 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 66 9R725-A ECN-18489 January 2020 Dimensional specifications The M2001 with a Differential Non-Isolated (DN) sensor User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 67 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 67: Weight
1000 g (35.2 oz. or 2.2 lb.) ▪ MTS pressure module 148 g or 0.33 lb. MTS temperature module 92.5 g or 0.20 lb. ▪ Enclosure Polycarbonate / ABS alloy. User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 68 of 76 1.888.610.7664 www.calcert.com sales@calcert.com... - Page 68 RoHS Directive 2011/65/EU and WEEE directive 2012/19/EU by self-declaration. For and on behalf of Meriam Process Technologies, 19-Dec-2019 John Merrill Date: Standards Engineer Meriam Process Technologies User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 69 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 69 RoHS Directive 2011/65/EU and WEEE directive 2012/19/EU by self-declaration. For and on behalf of Meriam Process Technologies, 19-Dec-2019 John Merrill Date: Standards Engineer Meriam Process Technologies User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 70 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 70 RoHS Directive 2011/65/EU and WEEE directive 2012/19/EU by self-declaration. For and on behalf of Meriam Process Technologies, 19-Dec-2019 John Merrill Date: Standards Engineer Meriam Process Technologies User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 71 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 71 RoHS Directive 2011/65/EU and WEEE directive 2012/19/EU by self-declaration. For and on behalf of Meriam Process Technologies, 19-Dec-2019 John Merrill Date: Standards Engineer Meriam Process Technologies User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 72 of 76 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 72: Maintenance And Cleaning
Store the Smart Manometer The recommended storage temperature for the Smart ▪ Manometer is between: –20 °C to 70 °C (–4 °F to 158 °F) User Manual M2001/M2001X Smart Manometer with Rotary Gas Meter Test 73 of 76 1.888.610.7664 www.calcert.com...
