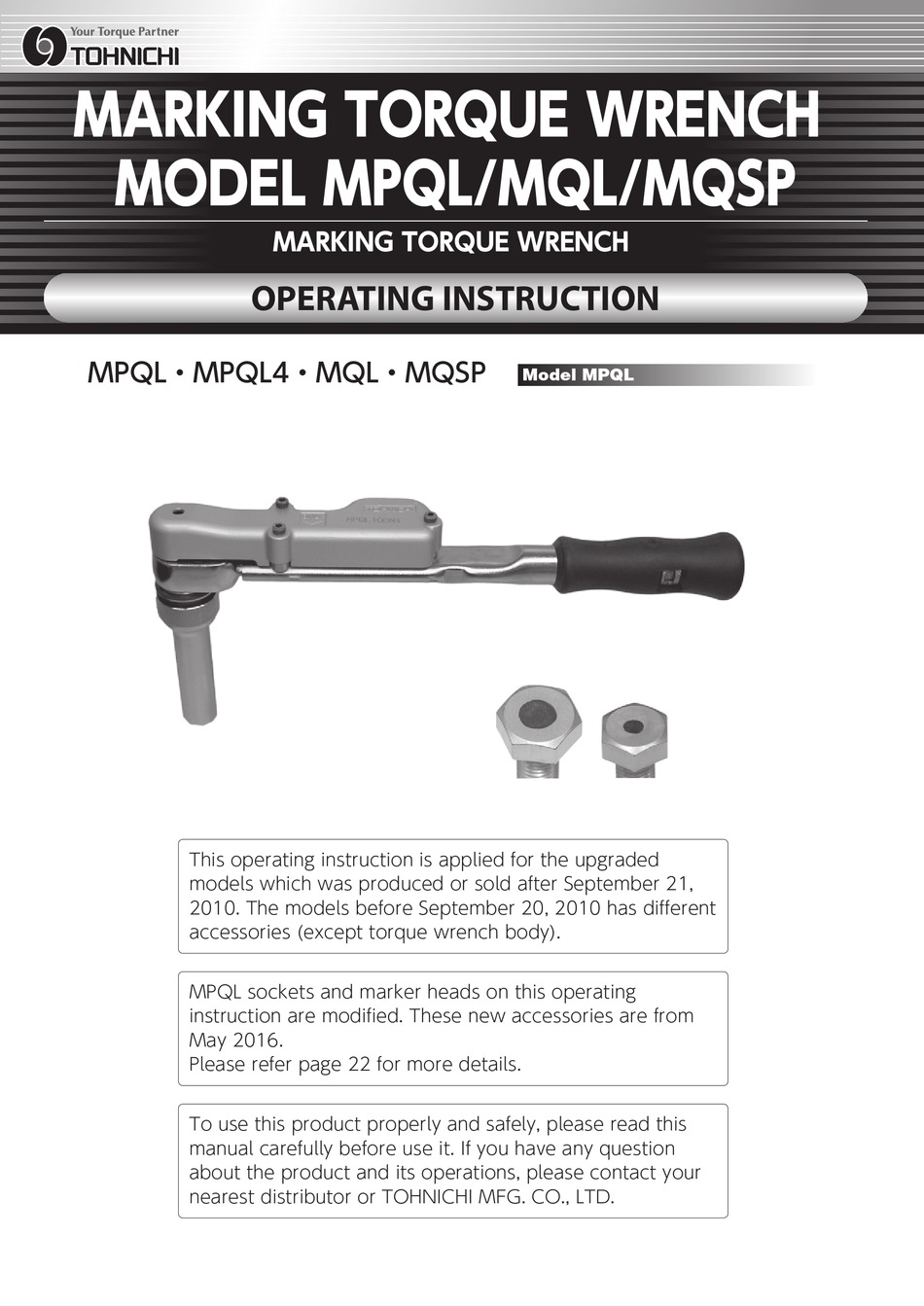

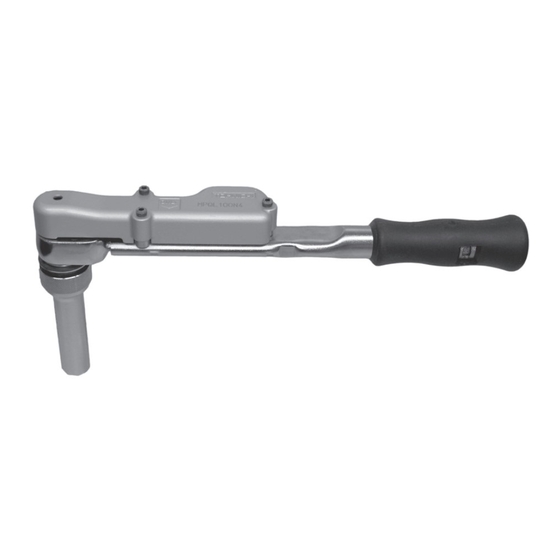

MARKING TORQUE WRENCH
MODEL MPQL/MQL/MQSP
MARKING TORQUE WRENCH

OPERATING INSTRUCTION

MPQL・MPQL4・MQL・MQSP
Model MPQL
This operating instruction is applied for the upgraded
models which was produced or sold after September 21,
2010. The models before September 20, 2010 has different
accessories (except torque wrench body).
MPQL sockets and marker heads on this operating
instruction are modified. These new accessories are from
May 2016.
Please refer page 22 for more details.
To use this product properly and safely, please read this
manual carefully before use it. If you have any question
about the product and its operations, please contact your
nearest distributor or TOHNICHI MFG. CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPQL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tohnichi MPQL

Summary of Contents for Tohnichi MPQL

  • Page 1: Operating Instruction

    September 21, 2010. The models before September 20, 2010 has different accessories (except torque wrench body). MPQL sockets and marker heads on this operating instruction are modified. These new accessories are from May 2016.

  • Page 2: Table Of Contents

    ■ Contents ■ Contents 1. For Safety ………………………………………………………………………………………………………………………………………… 2. Features/Components …………………………………………………………………………………………………………… 3. How to Use ………………………………………………………………………………………………………………………………………    3.1 Set the torque value    3.2 Put the marker onto the socket 1）How to refill ink ①Marker Head MK53RB (No.1780, No.2780) ②Marker Head MK93RB (No.2783) ③Marker Head MK53WY(No.1782, No.2782), MK93WY(No.2785)    3.3 How to set the marker head ……………………………………………………………………………...

  • Page 3: For Safety

      a. Falling or dropping down the torque wrench causes accidents or injuries. 8. Do not use any spare parts except for Tohnichi genuine parts.   a. Contact the seller or Tohnichi and use the Tohnichi spare parts only when making a repair.
  • Page 4 ■ Precautions for Use 0(1) Do not use it with beyond the torque capacity. 0(2) Do not set the graduation below the lowest torque value. 0(3) Set up a proper torque value before use. - The torque value is preset the lowest value before shipment. 0(4) Make sure the proper torque unit.

  • Page 5: Features/Components

      One refill of ink is capable of approximately 4500 times of stamping for MK53, 6000 times for MK93 Marking Head. Components  1. Torque Wrench Body …………………………………… 1unit  2. Hex Wrench (for positioning of marker head) ……… 1pc * Use it for torque adjustment of MPQL  3. Operating manual ………………………………………… 1 copy Option ・Socket ・Marker Head ・Extension Bar...

  • Page 6: How To Use

    ■ How to Use 3.1. Set the torque value 1）In case of MPQL, insert the hex wrench (standard accessory) into torque adjustment hole. Sup. Graduation Torque Adjustment Hole Main Graduation Hex Wrench 2）Rotate the hex wrench to change the torque value on the main/sup. graduation.
  • Page 7 ■ ｂ. Cut off the tip of the refill ink. Make sure to hold the refill ink with B side up so that the ink does not stay at the top. If the ink stays at the nozzle part, use your finger to put it off before opening. Hold C part and use scissors to cut off the tip B.

  • Page 8: ②Marker Head Mk93Rb (No.2783)

    ■ ｄ. Put back the felt tip and cap. Make sure to fully insert the felt tip with felt tip remover back to the case and put the cap on as it was before. * Lay it down still for about 5 minutes and test a few times before use. Marker Return Spring No.
  • Page 9 ■ ｂ. Cut off the tip of the refill ink. Make sure to hold the refill ink with B side up so that the ink does not stay at the top. If the ink stays at the nozzle part, use your finger to put it off before opening. Hold C part and use scissors to cut off the tip B.

  • Page 10: ③Marker Head Mk53Wy(No.1782, No.2782), Mk93Wy(No.2785)

    ■ ｄ. Put back the felt tip and cap. Make sure to fully insert the felt tip back to the case and put the cap on as it was before. * Lay it down still for about 5 minutes and test a few times before use. Case Felt Tip Caution...
  • Page 11 ■ ｂ. Refill ink Directly refilling from the refill ink Ⅰ. Insert the nozzle of the refill ink into the marker head. Ⅱ. Make sure to remove the seal inside the refill Refill Ink ink for the first time use. No.776 Ⅲ.
  • Page 12 ■ Refill ink up to the mark on the case mark 100% (Refill maximum) mark 50% (Refill half) Refill Mark  (100％) Refill Mark  (50％) c. Put the case cap on. Ⅰ. Put the case cap on firmly. Case Cap Ⅱ. If the case cap is loose, it may cause ink to spill.
  • Page 13 ■ ｄ. Check the ink is filled into the felt tip appropriately. Ⅰ. Remove the cap and gently push the felt tip against paper, etc. Ⅱ. Because the felt tip is long, it may take some time before the ink is filled to the tip. Ⅲ.

  • Page 14: How To Set The Marker Head

    ■ 3.3. How to set the marker head 1）How to set the marker head (W10 ‒ W16) 1. Insert the marker head into the socket as illustrated left. 2. Check the marker head slides up and down smoothly. Note: Marker Head No. 2783 MK93RB and No. 2785 Marker Head MK93WY is applicable for wider than W17 sockets.

  • Page 15: Put The Socket Onto The Torque Wrench

    ■ In case of MK93RB, MK93WY 1. Insert the Marker Head into the socket as Marker Head illustrated left. No.2783 2. Check the Marker Head slides up and down No.2785 smoothly. Socket (W17 or more) Check the Marker Head slides up and down smoothly. Note: Marker head MK93RB, MK93WY is applicable for wider than W17 sockets.
  • Page 16 With combination of using Marker Head MK53RB/MK93RB and Refill Ink Red No. 1770/Blue No. 1771, it have dry hardiness for 2 weeks but recommend to put a cap during storage. For nut tightening MPQL is adjusted for bolt tightening when shipped. For nut tightening, follow 3-5 2) instructions to make adjustment accordingly.

  • Page 17: How To Adjust The Position Of The Marker

    Turn clockwise for A to be bigger, and counterclockwise to be smaller. Ratchet Caution In adjusting marker position, upward the ratchet of MPQL/MQL/MQSP and adjust the length of the rod from the ratchet end surface between 4mm to 14mm.

  • Page 18: How To Recover From Stuck Socket

    ■ 2）For nut tightening ① Measure the length of “b” and “c” of the ② Measure the distance between the base nut. of Socket unit and the tip of Marker Head. (Dimension A) Hex Wrench Marker Head ③ Insert the attached Hex Wrench into the hole on the cover, adjust Dimension A to the thickness H+5mm.

  • Page 19: Optional Accessories

    Dia.φd Applicable Model Part No. [mm] [N・m] [mm] [mm] Models Socket 4MH-10 2700 17.5 Socket 4MH-12 2701 20.5 MPQL Socket 4MH-13 2702 21.5 50N・ Socket 4MH-14 2703 22.5 MQSP Socket 4MH-16 2704 Socket 4MH-17 2705 Socket 4MH-18 2706 Socket 4MH-19...

  • Page 20: Extension Bar

    ■ 4.2. Extension Bar Extension Applicable Model Part # Length Models [mm] MPQL 1749 MPQL Extension Bar 50 （MQSP） MPQL MPQL 1748 50N to 200N4 Extension Bar 100 Extension Bar 50 Extension Bar 50 No.1749 No.1752 1752 MQL280N Extension Bar 50...

  • Page 21: Refill Ink, Solvent

    ■ 4.6. Refill Ink, Solvent Catalog Model Color Refill Ink R 1770 Refill Ink Refill Ink B 1771 Blue Red No.1770 Blue No.1771 Refill Ink W White Refill Ink Refill Ink Y Yellow White No.776 Yellow No.777 Solvent White,Yellow Solvent No.794 4.7.

  • Page 22: Specifications

    ■ Specifications ■MPQL50N to 200N4、 MQSP50N to 200N MPQL/MQSP ℓ1 Effective Length Ｌ Overall length Ｌ ’ Main Graduation Sup. Graduation MPQL/MQL/MQSP Example of Combination of socket and extension bar Extension Bar 50mm ℓ2 Extension Bar 100mm Socket ■MQL280N Overall length Ｌ ’...

  • Page 23: For Previous Version Of Socket And Marker Head

    ■ For previous version of Socket and Marker Head As of May 21 , 2016, the socket and the marker head of marking torque wrench were changed the design. Along with it , the old socket (No.1700 to 1723) and the old marker head (No.1783 to 1785) can not be used as it is .
  • Page 24 Refer to page 13 for details. In case using width W16 or less of new designed socket (No. 2700 to No. 2704, No. 2712 to No. 2715) and Marker Head φ5, MK53RB (No. 1780) or MK53WY (No. 1782) which you already owned, consult to Tohnichi. 2） MK93RB No.1783 and MK93WY No.1785 are not compatible.
