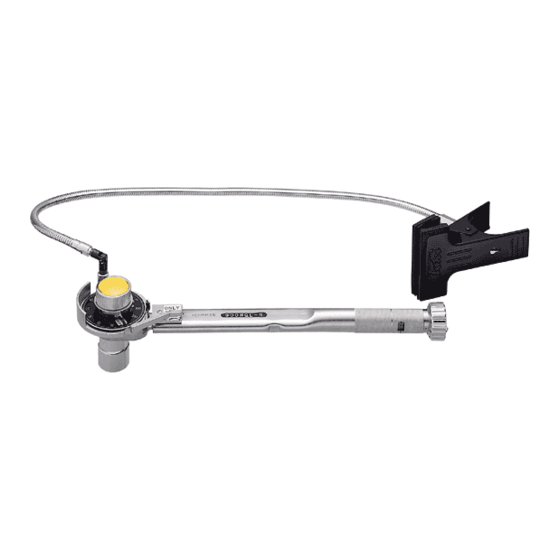

- Page 1 OPERATING MANUAL TOHNICHI MFG. CO.,LTD. TOKYO, JAPAN ...
- Page 2 INDEX 1. PRECAUTIONS 2. PRECAUTIONS FOR USE 3. OUTLINE 4. SPECIFICATIONS 5. EXTERNAL VIEW 6. OPERATING PROCEDURE ...
- Page 3 1. PRECAUTIONS Before using this ANGLE TORQUE WRENCH, be sure to carefully read all the manuals. If you have any questions, please contact your Tohnichi distributor or Tohnichi for assistance. Please keep this manual for future reference. Don’t use the angle torque wrench beyond the maximum torque setting. This will cause damage or injury.
- Page 4 4. SPECIFICATIONS Angle Scale Capacity Dimension Min. 〜 Max. Model Graduations Max. Graduations Overall Square Reading Length Drive 2゜ 360゜ (50) 100〜５００ kgf.cm 450WQL 5 kgf.cm 260 mm 1/2” 2゜ 360゜ (100) 200〜900 kgf.cm 900WQL 10 kgf.cm 345 mm 1/2”...
- Page 5 6. OPERATING PROCEDURE 1) Set the desired snug torque. 2) Connect the flexible tube to the pointer adapter and fix the clip to the work piece or the bolt nearby. 3) Engage the socket with a bolt. 4) To preset angle: Set the pointer to the desired angle and start tightening. After the snug torque is reached, the angle scale starts moving.
- Page 6 TOHNICHI MFG. CO.,LTD. 16-5, Omori-Nishi 1-Chome, Ota-Ku, Tokyo, Japan Tel: 81-3-37622455 Fax: 81-3-37613852 N.V.TOHNICHI EUROPE S.A. Industrieweg 27, Boortmeerbeek B-3190, Belgium Tel: 32-16-606661 Fax: 32-16-606675 TOHNICHI AMERICA CORP. 677 Academy Drive, Northbrook, Illinois 60062, U.S.A. Tel: 1-847-2728480 Fax: 1-847-2728714 ...
