SPARE PARTS

3
2
1
8
9
10
11

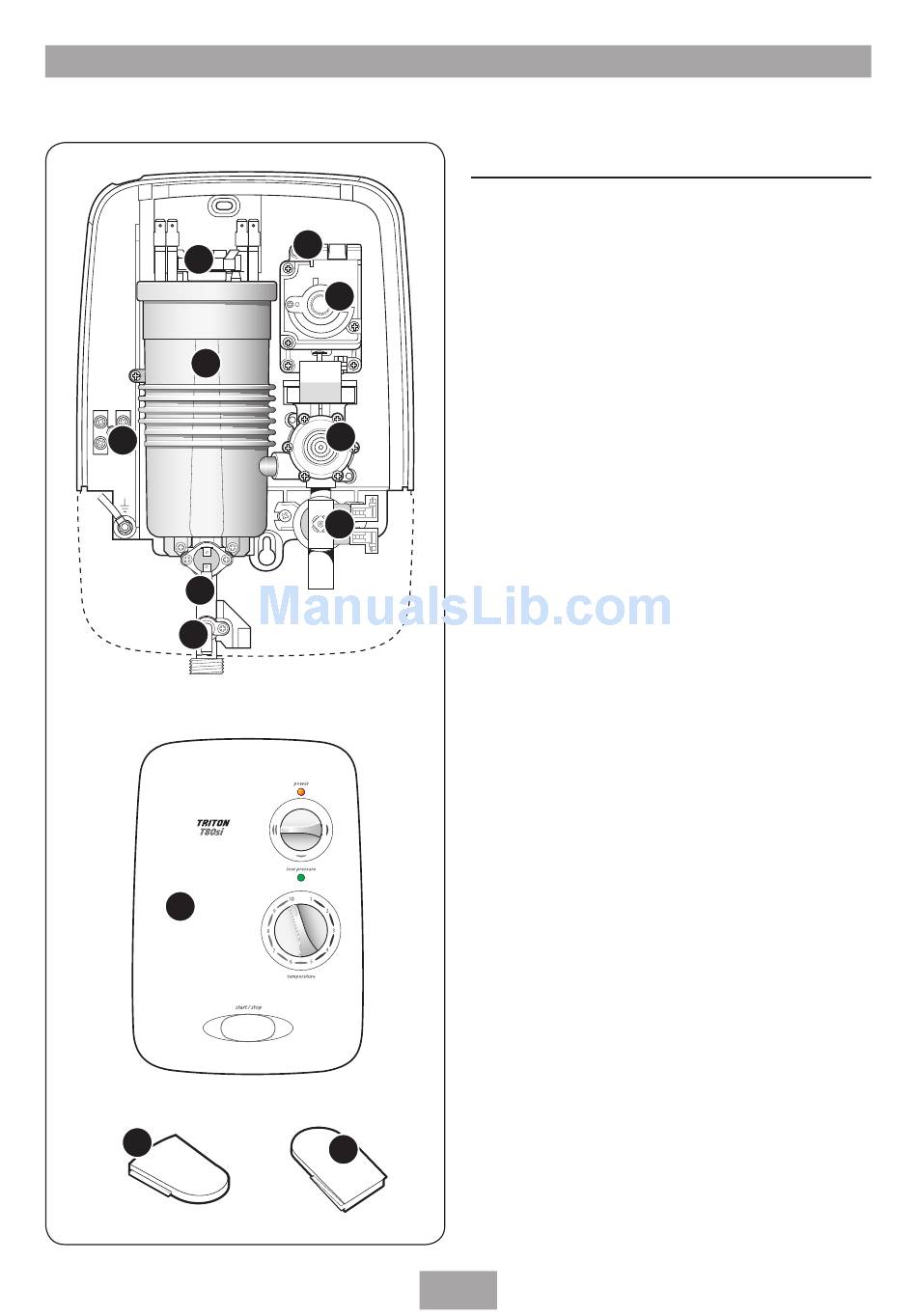

T80si electric shower
SPARE PARTS
Ref. Description
4
5
6
7
12

1. Terminal block
2. Can assembly
7.5kW
8.0kW
8.5kW
9.5kW
3. Thermal cut-out (main)
4. Power neon
5. Switching module assembly
c/w actuator & m'switches
6. Stabiliser valve assembly
7. Solenoid valve assembly
8. Outlet pipe assembly
c/w wires & PRD
9. Pressure Relief Device
– Start/Stop switch assembly
– Terminal block live wire assy.
10. Cover assembly
c/w knobs & button
11. Insert trim – backplate
12. Insert trim – cover
Part No.
22011410
P84500440
84500450
P07810700
P07810701
22009860
82300980
82500160
82600820
83300450
82201090
82800450
83305380
82301000
84900010
7052244
7052245
