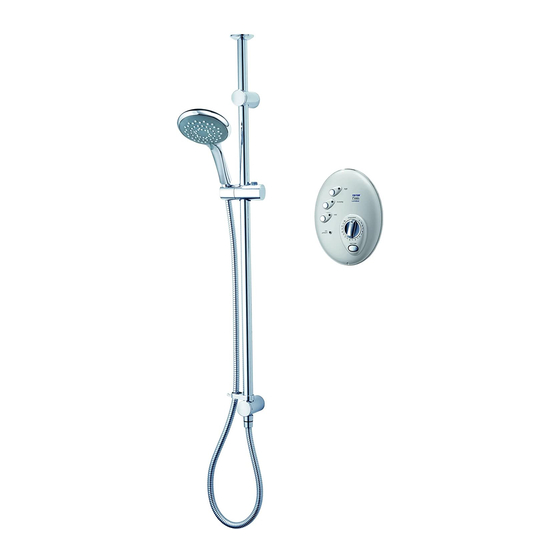

- Page 1 T300si electric shower Installation and operating instructions nstallers please note these InstructIons are to be left wIth the user 2180280J May 2008...
-
Page 2: Table Of Contents
Instructions for installers and service engineers only Spare parts Fault finding 27 - 28 Guarantee, service policy, etc. rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0870 067 3767 Facsimile: 0870 067 3334 E mail: technical@tritonshowers.co.uk... -
Page 3: Important Safety Information
T300si electric shower PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and � maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw �... -
Page 4: Introduction
Advice to users This book contains all the necessary fitting and ELECTROMAGNETIC COMPATIBILITY operating instructions for your Triton T300si This product is intended for domestic use. electric shower — please read them carefully. This product may temporarily be affected by... -
Page 5: Main Components
T300si electric shower MAIN COMPONENTS Main components NoTe: Not all wiring shown for reasons of clarity Fig. Remote pack (fig.) Top cable entry Bottom pipe entry Rear pipe entry area Rear cable entry area Wall screw fixing Terminal block Printed circuit board... -
Page 6: Electrical Requirements
230-240V ac supply. If you are installing a shower with a kilowatt rating above 9kW, it is advisable to contact the local electricity supply company. T300si electric shower 1.1 The electrical rating of the shower is shown on the rating label (Fig.3) within the unit. ELECTRICAL REQUIREMENTS... - Page 7 8.1 To obtain full advantage of the power be installed in all UK electric and pumped provided by the shower, use the shortest T300si electric shower shower circuits. This may be part of the cable route possible from the consumer unit consumer unit or a separate unit.
-
Page 8: Water Requirements
If it is intended to operate the shower at pressures above the maximum or below the minimum stated, contact Triton Customer Service for advice. Fig. shows a typical system layout. Do not use jointing compounds on any pipe... -
Page 9: Siting Of The Shower
T300si electric shower SITING OF THE SHOWER Siting of the shower WARNING! Control cable The shower must not be positioned W-008-A where it will be subjected to freezing conditions. Bulkhead can ImporTAnT: If installing onto a tiled wall be mounted either... - Page 10 T300si electric shower at the isolating switch and stopvalve. Contact Fig. Customer Service for advice on replacing the PRD. DO NOT operate the shower with a damaged or kinked shower hose, or a blocked showerhead which can cause the PRD to operate.
-
Page 11: Fitting The Remote Pack
T300si electric shower FITTING THE REMOTE PACK Fitting the remote pack Fig.0 ImporTAnT: the remote pack must be mounted on a flat surface which covers the full width and length of the backplate. It is important that the wall surface is flat... - Page 12 T300si electric shower After choosing the site for the shower, use the Bottom View Fig. backplate as a template and mark two fixing holes (fig.). Drill and plug to suit the fixing screws supplied. remove (The wall plugs provided are suitable for most brick walls —...
-
Page 13: Plumbing Connections
T300si electric shower PLUMBING CONNECTIONS Plumbing connections Fig. Plumbing to be carried out before wiring WARNING! The outlet of the shower acts as a W-004-A vent and MUST NOT be connected to anything other than the hose and showerhead supplied. - Page 14 T300si electric shower DO NOT use excessive force when making these Fig. connections. It is strongly recommended to use a correct size open ended spanner. Using adjustable pipe grips may damage internal components. Make sure the backplate is square on the wall...
- Page 15 T300si electric shower Fit the clear plastic PRD tube through the can Fig. outlet pipe boss situated at the rear of the outlet pipe (fig.) and push firmly on to the PRD outlet. outlet The other end of the PRD tube needs to be directed to a suitable and visible waste.
-
Page 16: Fitting The Bulkhead
T300si electric shower FITTING THE BULKHEAD Fitting the bulkhead Fig.9 Route the heated water pipe to the outlet position and push on the fittings as shown in Heated water pipe (fig.). Connect the heated water pipe to a ½” BSP x 15 mm female thread elbow or straight coupler compression fitting (fig.9). - Page 17 T300si electric shower If fitting to a hollow wall structure, it may be Fig. preferable to secure the bulkhead by applying a bead of silicon seal to the back of the bulkhead. Apply PTFE tape to the threaded connector. Screw the bulkhead assembly onto the threaded connector until tight to the wall and the two fixing holes are aligned.
-
Page 18: Electrical Connections
T300si electric shower ELECTRICAL CONNECTIONS Electrical connections Fig. SwItch off the electrIcIty SUPPly at the MaINS. Fig. shows a schematic wiring diagram. The cable entry points are shown in fig.. The cable can be surface clipped, hidden or via 20 mm conduit. -
Page 19: Fitting The Control Panel Bracket
T300si electric shower FITTING THE CONTROL PANEL Fitting the control panel bracket Fig. BRACKET WARNING! Under no circumstance should the control cable be extended or W-015-A shortened, as not only will it impair the performance of the shower but will also invalidate the guarantee. -
Page 20: Fitting The Control Panel
T300si electric shower FITTING THE CONTROL PANEL Fitting the control panel Fig.0 mounting bracket (fig.) and slide down into place, making sure the control cable does not get trapped. Secure in place with the single screw at the bottom of the control panel (fig.). -
Page 21: Commissioning
T300si electric shower COMMISSIONING Commissioning Fig. WArnInG! Before normal operation of the shower it is essential that the commissioning and purge pin procedures are correctly completed. The first operation of the shower is intended to flush out any remaining unit debris and to ensure the heater unit contains water before the elements are switched on. - Page 22 T300si electric shower Purge pin procedure Fig. On the remote pack, unscrew the top and bottom retaining screws (fig.0) again and remove the cover. The purge pin is located on the remote pack PCB inside the unit (fig.). Pull the pin off its two pins and, in order to store it for use at a later date, replace it on one of the pins.
-
Page 23: Operating The Shower
T300si electric shower OPERATING THE SHOWER Operating the shower Fig. ImporTAnT: Make sure the commissioning procedure has been carried out. failure to do so will damage the unit and invalidate the guarantee. When the electricity supply to the shower is... - Page 24 T300si electric shower note: If the stated flow rate required for the unit cannot be met due to low water pressure, it will Fig. be necessary to operate the unit on this setting during the warmer months because of flow rate limitations entering the unit.
-
Page 25: Operating Functions
T300si electric shower OPERATING FUNCTIONS Operating functions Fig. Power on indicator (fig.) When the electricity supply to the shower is High power switched on at the isolating switch, the start/ indicator stop button surround will light. Low pressure indicator (fig.) -
Page 26: Cleaning
T300si electric shower Safety cut-out WARNING! The unit is fitted with a non-resettable over- DO NOT use abrasive or aggressive temperature safety device. In the event of W-007-A cleaning products when cleaning the abnormal operation which could cause unsafe shower as they may damage the unit. -
Page 27: Instructions For Installers And Service Engineers Only
T300si electric shower INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY Instructions for installers and service engineers only CLeaNiNg The fiLTeR Fig. It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by a competent person. -
Page 28: Spare Parts
T300si electric shower SPARE PARTS Spare parts Ref. Description Part No. 1. Terminal block 8.5kW & 9.5kW 82200930 10.5kW 83310260 2. Transformer 22005020 3. PCB – remote pack 8.5kW & 9.5kW 7072570 10.5kW 7072985 4. Thermal cut-out (main) 22009860 5. Heater can assembly 8.5kW... -
Page 29: Fault Finding
See 'Water too hot' causes 2.1, 2.2 and cycling hot/cool at on outlet 2.3 and their appropriate action/cures. If intervals. thermal cut-out. it continues, contact Triton Customer Service. Water too cool or Too much flow. 4.1.1 Reduce flow rate via temperature control. - Page 30 4.3.2 Select ‘high’ power. temperature. Electrical 4.4.1 Have unit checked by suitably qualified malfunction or electrician or contact Triton Customer safety cut-out Service. operated. Shower varies from Water pressure 5.1.1 Wait until the water pressure resumes to normal has dropped normal.
