Fig.
Fig.
Fig.
Fig.9
T80si electric shower
Fig.
Backplate
Cover

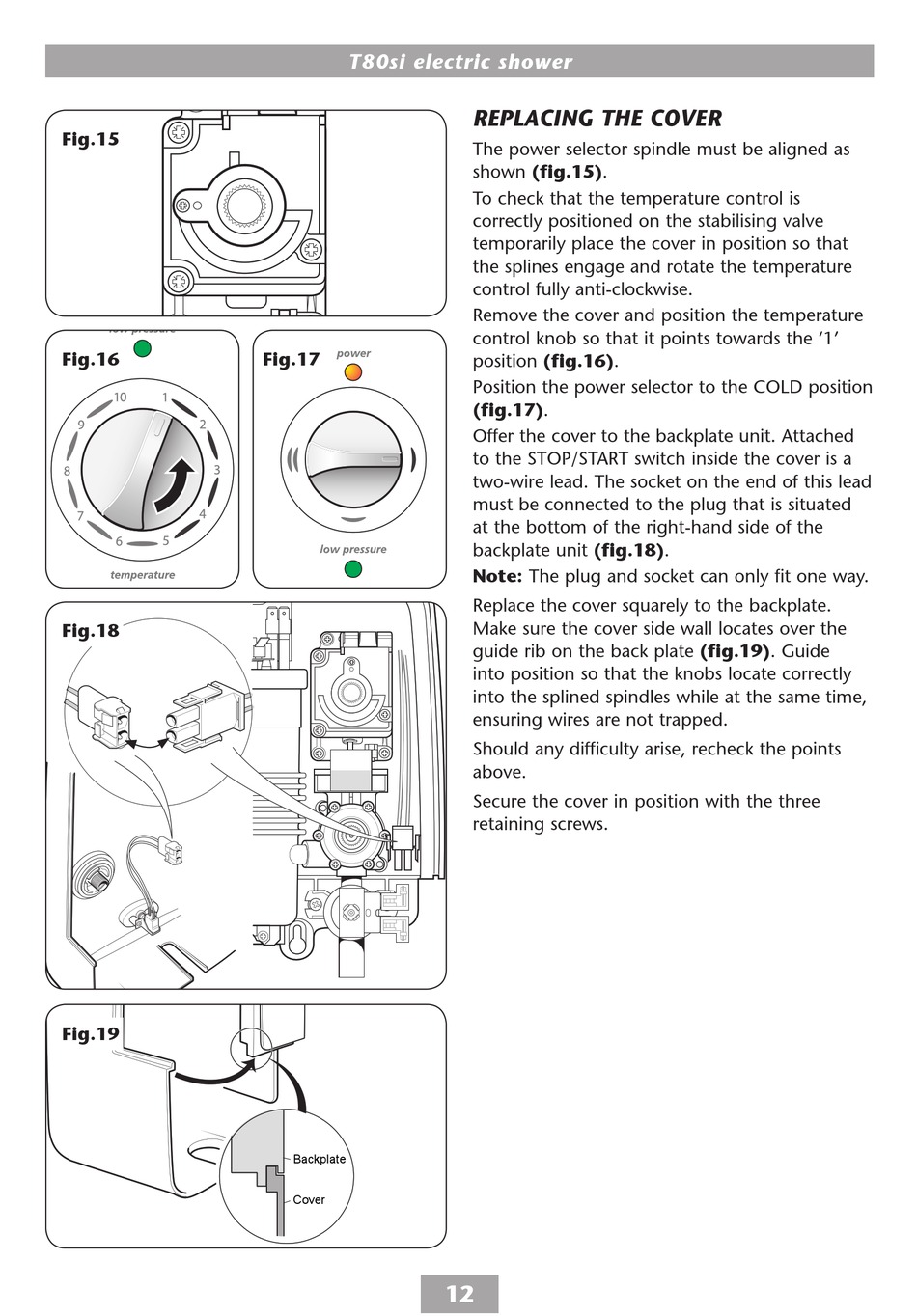

REPLACING THE COVER

REPLACInG THE COVER
The power selector spindle must be aligned as
shown (fig.).
To check that the temperature control is
correctly positioned on the stabilising valve
temporarily place the cover in position so that
the splines engage and rotate the temperature
control fully anti-clockwise.
Remove the cover and position the temperature
control knob so that it points towards the '1'
position (fig.).
Position the power selector to the COLD position
(fig.).
Offer the cover to the backplate unit. Attached
to the STOP/START switch inside the cover is a
two-wire lead. The socket on the end of this lead
must be connected to the plug that is situated
at the bottom of the right-hand side of the
backplate unit (fig.).
Note: The plug and socket can only fit one way.
Replace the cover squarely to the backplate.
Make sure the cover side wall locates over the
guide rib on the back plate (fig.9). Guide
into position so that the knobs locate correctly
into the splined spindles while at the same time,
ensuring wires are not trapped.
Should any difficulty arise, recheck the points
above.
Secure the cover in position with the three
retaining screws.
