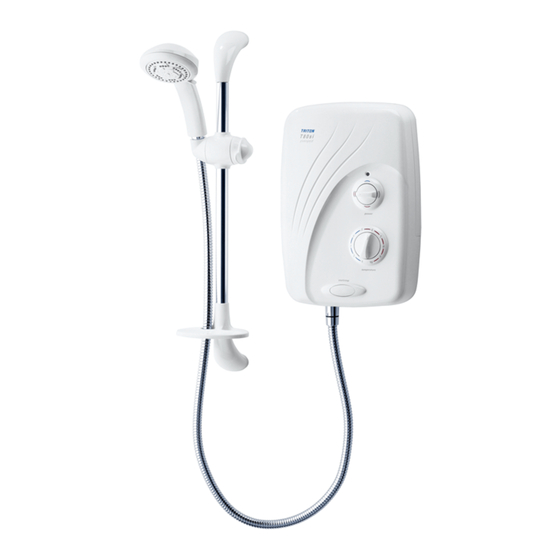

T80si pumped electric shower ! IMPORTANT ! Under *NO circumstances must this shower be connected directly to a mains water supply. It is designed for GRAVITY FED COLD WATER systems ONLY ! Failure to comply may invalidate product warranty Installation and...
Instructions for installers and service engineers only ....17 - 18 Spare parts ..................19 Fault finding ................20 - 21 Guarantee, service policy, etc...........rear cover To check the product suitability for commercial and multiple installations, please contact Triton’s specification advisory service before installation. Telephone: 0844 980 0730...
T80si pumped PLEASE READ THIS IMPORTANT SAFETY INFORMATION Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. WARNING: DO NOT operate shower if frozen, or suspected of being frozen. It must thaw out ...
Advice to users This book contains all the necessary fitting and IMPORTANT: When first installed the unit operating instructions for your Triton pumped will be empty. It is essential the unit should electric shower. Please read them carefully and contain water before the elements are keep for future reference.
T80si pumped MAIN COMPONENTS Main components Fig. Inside unit (fig.) Top cable/pipe entry Motor unit Pump unit Bleed screw Wall screw fixing Feed pipe Thermal safety cut-out (main) Terminal block Can and element assembly 10. Power selector 11. Pressure switch 12.
T80si pumped ELECTRICAL REQUIREMENTS Shepperton Park, Triton Road, Nuneaton, Warwickshire, CV11 4NR WARNING! W-006-A THIS APPLIANCE MUST BE EARTHED The installation, supply cable and circuit protection must conform with BS 7671 (IEE Fig. wiring regulations) and be sufficient for the amperage required.
Page 7
For close circuit protection DO NOT use a above 30°C. Under these conditions, rewireable fuse. Instead use a suitably rated T80si pumped derating factors apply and it is necessary to Miniature Circuit Breaker (MCB) or cartridge select a larger cable size.
WATER REQUIREMENTS Water requirements WARNING! Minimum capacity 114 litres (25 gallons) Cold water Under no circumstances must this cistern T80si pumped shower be connected Stop Gate Mains electric supply valve valve directly to the mains water supply. (via double pole switch)
T80si pumped SITING OF THE SHOWER Siting of the shower WARNING! FOR EASE OF SERVICING, THE UNIT MUST The shower must not be positioned W-008-A ALWAYS BE MOUNTED ON THE SURFACE OF where it will be subjected to freezing TILED WALLS. NEVER TILE UP TO THE UNIT.
T80si pumped FITTING THE SHOWER TO THE WALL Fitting the shower to the wall Fig. WARNING! Check there are no hidden cables or pipes before drilling holes for wall W-005-A plugs. Use great care when using power tools near water. The use of a residual current device (RCD) is recommended.
Page 11
T80si pumped Screw the two upper fixing screws into position Fig.0 leaving the base of the screw heads protruding 6 mm out from the wall. Hook the backplate over the top screws and fit the lower fixing screw into position.
T80si pumped PLUMBING CONNECTIONS Plumbing connections WARNING! Plumbing to be carried out before wiring The outlet of the shower acts as a W-004-A DO NOT use jointing compounds on any pipe vent and MUST NOT be connected to fittings for the installation.
T80si pumped ELECTRICAL CONNECTIONS Electrical connections Fig. SwItch off the electrIcIty SUpply at the maInS. Fig. shows a schematic wiring diagram. The cable entry points are shown in fig.. The cable can be surface clipped, hidden or via 20 mm conduit.
T80si pumped COMMISSIONING Commissioning Fig. WARNING! Before normal operation of the W-001-A shower, it is essential the following commissioning procedure is completed correctly. The first operation of the shower is intended to flush out any remaining unit debris, and to make sure the heater unit contains water before the elements are switched on.
Page 15
T80si pumped Attached to the START/STOP button inside the Fig.9 cover is a two-wire lead. The socket on the end of this lead must be connected to the plug that is situated at the bottom of the right-hand side of the backplate unit (fig.9).
T80si pumped OPERATING THE SHOWER Operating the shower Fig. WARNING! Before normal operation of the Power on indicator W-001-A shower, it is essential the following commissioning procedure is completed correctly. To start the shower Pressing the START/STOP button (fig.) switches on the pump allowing water to immediately flow through the unit.
Page 17
T80si pumped To adjust the shower temperature WARNING! The shower temperature is altered by increasing After any servicing of mains water or decreasing the flow rate of the water through supply, always flush out the pipework the shower via the temperature control.
T80si pumped OPERATING FUNCTIONS Operating functions Fig. Power on indicator (fig.) Cold The power neon will light when the START/STOP button is pressed. This indicates that power is on to the pump and power selector. Low water pressure cut-out Full...
T80si pumped INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY Instructions for installers and service engineers only CLeaNiNg The iNLeT fiLTer Fig. It is recommended that the filter is periodically cleaned in order to maintain the performance of the shower. It is essential that this operation is carried out by a competent person.
Page 20
T80si pumped INSTRUCTIONS FOR INSTALLERS AND SERVICE ENGINEERS ONLY rePLaCiNg The PrD Fig.8 The PRD is situated behind the outlet pipe (fig.8). To access the PRD, FIRST SWITCH OFF THE ELECTRICITy SuPPLy, then unscrew the hose and remove the cover.
3.1.1 See 'Water too hot' causes 2.1 and 2.2 and cycling hot/cool at outlet thermal cut-out. their appropriate action/cures. If it continues, intervals. contact Triton Customer Service. 4 Water too cool or 4.1 Too much flow. 4.1.1 Reduce the flow rate via the temperature cold.
Page 23
T80si pumped FAULT FINDING Problem/Symptom Cause Action/Cure 5 During use, the 5.1 Interrupted power 5.1.1 See 1.1.1 and 1.1.2. water flow ceases supply. abruptly. 5.2 Solenoid valve 5.2.1 Switch off immediately. Have solenoid malfunction (pump checked by a competent electrician or contact still operates).
