T80si electric shower

FITTING THE SHOWER TO THE WALL

FITTInG THE SHOWER TO THE WALL
Check there are no hidden cables or
pipes before drilling holes for wall
plugs. Use great care when using power
tools near water. The use of a residual
current device (RCD) is recommended.
Note: The control knobs are an integral part of
the cover — DO nOT attempt to remove them.

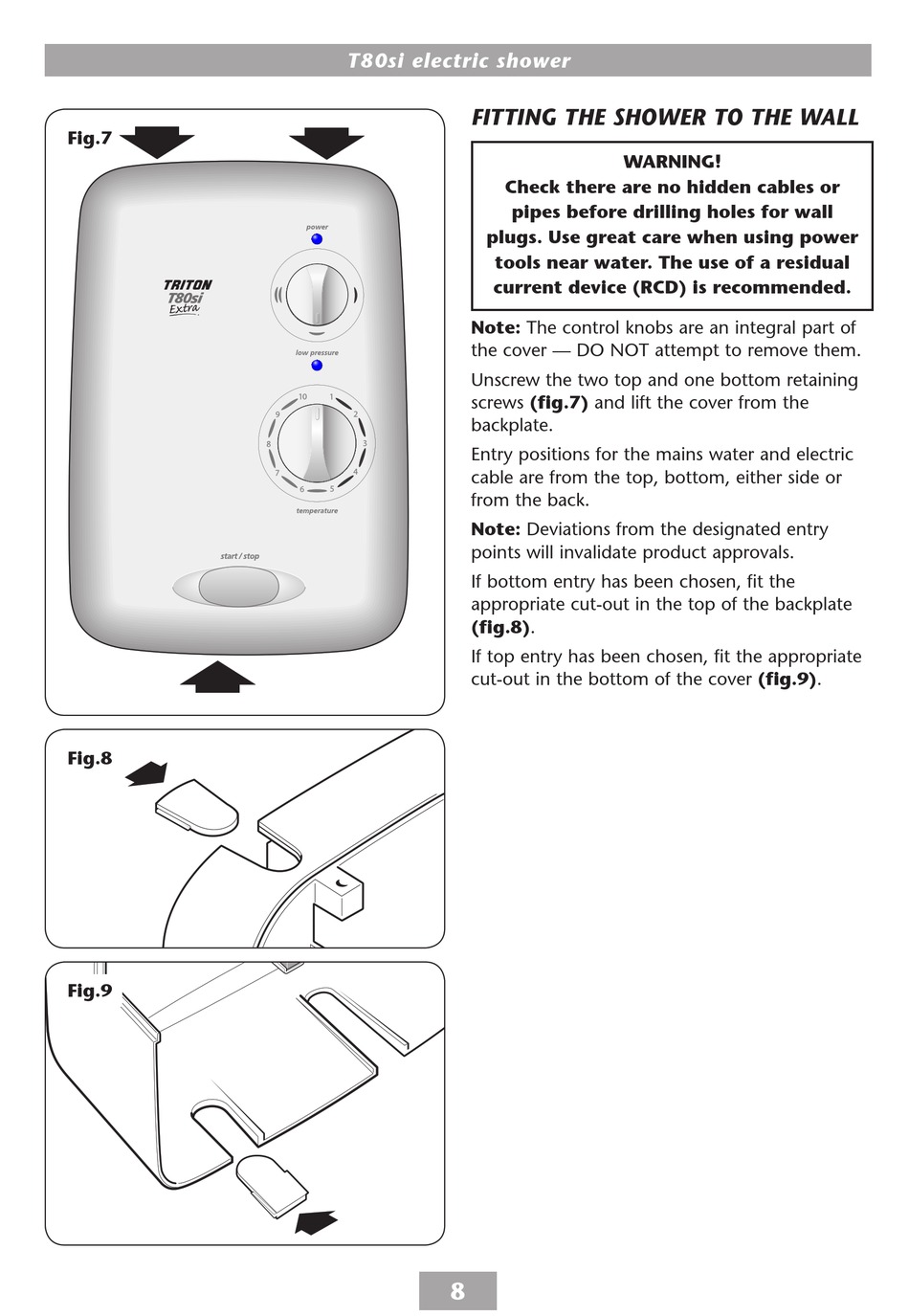

unscrew the two top and one bottom retaining
screws (fig.) and lift the cover from the
backplate.
Entry positions for the mains water and electric
cable are from the top, bottom, either side or
from the back.
Note: Deviations from the designated entry
points will invalidate product approvals.
If bottom entry has been chosen, fit the
appropriate cut-out in the top of the backplate
(fig.).
If top entry has been chosen, fit the appropriate
cut-out in the bottom of the cover (fig.9).

WARNING!
W-005-A
