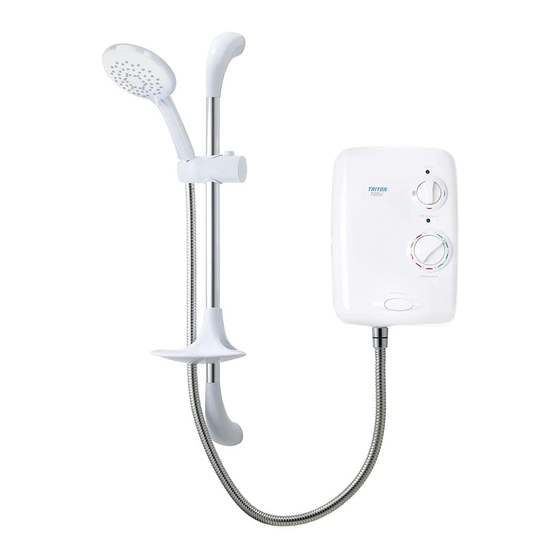

Triton T80si Installation And Operating Instructions Manual
Electric shower
Hide thumbs
Also See for T80si:
- Installation and operating instructions manual (28 pages) ,
- Installation and operating instructions manual (24 pages) ,
- Installation and operating instructions manual (24 pages)
Related Manuals for Triton T80si
Summary of Contents for Triton T80si
- Page 1 Installation and Operating Instructions NSTALLERS PLEASE NOTE THESE INSTRUCTIONS ARE TO BE LEFT WITH THE USER 2180240D Apr 99...
-
Page 2: Table Of Contents
T8 0 s i CONTENTS Page Important safety information Introduction Advice to users Key to main components Site requirements Siting of the shower Fitting the shower to the wall Plumbing connections 6 - 7 Electrical connections Replacing the cover Fitting the riser rail Fitting the hose and sprayhead Commissioning Operating the shower... -
Page 3: Important Safety Information
MPORTANT AFETY NFORMATION ◆ Products manufactured by Triton are safe and without risk provided they are installed, used and maintained in good working order in accordance with our instructions and recommendations. ◆ DO NOT operate the unit if it is frozen, or suspected of being frozen. It must thaw out before using. -
Page 4: Introduction
The following points will help you and operating instructions for your Triton understand how the shower operates: T80si electric shower. Please read them 1 The electric heating elements operate at a carefully. The shower installation must be constant rate at your chosen power setting. -
Page 5: Key To Main Components
T 8 0 s i KEY TO MAIN COMPONENTS Fig.1 Inside unit (fig.1) 1 Top cable/pipe entry 2 Wall screw fixings 3 Cover screw fixings 4 Thermal safety cut-out 5 Power selector assembly 6 Can and element assembly 7 Pressure switch/flag assembly 8 Stabilising valve 9 Terminal block 10 Earth connection... -
Page 6: Site Requirements
T8 0 s i SITE REQUIREMENTS Water: The installation must be in accordance Mains electric supply (via double pole switch) with local Water Company Byelaws. To ensure activation of the heating elements, the shower must be connected to a mains water supply with a minimum running pressure of 1.0 bar (14.5 psi) Double at a minimum flow rate of 8 litres/minute (9... -
Page 7: Siting Of The Shower
T 8 0 s i SITING OF THE SHOWER WARNING: The shower must not be Shower unit can positioned where it will be subjected to be mounted either side of riser rail freezing conditions. FOR EASE OF SERVICING, THE UNIT MUST ALWAYS BE MOUNTED ON THE SURFACE OF TILED WALLS. -
Page 8: Fitting The Shower To The Wall
Plumbing to precede wiring. WARNING: The outlet of the shower acts as a vent and must not be connected to any tap or fitting not recommended by Triton Plc. DO NOT use jointing compounds on any pipe fittings for the installation. - Page 9 T 8 0 s i Procedure Turn off water supply either at the mains stopvalve or the isolating stopvalve. Connect the mains water supply to the inlet of the shower via 15mm copper, stainless steel or plastic pipe using a 15mm x 15mm compression fitting.
-
Page 10: Electrical Connections
(fig.11) as follows:- Live cable to terminal marked L 1 Terminal block 6 Solenoid valve 2 Thermal cut-out (main) 7 Element T80si Neutral cable to terminal marked N 3 Thermal cut-out (outlet) 8 Element Earth cable to terminal marked E 4 Microswitches... -
Page 11: Replacing The Cover
T 8 0 s i DO NOT switch on the electricity Fig.12 supply until the cover has been fitted. REPLACING THE COVER The power selector spindle must be aligned as shown (fig.12) To ensure that the temperature control is correctly positioned on the stabilising Fig.13 valve, temporarily place the cover in position so that the splines engage and... -
Page 12: Fitting The Riser Rail
T8 0 s i FITTING THE RISER RAIL Fig.16 WARNING: Check there are no hidden cables or pipes before drilling holes for wall plugs. Use great care when using power tools near water. The use o f a residual curren t dev ice (RCD) recommended. -
Page 13: Fitting The Hose And Sprayhead
T 8 0 s i rail and secure the bracket to the wall with Fig.24 the screws supplied (fig.21). Fig.25 E Place a trim cover onto each bracket ensuring the large protrusion at the narrow end of the trim cover, engages into the slot Thin section at top between the rail and bracket (fig.22) before pushing and clicking the other end into... -
Page 14: Commissioning
T8 0 s i COM MISSIONING Fig.30 The first operation of the shower is intended to flush out any remaining unit debris, and to ensure the heater unit contains water before the elements are switched on. This operation must be carried out with the flexible hose screwed to the outlet but without the sprayhead attached. -
Page 15: Operating The Shower
T 8 0 s i OPERATING THE SHOWER Fig.34 NOTE: Ensure the commissioning procedure has been carried out. To start the shower Press the ‘START/STOP’ button and water will flow. Power selector To stop the shower Cold Press the ‘START/STOP’ button and water will cease to flow. -
Page 16: Operating Functions
T8 0 s i After obtaining your preferred shower Fig.35 temperature, the number can be remembered and left as the normal setting and should only need to be altered to Power on compensate for seasonal changes in indicator ambient water temperature. NOTE: The preferred number on ‘economy’... -
Page 17: Adjusting The Sprayhead
T 8 0 s i has fallen below the minimum required for Fig.36 correct operation of the shower. In this state the low pressure cut-out has operated. This switches off power to the heating elements preventing undue temperature rises (water will continue to flow). -
Page 18: User Maintenance
T8 0 s i USER MAINTENANCE Removal tool Fig.37 It is recommended that the shower unit, riser Cartridge rail, hose etc. be cleaned using a soft cloth and that the use of abrasive or solvent cleaning fluids be avoided. It is advised before cleaning, that the isolation switch be turned off, thus avoiding accidental switching on of the shower. -
Page 19: Fault Finding
4.3.2 Select ‘high’ power. 4.4 Electrical 4.4.1 Have unit checked by suitably qualified malfunction. electrician or contact Triton Customer Service. 5 Shower varies from 5.1 Water pressure has 5.1.1 Wait until the water pressure resumes to normal temperature dropped below minimum normal. - Page 20 T 8 0 s i Ref. Description Part No. Can assembly 7.5kW 83305450 Can assembly 8.5kW 83305460 Can assembly 9.5kW 83305470 Terminal block 22007020 Switching module assy. 82500160 c/w actuator & m’switches Solenoid valve assembly 22007740 (Eaton) Thermal cut-out (main) 22008310 Pressure Relief Device 82800450...
- Page 21 T8 0 s i Ref. Description Part No. 3 mode sprayhead 22008290 Sprayhead holder 83306190 Brackets (pr.) 83306160 Riser rail 7042409 Flexible hose chrome 22007500 Soap dish white 22008960 Cover assembly 84900010 c/w knobs & button...
- Page 22 T8 0 s i VOLTAGE AND AMPERAGE REFERENCE It is important to ensure that the supply voltage is the same as that shown on the The electrical rating of the shower is shown rating label inside the unit. If not, then these on the rating label within the unit (see tables will become invalid.
- Page 23 T 8 0 s i...
-
Page 24: Spare Parts
Service Policy Replacement Parts Policy In the event of a complaint occurring, the following Availability: It is the policy of Triton to maintain procedure should be followed: availability of parts for the current range of products for supply after the guarantee has expired. Stocks of...
