User Manual V0.4
1.2. Connect Device
A. Connect Video
B. Connect Monitor
C. Connect Ethernet
D. Connect Audio
E. Connect Power & Run
2. Monitor
It is to monitor real time image. Ch. 1~4 are for analogue image input via BNC cable, and Ch. 5~16 are
for digital image input of network camera via network.

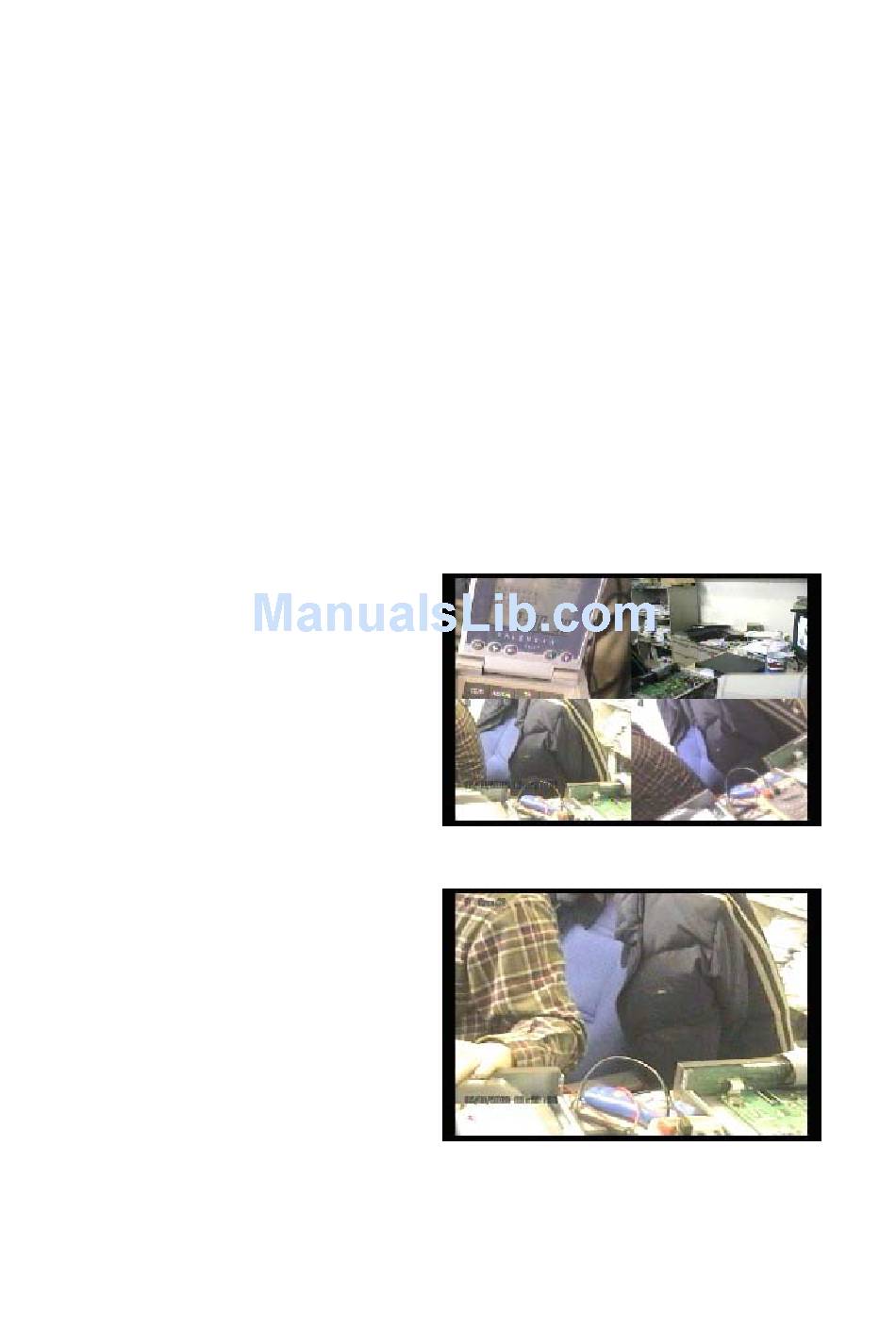

A. View basic screen (quad-split)
(1) Supply power.
(2) Power LED is on, and DVR starts
booting.
(3) After booting, basic screen (quad-split)
shows.
※ If user password is set, a dialogue for
entering password will be indicated.
B. View full screen
(1) Press the button of channel that user
wants to view from multi screen
(4/9/16/13).
(2) When selecting one between channel 10
and 16, press the [+10] button at first
then the other number.
(3) Screen changes into 1 channel full
screen, and the related channel shows.
(4) If pressing the [MULTI] button, full screen moves to the previous multi screen.
C . View multi screen
