User Manual V0.4
EDVR Manual
Version : 0.4
Making Date : January, 28, 2003
Revision Date : February, 25, 2003
1. Install & Run
1.1. Descriptions

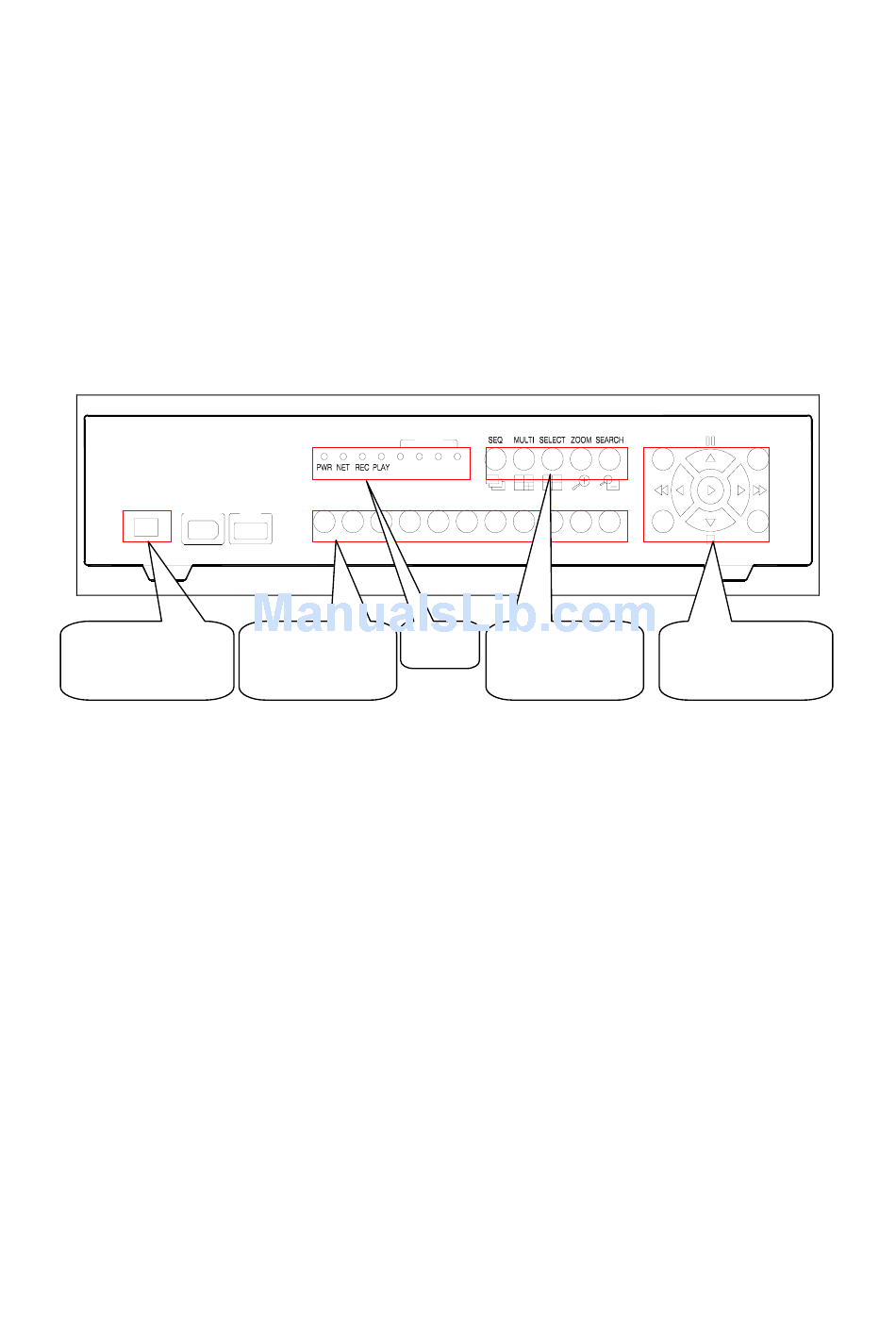

A. Front Panel
DIGITAL VIDEO RECODER AX-100L
WEBGATE
IEEE1394 USB
Remote controller
receiver
(1) Remote Controller Receiver
(2) Channel Selection Button
- To select video input channel in monitoring and playback mode
(3) LED
- PWR : To show power supplying status. "ON" means to supply power.
- NET : To show the status of Ethernet and communication. It blinks as many as
transmitted frames per second.
- REC : To show frame recording status. It blinks as many as recording frame per
second.
- PLAY : To show playback mode. It blinks as many as replaying frame per second.
- ALARM 1~4
(4) Function selection button
- SEQ : To show with converting all connected video channels
- MULTI : To show multi channels (4-9-16-13 divided screen)
- SELECT : To select video channel for PTZ control
- ZOOM : To show expanded image via one channel mode
WEBGATE INC.
ALARM
1 2
1 2 3 4
LED
Channel selection
button
3 4
5 6 7 8 9 0 +10
Function selection
button
eDVR DS412
MENU HELP
ENTER EXIT
Direction/Replay
button
