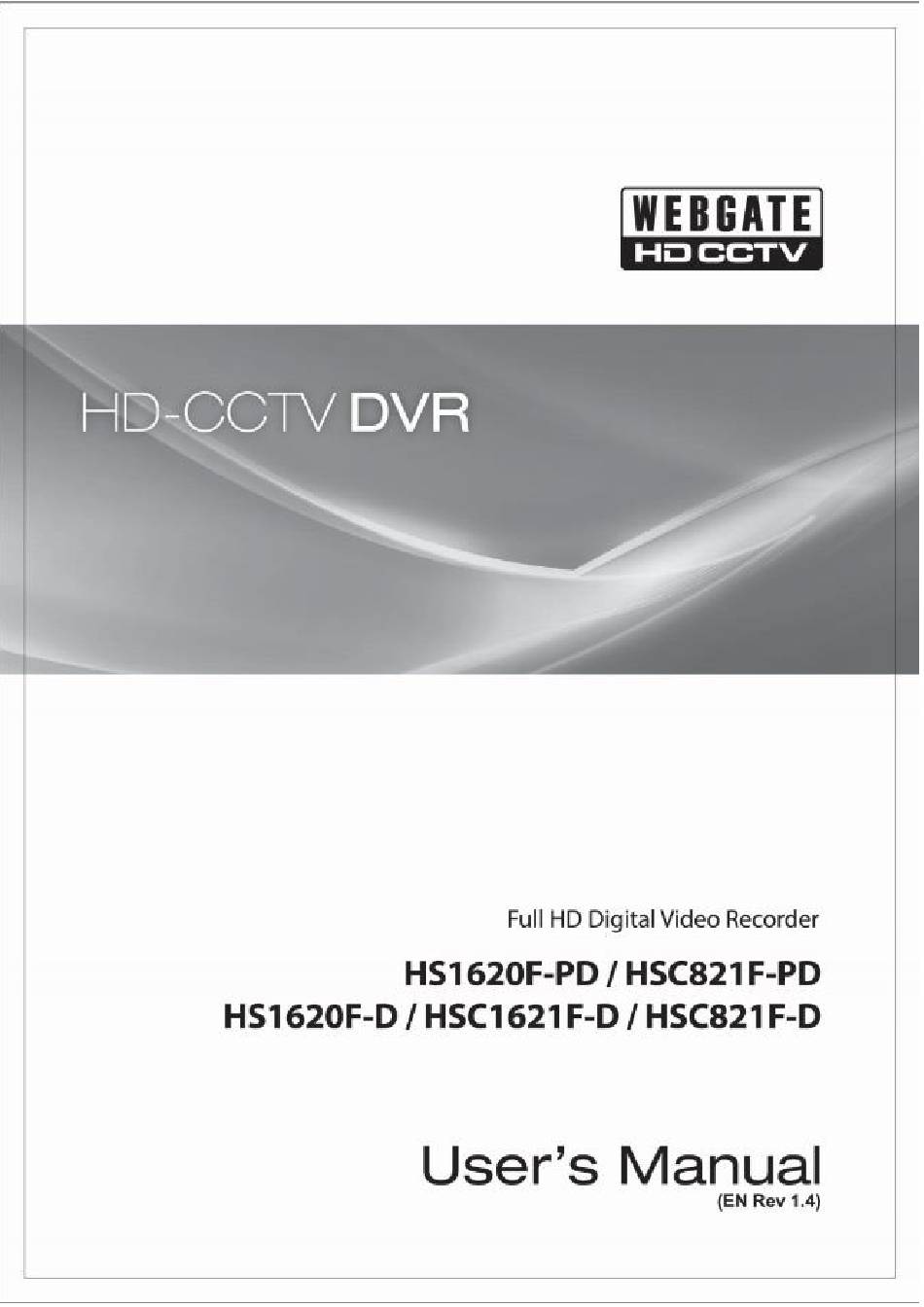

  • Page 2 HD-CCTV DVR Install & User Guide HD-CCTV DVR Manual. Thank you for purchasing a Webgate Digital Video Recorder. Before installation or operation please become familiar with the user manual and other referenced manuals mentioned in the booklet. User manual, software and hardware described here are protected by copyright by law. With the...

  • Page 3: Introduction

     Product is made of metal you can hurt another human if you throw or used as a weapon. Keep away from the reach of children and install in a safe place.  If Product does not operate properly, please contact the closest WEBGATE distributor for service. Tampering or disassembling the product will void the warranty.

  • Page 4: Table Of Contents

    Contents Introduction 2 Warning 2 Key Features 5 Specification by Models 7 Components 8 Product Description 9 Installation 15 Connecting other devices 18 Setup Wizard 24 Usage 26 FUNC Menu 26 Menu structure 26 Monitoring 28 Default setting 29 Remote monitoring & control 33 Playback, Search and Copy 35 Playback 35 Screen composition/names of the functions 36...
  • Page 5 JAVA Viewer 71 System requirement 71 Installation 71 Login 71 Monitor 72 Playback 73 Webeye 74 Mobileviewer 74 Appendix 75 Problem solving [FAQ] 75 Compatible HDD 77 Factory default set-up values * 77 Product specification 81 Product Dimension 86...

  • Page 6: Key Features

    Key Features Hybrid Various video format of 1080P, 720P, 960H, NTSC/PAL, EX-SDI (DoubleReach) and IP cameras can be displayed simultaneously. SD : D1 It supports real-time live monitoring and record/playback on various format and it records from 5 seconds before event and record up to 30fps per channel.
  • Page 7 PoC (Power over Coax) * Power to PoC type camera can be supplied over coaxial cable. Connect PoC type camera of WEBGATE to DVR. No additional power for PoC type camera is required because power is supplied to PoC type camera over coaxial cable.

  • Page 8: Specification By Models

     Supports PTZ control and PRESET function  Easy control of up to 255 DVR with a single remote control Specification by Models Models CASE EX-SDI Fire PoC/CoC detection HS1620F-PD Full SATA*5 + eSATA HSC821F-PD Middle SATA*2 + eSATA HS1620F-D Full SATA*5 + eSATA...

  • Page 9: Components

    Components Please check the below to make sure you have every part. HS1620F-PD / HS1620F-D Remote Control & Batteries Mouse power cord Rack bracket SD video input extension SW & Manual CD PoC adaptor(optional) * screw cable (*) Quick guide HS821F-PD / HS1621F-D / HSC821F-D Remote Control &...

  • Page 10: Product Description

    Product Description HS1620F-PD / HS1620F-D Front view part name function description Power turns ON/OFF the power It turns on when power is ON Shows record status while recording EVENT Turns on if event is triggered Shows network connection status and it flickers if network is connected USB port USB port for flash memory or mouse.
  • Page 11 part name function description HDMI Output HDMI monitor connection output port Ethernet, Storage Ethernet : network connecting terminal (RJ-45) VGA Output VGA monitor connection output port. PoC power input Socket for PoC adaptor connection. SD channels input BNC input port for 960H, NTSC/PAL cameras. HS1620F-D Rear view part name...
  • Page 12 HSC821F-PD / HSC1621F-D / HSC821F-D Front view function description part name Power turns ON/OFF the power It turns on when power is ON Shows record status while recording. EVENT Turns on if event is triggered Shows network connection status and it flickers if network is connected USB port USB port for flash memory or mouse.
  • Page 13 part name function description eSATA port For connection with external eSATA HDD. HD Channel Input Camera input BNC port for 1080P, EX-SDI (DoubleReach) cameras HDMI Output HDMI monitor connection output port Ethernet Ethernet : network connecting terminal (RJ-45) VGA Output VGA monitor connection output port.
  • Page 14 HSC821F-D Rear view part name function description Power Input Connection socket for DC 12V power code Ground Connection Connection terminals that connects DVR to an outside device SPOT Connection port for SPOT monitor Audio Input/Output Audio Input : Audio input connection terminal Audio Output : Speaker output terminal Sensor, Relay,...
  • Page 15 Remote control Can use every function of the DVR and control several DVRs with only one remote control. To be able to use the remote control, please create a user ID on the remote control ID section of system settings. (See the right picture for working angle of a remote control) Remote control...

  • Page 16: Installation

    Installation Check settings This DVR is high quality security device with a high capacity built-in HDD and important curcuits. Before installation, please read carefully below recommendations as high internal temperature of the product can lead to damages and shorten product life cycle. Recommendations on installing a DVR in a rack.
  • Page 17 HDD installation HS1620F-PD / HS1620F-D 1. Unscrew bracket screws that are fixing it to a DVR.. 2. Push HDD bracket to a direction shown in the right picture and separate from fixtures. 3. Lift HDD bracket to a direction shown in the right picture and separate from the bottom.
  • Page 18 5. Place HDD bracket fastened with screws in DVR and fasten it on the bottom with screws. <Note> Below is SATA cable socket sequence of a mainbaord. Up to 5 HDDs can be installed inside DVR. HS1600F-D Main Board Disk Manager INT A INT A INT B...

  • Page 19: Connecting Other Devices

    X : 1 800x600 X : 2 1024x768 X : 3 1280x1024 X : 4 1920x1280 Connecting a Camera Connect 1080P, 720P, 960H, NTSC/PAL camera using recommended cable. <Note> Please use “SD video input extension cable” to connect 960H, NTSC/PAL camera. (HS1620F-PD, HSC821F-PD)
  • Page 20 200M HD-SDI cable Depends on manufacturer and models. * The transmission distance will be almost doubled in case it is used with WEBGATE’s D1080 Series camera or EX-SDI (DoubleReach) Converter <warnings>  Transmission distance will be affected by cable types and installation site environment ...
  • Page 21 1) Turn off DVR. 2) Turn off eSATA then connect it to DVR. 3) Turn on eSATA. 4) Turn on DVR. Connecting input/out terminals Wire end handling See below for wire end handling used in terminal block. Please work on single line and multiple line as they have different thicknesses.
  • Page 22 Connecting relay specifications Please see the below table for alarm output requirements. Output Ch. * 4ch relay output Output type Dry Contact Specifications Connection Connect the trimmed wire to terminal block method 30V / 1A Performance 125V / 0.5A * Varies between different models Connecting relay Please refer to the below picture in regards to connecting R1~R4 output.
  • Page 23 Connecting Serial Port for Transparent device Keyboard Device Text Device Dome Camera Keyboard Device COM1 COM2 PTZ Receiver Connecting PTZ & Keybaord up to 255 DVRs can be connected using keyboard and PTZ control is possible for all channels connected to DVR. Also, multiple keyboards extension as Slave can be used limitless with Master Keyboard.
  • Page 24 Confituration using 1 serial ports When using 1 serial port, user can connect both of PTZ(DOME) and Keyboard to a port, and user can select a PTZ(DOME) through the keyboard. According to DVR’s COM port setting, connected controllable device can be selected, and by choosing a DVR ID, keyboard can control several DVRs.

  • Page 25: Setup Wizard

    Setup Wizard Setup Wizard can help user setup “language, network, DDNS, time, harddisk, record mode” with ease. It runs automatically when DVR boots initially. User can run Setup Wizard on “Menu > System > Tool > Setup Wizard”. Start Select language and choose whether to use Setup Wizard or not. Network Set up IP address of DVR or skip network setup.
  • Page 26 Time and time zone Setup time, standard time zone and daylight saving time(DST). Network(NTP) autotime synchronizing 1) In case DVR is connected to internet – In use 2) In case DVR is not connected to internet – Not in use Daylight saving time(DST, summer time) 1) DST saving time is used –...

  • Page 27: Usage

    Usage FUNC Menu All DVR functions can be controlled by using Mouse. To open FUNC menu, click the mouse’s right button at live or playback screen. FUNC menu at Live screen Search - Recording data Search/Playback  Copy – Copy recorded data ...
  • Page 28 Menu Structure Press [MENU] key on front panel or click [Main Menu] button under FUNC menu to enter the setup menu. To exit menu, press “X”. Main Menu Main menu Sub menu The selected tab is shown in bright color and the sub-menu box will show the chosen Dialogue set Sub-menu...

  • Page 29: Monitoring

    Monitoring Basic screen The basic screen will be maximum multi screen DVR supports and if rebooted after multi-screen mode has been modified, previous multi-screen mode will be shown. (DVR default account admin / 12345) Single screen click the channel number you want to view or click the left mouse button.

  • Page 30: Default Setting

    <warning> Set image popup “enable” then select even source(sensor, motion detection, no video, text). To use fire detection feature needs WEBGATE’s fire detection camera (C1080BL-AF-F2/C1080PBL-AF-F2), and select sensor of fire detection camera channel as “Flame Detector”. If Alarm pop-up is “Off”, Event pop-up will not be enabled.
  • Page 31 Pausing the live screen Just like in playback, Live screen can be paused. Click on [Freeze] button while live monitoring to pause image and to return to live again, please click on any button. Snapshot picture Please click on Snapshot while image is Freeze in single live monitoring. Copy them to USB too. Click FUNC menu ->...
  • Page 32 Saving preset Use to save new preset location. Use focus/zoom/pan/tilt to move to a location you want to save it and select a preset number and press [save] button. Auxiliary On Use direction keys or mouse wheel to select aux number.(up to 16 Aux functions can be used). Select “on” and press enter or click a mouse) Auxiliary Off Use direction keys or mouse wheel to select aux number Aux...
  • Page 33 SPOT Run [Tool-SPOT] in live to select channel to be on SPOT screen or Auto sequence.

  • Page 34: Remote Monitoring & Control

    Remote monitoring & control Users can connect DVRs, control and monitor it remotely by using Control Center (WEBGATE’s CMS program) Installation of Control Center Execute “Control Center Setup vx.x.x.exe” to install the Control Center. Start of Control Center After installation is completed, click “Control Center Monitor” icon and execute it.
  • Page 35 Add Unit Click [Add] icon on the toolbar or execute [Add Unit] by clicking mouse right button at “My Units”. 1) Select “URL/IP Adress” 2) Enter proper IP address and Port, then click [Find] button. If the DVR is located inside local network, you can easily find the DVR by clicking [Auto Detect] button.

  • Page 36: Playback, Search And Copy

    Playback, Search and Copy Playback Playback with Basic Screen  In monitoring mode, Remote control Press [◀/▶] button to playback the recorded video in full screen  If [PLAY] button is pressed, the last playback will run at 1x speed. ...

  • Page 37: Screen Composition/Names Of The Functions

    Screen composition/names of the functions Screen composition name function description Playback button Use buttons to control the playback. screen Displays the playback videos. log viewer Displays the log seen on timeline Calendar/time Select a date on the calendar to view the data of the date. search timeline Displays the info of the unit and search the playback sections.
  • Page 38 Time search If the user enter a date and time and click , DVR’s playback time moves to that time. Calendar search When calendar search is run, it marks the dates on which there were recordings. Select a date from calendar you want to search, and it moves to that date.

  • Page 39: Copy

    Copy This is for copying recorded videos. There are 2 types of copying, EXE, and AVI. Only authorized users by security settings can use the Copy function. For more about authority settings, please refer to (user setup) section. To run copy function, press [COPY] on the product front or Click Copy button under Function menu. If a user runs copy menu during playback, playback time will be set as backup start time.

  • Page 40: Configuration

    Configuration System configuration Please set time/disk/authority. Date/time menu  system  date/time Before recording setting, DVR has proper time information. DVR has ‘UTC +09:00 Seoul’ as default time zone. <Note> 1. To search DVR’s recording data properly, DVR should have exact time zone information.

  • Page 41: Disk

    menu  system  date/time  Network Time Protocal(NTP) NTP (Network Time Protocol) synchronizes the time of all connected device. To set DVR time to standard time open server which offers standard time on the network and client which is connected to open server to receive time and synchronize it with standard time.
  • Page 42 Recorded part for 2 days. Record during 10 days. Record during 10 days. Start record In progress of record Start record In progress of record [Picture 1] [Picture 2] Data deletion This function allows only recordings of preassigned date to be viewed. For example, if playback block is set at 3 days, then DVR will only save data for 3 days and will delete data more than 3 days old even if auto-deletion isn’t on.
  • Page 43 User settings menu  system  user settings DVR users will either be manager or user. Managers can use all functions of DVR without limitation and can set up user settings. Up to 10 users can be registered and each user can only use functions for which they’ve been given access to.
  • Page 44 Utility menu  system  utility Utility sets up DVR name, remote control ID, and language. DVR alias Set the DVR alias when connected to network. language select a language for a system. DVR keyboard ID This menu sets the address of keyboard when using all functions of DVR by keyboard.
  • Page 45 Factory reset Change all set up values to default values. Only a manager can use this function. <Note> Only a DVR system manager can use this function. Refer to the (supplement – factor default value) for the factory reset. System log System log shows the log list of system booting, user login, setting changes.
  • Page 46 System info Displays DVR system info NTSC/PAL Setup NTSC/PAL mode of the DVR. NTSC-DVR is running on NTSC(60/30Hz) fixed mode  FAL-DVR is running on PAL(50/25Hz) fixed mode  Auto-DVR can recognize input format of camera  Then DVR is set NTSC or PAL mode automatically Setup Wizard Setup wizard runs automatically on DVR’s initial boots up.

  • Page 47: Network

    Network Configure network info when DVR is connected to a network. Network settings menu  network  network  Ethernet Select DVR’s network type between Ethernet or XDSL. Ethernet Select ‘Ethernet’ when the DVR is connected with dedicated line, cable modem or LAN environment. xDSL Select ‘xDSL’...
  • Page 48 Port Register port # in DVR and use it to connect to control center or webviewer. Default port is 80 and be careful in entering the port # when used with PPPoE modem and router. To use port forwarding & UPnP port forwarding, network port change (e.g. 8000) might be necessary. Please ask this information to network administrator.
  • Page 49 DDNS DDNS setting at a DVR Menu  Network  DDNS User can give a domain name to a DVR by using WEBGATE’s DDNS service, WNS(Webgate Naming Service). DDNS setting at a DVR 1. Change DVR’s port which is not in use (e.g. 8000) 2.
  • Page 50 Menu  Network  WRS If a DVR is connected to cable modem or xDSL modem, ISP(Internet Service Provider) may change DVR’s IP address unexpectedly . So, the user can not get the IP address of the DVR. If a user register a DVR to WRS server, the user can easily connect the DVR by using Control Center.
  • Page 51 xDSL menu  network  network  xDSL DVR is connected to xDSL line and use PPPoE type, please change type by xDSL and configure user ID and Password. User ID and Password should be same as xDSL. User ID/Passwor Configure user ID and Password when DVR is connected to xDSL.

  • Page 52: Devie Settings

    Devie Settings In Device setup, user can configure camera, monitor, audio, text, serial which are connected to DVR. Camera menu  device  camera Conditions on camera connected to DVR can be set. Name Naming per channels. <Note> To disable channel for live/recording, please make check box blank BNC –...
  • Page 53 Menu  Device  PTZ Port Choose one of COM2/COM3* Device Select a device that is connected to the port. Address Select the device’s address that is connected to the port. Baudrate Select the device’s baudrate that is connected to the port. * COM3 may not exist depending on the model.
  • Page 54 Monitor menu  device  monitor Configure SEQ, MULTI. Sequence configuration This menu is to edit function of user sequence configuration. User can configure 16 sequence modes and dwell time is available to set from 5 to 60 seconds. For sequence mode, users can configure channel or division mode and sequence time from 5 to 60 seconds.
  • Page 55 Audio menu  device  audio Configure audio channel, audio recording, volume, synchronization, mixing on this menu. Audio channel Slelect a channel for audio. Video channel Configure if selected audio will be synchronized and heard through the video channel. For example, if audio channel 1 is synchronized with video channel 4, then audio will be heard through video channel 4.
  • Page 56 information binding 30 lines. Time out If configured line is not full, after the last information, if there is no further information during certain time range, system deal with it as one information.

  • Page 57: Event Configuration

    Event Configuration Event menu  event  event Event set up has 4 set up procedures, event, motion, sensor, and preset. event configures time range with event synchronization and can be configured as off, always, and custom “always” recognizes and reacts to event when it is configured. “custom”...
  • Page 58 If event in event sourch happens, event notification will be delivered to mobile application(Webeye) in push alarm. <Note> 1. To use fire detection feature, please connect WEBGATE’s fire detection camera (C1080BL-AF- F2/C1080PBL-AF-F2). 2. Select sensor of fire detection camera channel as Flame Detector.
  • Page 59 EVENT SOURCES Check Sensor, Motion detection, Text or systems for activating event System event sources of HDD Fail, RAID fail, fan fail, password fail, WRS registration fail and power on can be checked (some or all) E-mail Configuration Recipient Address Input E-mail address with receiver’s E-mail info.
  • Page 60 user ID Enter the relevant ID when asked for FTP server authentication. password enter FTP server password. FTP Directory Select Folder to save image If folder is not indicated, the image is sent to the folder which server selects Motion detection menu ...
  • Page 61 Sensor menu  event  sensor This menu is to setup the existing sensor input and the type of sensors. If sensor is selected as N.O, or N.C. it is applied to all channels. Users can set different options like N.O, N.C, or Off after selecting each channel.

  • Page 62: Recording Set Up

    Recording Set Up There are 3 modes for recording – schedule recording, manual recording, and Continuous Recording. Schedule Recording records automatically in accordance with the configured schedule and Manual Recording records via pushing button. FUNC [TOOLS – MANUAL RECORDING] Event record means record on event image configured in manual, continuous, schedule record mode following event check status when any motion, sensor event, text are detected.
  • Page 63 Schedule recoding It records according to the programmed schedule automatically. select “Schedule record” and configure day and time Check and select each program default value and select one of 9 programs from A to I. User can not set two different program to one schedule.
  • Page 64 Record time after event User can select between 1~30mins and time after event will be recorded as much as time set by user Program menu  recording  program Using [Program], adjust frame rate and quality configure recording program for Continuous, Manual, and Schedule recording. Select Program to configure frame rate &...

  • Page 65: Web Viewer

    Web Viewer WebViewer is Web application program loaded to monitor real-time image or to monitor the images recorded through Web browser to PC located remotely. System requirement Recommendation Items Core i5 3.0GHz Main Memory Video Memory 512MB or higher Display 1024MB PCI-E Graphic Card Support AGP Accelerate Support PCI-E 16X or highter Network...

  • Page 66: Monitor

    Monitor When it is authorized with User ID & Password input at Login page, it moves to monitor page. At Monitor page, monitor real time image of cameras connected to DVR, or it can control PTZ camera, Relay, and use Microphone function according to user’s authorization.
  • Page 67 channel On/Off It is On/Off button for the Channel located to left in page. Click the channel wanted to On or Off. And Default is “On”. Sensor indication The icon indicates when sensor occurs in system When it sensors, relevant sensor icon comes to Red, and indicates sensor number of video.
  • Page 68 video recording & save video recording Select by clicking “Rec Start” in right button of Mouse after selecting channel user wants to record during monitoring. It can record max. 10 minutes of video During Quick Recording, recording time is indicated on video. If “Rec Stop”...

  • Page 69: Playback

    Using Audio In case of Channel setup sync with Audio, press right mouse button on the image to activate pop- up menu to “Listen” and uncheck Mute. Audio Volue adjustment is available using slide bar. Playback This page is to playback recorded images, and user who has authority of ‘HDD’...
  • Page 70 bmp file. Print Select image with mouse for the channel to print image saved, and then click ‘Print’ button. Window comes to input Memo, and click ‘OK’ button to print the image through the printer connected. Print material includes ‘Printing Date’, ‘Channel name’, ‘Recording Date’...
  • Page 71 Calendar search Recorded date is enabled in black color, and others unrecorded date disabled in grey. Click [Go to] button after select date & time so as to playback images on the date & time selected. ‘When clicking the ‘Go To’ button, it indicates for 24hours from the time selected at left bottom.

  • Page 72: Java Viewer

    JAVA Viewer Jave Viewer supports DVR monitoring function regardless of operating system. System requirement Recommendation Items Core i5 3.0GHz Main Memory Video Memory 512MB or higher Display 1024MB PCI-E Graphic Card Support AGP Accelerate Support PCI-E 16X or highter Network 100/1000 Ethernet NIC Windows 7 / Windows 8 / OS X Mavericks (version 10.9) Installation...

  • Page 73: Monitor

    Monitor When it is authorized with User ID & Password input at Login page, it moves to monitor page. At Monitor page, monitor real time image of cameras connected to DVR, or it can control PTZ camera, Relay, and use Microphone function according to user’s authorization.

  • Page 74: Playback

    Playback Click [ ] to run playback. Playback is page, where only Authorized or user account assigned with right for [playback/search] can use. Playback can be controlled by search, time shift button or click on time line. Calendar search Recorded date is enabled in black color, and others unrecorded date disabled in grey.

  • Page 75: Webeye

    Webeye Mobile viewer is an Application for Smart Phone. It is available to serach and install as free of charge with “WebEye” keyword in Apple App store & Google Android Store.  Available to register up to 16 units  Supports multi-stream function ...

  • Page 76: Appendix

    Appendix Problem solving [FAQ] solution problem & symptom If system power isn’t on, LED on the  Check the power of system system front won’t operate  Check power voltage in out  Check or replace power supply if power doesn’t turn on after above procedure No video on some channels with black ...
  • Page 77 2) For alarm sound cancel : Event record mode - Alarm (Motion detection/Video loss) – It erases alarm output. 3) For event cancel : Event record mode - Alarm (Motion detection/Video loss) – It turn off mode. No response in Live screen even FUNC ...

  • Page 78: Compatible Hdd

     In case resolution and recording picture quality set high, data size will become high accordingly so HDD capacity will be reduced too. It will lead to short period time of recording Remote control doesn’t work.  Point to remote control receiver ...
  • Page 79 Automatic Addressing (DHCP) IP Address 192.168.0.2 Net Mask 255.255.255.0 Gateway 192.168.0.1 UPnP Port Forwarding 4.2.2.1 / 0.0.0.0 / 0.0.0.0 Port Bandwidth Limit (Mbps) unlimited Video Streaming (RTSP) Port 554 / Auth On IP Filtering Guest xDSL Password ******** Status xDSL is not connected activate Turn off status...
  • Page 80 Device None Baudrate 2400 Sync Video Channel Cam1 Recording Parity bit none Stop bit Data bit Manual Header check header 1 None header 2 None delimiter 0D0A Time interval(ms) 1000 # of lines Evnet activate Turn on Event check always Event synchronization Relay 1 Turn on...
  • Page 81 FTP channel ftp_user Password ******** channel Cam1 activate Turn on Motion Sensitivity Area All Select activate Turn on Sensor Sensor Normal Open, Normal Close, Flame Detector Channel Cam1 Preset S1~S16 None Preset Motion None Text None Record Record Mode Countinuous Program Pre Event Duration Post Event Duration...

  • Page 82: Product Specification

    Product specification HS1620F-PD...
  • Page 83 HSC821F-PD...
  • Page 84 HS1620F-D...
  • Page 85 HSC1621F-D...
  • Page 86 HSC821F-D...

  • Page 87: Product Dimension

    Product Dimension HS1620F-PD...
  • Page 88 HSC821F-PD...
  • Page 89 HS1620F-D...
  • Page 90 HSC1621F-D...
  • Page 91 HSC821F-D...
  • Page 92 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or Open Source License Report on the Product otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
  • Page 93 A “covered work” means either the unmodified Program or a work based on the Program. be in a format that is publicly documented (and with an implementation available to the public in source To “propagate” a work means to do anything with it that, without permission, would make you directly or code form), and must require no special password or key for unpacking, reading or copying.
  • Page 94 THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT any medium, provided that you conspicuously and appropriately publish on each copy an appropriate WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE copyright notice and disclaimer of warranty;...
  • Page 95 explicit geographical distribution limitation excluding those countries, so that distribution is permitted only origin of the Work and reproducing the content of the NOTICE file. in or among countries not thus excluded. In such case, this License incorporates the limitation as if written 7.
  • Page 96 Permission to use, copy, modify, and distribute this software and its documentation for any purpose and The implementation was written so as to conform with Netscapes SSL. without fee is hereby granted, provided that the above copyright notice appear in all copies and that both This library is free for commercial and non-commercial use as long as the following conditions are that copyright notice and this permission notice appear in supporting documentation, and that the name aheared to.
  • Page 97 Manufacturer might service at user’s cost for following request made by customer. Customer notice.  Please make regular schedule to check unit status (Daily check is recommended).  Manufacturer will not take any responsibility on the physical/human damage caused by robbery, natural disaster.
  • Page 98 For requesting service? Please inform details of malfunctions correctly. Free or non free repair will be decided based on details of warranty card. WebGate Division Daemyung Enterprise Co., Ltd. 6F Hanlim Venture Town B/D 689-6, Geumjeong Dong, Gunposi, Gyeonggido,Korea Main...
  • Page 99 Global CCTV Suite 1 (upstairs), 24 Hammond Rd Cockburn WA 6164 AUSTRALIA Tel : +61 8 9417 1767 eMail : info@globalcctv. Website: www.GlobalCCTV.com.au eMail: Info@GlobalCCTV.com.au...
