Installaction & User Manual
MH1600H

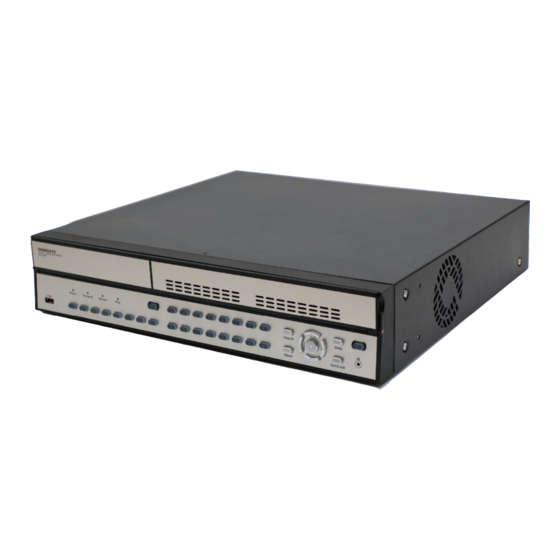

Digital Video Recorder
Installation/User Manual
We sincerely appreciate purchasing Digital Video Recorder.
For product connection and initial configuration, please, refer to the
installation guide and for the product details, refer to user guide
0
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH1600H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WebGate MH1600H

Summary of Contents for WebGate MH1600H

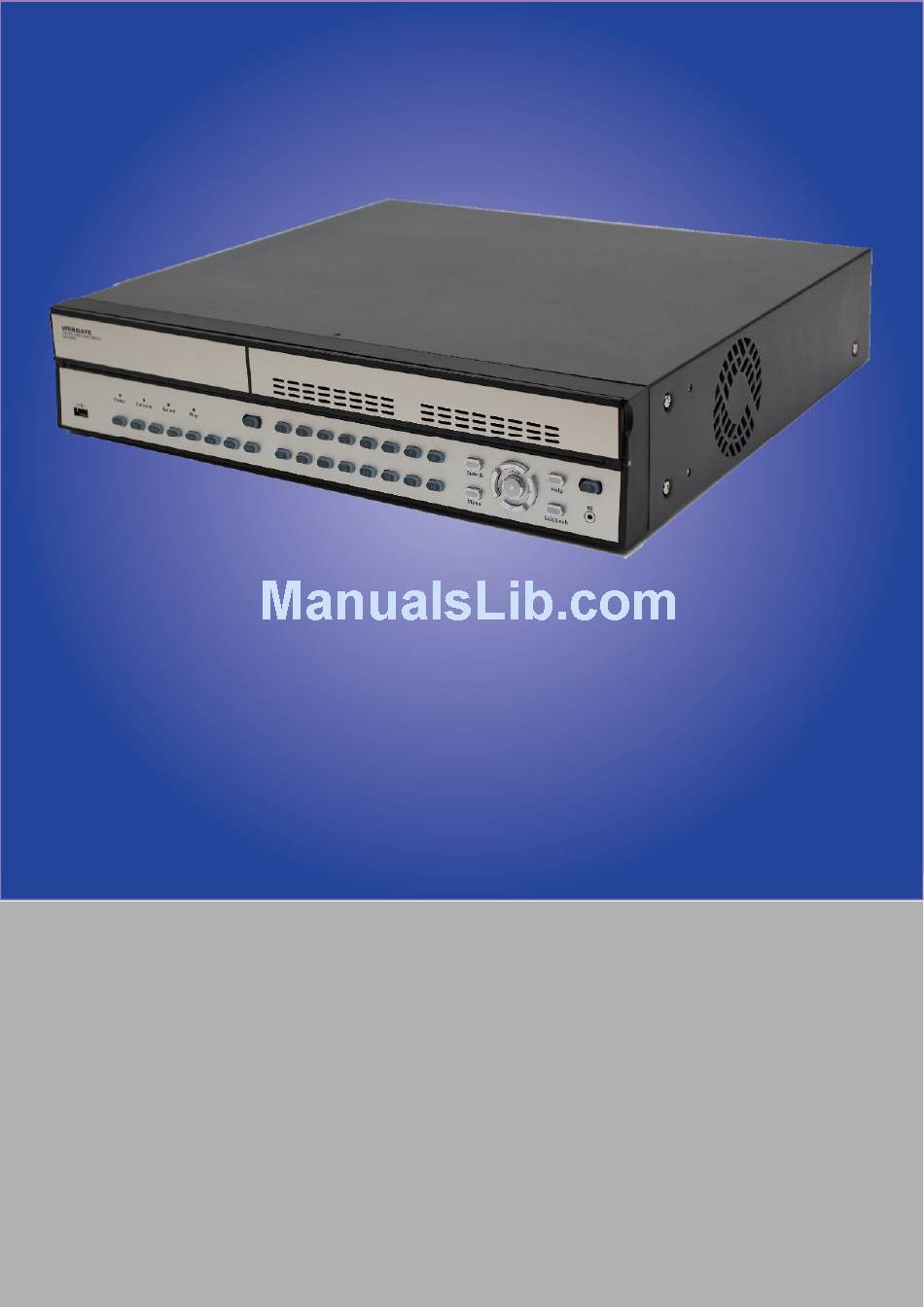

  • Page 1 Installaction & User Manual MH1600H Digital Video Recorder Installation/User Manual We sincerely appreciate purchasing Digital Video Recorder. For product connection and initial configuration, please, refer to the installation guide and for the product details, refer to user guide English...

  • Page 2: Introduction

    Introduction Thank you for purchasing a Webgate digital video recorder. This manual is for MH1600H. Before product installation and operation, please become thoroughly familiar with this user manual and other manuals referenced by this manual. This user manual and the software and hardware described here are protected by copyright law.
  • Page 3 Installaction & User Manual Caution As this equipment undergone EMC registration and suitable for business purpose, distributors and users are aware of this point. FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 4: Important Notice

    When installing product, be cautious to locate on safe places where children are unreachable. 7. If Product does not operate properly, please contact the closest WEBGATE distributor for after sales service. Tampering or disassembling the product will void the warranty.
  • Page 5 Installaction & User Manual compatible with the maximum ambient temperature (Tma) specified by the manufacturer. B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

  • Page 6: Table Of Contents

    Installaction & User Manual Contents INTRODUCTION ................1 KEY FEATURES ................10 INSTALL MANUAL................13 FEATURE ................. 13 Supplied Accessories ....................13 Description & Function ....................14 1.2.1 Front ........................14 1.2.2 Rear ........................16 1.2.3 REMOTE CONTROLLER ..................17 2.
  • Page 7 Installaction & User Manual Menu Structure ......................45 Function Menu ......................45 Factory Reset ....................... 46 MONITORING ................51 Basic Screen ........................ 51 Single Fll Screen Mode ....................51 Multi Screen Mode ......................51 Screen Description ....................... 51 Auto Switch Mode ......................52 4.5.1 System Standard Mode ..................
  • Page 8 Installaction & User Manual SEARCH MODE ......................58 5.2.1 Time Search ......................59 5.2.2 Schedule Search ....................59 5.2.3 Event Search ......................60 5.2.4 Thumbnail Search....................60 Copy..........................61 5.3.1 CD/DVD ........................ 61 5.3.2 RE4 ........................63 5.3.3 AVI ........................63 6.CONFIGURATION ................
  • Page 9 Installaction & User Manual Recording setup ......................90 6.6.2 Program setup ....................... 90 6.6.3 Manual/Schedule recording setup ................91 7. WEB VIEWER ................97 System requirement...................... 97 Login ..........................97 User Setup ........................98 Browser available ......................99 Monitor ......................... 99 7.5.1 Screen division and changing video position ............
  • Page 10 Installaction & User Manual Log-In page ........................ 109 Monitoring page ......................109 TROUBLE SHOOTING ..............111 THE WAY TO CHECK THE MANUFACTURING DATE ....113 AVAILABLE HDD ................114 COMPATITABLE CD/DVD LIST ........... 114 SPECIFICATION................114 PRODUCT DIMENTION ..............117...

  • Page 11: Key Features

    Installaction & User Manual KEY FEATURES Monitoring Screen Supprots real live video with high resolution per each channel and variable display mode.  Real H.264 Video  Various monitoring Single, 4ch, 9ch, 10ch, 16ch  Auto Switching(AUTO) Composite 4 ea, DVI 2ea Audio Recording Supprots real-time audio input and recording ...
  • Page 12 Installaction & User Manual Search / Playback It supports variable and convenient functions for search & playback.  Play back by time,date,channel  Easy and convenient search using mouse  Pre/Post search from a freeze frame  Play back by Event (Sensor, Video Loss, Motion Detection, Text) ...
  • Page 13 Installaction & User Manual  Supports User friendly GUI and mouse function  Easy and simple firmware upgrade thru. USB memory  PTZ Control (SPEED DOME), PRESET fucntion  Available to control up to 16 DVRs with one remote controller...

  • Page 14: Install Manual

    Installaction & User Manual Install Manual 1. Feature Supplied Accessories Unpack and check all the items as below AC Cord, Remocon, Setup CD, HDD Fixing Clamp, SATA Cable, HDD Fixing Screw, Rack Mount...

  • Page 15: Description & Function

    Installaction & User Manual Description & Function 1.2.1 Front 구분 기능 DVD-Multi Back up use for recorded data by DVD/CD media Back up USB Port Use connecting USB memory or Mouse Power LED Display Power status Network LED Display network status Recording LED Display recording status.
  • Page 16 Installaction & User Manual Enter/Play To select menu or enter playback mode. ◀/REW To move or select in menu and change replay speed to reverse direction in playback mode ▶/FWD To move or select in menu and change replay speed to forward direction in playback mode.

  • Page 17: Rear

    Installaction & User Manual 1.2.2 Rear Input/ Output name Descrtiption Power connector Socket for AC100V~AC240V power cord. CH1~16 BNC input for camera connection Loop out BNC output(Loop) for camera connection. Monitor 1~4 BNC connection for monitor output. Audio input(RCA) RCA connection for Audio input Audio output Speaker output terminal.

  • Page 18: Remote Controller

    Installaction & User Manual 1.2.3 REMOTE CONTROLLER It is available to use all functions of DVR. If several DVR are set with unique ID numbers, they can be controlled with one remote controller. To use remote controller, it is necessary to set ID first which want use.
  • Page 19 Installaction & User Manual SEARCH To indicate search menu CHANNEL BUTTON To select channel SELECT Not use In case of selecting over 10 (+10 + 1) Not use Not use MENU Covert to menu screen HELP Not use ◀/REW Move setting menu to left direction/REW ▶/FWD Move setting menu to right direction/FWD ▲/PAUSE...

  • Page 20: Installation

    Installaction & User Manual 2. Installation Installation and Connection 2.1.1 Connecting & Running 2.1.1.1 Connecting camera Connect CCTV camera to DVR with BNC cable as below. - The video type for all channels should be either NTSC or PAL, not be combined both - DVR sets video signal’s impedance (75Ω) automatically.

  • Page 21: Running Osd Menu

    Installaction & User Manual 2.1.1.3 Supplying Power Connect power cable as below. - When supplying power, DVR starts booting automatically. - In order to cut off power, press power switch on DVR front during 5 seconds, then select “YES” after appearing a pop-up window. - For supplying power again, push the Power button.
  • Page 22 Installaction & User Manual (1) Main Menu : The selected tab is show in bright color and the related sub-menu will be shown left- below the tab. To move to the previous/next tab, use the [◀/▶] arrow buttons. To move to a sub-menu press the [Enter] key. (2) Sub-menu : The selected sub-menu is shown as tab title and the related setting will be shown.

  • Page 23: Setting Remote Controller

    Installaction & User Manual 2.2.2 Setting remote controller 2.2.2.1 Setting ID of DVR When controlling several DVRs with one remote controller, set Remote Control ID as follws. (1) Press the [MENU] button (2) [▶] Select “system” with using [▶] arrow button and press [Enter] or [▼] button (3) [▼] Select “Utility”...

  • Page 24: Installation Examples

    Installaction & User Manual 2.2.2.3 Operable range of remote controller 2.2.2.4 Loading the batteris into the remote controller Remote controller required two AAA-type batteries. Please, refer the following installation step. 2. Taking care the poles (+/-) 1. Remove the batter cover. 3.

  • Page 25: Basic Setting

    Installaction & User Manual 2.2.3.3 External storage & back up configuration Use USB for back up. 2.2.3.4 Internet / Intranet configuration 2.2.4 Basic Setting...

  • Page 26: Viewing Image

    Installaction & User Manual 2.2.4.1 Viewing Image When power is on, eDVR starts automatically and displayed in basic 16ch-split screen after booting. <Reference> If user password is set, a prompt for entering the password will be appeared. Factory default is reserved as not responding keypad on DVR front (It is not from factory default) 2.2.4.2 Setting Date &...
  • Page 27 Installaction & User Manual Daylight saving This menu is linked with “time zone” setting. For example, if the countries applied for daylight saving in time zone setting menu then daylight saving will be turn to ON and other counties are not applied for daylight saving then this option will be turn to OFF, and additionally the user can configure the daylight saving option manually for the counties that were not applied, and in this case, you can use “Custom”...

  • Page 28: Record Setting

    Installaction & User Manual Most setting values are appled automatically, when exiting form the related menu page. But “Date” & “Time” setting are not applied automatically because they may critically affect the file system of the recorded HDD. To apply Date/ Time settings confirm with [Apply Date/Time] buttons.

  • Page 29: Connecting And Configuring Dio Ports

    Installaction & User Manual Schedule Setting Set recording mode as “Scheduel & Event” and set by date/ time. Checking method for recording <Reference> If recodrding setting is finished correctly, “REC LED” in front is flickering. In addition, it is marked [S] indicating that all channels are recroding.
  • Page 30 Installaction & User Manual - Standard wire : Pie off the wiring cover 8~10mm and solder it. Wire gage should AWG 22~26. - Sold wire : Peel off the wiring cover 8~10mm and solder it.Wire gage should be AWG 20~26. 2.3.2 Inserting &...
  • Page 31 Installaction & User Manual Connecting sensor input Connect S1 ~ S16 with referring the following image. It shows to connect a dry contact (Please refer “Wire Handling”. Setting Sensor (1) Press [Menu] button and select “Event” when OSD menu is appeared. (2) Move to sub menu pressing [Enter] or using [▼] button and select [Enter].
  • Page 32 Installaction & User Manual (2) Select sensor that user want set and set type. (3) Press [ESC] after finishing value setting. 2.3.3.2 Connecting relay and stting Specification In order to run relay output of DVR normally, the following conditions are required. Output Ch.

  • Page 33: Connecting Serial Port

    Installaction & User Manual 2.3.3.3 Connecting serial port Configuring serial ports for Pan/Tilt/Zoom If DVR supports thru. COM port, it is available to connect PTZ camera and control it. For a list of supported protocols, please refer to the list on the OSD configuration menu. The following figure shows how to connect PTZ camera to RS485 (COM2).
  • Page 34 Installaction & User Manual COM2/COM3 diagram (RS-485) COM1 diagram (RS-232) Available PTZ is same as below table. Model name Manufacturer Webgate Keyboard KBD300A, WGI SPD1800/2600 Webgate WKC-100 keyboard BOSCH AutoDome, TC8560X-4 Bosch Pelco PELCO(P), PELCO(D) Honeywell Honeywell 755/655, HRX-2000, ScanDome2...
  • Page 35 Installaction & User Manual Samsung Electric Samsung SCC641 Panasonic WV-CS850 Panasonic LG GAC-PT2 Keyboard KBD300A, WGI SPD1800/2600 Honeywell Merit-Lilin FastDome Merit Elmo Elmo PTC200C Canon VC-C4 Canon HTC-230S Dongyang Unitech RVision Elbex Elbex VIDO VIDO Vicon VICON Hunt Hunt ORX-1000 Sysmenia LiveEye Fine CRR-1600...
  • Page 36 Installaction & User Manual 2.3.3.4 Connection to external device via Serial port Text input device connection (ATM / POS / Access Control) Using COM1/RS232, TEXT DATA can be recorded with synchronizing POS/ATM.. Like above picture, connect COM1/RS232 (9pin D-Sub) in Device menu and configure Serial and Text Serial (COM1) Setup (1) OSD Select “Device”...

  • Page 37: Usb Device Connection

    Installaction & User Manual Text Setup (1) Select “Deice” on OSD, and move to sub menu. (2) Select “Text”and configure relevant text information. <Reference> Since external device can not be recognized, before installing, please, ask to the shop. 2.3.3.5 USB Device Connection USB port is for the simple video copy (within 1 hour) on USB Flash memory.
  • Page 38 Installaction & User Manual [CD/DVD Copy] [RE4 Copy] Select the channel to copy.
  • Page 39 Installaction & User Manual [AVI Copy] <Reference> A USB Flash memory which should install additional program on Windows OS, can not be recognized. 2.3.3.6 Video In/Out connection Video Input/Output is Loop through and check the connectivity automatically and set end resistance.

  • Page 40: Hdd

    Installaction & User Manual 2.3.4 HDD ※ Please, refer to Appendix for available HDD list. 2.3.4.1 HDD registration and format After mounting HDD and booting system, “Disk Manager” will execute automatically. If not, please, check the connectivity of HDD (1) Press [Enter] button in “Disk Manager” (2) Using [▲/▼] Key, select new HDD(Displayed [No] on Enabled item) and press [Enter].

  • Page 41: Remote Monitor And Control

    Installaction & User Manual (3) “Removed disk will be Confirmed” message will be pop-up and select “Yes” to delete it from the list. (4) Select the new HDD from the list and press “Enter” key. (5) Select “Yes” when the system asking “do you want to format” (6) After complete above procedure then Press “ESC”...

  • Page 42: External Device Connection

    Installaction & User Manual To protect DVR demage, after connecting Ethernet cable, input Power. Please, check Ethernet cable connection firmly. Input power on DVR and check their connectivity. 2.3.5.2 Network configuration Ethernet Set type as Ethernet and input IP, Netmask,Gateway, DNS. The way to input is using directional key or mouse wheel.

  • Page 43: Nvs04 Connection

    Installaction & User Manual 2.3.6.1 eSATA Device Connection In case of external eSATA supporting FireWire, using eSATA port on the rear part. And since DVR does not support power to eSATA, eSATA device should be one external power is supported. <Note>...
  • Page 44 Installaction & User Manual <Note> 1) The network cable connected to DVR should be Gigabit Ehternet Cable (Category-6). If not, it is not connected to DVR. 2.3.7.2 Set ID Configuration Set ID using Rotary Switch located on the back. This ID is used as IP Address of NVS04R and the form of IP address is 10.10.20.XXX.
  • Page 45 Installaction & User Manual 2.3.7.3 Power connection and operation (1) Connect power as below. (2) As soon as power is connected, the device starts booting. <Note> 1) It takes around 1 minute to connect NVS04R and DVR after connecting power. Four LEDs at the front starts blinking and they are fully on when connection is completed.

  • Page 46: User Manual

    Installaction & User Manual User Manual 3. Menu Use Menu Structure The menu structure will be shown like below image, and each menu setting method descriped from chapter 4 to chapter 6. Function Menu To run Fucntion menu, please, click the right button of mouse or push “Help” button on the front panel.

  • Page 47: Factory Reset

    Installaction & User Manual Factory Reset In order to reset value to factory value, go to System Setting->System->Setting, and once press Factory Reset then the warning message will be appear, click “Yes” to reset the DVR value to factory. Default Value from Factory System Time Zone UTC 00:00 Dublin...
  • Page 48 Installaction & User Manual Time MM/DD/YYYY Over Write(Auto Deletion) Block Playback Disk Disk Full Alarm Warning Disk Manager >> Disk Status >> User No Password used Setup DVR Alias DVR0 DVR Keyboard ID Remote Controller Utility Language English Firmware Update >>...
  • Page 49 Installaction & User Manual Device Camera Camera Number Name Cam 1 Status Type NTSC Color Color Enable Bright Contrast PTZ Home Idle Time PTZ Port None PTZ Address Monitor Alarm Pop-up(Sec) User Sequence << Configuration Monitor SEQ Time(Sec) Covert >> Multi Moce 4E, >>...
  • Page 50 Installaction & User Manual Lines Serial Port Com1 Device Interface RS232 Serial Baud Rate 9600 Parity Bit None Stop Bit Data Bit Event Event Check Always Event Action Relay1 Action Duration 10 Sec Event Normal Event >> Source System Event >>...
  • Page 51 Installaction & User Manual MH1600H Rec mode Normal Event List Half Half Half Half Half Half...

  • Page 52: Monitoring

    Installaction & User Manual 4. Monitoring All analog video image channels connected to DVR is displayed to screen by Power connection. It is to utilize all monitoring mode of DVR. Basic Screen After Power connection, the DVR operates on automately. It boots with LED on.

  • Page 53: Auto Switch Mode

    Installaction & User Manual Auto Switch Mode There are System Standard modes and User Defined mode in Auto Switch mode. And Users Sequence mode operates by the press [SEQ] button. 4.5.1 System Standard Mode By [Auto] button, it can monitor auto switching of all channels. Press [MENU] for the setting switching term or using mouse click menu icon from function menu.

  • Page 54: Event Screen

    Installaction & User Manual There are 16 modes for user sequence mode. Event Screen When there is an event occurred, the green color [M] and red color [S] will be display from status bar. In case of [M] displayed, the camera name will be turned to green color, and it will turn to yellow when Motion Detection event finish.

  • Page 55: Zoom Screen Mode

    Installaction & User Manual It can be set to Pop-up automatically relevant screen when alarming. Set pop-up period can be set into “Alarm Pop-up (sec)” inferior to “Monitor” menu. At the simultaneous alarming in several channels, it displays the division as many channel as alarmed.

  • Page 56: Ptz Control

    Installaction & User Manual PTZ Control Connect PTZ controller to DVR and set relevant protocol from “Serial Setup” menu, then PTZ can operate while monitoring live images. The method of operating PTZ, press PTZ button from DVR’s front panel, or click PTZ icon from Function menu.

  • Page 57: Pan/Tilt

    Installaction & User Manual LiveEye Fine CRR-1600 Tokina Tokina Kodicom Kodicom KRE Nuvico Nuvico Press desired channel button. Press PTZ button from front panel or click PTZ icon from function menu with mouse. PTZ menu (Pan/Tilt, Zoom/Focus, Load Preset, Save Preset) will be appear. Then press [Enter] button or click from mouse.

  • Page 58: Auxiliary Off

    Installaction & User Manual 4.9.6 Auxiliary Off This menu is used to stop operation of specific function of PTZ device. Using up / down button or mouse wheel to select the Aux Number. Select Off and press Enter button or click from mouse. 4.9.7 Menu It is to go into connected PTZ’s menu, using up/down/left/right and enter key from front panel for setting the menu, and press ESC button for exit the menu.

  • Page 59: Playback

    Installaction & User Manual 5.Playback Playback Mode 5.1.1 Playback on Standard monitor (16 / 9 division) Please, push play button in monitoring mode or mouse click play buttion in Function menu. If pushing Play button or FWD button, video playbacks in forward direction at 1× speed. If pushing REW button, video playbacks in reverse direcetion at 1×...

  • Page 60: Time Search

    Installaction & User Manual mode. There are Time, Calendar, Event, Thumbnail mode. Please, push Search button on the front panel or click in Function menu.. 5.2.1 Time Search Select date and time to search and playback video will be moved to the selected point. Start-REC Time : The date and time of start-recording End-REC Time...

  • Page 61: Event Search

    Installaction & User Manual time by wheel. Time : Select the time and push Enter button to plya back. 5.2.3 Event Search User can search by all channels, some of channels, all events, motion detection, sensor in certain range. For change of date and time, with front panel, plese use top and down button. In case of using mouse, scroll the mouse wheel after selecting area.

  • Page 62: Copy

    Installaction & User Manual Channel : Select the channel and change the value by direction key or mouse wheel. Start Time : Input the date and time for starting search and change the value using up-down direction key or mouse wheel. Interval : Set Interval value by Up-down button or mouse wheel.
  • Page 63 Installaction & User Manual Type : Selec CD/DVD using up-down direction key or mouse wheel. Press Enter and scroll wheel to change the value. Channel : User can select some or all channel among 16channels. Select the channel location and press Enter or use mouse wheel. From : Select start date and time to copy using up-down key or mouse wheel.

  • Page 64: Re4

    Installaction & User Manual 5.3.2 User can back up by HDD, USB memory and play back suing mini-player or Control Center. Select channel position and press Enter or use mouse wheel to open the channel list like below.. Type : Select RE4 using up-down button or mouse wheel. Channel : To pop up the channel selection window, press Enter or use mouse wheel.
  • Page 65 Installaction & User Manual Type : Select AVI using up-down key or mouse wheel. Channel : Select the channel to copy by up-down key or mouse wheel. From : Set start date and time to copy. Time and Year by left/right button and date/time by up/down button.

  • Page 66: Configuration

    Installaction & User Manual 6.Configuration Recording Structure There are 4 modes in DVR recording. Configuration relation structure is like below. Please, refer to the below each item for detailed recording configuration. System Setup Time and Disk and authority can be configured. 6.2.1 Date/Time Time set should be configured prior to the recording.

  • Page 67: Time Setup

    Installaction & User Manual 6.2.1.1 Time Setup Caution: under recording, if user changes Time, it will affect time change on previously recorded video data in accordance with. Therefore, we recommend backup before time change. Press Main Menu of Function or [MENU] button on the front panel. Move to “quick setup”...

  • Page 68: Ntp Setup

    Installaction & User Manual <Caution> Except date/time configuration, other configuration records automatically, but “date/time” configuration influences critical effect to HDD recording file system, It doesn’t record automatically. To apply the changed value, user must press [apply] button. 6.2.1.2 NTP Setup NTP(Network Time Protocol) make time of connected devices synchronized.

  • Page 69: Disk

    Installaction & User Manual Network or Public. NTP Local server IP In NTP local server Enable, configure server ip. Input IP address of NTP server or DVR set by NTP server In local network. Interval Configure interval of time sync. Caution: If use NTP client mode, user must set NTP on.
  • Page 70 Installaction & User Manual Block Recording This option is to record only the date you selected. For example, if you select 3 days then DVR will record up to 3 days, and keep overwriting 3 days period of data Disk Full Alarm Warning If mounted Disk is full, alarm warning to user.

  • Page 71: User Setup

    Installaction & User Manual In case HDD No - Enabled : In Yes mode, press [Enter] or scroll mouse wheel and notice window pops up and show user the message like below. -Caution, will you remove Disk? - If Yes, user will find the message “Disk is removed” on the bottom and Enable status will be No.
  • Page 72 Installaction & User Manual In the other hand, if all are set by O[check-2], all users can use the functions in accordance with Each users authority. For example, as you can see the below picture, User1 can use PTZ, Relay off, power On, N/mike functions are available, user 2 just can use menu and N/mike functions.

  • Page 73: Utility

    Installaction & User Manual [Authority check] [Password error] 6.2.4 Utility Configure the name of DVR, remote controller ID, Language. DVR Alias Set the name of DVR. DVR Keyboard ID This menu is to set the address of keyboard when using all functions of DVR by keyboard.
  • Page 74 Installaction & User Manual Factory default is “1”. If user want to control various DVR by one keyboard, its address should be set with the different value. Remote Controller ID Max 16 remote controller ID can be set and one remote controller can manage 16 DVRs. Registration order for Remote controller.
  • Page 75 Installaction & User Manual Factory Reset Change all configuration value by factory default. Caution : This function is allowed only for system administrator. Encording Policy Recording Prior / Networking Prior available to set...

  • Page 76: Network

    Installaction & User Manual When you select Networking Priority option then DVR will compress additional resolution QCIF, and let remote client user monitoring QCIF with low bandwidth condition. When you select Recording Prior option then DVR will sending same resolution as recording resolution.
  • Page 77 Installaction & User Manual configure ‘Etherent’. DHCP With DHCP (Dynamic Host Configuration Protocol), all hosts connected to Lan can get Public IP address temporary. If LAN has DHCP server and it is active, DHCP server allocate IP address to DVR. Mostly middle and large network use DHCP server in LAN, but in case of small network, NAT(Network Address Translation) of HUB is general.

  • Page 78: Xdsl

    Installaction & User Manual 6.3.2 xDSL DVR is connected to xDSL line and use PPPoE type, please change type by xDSL and configure user ID and Password. User ID and Password should be same as xDSL. User ID/Passwod Configure user ID and Password. Status It shows connection status of DVR.

  • Page 79: Device Setup

    Installaction & User Manual the interval ‘0’ or DVR does not transmit any data for 2 days, the data is removed from WRS. WRS URL This menu is to set server address to register. WRS addresses that Hunt operates now are www.webgateinc.com or mycam.to.

  • Page 80: Monitor Setup

    Installaction & User Manual Use directional key for text input. With mouse, just click the text. Select the text using up/down and left/right button. After selecting the text, press [Enter]. To delete the text, press [] button. To make a space between letters, press []. 6.4.2.2 Using Channel Configure wether using camera or not.
  • Page 81 Installaction & User Manual Covert channel With Covert menu, user can covert the channel in Live/Playback mode In Covert menu, all channel list will be shown and press [Enter] buttion and click mouse to tick the channel. Checked channel will not show the video in Live/Playback. User sequence configuration User sequence can be edited.

  • Page 82: Audio Setup

    Installaction & User Manual Scan Mode Support Over Scan / Under Scan Monitor. 6.4.4 Audio Setup With this menu, user can configure Voice Channel, Audio recording, Volume, Synchronization, Mixing.. Voice Channel Select audio to use Recording Configure yes or no of using audio recording. If no, audio will be out only in live view and if yes, Audio will be out in both view modes.

  • Page 83: Text Setup

    Installaction & User Manual Select audio in live view. If setting by “All”, input audio will be out in eery channels and if configured certain channel, input audio will be out on the selected channel only. 6.4.5 Text Setup Configure Text in Device menu. Recording Set On/Off of recording against Text input Sync Text with...

  • Page 84: Serial Setup

    Installaction & User Manual to inform its starting. Therefore, Header information is defined here to acknowledge its starting of a data. The reason of 2 Header is to detect maximum 2 data out because each device can output various datas. Delimiter Delimiter value can be different according to the manufacturer, please, refer to the product manual or seller.

  • Page 85: Event Setup

    Installaction & User Manual Interface Configure which interface user uses. COM1 is for RS-232C, COM2 and COM3 is for RS-485 Baud rate/Parity/Stop Bit/Data Bit In put suitable value according to external device. 6.4.6.1 PTZ Setup Additional configuration for PTZ Address, PoirtPTZ. PTZ Home Shift to Preset assigned if it has no movement in certain time while PTZ control.

  • Page 86: Event Check

    Installaction & User Manual 6.5.2 Event Check There are 3 items – Always, not apply, Timezon. In case of Timezone, with similar configuration window like schedule, user can configure event per weekday/time. • INDEX : Schedule configuration from 1 to 50 •...

  • Page 87: Sync Event

    Installaction & User Manual  After selecting INDEX, change directly weekday,time. 6.5.3 Sync Event Configuration for Event synchronization. Event Action There are 6 actions – relay 1 to 4, buzz, E-Mail. Action Duration Action Duration runs if relay and buzz are configured, and goes on during the configured time.

  • Page 88: Motion Detection

    Installaction & User Manual System Event source System Event source can configure Bad block, Disk full, Fan error, authorization failure, WRS registeration failure. E-mail address Input E-mail address to get event alarm by E-Mail. Sender Address Not mandatory but necessary for receiver to find out which DVR sends event. Including Picture In general event, when sensor, MD, V-loss events are generated, the event information and channel video will be sent to e-mail together.
  • Page 89 Installaction & User Manual Channel All or certain channel. Sensitivity Sensitivity can be configured from min.1 to max 10. Area Select detection area. User can select all or certain channel. User Area When selecting per channel, it can be configured. 1 grid size is 22x15 and factory default value is All.

  • Page 90: Sensor

    Installaction & User Manual 6.5.5 Sensor This menu is to setup the existing sensor input and type of sensor. 16 input Sensor has 2 types, Normal Open(N.O.) and Normal Close(N.C.). 6.5.6 Preset In PTZ function, make configured preset work according to sensor input. Please, configure preset per PTZ.

  • Page 91: Recording Setup

    Installaction & User Manual Recording setup There are 3 mode for recording – schedule recording, manual recording, event recording. Schedule recroding records according to the configured schedule. And manual recording records via pushing “REC” button and event recording records when events are on. 6.6.2 Program setup Using [Program], adjust frame rate and quality and resolution and configure recording program for Manual&Event&Schedule.

  • Page 92: Manual/Schedule Recording Setup

    Installaction & User Manual Max R/F shows the number of frame available according to the selected resolution. For instance, if it is set by 30fps at CIF, it means that the channel can record up to 30frame at CIF resolution. Reference : how to calculate recording performance D1[704x480] = 2 x Half D1[704x240] = 4 x CIF[352x240] If 480 frame can be recorded at CIF resolution, instead of it, 240 frames at Half D1...

  • Page 93: Manual Recording

    Installaction & User Manual choic. And their resolution , frame rate , quality will be in accordance with the program. 6.6.3.1 Manual Recording Only in manual & event recording, manual recording runs and when pressing [REC] button, recording starts. If you want schedule recording, recording mode should be Schedule & Event. 6.6.3.2 Schedule Setup It records according to the programmed schedule automatically.
  • Page 94 Installaction & User Manual check and select each program default vaule and select one of 26 program from A to Z or several programs. Below picture show program A. • INDEX : Schedule unit from 1 to 50 • Weekday : Set the day applicable •...

  • Page 95: Event Recording Setup

    Installaction & User Manual Edition  Select INDEX to edit and change weekday, program,time directly.  In case that INDEX 50 are all configured, select the time zone to change by mouse click and click the time again, previouse configuartion will be deleted and new configuration will be shown.
  • Page 96 Installaction & User Manual 3. Set Event applying time. Event Time configuration Configure time for event recording and there are 3 mode – Always, no use, Timezone. In “Always”, event works all the time and in “Timezone”, works during configured time. Configuration of Timezone is similar with schedule configuration and can configure weekday,time for Event.
  • Page 97 Installaction & User Manual...

  • Page 98: Web Viewer

    Installaction & User Manual 7. Web Viewer WebViewer is Web application program loaded to monitor real-time image or to minitor the images recorded through Web browser to PC located remotely. WebViewer is divided into Login page and Monitor to do monitoring real-time images, Playback to replay reocorded images.

  • Page 99: User Setup

    Installaction & User Manual Input the set of User ID & Password, click ‘LOGIN’ to access. If didn’t change the password in Control Center, ID and Password will be admin/12345. ID can not be changed. User Setup To access WebViewer, user authority and password can be changed in DVR or Control Center configuration In account menu, user password can be changed.

  • Page 100: Browser Available

    Installaction & User Manual Authority configuration is almost all the same in DVR and Control Center. But quick recording, backup, audio, yes or no of using channel are only possible in Control Center. Browser available WebViewer is optimized to Windows Internet Explorer 6.0 or higher in PC for smooth use. Webviewer Installer Login page provides manual installation program to use WebViewer function.

  • Page 101: Move To Playback

    Installaction & User Manual It can to change to 1, 4, 9, 13, 16, 25, 36 divisions by click number on top of page. Also, it can change to 1 channel mode by click any one of channel image. Double click on one of the playback screen to convert in 1 channel mode. 니다.

  • Page 102: Channel On/Off

    Installaction & User Manual Move to playback with clicking the above image. 7.5.3 Channel On/Off It is On/Off button for the Channel located to left in page. Click the channel wanted to On or Off. And Default is On. 7.5.4 Sensor Indication The icon indicates when sensor occurs in system When it sensorsed, relevant sensor icon comes to Red, and indicates sensor number of video.

  • Page 103: Event Data

    Installaction & User Manual 7.5.7 Event Data It shows real time event data occurred at the bottom of monitoring page. Indicated Event data list are as follow.. (Table, Event Icon) Icon Function Motion Detect On Sensor Input Relay Output On No Video, Video Detected 7.5.8 Video Recording &...

  • Page 104: Using Ptz

    Installaction & User Manual of current monitoring channel. To save video, select the channel and click right button of mouse. Ans select “Save As” and point out the location and press Save button. 7.5.9 Using PTZ Among the icon on top of video on monitoring, click ‘PTZ’ to acitivate interfacing to control Pan, Tilt, Zoom, and Focus.

  • Page 105: Using Audio

    Installaction & User Manual Reference Supported PTZ camera list can be refereed to ‘4.8 PTZ manipulation. 7.5.10 Using Audio In case of Channel setup sync with Audio, press right mouse button on the image to activate pop-up menu to “Listen” or activate Audio listen button. First default is Mute. In case of listening Audio, select pop-up menu or button.

  • Page 106: Playback

    Installaction & User Manual Playback This page is to playback recorded images, and user who has authority of ‘HDD’ among user ID or administrator can use this function. Playback that is made up 16 divisions can play the images by searching through calander by recording period and moving the period.

  • Page 107: Print

    Installaction & User Manual Save Iamge dialog box appears, then it can input message or select channel name, date, event data. Press ‘OK’ to open dialog box for the saving location, then save bmp file. 7.6.3 Print Select image with mouse for the channel to print image saved, and then click ‘Print’ button. Window comes to input Memo, and click ‘OK’...

  • Page 108: Web Monitor

    Installaction & User Manual 7.6.5 Web Monitor Click ‘Go’ button at top of page, and it can move Web monitor page. 7.6.6 Channel On/Off It is the same function like Channel On/Off function at Web Monitor. It is Channel On/Off button located on right of Page, and click On or Off page for wanted channel.

  • Page 109: Functional Function At The Buttom Of Monitor

    Installaction & User Manual 7.6.9 Functional function at the buttom of monitor ① Indicates playback range of recorded image. ② Press button as the time set at (5) so as to change the time zone to playback in forwarding and backwarding. ③...

  • Page 110: User Manual For Mobile Viewer

    Installaction & User Manual 8. User manual for Mobile Viewer Mobile viewer is viewer service to monitor video via mobile device. To access mobile viewer, user uses mobile device supporting Wi-Fi or smart phone or 3G. 8.1 Log-In page Below picture is Mobile viewer log-in page. To access log-in page via mobile viewer, please, type the address like http://IP/mvmenu.html.
  • Page 111 Installaction & User Manual For functions, please, refer to the below. [0] MENU : Move to Log In page [1] CH- : Move to the previous channel. [2] UP : Move to upside of Pan Tilt movement [3] WIDE : Zoom Out action [4] ...

  • Page 112: Trouble Shooting

    Installaction & User Manual Trouble shooting 1. DVR booting failure 1. Check the power 2. Check Power cord 2. No video on monitor 3. Check monitor power 4. Check cable between DVR and monitor 5. Check monitor cable port 6. Check DVR power is off 7.
  • Page 113 Installaction & User Manual 9. If network is not working 25. Check if Network cable is connected 26. Check DVR IP 27. Check Computer IP 28. Ping Test 29. Check PC specification if Webview video is not shown. 10. The cases necessary to contact the shop 30.

  • Page 114: The Way To Check The Manufacturing Date

    Installaction & User Manual The way to check the manufacturing date It can be checked with its S/N(Serial Number).. S/N : Serial Number It means composite 12 digit number with product model name and production year,month, and week. It can be found on the attached label attached on the bottom of product or system info of configuration tool or system information 1 of DVR Func menu.

  • Page 115: Available Hdd

    Installaction & User Manual Available HDD Plase ask to seller about HDD available with DVR. Compatitable CD/DVD list DVD-R manufacturer CD-R Manufacturer Mitsubishi(×16 recomended) Mitsubishi(×52 recomended) TDK(×16 recomended) TDK(×52 recomended) Imation(×16 recomended) Imation(×52 recomended) Sony(×16 recomended) Sony(×48 recomended) Specification Video input Video input standard NTSC or PAL auto detect Connectors...
  • Page 116 Installaction & User Manual Search Type Time, Calender, Event, Thumbnail Block Playback 1day ~ 31days Event & Alarm Event source MD, Sensor, Text Event check schedule 24hrs / 7day Event Action Recording, Relay, E-mail, Buzzer, Pop-up, Warning Message, PTZ preset MD Area 22x15(NTSC), 22x18(PAL) Sensor input...
  • Page 117 Installaction & User Manual Storage Devices 4 internal SATA HDDs, 2 external eSATA I/F File System Proprietary file system, data-loss protection against power-failure Capacity Max 8TB Backup type multi-channel or single channel avi file Backup device internal CD/DVD or USB drive S.M.A.R.T.

  • Page 118: Product Dimention

    Installaction & User Manual Product Dimention...
