User Manual V0.4
- SEARCH : To search the recorded image in Playback mode
(5) Direction/Replaying Button
- MENU : To set PTZ and configuration menu
- ENTER : To confirm the selected menu
- HELP :
- EXIT : To exit form the selected menu
- Arrow key : Replay function or menu moving function

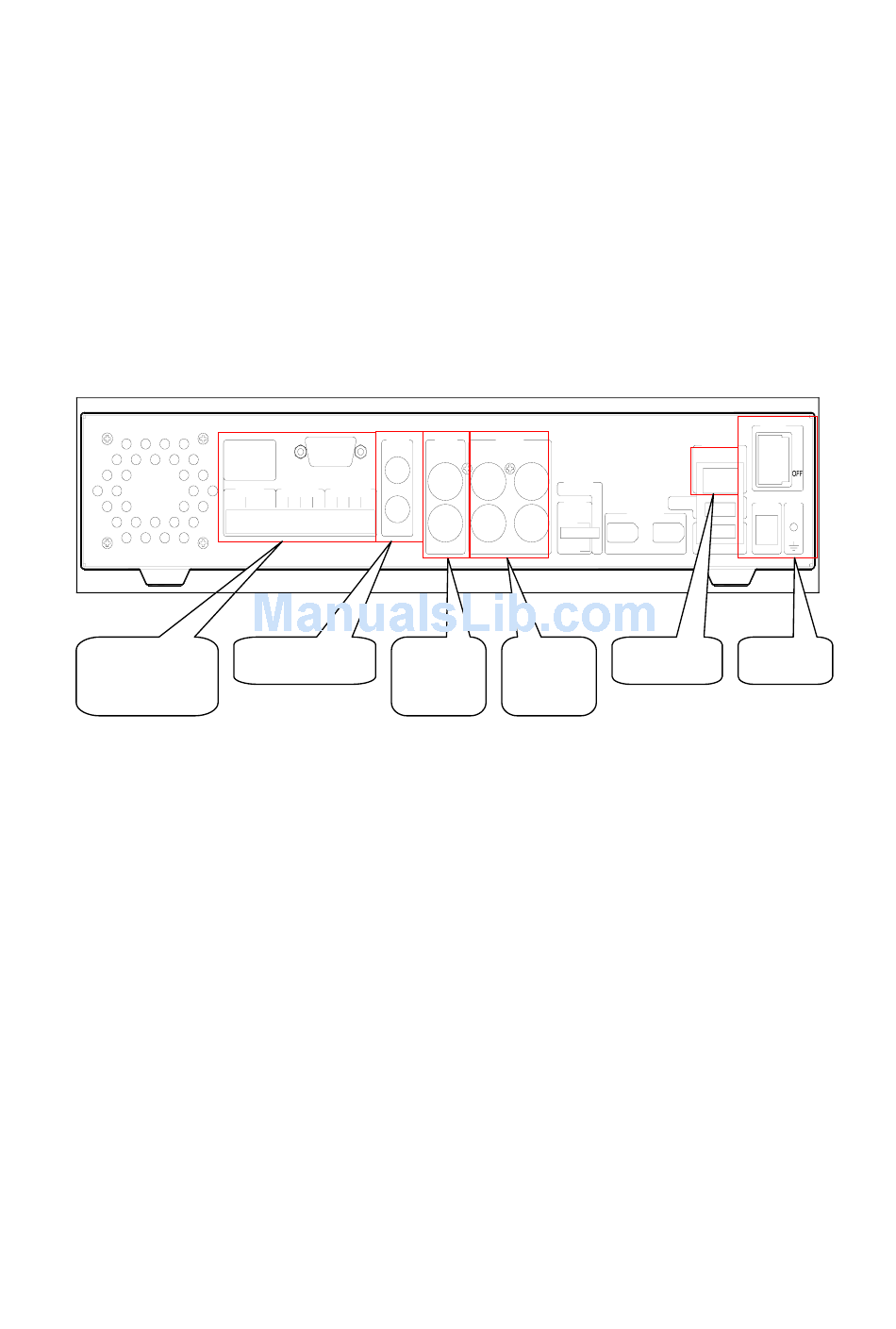

B. Rear Panel
1.RXD
2.TXD
3.GND
COM1
RS232 RS422/485 S1
1 2 3 4 5 6 7 8
Serial port &
DIO
(1) Serial Port & DIO
- Serial : RS232 9Pin D-Sub Connector & RS232/422/485 terminal block
- Sensor In : 4 sensor inputs
- Alarm Out : 4 Alarm Relay outputs
(2) Audio In/Output
- 1 audio input & 1 output
(3) Video Output
- 1 monitor output & 1 VCR output
(4) Video Input
- 4 video inputs
(5) Ethernet
(6) Power
WEBGATE INC.
AUDIO
4.R+
MIC
5.R-
6.T+
7.T-
COM2/RS232
8.GND
SENSOR IN ALARM OUT
S1 S1 S1 O1 O2 O3 04
+ - + - + - + - + - + - + - + -
LINE
Audio input
Video
output
VIDEO VIDEO
OUTPUT INPUT
MONITOR Ch1 Ch2
REMOTE
CONTROL
VIDEO
INPUT
HI-Z NTSC
ON
1 2 3 4 OFF
VCR Ch3 Ch4
75ohm PAL
Video
input
eDVR DS412
POWER
ETHERNET
10/100
USB1 DC12V GND
3.5A
IEEE1394
1 2
USB2
Ethernet Power
4 / 4
ON
