WebGate MH1600H Installation & User Manual

Hide thumbs Also See for MH1600H:
Table of Contents

Advertisement

Quick Links

Download this manual

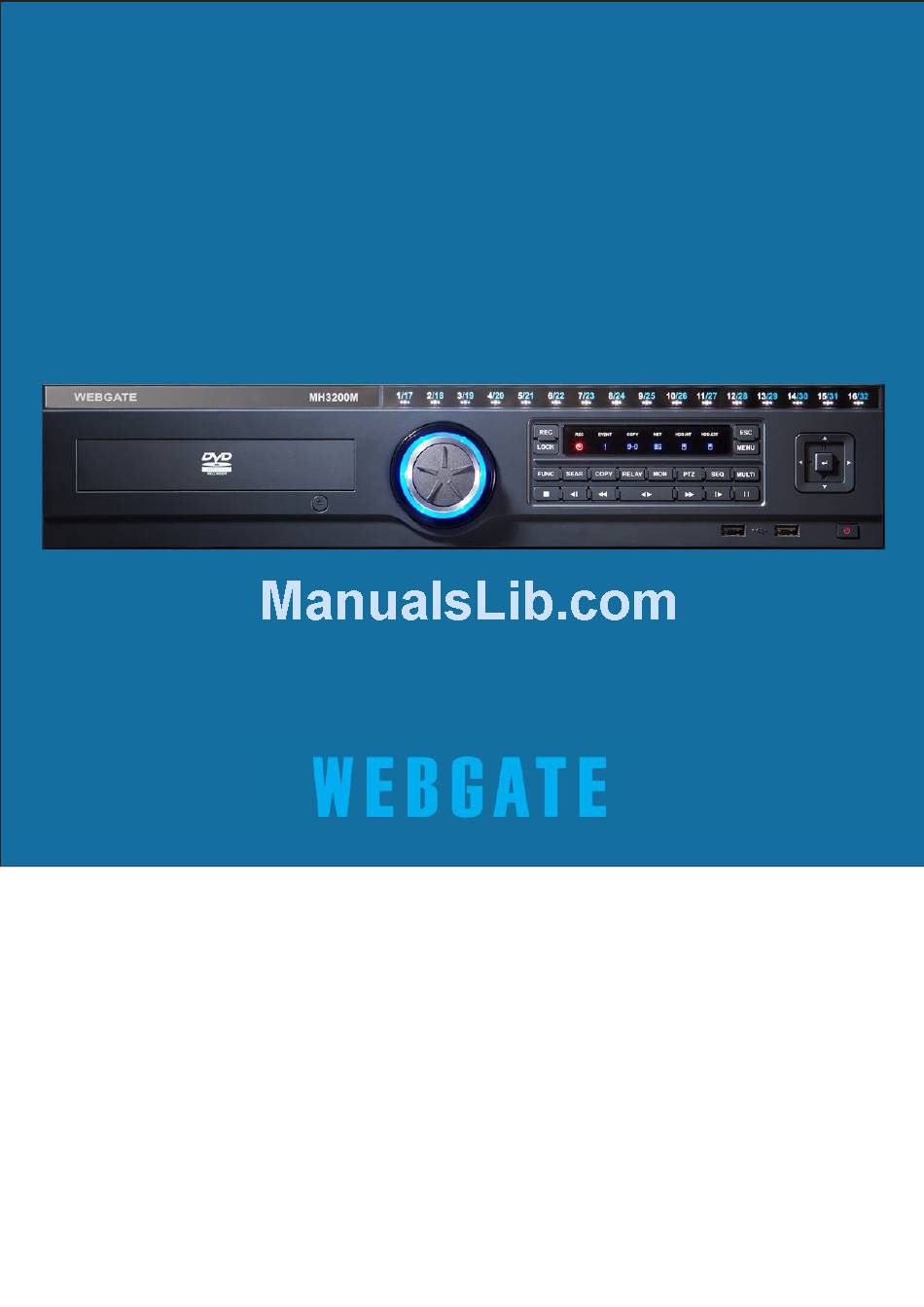

H.264
MH1600H / MH1600M / MH3200M
We sincerely appreciate purchasing Digital Video Recorder.
For product connection and initial configuration, please, refer to the
installation guide and for the product details, refer to user guide
Digital Video Recoder
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH1600H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WebGate MH1600H

Summary of Contents for WebGate MH1600H

  • Page 1 H.264 MH1600H / MH1600M / MH3200M Digital Video Recoder We sincerely appreciate purchasing Digital Video Recorder. For product connection and initial configuration, please, refer to the installation guide and for the product details, refer to user guide English...

  • Page 2: Introduction

    Installaction & User Manual Introduction Thank you for purchasing a Webgate digital video recorder. This manual is for MH1600H, MH1600M, MH3200M. Before product installation and operation, please become thoroughly familiar with this user manual and other manuals referenced by this manual.
  • Page 3 fire or theft. We take no responsibility for damage from any incident. Caution As this equipment undergone EMC registration and suitable for business purpose, distributors and users are aware of this point. FCC Compliance Statement Caution: Any changes or modifications in construction of this device which are not expressly approved the party responsible for compliance could void the user's authority to operate the equipment.

  • Page 4: Important Notice

    When installing product, be cautious to locate on safe places where children are unreachable. 7. If Product does not operate properly, please contact the closest WEBGATE distributor for after sales service. Tampering or disassembling the product will void the warranty.
  • Page 5 Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer. B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

  • Page 6: Table Of Contents

    Installaction & User Manual Contents Introduction ..........................1 KEY FEATURES ................11 INSTALL MANUAL................14 FEATURE ................. 14 Supplied Accessories ....................14 Description & Function ....................15 1.2.1 Front ........................15 1.2.2 Rear ........................... 17 1.2.3 REMOTE CONTROLLER ..................20 2.
  • Page 7 MENU USE ................53 Menu Structure ......................53 Function Menu ......................53 Factory Reset ....................... 54 MONITORING ................59 Basic Screen ......................59 Single Full Screen Mode ....................59 Multi Screen Mode ......................59 Screen Description ....................... 59 Auto Switch Mode (Sequence) ..................60 4.5.1 System Standard Mode ..................
  • Page 8 Installaction & User Manual 5.1.2 Playback function ....................66 SEARCH MODE ......................67 5.2.1 Time Search ......................67 5.2.2 Schedule Search ....................67 5.2.3 Event Search ......................68 5.2.4 Thumbnail Search....................69 Copy..........................71 5.3.1 CD/DVD ........................ 71 5.3.2 RE4 ........................72 5.3.3 AVI ........................
  • Page 9 6.5.4 Sensor ......................... 113 6.5.5 Preset ........................113 Recording setup ......................114 6.6.1 Program setup ..................... 114 6.6.2 Manual/Schedule recording setup ................ 116 7. WEB VIEWER ................121 System requirement....................121 Login .......................... 122 User Setup ......................... 123 Browser available ....................... 123 Monitor ........................
  • Page 10 Installaction & User Manual 7.6.9 Functional function at the bottom of monitor ............133 8 JAVA VIEWER ................134 9 USER MANUAL FOR MOBILE VIEWER ........ 135 Log-In page ........................ 135 Monitoring page ......................135 TROUBLE SHOOTING ..............137 THE WAY TO CHECK THE MANUFACTURING DATE ....139 AVAILABLE HDD ................

  • Page 11: Key Features

    Recording It supports 480/960ips recording at H.264 High-Resolution and available to record max. 5 seconds before triggering an event.  H.264 Video recording with High-Quality MH1600H : D1 - 480ips MH1600M : HALF – 480ips MH3200M : HALF – 960ips...
  • Page 12 Installaction & User Manual  Supports manual & schedule recording  Video loss detection  Supports archiving event list (Sensor, Video loss, Motion detection, Text) Available record Max 5 seconds before triggering an event per each channel Search / Playback It supports variable and convenient functions for search &...
  • Page 13  Supprots 10/100Mbps Ethernet/xDSL  Multiple DVR connection  Supports User friendly GUI and mouse function  Supports User friendly GUI and mouse function  Easy and simple firmware upgrade thru. USB memory  PTZ Control (SPEED DOME), PRESET fucntion ...

  • Page 14: Install Manual

    Installaction & User Manual Install Manual 1. Feature Supplied Accessories Unpack and check all the items as below AC Cord, Remote control, Setup CD, HDD Fixing Screw, Rack Mount...

  • Page 15: Description & Function

    Description & Function 1.2.1 Front Division Description DVD-Multi Back up use for recorded data by DVD/CD media Back up Jog / shuttle Playback direction change and speed control Touch Panel select single channel with illuminating of relevant switch channel LED channel LED To start and stop recording To lock the buttons on the front panel/remote controller in...
  • Page 16 Installaction & User Manual Relay To run and pause Relay action by manual. Switching monitor To use Focus / Menu / Preset / Aux during PTZ Sequence To run or stop user sequence. Multi To change DVISION in live or playback mode. ■(STOP) To stop replay in playback mode.

  • Page 17: Rear

    1.2.2 Rear 1.2.2.1 MH1600H Input/ Output name Description Power connector Socket for AC100V~AC240V power cord. CH1~16 BNC input for camera connection Loop out BNC output(Loop) for camera connection. Monitor 1~4 BNC connection for monitor output. Audio input(RCA) RCA connection for Audio input Audio output Speaker output terminal.
  • Page 18 Installaction & User Manual 1.1.1.1. MH1600M Input/ Output name Description Power connector Socket for AC100V~AC240V power cord. CH1~16 BNC input for camera connection Loop out BNC output(Loop) for camera connection. Monitor 1~4 BNC connection for monitor output. Audio input(RCA) RCA connection for Audio input Audio output Speaker output terminal.
  • Page 19 1.2.2.3 MH3200M Input/ Output name Description Power connector Socket for AC100V~AC240V power cord. CH1~32 BNC input for camera connection Monitor 1~4 BNC connection for monitor output. Audio input(RCA) RCA connection for Audio input Audio output Speaker output terminal. Ground Ground between DVR & external device. SMPS Fan Control the temperature of SMPS D-Sub Audio port...

  • Page 20: Remote Controller

    Installaction & User Manual 1.2.3 REMOTE CONTROLLER It is available to use all functions of DVR. If several DVR are set with unique ID numbers, they can be controlled with one remote controller. To use remote controller, it is necessary to set ID first which want use.
  • Page 21 SEARCH To indicate search menu CHANNEL BUTTON To select channel SELECT Not use In case of selecting over 10 (+10 + 1) Move the focus of monitoring To start/stop recording MENU Covert to menu screen HELP To start Function menu ◀/REW Move setting menu to left direction/REW ▶/FWD...

  • Page 22: Installation

    Installaction & User Manual 2. Installation Installation and Connection 2.1.1 Connecting & Running 2.1.1.1 Connecting camera Connect CCTV camera to DVR with BNC cable as below. - The video type for all channels should be either NTSC or PAL, not be combined both - DVR sets video signal’s impedance (75Ω) automatically.

  • Page 23: Connecting Audio

    2.1.1.3 Connecting Audio Connect audio signal to DVR with using RCA cable or D-SUB as below. 2.1.1.4 Supplying Power Connect power cable as below. - When supplying power, DVR starts booting automatically. - In order to cut off power, press power switch on DVR front during 5 seconds, then select “YES”...

  • Page 24: Running Osd Menu

    Installaction & User Manual Running OSD menu 2.2.1 OSD menu configuration Press [MENU] in keypad of front or Click in [Main Menu] in Function menu to open configuration menu as below Main Menu Sub Menu Configuration (1) Main Menu : The selected tab is show in bright color and the related sub-menu will be shown left- below the tab.

  • Page 25: Setting Remote Controller

    2.2.1.1 Dialogue box to edit a word Dialogue box to edit a word is image shown as below; It is available to input both word and number. Keep pressing [▲/▼], [◀/▶] arrow button until the word is looking for and press [Enter] or click the mouse.
  • Page 26 Installaction & User Manual 2.2.2.2 Setting ID If several DVRs are with unique ID numbers, they can be controlled with one remote controller. To select a specific DVR, keep pressing the ID button of remote controller until a buzzer sounds during 2 seconds.

  • Page 27: Installation Examples

    2.2.3 Installation examples 2.2.3.1 Basic configuration Connect camera and monitor and Audio. 2.2.3.2 Advanced configuration Connect camera, monitor, audio, sensor, realy etc..
  • Page 28 Installaction & User Manual 2.2.3.3 External storage & back up configuration Use USB for back up. 2.2.3.4 Internet / Intranet configuration...

  • Page 29: Basic Setting

    2.2.4 Basic Setting 2.2.4.1 Viewing Image When power is on, eDVR starts automatically and displayed in basic 16ch-split screen after booting. <Reference> If user password is set, a prompt for entering the password will be appeared. Factory default is reserved as not responding keypad on DVR front (It is not from factory default) 2.2.4.2 Setting Date &...
  • Page 30 Installaction & User Manual Time Zone Use the left or right arrow key on the front or the mouse wheel to select your time zone. Each press of the arrow keys changes the time zone. (To go to the previous menu, press the [ESC] button on the front or right-click.
  • Page 31 DATE FORMAT (1) Select “Date Format” using [◀/▶] or [▲/▼] arrow button and press [Enter] button. Select a value using [◀/▶] arrow button from YYYY/MM/DD, MM/DD/YYYY, DD/MM/YYYY. (2) Press [ESC] after finishing value setting. TIME (1) Select “Time” using [◀/▶] or [▲/▼] arrow button and press [Enter] button. (2) Select Date, Time using [◀/▶] arrow button and set value using [▲/▼] arrow button.

  • Page 32: Record Setting

    Installaction & User Manual 2.2.4.3 Record Setting Select “Record” pressing menu button in front. Manual Setting Manual record can be configurator in “Program” of record menu and Manual / Event record is available to Start/Stop with pressing [REC] button on front panel.
  • Page 33 Schedule Setting Set the recording schedule by each channel that user want record in “Program” of record menu. Set recording mode as “Schedule & Event” and set by date/ time. Program Setting Set resolution, frame rate, quality by each channel that user want record in “Program” of record menu (See details in Record menu) <Reference>...

  • Page 34: Connecting And Configuring Dio Ports

    Installaction & User Manual Connecting and configuring DIO ports 2.3.1 Wire Handlin When connecting a wire to a terminal block, follow the instruction below. Not the different types of wire that can be used. - Standard wire: Pie off the wiring cover 8~10mm and solder it. Wire gage should AWG 22~26. - Sold wire : Peel off the wiring cover 8~10mm and solder it.

  • Page 35: Connecting And Configuring Sensor

    2.3.3 Connecting and configuring sensor 2.3.3.1 Specification In order to run sensor input DVR normally, the following conditions are required. Input Ch. 16EA Transistor input Input type N.C, N.O supprt Spec Supported sensor Dry contact sensor Way of connecting Connecting the trimmed wire to terminal block Available input Minimum 500ms pulse range...
  • Page 36 Installaction & User Manual Setting Sensor (1) Press [Menu] button and select “Event” when OSD menu is appeared. (2) Move to sub menu pressing [Enter] or using [▼] button and select [Enter]. All Sensor It is used when setting for all sensors and set off, or Normal Open (N.O.) / Normal Close (N.C.) type.
  • Page 37 2.3.3.2 Connecting relay and setting Specification In order to run relay output of DVR normally, the following conditions are required. Output Ch. 2EA relay outputs Output type Dry contact SPEC Connecting type Connect the trimmed wire to terminal block 30V 1A Performance 125V 0.5A Connecting relay out...

  • Page 38: Connecting Serial Port

    Installaction & User Manual Relay setting It is available to run relay selecting from sensor, motion detection, Text, Video Loss which is normal event source and Disk error, Disk full, Fan error, authentication fail, WRS registration fail, Mirroring fail, abnormal Recording stop which is system event source. Also, user can set working condition by schedule.
  • Page 39 Serial communication port diagram COM1 connection diagram (RS-232 – D-Sub) COM2/COM3 diagram (RS-485)
  • Page 40 Installaction & User Manual Available PTZ is as below Model Manufacturer Keyboard KBD300A, WGI SPD1800/2600 Webgate Webgate WKC-100 keyboard PELCO(P), PELCO(D) Pelco BOSCH Auto Dome, TC8560X-4 Bosch Sony Sony EVI-D3x VT VPT-4x AD Speed Dome Sungjin SungJin SJ372R1 Samsung SCC641...
  • Page 41 Hunt Hunt ORX-1000 Sysmenia LiveEye Fine CRR-1600 Tokina Tokina Kodicom KRE Kodicom Nuvico Nuvico Serial Setting You can set up at ‘serial’ menu under Device menu. From serial setting, you can set protocol, port, baud rate, parity bit, stop bit and data bit. After completed serial setting, select desired channel from camera menu, and setting up PTZ Home, PTZ Idle Time, PTZ Port, and PTZ address.
  • Page 42 Installaction & User Manual 2.3.3.4 Connection to external device via Serial port Text input device connection (ATM / POS / Access Control) Using COM1/RS232, TEXT DATA can be recorded with synchronizing POS/ATM.. Like above picture, connect COM1/RS232 (9pin D-Sub) in Device menu and configure Serial and Text Serial (COM1) Setup (1) OSD Select “Device”...

  • Page 43: Usb Device Connection

    <Reference> Since external device cannot be recognized, before installing, please, ask to the shop. 2.3.3.5 USB Device Connection USB port is for the video copy of small data or for USB mouse. Its recommended specification is same as below. USB Spec. Ver 2.0 Device USB Memory Stick,...
  • Page 44 Installaction & User Manual In case of normal connection, if executing Copy menu, disk will be recognized same as below and Set copy range  Select Drive  Execute Copy [CD/DVD Copy] [RE4 Copy] Select the channel to copy. Standard setting is selecting all channels.
  • Page 45 [AVI Copy] <Reference> A USB Flash memory which should install additional program on Windows OS, cannot be recognized. 2.3.3.6 Video In/Out connection Video Input/Output is Loop through and check the connectivity automatically and set end resistance. For instance, if connected by Video input, end resistance is configured by75Ω and if Video in/output is same, it will be Hi-z mode.

  • Page 46: Hdd

    Installaction & User Manual 2.3.3.7 Audio In/Out connection There are 4 RCA Audio Input and and 12 D-sub Audio input and 1 RCA output. 2.3.4 HDD ※ Please, ask to distributor or manufacturer for available HDD list. 2.3.4.1 HDD registration and format After mounting HDD and booting system, “Disk Manager”...

  • Page 47: Remote Monitor And Control

    2.3.4.2 HDD Replacement (1) Turn off the DVR and take off the HDD that has a problem and replace it with new HDD. (2) Turn On the DVR and go to “Disk Manager” menu and select the removed HDD which has a problem, and press “Enter”...

  • Page 48: Network Configuration

    Installaction & User Manual (1) Cut power (2) Connect Ethernet cable to DVR and Hub. (3) Input Power.. <Reference> To protect DVR damage, after connecting Ethernet cable, input Power. Please, check Ethernet cable connection firmly. Input power on DVR and check their connectivity. 2.3.5.2 Network configuration Ethernet Set type as Ethernet and input IP, Netmask, Gateway, DNS.
  • Page 49 After changing interval over 1 min, register WRS address and product and input Group ID.

  • Page 50: External Device Connection

    Installaction & User Manual 2.3.6 External device connection DVR has external Storage Device Interface and 1ea of eSATA port. Using eSATA port, user can expand Storage capacity up to 8TB. <Note> Since some of eSATA device can not be compatible with DVR, before the usage, please, contact the seller and check its compatibility in advance.

  • Page 51: Nvs04 Connection

    2.3.7 NVS04 connection 2.3.7.1 Connecting with DVR (1) Connect to DVR as shown in the picture below using Gigabit Ethernet Cable. (2) Connect DVR Port of NVS04R and Storage Port of DVR directly.. <Note> 1) The network cable connected to DVR should be Gigabit Ethernet Cable (Category-6). If not, it is not connected to DVR.
  • Page 52 Installaction & User Manual Set the ID using driver. The value for the first digit of switch should match with values of 100x on the rare panel while the second digit of switch should match with value of 10x and the third digit of switch should match with 1x on the rare panel 2.3.7.3 Power connection and operation (1) Connect power as below.

  • Page 53: User Manual

    User Manual 3. Menu Use Menu Structure The menu structure will be shown like below image, and each menu setting method descriped from chapter 4 to chapter 6. Function Menu To run Function menu, please, click the right button of mouse in live monitoring or playback status or push “Func”...

  • Page 54: Factory Reset

    Installaction & User Manual Function of Playback Factory Reset In order to reset value to factory value, go to System Setting->System->Setting, and once press Factory Reset then the warning message will be appear, click “Yes” to reset the DVR value to factory.
  • Page 55 User Right Setup DVR Alias DVR0 Language English Utility DVR Keyboard ID Remote Controller Network Type Ethernet DHCP IP addr Current IP Net Mask Current Net Mask Network Gateway Current Gateway DNS Server 4.2.2.1 Port Band Width Limit(Mbps) User ID Guest xDSL Password...
  • Page 56 Installaction & User Manual PTZ Home Idle Time PTZ Port None PTZ Address Monitor Minitor1 Alarm Pop-up(Sec) Monitor Scan Mode Over Scan VGA Mode 800x600@56Hz Monitor Switching Audio Channel Audio Recording Audio Sync Video Channel Audio Gain Audio Mix Mix On Recording Sync Test With Device...
  • Page 57 Program Program A Record Pre Event Duration Post Event Duration Normal Resolution All D1 Frame Rate MH1600H : All 30, MH1600M, 3200M : All 15 Quality All Q5 Program Event Resolution All D1 Frame Rate MH1600H : All 30, MH1600M, 3200M :...
  • Page 58 Installaction & User Manual List Half Half Half Half Half Half MH3200M Rec mode Normal Event List Half Half Half Half Half Half...

  • Page 59: Monitoring

    4. Monitoring All analog video image channels connected to DVR is displayed to screen by Power connection. It is to utilize all monitoring mode of DVR. Basic Screen After Power connection, the DVR operates on automately. It boots with LED on. Single Full Screen Mode After press the channel number wanted or click mouse button.

  • Page 60: Auto Switch Mode (Sequence)

    Installaction & User Manual Auto Switch Mode (Sequence) Defined channels or multi screens can be displayed in sequence with configurated time interval. Maximum 16 channels or multi screens can be defined. 4.5.1 System Standard Mode By [SEQ] button, it can monitor auto switching of defined channels. Press [MENU] for the setting switching term or using mouse click menu icon from function menu.

  • Page 61: User Sequence Mode

    4.5.2 User Sequence Mode [Press [AUTO] button or click [Sequence] icon from Function menu with mouse. Auto Switch model can be set from “Monitor” main menu. Event Screen When the event is occurred, the green color [M] and red color [S] will be display from status bar.

  • Page 62: Zoom Screen Mode

    Installaction & User Manual 1. If Alarm Pop-up Hold (sec) set to Off, Alarm Pop-up will not operate. 2. If Alarm Pop-up Hold (sec) set to keep, it does not return to previous screen before press any button. Zoom Screen Mode From single full screen mode, press [FUNC] and D-Zoom button then select + button to activate zooming the image.

  • Page 63: Ptz Control

    PTZ Control Connect PTZ controller to DVR and set relevant protocol from “Serial” menu, then PTZ can operate while monitoring live images. Then PTZ works automatically with following icon. PAN/TILT can be used with directional button on front panel, and PAN/TILT/ZOOM can be used with mouse.
  • Page 64 Installaction & User Manual Below lists are protocols available in DVR Model Manufacturer Bosch BOSCH AutoDome, TC8560X-4 PELCO(P), PELCO(D) Pelco Sony EVI-D3x Sony VT VPT-4x AD Speed Dome SungJin SJ372R1 SungJin Samsung Electric Samsung SCC641 Panasonic WV-CS850 Panasonic SDZ160/330, Samsung SPD, Samsung Techwin Keyboard SCC3000A, Samsung SRX-100B LG GAC-PT2...

  • Page 65: Pan/Tilt/Zoom

    4.9.1 Pan/Tilt/Zoom This menu is used to control Pan / Tilt / Zoom function. Select relevant channel to control PTZ which is connected with PTZ. 4.9.2 Focus Press [PTZ] button in PTZ screen to activate Focus menu. Control focus with [Near] or [Far] buttons . 4.9.3 Load Preset Press [PTZ] button in PTZ screen to activate Load Preset menu.

  • Page 66: Playback

    Installaction & User Manual 5.Playback Playback Mode 5.1.1 Playback on Standard monitor (16 / 9 division) Please, push play button in monitoring mode or mouse click play button in Function menu. If pushing Play button or FWD button, video playbacks in forward direction at 1× speed. If pushing REW button, video playbacks in reverse direction at 1×...

  • Page 67: Search Mode

    Start-REC Time : The date and time of start-recording End-REC Time : The latest date and time of the recording Search Time : Select the range of date and time for Search Search : Execution button 5.2.2 Schedule Search [MH1600H, MH1600M]...

  • Page 68: Event Search

    Installaction & User Manual [MH3200M] Display recording status of channel 1~32 Year : Select Year to search. With mouse wheel, user can change it. Month : Select Month to search. With mouse wheel, user can change it. Date : Select Date to search. With mouse, select the date and decide the time by wheel.

  • Page 69: Thumbnail Search

    Enter and change the value by Up and Down button. With mouse, click and scroll the wheel. Event Channel : Select the channel for search MH1600H, MH1600M: from Ch1 to Ch16 MH3200M from Ch1 to Ch32 Event Type : Select the event type for search...
  • Page 70 Installaction & User Manual using up-down direction key or mouse wheel. Interval : Set Interval value by Up-down button or mouse wheel. View video : If pushing search button, 16 cycles will be shown based on start time. Press [Func] to return to the search or use mouse wheel. Select video : Play back from the selected video of thumbnail search result.

  • Page 71: Copy

    Copy This is for copying recorded video. There are CD/DVD and RE4 and AVI type. Copy function is supported to be used by user who has the authorization. For authority configuration, please, refer to 6.2.3 User setup To use copy function, press [COPY] or Click Copy button in Function menu. 5.3.1 CD/DVD This is copy function by using CD or DVD.

  • Page 72: Re4

    Sony(×16 recommended) Sony(×48 recommended) 5.3.2 User can back up by HDD, USB memory and play back suing mini-player or Control Center. Select channel position and press Enter or use mouse wheel to open the channel list like below.. [MH1600H, MH1600M]...
  • Page 73 [MH3200M] Type : Select RE4 using up-down button or mouse wheel. Channel : To pop up the channel selection window, press Enter or use mouse wheel. Select Channel : use can select some or all channels and after selecting channel, press Enter or click mouse left button.

  • Page 74: Avi

    Installaction & User Manual 5.3.3 Use USB memory or HDD to copy certain part. Type : Select AVI using up-down key or mouse wheel. Channel : Select the channel to copy by up-down key or mouse wheel. From : Set start date and time to copy. Time and Year by left/right button and date/time by up/down button.

  • Page 75: Configuration

    6. Configuration Recording Structure There are 3 modes in DVR recording. Configuration relation structure is like below. Please, refer to the below each item for detailed recording configuration. System Setup Time and Disk and authority can be configured. 6.2.1 Date/Time Time set should be configured prior to the recording.

  • Page 76: Time Setup

    Installaction & User Manual Time configuration is very important to protect the recording data. Time change on recording is not recommended. Time zone configuration value of factory default is “UTC 00:00 Dublin” 6.2.1.1 Time Setup Caution: under recording, if user changes Time, it will affect time change on previously recorded video data in accordance with.
  • Page 77 Time With left/right direction key, use can move to year, month, day, hour in order and each configuration will be controlled by up/down key or mouse wheel. Apply User must push “Apply Date/Time” button. And you will see the below message box. <Caution>...

  • Page 78: Ntp Setup

    Installaction & User Manual 6.2.1.2 NTP Setup NTP(Network Time Protocol) make time of connected devices synchronized. There are NTP server and client which get time signal from the server. Sync NTP Set NTP function on/off. NTP Mode Configure NTP mode of DVR – Client / Server / All NTP Server Loc.

  • Page 79: Disk

    6.2.2 Disk It explains how to add or remove or format internal or external HDD. Over Write If there is no space in HDD, old data will be deleted automatically. Disk Full Alarm Warning It gives notice if the recorded data is full up to configurated limitation of all HDD disks which is connected to DVR.

  • Page 80: Disk Manager

    Installaction & User Manual 6.2.2.1 Disk Manager This is menu for the management of internal or external HDD. Manage status, bad block, size, Yes or No etc. Type : display location or type of disk. Int A (Internal A HDD), Int B (Internal B HDD), Ext (External HDD) Model : HDD model name.

  • Page 81: Disk Status

    - HDD is not used. - If No, keep previous HDD without change. 6.2.2.2 Disk Status Temperature and status of HDD will be shown. 6.2.2.3 Disk Mirroring This DVR has DVR Mirroring function in itself and NVS Mirroring on NVS(Network Video Storage) via Gigabit Network Without additional user control, if connecting DVR and NVS via Gigabit Network Cable, Mirroring function will be activated and user can operate it easily and simply.
  • Page 82 Installaction & User Manual DVR Mirroring working method (1) Basically HDDs will be set like the above. (2) Recording data of HDD-3 is mirroring with HDD-1 and recording data of HDD-4 is mirroring to HDD-2. (3) If there are 4ea of HDDs are mounted on DVR and starts recording, HDD-4 will start recording.
  • Page 83 Mirroring configuration - Off : All mounted HDD will be recorded in order without Mirroring. - DVR : Mirroring recording only with internally mounted HDD ( not HDD in NVS04R) - NVS : Mirroring recording only with HDD in NVS04R which is connected to DVR. (Not HDD in DVR) - All : Mirroring recording with all HDDs in DVR and NVS04R.
  • Page 84 Installaction & User Manual <Note> 1. For Mirroring function, HDDs capacity and model for Recording and Mirroring should be same. If not, it won’t work. But, in case that HDD capacity is same but just different model, sometimes, it can not work properly.
  • Page 85 When using Mirroring function, according to configuration option, DVR system performance will be down and due to this reason, recording configuration will be adjusted automatically like below table chart. 1) Maximum recording performance per model with NVS Mirroring configuration. [ MH1600H Model ] NVS Mirroring Recording Setting Resolution Quality...
  • Page 86 Installaction & User Manual [ MH3200M / MH1600M Model ] DVR/All Mirroring Recording Setting Resolution Quality 4 ~ 1 Q5 ~ Q1 Half 7 ~ 1 Q5 ~ Q1 15 ~ 1 Q5 ~ Q1 6.2.2.4 Mirroring HDD replacement. If Mirroring HDD free space becomes 0%, on DVR console screen, alarm pop-up message will be shown for Mirroring HDD replacement.

  • Page 87: User Setup

    doubled block but it just points out that this Mirroring HDD is not replaced. Actual recording data is not doubled 6.2.3 User Setup There are administrators and user and administrator can use all functions. The max. Number of user is 10 people. Each user can use the function allowed. Authority setting If set to X for user authority, the function will be unavailable.
  • Page 88 Installaction & User Manual Password change Select user  Input password and press change  Press Yes Password input box is displayed. Password can be input with front figure button or text input window. After inputing 5 digit figure, click “OK” button. After that, message pop up window will be shown and press “Yes”.

  • Page 89: Utility

    6.2.4 Utility Configure the name of DVR, remote controller ID, Language. DVR Alias Set the name of DVR. DVR Keyboard ID This menu is to set the address of keyboard when using all functions of DVR by keyboard. Factory default is “1”. If user wants to control various DVR by one keyboard, its address should be set with the different value.
  • Page 90 Installaction & User Manual System will reboot. Firmware update is done. System Log System Log shows boot status of system and user and configuration etc. Factory Reset Change all configuration value by factory default.
  • Page 91 Config Import/Export Export – Save Configuration data in DVR to USB Import – Apply exported Configuration data to relevant DVR or another DVR System Information Display recording status and system configuration of DVR Caution : This function is allowed only for system administrator.

  • Page 92: Network

    Installaction & User Manual Network This is menu for configuring network. Type Configure type of Network (Ethernet/xDSL). If connected to cable modem or LAN directly to DVR, configure by “Ethernet”. If DVR connects to xDSL- one of PPPoE type, configure xDSL. But if it is not type of PPPoE, configure ‘Ethernet’.

  • Page 93: Xdsl

    DNS Server DNS1 is mandatory item to registry and use WRS and it should be asked to network administrator. UPnP Port Forwarding It configurates port of DVR automatically when DVR is used with internet hub. Port Port is necessary for Control Center and Webviewer connection. Reference : Basic port is 80 and if using PPPoE modem and AP, be careful typing port number.

  • Page 94: Wrs

    Installaction & User Manual 6.3.2 WRS If DVR is connected to Cable modem or xDSL modem, IP address is changed at every connection to ISP. In this case, changed IP address can not be known. If DVR using static IP register into WRS server, changed IP address can be known easily when it connects to DVR.
  • Page 95 Radius 6.3.3 It makes to manage account information from several different DVRs to one account using Radius server. Please ask to Administrator before you use it. To set Radius, Status, IP Address, Port should be set. Set ‘Enable’ the status to use Radius and enter ‘Radius Server IP’ to IP Address. Standard port to use is 1812 and specific port number which is from Server is also useable.

  • Page 96: Notifier

    Installaction & User Manual 6.3.4 Notifier To use Notifier (Notifier Protocol) function, please, refer to the tech manual or cantact Notifier administrator in advance. (Notifier™ device is for Fire Alarm. And if user enable Notifier function, DVR uses Notifier™ signal instead of sensor input of DVR.) <Caution>...

  • Page 97: Device Setup

    Device Setup This menu is for configuring each camera connected to DVR. There are [name][Status][Color/black or white][Brightness][Contrast][PTZ] etc. Caution : NTSC and PAL camera can not be used at the same time. If changing the camera from NTSC to PAL, system should be rebooted. Configured value will be applied to monitoring and search at the same.

  • Page 98: Monitor Setup

    Installaction & User Manual 6.4.1.2 Using Channel Configure whether using camera or not. After pressing [Enter], select it using left/right key or mouse wheel. If user wants to enhance the recording or network monitoring speed, please, set the channel disable. 6.4.1.3 AGC (Auto Gain Control) AGC is the function to control the range of video signal input from camera connected.
  • Page 99 Covert channel With Covert menu, user can covert the channel in Live/Playback mode In Covert menu, all channel lists will be shown and press [Enter] button and click mouse to tick the channel. Checked channel will not show the video in Live/Playback. User sequence configuration User sequence can be edited.

  • Page 100: Audio Setup

    Installaction & User Manual 6.4.3 Audio Setup With this menu, user can configure Voice Channel, Audio recording, Volume, Synchronization, Mixing.. Voice Channel Select audio to use Recording Configure yes or no of using audio recording. If no, audio will be out only in live view and if yes, Audio will be out in both view modes.

  • Page 101: Text Setup

    Voice mixing Select audio in live view. If setting by “Mix On”, all input audio will be out in every channels and if configured certain channel, input audio will be out on the selected channel only. 6.4.4 Text Setup Configure Text in Device menu. Recording Set On/Off of recording against Text input Sync Text with...
  • Page 102 Installaction & User Manual Header check It has the various type of data input from the external device (Access Control, POS, ATM etc.) but it’s not necessary for a device which is supported its protocol by DVR .Like VSI Pro, VSI Pro Hydra, and Star Finger 007, it is not needed when the protocol of these device have implemented on the device.

  • Page 103: Serial Setup

    6.4.5 Serial Setup DVR has 3 serial ports. One is RS-232C(D-Sub) and the other 2 ports are RS-485(Terminal). Serial Port Select Serial port. Device Select the connected device. Interface Configure which interface user uses. COM1 is for RS-232C, COM2 and COM3 is for RS-485 Baud rate/Parity/Stop Bit/Data Bit In put suitable value according to external device.
  • Page 104 Installaction & User Manual PTZ Home Shift to preset assigned if it has no movement in certain time while PTZ control. PTZ Idle Time If it has no movement during configured time, shift to PTZ Home. PTZ Port Select Port for PTZ PTZ Address Configure the address configured in PTZ.

  • Page 105: Event Setup

    6.5 Event Setup There are 5 items such as event, Text, Sync Event, Preset, System event. 6.5.1 Event Check There are 3 items – Always, not apply, Custom. In case of Custom, with similar configuration window like schedule, user can configure event per weekday/time.

  • Page 106: Sync Event

    Installaction & User Manual Not selecting schedule and click delete button, it’ll delete selected schedule first. How to change Select Schedule to edit and change weekday, program,time directly. In case that Schedule 50 are all configured, select the time zone to change by mouse click and click the time again, previouse configuartion will be deleted and new configuration will be shown.
  • Page 107 System Event source System Event source can configure Bad block, Disk full, Fan error, authorization failure, WRS registration failure, Mirroring failure, Abnormal recording stop. 6.5.2.1 E-mail address Input E-mail address to get event alarm by E-Mail.
  • Page 108 Installaction & User Manual Sender Address Not mandatory but necessary for receiver to find out which DVR sends event. Authentication There are 3 ways to send E-mail, Non-authentication sending, SMTP server authentication, TLS authentication. Non-authentication is to send e-mail without authentication from authentication server.
  • Page 109 Server URL Enter the FTP server address to send image. User ID Enter the relevant ID when FTP server authentication is set. Password Enter the password FTP Directory Select Folder to save image If folder is not indicated, the image is sent to the folder which server selects. 6.5.2.3 Twitter connection Twitter can be connected to send single image or text message about event information of the channel when event is triggered on the channel.
  • Page 110 Installaction & User Manual Action Duration This is setup for transmission duration of the Twitter Please select Normal Event or System Event to be used for Twitter transmission Twitter ID Type in Twitter account to be used Login Status It shows current log in status Generate PIN Click on this to have URL information to log i Login URL...

  • Page 111: Motion Detection

    6.5.2.4 Relay When event is working, set to relay as a output. To work relay, select event between normal and system event. 6.5.2.5 Buzzer When event is working, set to buzzer as a output To work buzzer, select event between normal and system event. 6.5.3 Motion Detection...
  • Page 112 Installaction & User Manual Channel All or certain channel. Sensitivity Sensitivity can be configured from min.1 to max 10. Area Select detection area. User can select all or certain channel. User Area When selecting per channel, it can be configured. 1 grid size is 22x15 and factory default value is all.

  • Page 113: Sensor

    6.5.4 Sensor This menu is to setup the existing sensor input and type of sensor. 16 inputs Sensor has 2 types, Normal Open(N.O.) and Normal Close(N.C.). 6.5.5 Preset In PTZ function, make configured preset work according to sensor input. Please, configure preset per PTZ. After selecting channel in preset menu, select event to work preset.

  • Page 114: Recording Setup

    Installaction & User Manual 6.6 Recording setup There are 3 mode for recording – schedule recording, manual recording, event recording. Schedule recording records according to the configured schedule. And manual recording records via pushing “REC” button and event recording records when events are on. 6.6.1 Program setup Using [Program], adjust frame rate and quality and resolution and configure recording program for Manual&Event&Schedule.
  • Page 115 Max R/F Max R/F shows the number of frame available according to the selected resolution. For instance, if it is set by 30fps at CIF, it means that the channel can record up to 30frame at CIF resolution. Reference : how to calculate recording performance D1[704x480] = 2 x Half D1[704x240] = 4 x CIF[352x240] If 480 frames can be recorded at CIF resolution, instead of it, 240 frames at Half D1 and 120frames at D1 resolution are possible.

  • Page 116: Manual/Schedule Recording Setup

    Installaction & User Manual 6.6.2 Manual/Schedule recording setup With the change of recording mode, manual recording or schedule recording can be at one’s choice. And their resolution, frame rate, quality will be in accordance with the program. 6.6.2.1 Manual Recording Only in manual &...

  • Page 117: Schedule Setup

    6.6.2.2 Schedule Setup It records according to the programmed schedule automatically. Make recording mode Schedule & Event and configure day and time. Check and select each program default value and select one of 9 programs from A to I or Several programs.

  • Page 118: Event Recording Setup

    Installaction & User Manual Edition Select Schedule to edit and change weekday, program,time directly. In case that Schedule 50 are all configured, select the time zone to change by mouse click and click the time again, previouse configuartion will be deleted and new configuration will be shown. Caution : If selecting the same time twice, “!”...
  • Page 119 In “Always”, event works all the time and in “Custom”, works during configured time. Configuration of Custom is similar with schedule configuration and can configure weekday, time for Event. • Time : Set time applicable • Daily : Adapt selected schedule to whole day of the week. •...
  • Page 120 Installaction & User Manual 6.6.2.4 Continuous Recording Only continuous & event set can record continuously, select Continuous & Event in the menu, it starts to record.

  • Page 121: Web Viewer

    7. Web Viewer WebViewer is Web application program loaded to monitor real-time image or to monitor the images recorded through Web browser to PC located remotely. WebViewer is divided into Login page and Monitor to do monitoring real-time images, Playback to replay recorded images.

  • Page 122: Login

    Installaction & User Manual Login After input IP address that set to system, then WebViewer Login page will be connected. Input the set of User ID & Password, click ‘LOGIN’ to access. If didn’t change the password in Control Center, ID and Password will be admin/12345. ID can not be changed.

  • Page 123: User Setup

    User Setup To access WebViewer, user authority and password can be changed in DVR or Control Center configuration In account menu, user password can be changed. Basic admin password is “12345” and user password is like “11111{“, “22222” ~~, user10 is “00000”.

  • Page 124: Monitor

    Installaction & User Manual Webviewer Installer Login page provides manual installation program to use WebViewer function. PC that access to WebViewer first installs ActiveX to use WebViewer’s function. At this time when installation is not smooth, installation program needs to download from Login Page and install manually.

  • Page 125: Move To Playback

    Double click on one of the playback screen to convert in 1 channel mode. After conversion to 1channel mode, double click on screen to return to previous division channels. At division screen, it can change screen location. If 3channel image moves to 6ch, drag 3ch image and drop on 6ch location so as to exchange between 3ch and 6ch image 7.5.2 Move to Playback...

  • Page 126: Channel On/Off

    Installaction & User Manual 7.5.3 Channel On/Off It is On/Off button for the Channel located to left in page. Click the channel wanted to on or off. And Default is on. 7.5.4 Sensor Indication The icon indicates when sensor occurs in system When it sensors, relevant sensor icon comes to Red, and indicates sensor number of video.

  • Page 127: Event Data

    7.5.7 Event Data It shows real time event data occurred at the bottom of monitoring page. Indicated Event data list are as follow.. (Table, Event Icon) Icon Function Motion Detect On Sensor Input Relay Output On No Video, Video Detected 7.5.8 Video Recording &...

  • Page 128: Using Ptz

    Installaction & User Manual 7.5.8.2 Saving Video There are 3 types for saving Video - jpg, bmp, eye, saving means the function to record 1 frame of current monitoring channel. To save video, select the channel and click right button of mouse. And select “Save As” and point out the location and press Save button.

  • Page 129: Using Audio

    Reference Supported PTZ camera list can be refereed to ‘4.8 PTZ manipulation. 7.5.10 Using Audio In case of Channel setup sync with Audio, press right mouse button on the image to activate pop-up menu to “Listen” or activate Audio listen button. First default is Mute. In case of listening Audio, select pop-up menu or button.

  • Page 130: Playback

    Installaction & User Manual Playback This page is to playback recorded images, and user who has authority of ‘HDD’ among user ID or administrator can use this function. Playback that is made up 16 divisions can play the images by searching through colander by recording period and moving the period.

  • Page 131: Print

    Save Image dialog box appears, then it can input message or select channel name, date, event data. Press ‘OK’ to open dialog box for the saving location, then save bmp file. 7.6.3 Print Select image with mouse for the channel to print image saved, and then click ‘Print’ button. Window comes to input Memo, and click ‘OK’...

  • Page 132: Web Monitor

    Installaction & User Manual 7.6.5 Web Monitor Click ‘Go’ button at top of page, and it can move Web monitor page. 7.6.6 Channel On/Off It is the same function like Channel On/Off function at Web Monitor. It is Channel On/Off button located on right of Page, and click on or Off page for wanted channel.

  • Page 133: Functional Function At The Bottom Of Monitor

    7.6.9 Functional function at the bottom of monitor ① Indicates playback range of recorded image. ② Press button as the time set at (5) so as to change the time zone to playback in forwarding and backwarding. ③ From left button, it can ‘Move a frame back’, ‘Play backward’, ‘Stop’, ‘Play’, ‘Move a frame forward’.

  • Page 134: Java Viewer

    Installaction & User Manual 8 JAVA Viewer Java viewer is a web viewer to use in Java. Java should be installed in login screen to use Java viewer. After an installation of Java manually, select “Java” in below of Password window and login. Then single screen of video channel 1 is displayed Multi-screen display, Event, Relay can be used in Java viewer.

  • Page 135: User Manual For Mobile Viewer

    9 User manual for Mobile Viewer Mobile viewer is viewer service to monitor video via mobile device. To access mobile viewer, user uses mobile device supporting Wi-Fi or smart phone or 3G. Log-In page Below picture is Mobile viewer log-in page. To access log-in page via mobile viewer, please, type the address like http://IP/mvmenu.html.
  • Page 136 Installaction & User Manual For functions, please, refer to the below. [0] MENU : Move to Log In page [1] CH- : Move to the previous channel. [2] UP : Move to upside of Pan Tilt movement [3] WIDE : Zoom Out action [4] ...

  • Page 137: Trouble Shooting

    Trouble shooting 1. DVR booting failure 1. Check the power 2. Check Power cord 2. No video on monitor 3. Check monitor power 4. Check cable between DVR and monitor 5. Check monitor cable port 6. Check DVR power is off 7.
  • Page 138 Installaction & User Manual 9. If network is not working 25. Check if Network cable is connected 26. Check DVR IP 27. Check Computer IP 28. Ping Test 29. Check PC specification if Webview video is not shown. 10. The cases necessary to contact the shop 30.

  • Page 139: The Way To Check The Manufacturing Date

    The way to check the manufacturing date It can be checked with its S/N(Serial Number).. S/N : Serial Number It means composite 12 digit number with product model name and production year, month, and week. It can be found on the attached label attached on the bottom of product or system info of configuration tool or system information 1 of DVR Func menu.

  • Page 140: Available Hdd

    1,4,9,10,16 mode User defined sequence / alarm pop-up Recording Compression H.264 / JPEG Resolution CIF/Half(2CIF)/D1(4CIF) Rate MH1600H : 480 at D1 MH1600M : 480 at HALF MH3200M : 960 at HALF Quality 5 levels Mode Manual & Event Schedule & Event...
  • Page 141 Continuous & Event Schedule 24hrs / 7day Playback Instant playback / Search Mode Speed Search Type Time, Calendar, Event, Thumbnail Block Playback 0day ~ 99days Event & Alarm Event source MD, Sensor, Text Event check schedule 24hrs / 7day Event Action Relay, E-mail, Buzzer, Twitter, FTP MD Area 22x15(NTSC), 22x18(PAL)
  • Page 142 Installaction & User Manual User privilege Menu, PTZ, Relay, PB, Power on/off, Backup IP Filtering supported Storage/Backup Storage Devices internal SATA HDDs, 1 external eSATA I/F NVS04R File System Proprietary file system, data-loss protection against power-failure Capacity Max 32TB with NVS04R Backup type multi-channel or single channel avi file Backup device...

  • Page 143: Product Dimension

    Product Dimension MH1600H...
  • Page 144 Installaction & User Manual MH1600M...
  • Page 145 MH3200M...
  • Page 146 Installaction & User Manual...

  • Page 147: Open Source License Report On The Product

    Open Source License Report on the Product The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to <mycctv@gmail.com>.
  • Page 148 Installaction & User Manual Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users.
  • Page 149 TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program"...
  • Page 150 Installaction & User Manual License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.) These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works.
  • Page 151 offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code. 4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License.
  • Page 152 Installaction & User Manual This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
  • Page 153 INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  • Page 154: Gnu General Public License

    Installaction & User Manual Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type `show w'. This is free software, and you are welcome to redistribute it under certain conditions; type `show c' for details.
  • Page 155 The GNU General Public License is a free, copyleft license for software and other kinds of works. The licenses for most software and other practical works are designed to take away your freedom to share and change the works. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change all versions of a program--to make sure it remains free software for all its users.

  • Page 156: Terms And Conditions

    Installaction & User Manual danger that patents applied to a free program could make it effectively proprietary. To prevent this, the GPL assures that patents cannot be used to render the program non-free. The precise terms and conditions for copying, distribution and modification follow. TERMS AND CONDITIONS 0.
  • Page 157 1. Source Code. The “source code” for a work means the preferred form of the work for making modifications to it. “Object code” means any non-source form of a work. A “Standard Interface” means an interface that either is an official standard defined by a recognized standards body, or, in the case of interfaces specified for a particular programming language, one that is widely used among developers working in that language.
  • Page 158 Installaction & User Manual You may make, run and propagate covered works that you do not convey, without conditions so long as your license otherwise remains in force. You may convey covered works to others for the sole purpose of having them make modifications exclusively for you, or provide you with facilities for running those works, provided that you comply with the terms of this License in conveying all material for which you do not control copyright.
  • Page 159 source code under the terms of section 4, provided that you also meet all of these conditions: a) The work must carry prominent notices stating that you modified it, and giving a relevant date. b) The work must carry prominent notices stating that it is released under this License and any conditions added under section 7.
  • Page 160 Installaction & User Manual with such an offer, in accord with subsection 6b. d) Convey the object code by offering access from a designated place (gratis or for a charge), and offer equivalent access to the Corresponding Source in the same way through the same place at no further charge. You need not require recipients to copy the Corresponding Source along with the object code.
  • Page 161 service, warranty, or updates for a work that has been modified or installed by the recipient, or for the User Product in which it has been modified or installed. Access to a network may be denied when the modification itself materially and adversely affects the operation of the network or violates the rules and protocols for communication across the network.
  • Page 162 Installaction & User Manual All other non-permissive additional terms are considered “further restrictions” within the meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term.
  • Page 163 does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so. 10.
  • Page 164 Installaction & User Manual In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement). To “grant” such a patent license to a party means to make such an agreement or commitment not to enforce a patent against the party.
  • Page 165 consequence you may not convey it at all. For example, if you agree to terms that obligate you to collect a royalty for further conveying from those to whom you convey the Program, the only way you could satisfy both those terms and this License would be to refrain entirely from conveying the Program.
  • Page 166 Installaction & User Manual PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 16. Limitation of Liability. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MODIFIES AND/OR CONVEYS THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE...
  • Page 167 (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program.
  • Page 168 Installaction & User Manual Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.] Preamble The licenses for most software are designed to take away your freedom to share and change it.
  • Page 169 ordinary General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs. When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a combined work, a derivative of the original library.
  • Page 170 Installaction & User Manual Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (independent of the use of the Library in a tool for writing it).
  • Page 171 License. 3. You may opt to apply the terms of the ordinary GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License.
  • Page 172 Installaction & User Manual You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright notices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License.
  • Page 173 explaining where to find the accompanying uncombined form of the same work. 8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License.
  • Page 174 Installaction & User Manual Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and "any later version", you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation.
  • Page 175 This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY;...
  • Page 176 Installaction & User Manual "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity.
  • Page 177 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
  • Page 178 Installaction & User Manual modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License. 5. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions.
  • Page 179 To apply the Apache License to your work, attach the following boilerplate notice, with the fields enclosed by brackets "[]" replaced with your own identifying information. (Don't include the brackets!) The text should be enclosed in the appropriate comment syntax for the file format. We also recommend that a file or class name and description of purpose be included on the same "printed page"...
  • Page 180 Installaction & User Manual THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS ''AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;...
  • Page 181 telnet-server license: Copyright (c) 1989 Regents of the University of California. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 182 Installaction & User Manual following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. Neither the name of Yahoo! Inc. nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission of Yahoo! Inc.
  • Page 183 The name of the University may not be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

  • Page 184: Openssl License

    Installaction & User Manual Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
  • Page 185 Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
  • Page 186 Installaction & User Manual This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL. This library is free for commercial and non-commercial use as long as the following conditions are aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code;...
  • Page 187 The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.] SIL OPEN FONT LICENSE Version 1.1 - 26 February 2007 PREAMBLE The goals of the Open Font License (OFL) are to stimulate worldwide development of collaborative font projects, to...
  • Page 188 Installaction & User Manual PERMISSION & CONDITIONS Permission is hereby granted, free of charge, to any person obtaining a copy of the Font Software, to use, study, copy, merge, embed, modify, redistribute, and sell modified and unmodified copies of the Font Software, subject to the following conditions: 1) Neither the Font Software nor any of its individual components, in Original or Modified Versions, may be sold by itself.
  • Page 189 WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFTWARE.
