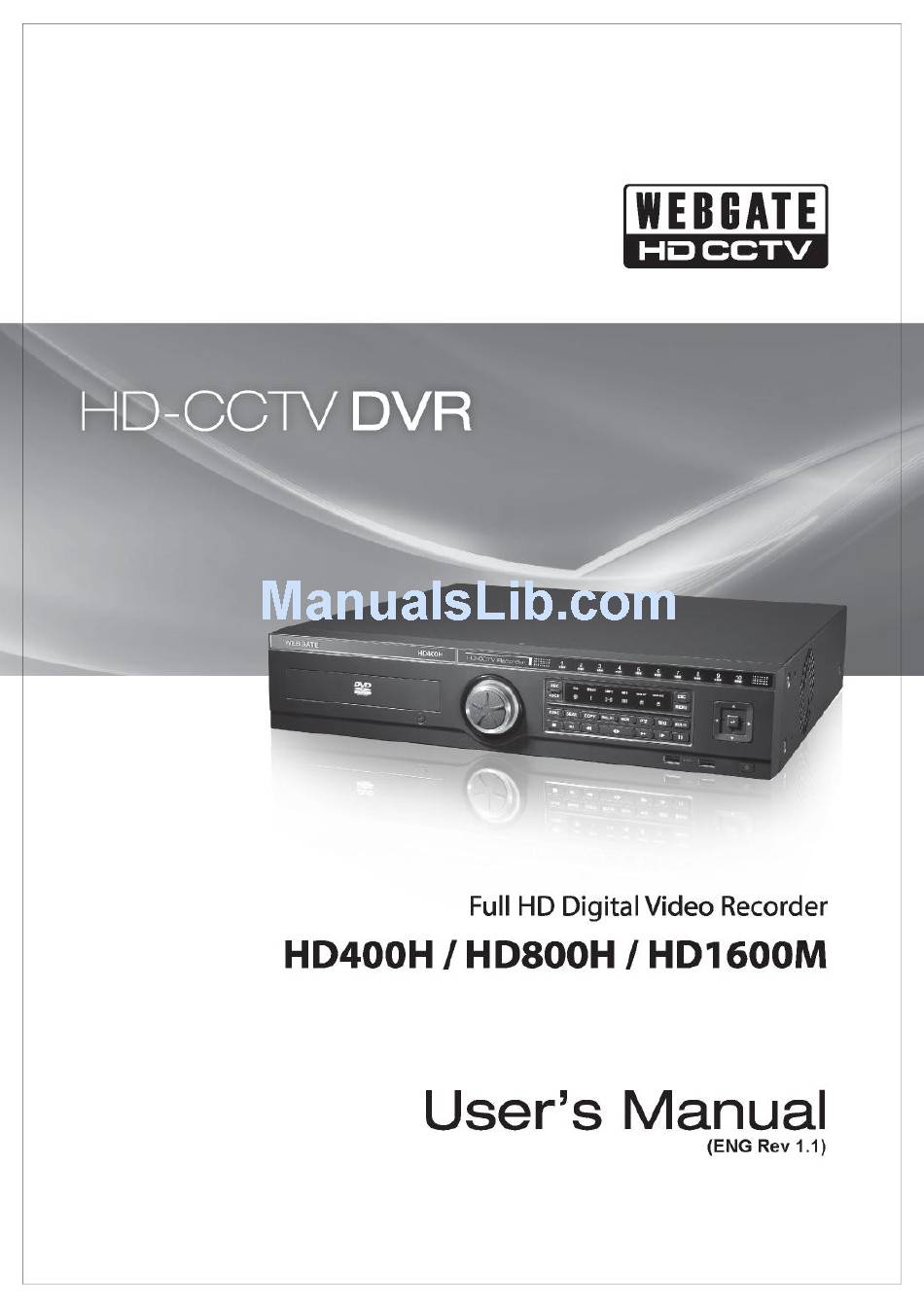

WebGate HD400H User Manual

Hd-cctv dvr
Hide thumbs Also See for HD400H:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD400H and is the answer not in the manual?

Questions and answers

Related Manuals for WebGate HD400H

Summary of Contents for WebGate HD400H

  • Page 2 HD-CCTV DVR Install & User Guide HD-CCTV DVR Manual. Thank you for purchasing a Webgate Digital Video Recorder. Before installation or operation please become familiar with the user manual and other referenced manuals mentioned in the booklet. User manual, software and hardware described here are protected by copyright by law. With the exception of...

  • Page 3: I N T R O D U C T I O N

     Product is made of metal you can hurt another human if you throw or used as a weapon. Keep away from the reach of children.  If Product does not operate properly, please contact the closest WEBGATE distributor for service. Tampering or disassembling the product will void the warranty.

  • Page 4: Table Of Contents

    Contents Warning 2 KEY FEATURES 5 Accessories 7 Description & Function 8 Connecting other devices 13 Usage 20 Use of Input/output devices 23 Menu Structure 26 Function Menu 26 Factory Reset 26 Login Screen 27 Basic Screen 27 Single Screen 27 Multi Screen 27 Screen Description 27 Auto Switch Mode(Sequence) 28...
  • Page 5 Recording Set up 53 System requirement 58 Installation 58 Login 58 User Set up 58 Monitor 59 Playback 63 Trouble Shooting [FAQ] 66 Compatible HDD 68 Factory Default 69 Menu Structure 72 Specification 74 Product Dimension 76...

  • Page 6: Key Features

    Max 240 frames per second can be saved and Max 15 second recordable before event triggeres. HD : 720p  HD-SDI video record  HD400H model Full HD : 1080p - HD 1080p : 60fps - HD 720p : 120fps ...

  • Page 7: Audio Recording

     Live/Playback 16 times (horizontal 16x, vertical 16x) digital zoom supports (D-Zoom) Audio recording Supports real-time audio input and recording  Simultaneous 4ch audio input & recording available  Input : 4ch RCA, Output : 1ch RCA(Rear)  Simultaneous audio recording and playback available Search / Playback It supports variable and convenient functions for search &...

  • Page 8: Accessories

    Accessories Check if below items are included. Remote Controller Mouse Battery Rack Bracket & Screw Screw for HDD installation AC code SW & Manual CD Quick Guide User’s Manual...

  • Page 9: Description & Function

    Description & Function Front Category Function DVD-Multi for backup Back up use for recorded data by DVD/CD media Jog / shuttle Playback direction change and speed control. Touch channel button Select channel by touch during live and playback. Channel LED Shows image input status and event working status.

  • Page 10: Remote Controller

    Rear In/Out port name Function Power connector Socket for AC100V~AC240V power cord.. Sensor IN Input for external sensor. Relay Relay Connection terminal. Com2,3 RS-485 device connection RS-485 termination Set RS-485 termination Ground Ground between DVR & external device. Channel input BNC input for camera connection Audio input(RCA) RCA connection for Audio input...

  • Page 11: Remote Controller Id Setup

    RELAY ON BACKUP Alarm ON manually No use LOCK Lock monitor screen Select Remote ID COPY RELAY OFF Save record data into USB or CD/DVD Alarm OFF manually SEARCH Auto screen switch Display search menu MULTI ZOOM Screen division change Execute digital zoom CHANNEL BUTTON Select channel...

  • Page 12: I N S T A L A T I O N

    Before Installation DVR is high quality security device having large capacity of HDD and important curcuits. So any high temperature occurred internally could make DVR work abnormally so please read through below installation advice before installation. The followings are advice in case DVR is installed in the Rack. 1.

  • Page 13: Add Hdd

    2. Push HDD bracket to the marked direction to separate it from fixed position. 3. Lift HDD bracket out of bottom of DVR. 4. Insert HDD into bracket and engate 4 screws to hold HDD. 5. Install HDD bracket with HDD into DVR then hold it with screw to fix it to the bottom part of DVR.

  • Page 14: Connecting Other Devices

    ◈ Note about data loss Be aware of data damage of HDD. Check HDD compatibility before installing additional HDD. Be careful not to give any shock on HDD during operation which could lead to possible damage or malfunction. ◈ Case for damage on HDD and its data To reduce damage coming from HDD damage, please copy data as often as you can.

  • Page 15: Connecting Power

    Recommended cable Cable type HD-SDI transmission Remark distance 5C2V about 100M Cable for analog signal 4C-FB(T), 4C-HFB(T), RG59 about 150M High-foamed cable, double or trishield recommended 5C-FB(T), 5C-HFB(T), L-6CHD, RG6 about 200M Customized for HD-SDI <Note>  Transmission distance will be various based on reduction rate of 750MHz (reduction rate of dB/100m < 25dB is recommended).

  • Page 16: Connecting External Device

    Connecting external device Connecting USB Device USB port can be used for copy of recorded data and for mouse. USB Device spec will not be over following specification. USB Spec. Ver 2.0 Usable device USB Memory Stick, Voltage spec Max. 200mA per DC 5V / Port <Note>...

  • Page 17: Connecting And Configuring Dio Ports

    <Note> 1) It takes around 1 minute for connection between DVR and NVS04R. 4ea LED in the front will be flickering while it tries connection. They will be all on (or off, flicker) after connection is achieved and user can check HDD list in Disk Manager menu. Connecting and configuring DIO ports Wire handling When connecting a wire to a terminal block, follow the instruction below.

  • Page 18: Connecting Com1 Serial Port With External Devices

    Connecting type Connect the trimmed wire to terminal block 30V 1A Performance 125V 0.5A Connecting relay Connect R1 ~ R4 with referring to the following images, it shows to connect a warning light. Please refer the “Wire Handling” Connecting COM1 serial port with external devices Text input device connection (ATM / POS / Access Control) Using COM1/RS232, TEXT DATA can be recorded with synchronizing POS/ATM.
  • Page 19 This is not used in general case so please contact customer service for more details about this function Serial communication port diagram <Note> Single device connection per each COM port is recommended. To connect multi devices to single port requires specialized knowledge and without this, it could lead to malfunction of device.
  • Page 20 Serial Cable Video Cable DOME 1 DOME 2 DOME 16 COM2 COM3 DVR 1 DVR 2 DOME 1 DOME 2 DOME 16 Master DVR 3 DOME 1 DOME 2 DOME 16 DVR 255 DOME 1 DOME 2 DOME 16 Slave 1 Slave 2 Slave 255 Confituration using 1 serial ports...

  • Page 21: Usage

    Serial Cable Video Cable COM2 or COM3 DOME 1 DOME 2 DOME 16 DVR 1 DVR 2 DOME 17 DOME 18 DOME 32 Master DVR 3 DOME 33 DOME 34 DOME 48 DVR 255 DOME 240 DOME 241 DOME 255 Slave 1 Slave 2 Slave 255...

  • Page 22: Basic Setting

    Keep pressing [▲/▼], [◀/▶] arrow button until the word is looking for and press [Enter] or click the mouse. If need to delet a word press [], spacing words press [] button. To exit from dialogue box, press [Enter] or click [Enter] button .

  • Page 23: Record Setting

    Date Notation Please select “Date Format” and pick ‘YYYY/MM/DD, MM/DD/YYYY or DD/MM/YYYY Time Please select each Time/Date setting its value and press [Apply Date/Time] to confirm setting Apply Most setting values are applied automatically, when exiting form the related menu page. But “Date” & “Time” setting will not applied automatically because they may critically affect the file system of the recorded HDD.

  • Page 24: Use Of Input/Output Devices

    Please setup resolution, frame rate or picture quality of each individual camera per channel in “Program menu” of record setup. (Please refer to “record menu” for further explanation) <Reference> If recording set correctly, the “REC LED” indicator in front will be flickering. In addition, it is marked [SCHEDULE] or [MANUAL] indicating that all channels are recording.

  • Page 25: Relay Setting

    Relay Setting MENU  EVENT  EVENT It is available to run relay selecting from sensor, motion detection, Text, Video Loss which is normal event source and Disk error, Disk full, Fan error, authentication fail, WRS registration fail, Mirroring fail, abnormal Recording stop which is system event source.

  • Page 26: Hdd Use

    HDD Use ※ Please, ask to distributor or manufacturer for available HDD list. HDD Registration & Format MENU  SYSTEM  DISK After mounting HDD and booting system, “Disk Manager” will execute automatically as side image. If not, please, check the connectivity of HDD (1) Select HDD in installed HDD list and register it formatted.

  • Page 27: Menu Usage

    Ethernet Set type as Ethernet and input IP, Netmask, Gateway, DNS. The way to input is using directional key or mouse wheel. PPPoE Change type for Network menu into xDSL then go to xDSL menu. Change Port in Ethernet (User needs to remember Port). Enter ID and Password assigned from PPPoE registration in xDSL menu.

  • Page 28: Monitoring

    Monitoring Login Screen DVR will turn on automatically once user connects power to DVR. All LEDs are turn on and off in order when DVR boots up. The basic screen will be black with login window pops up. Basic Screen The basic screen will be maximum multi screen DVR supports.

  • Page 29: Auto Switch Mode(Sequence)

    Auto Switch Mode(Sequence) Auto switch screen mode is a feature in which the selected channel or multi screen division switches in order. According to configured time interval.Max. The 16 channels or multi screen division can be configured and the time interval will be 1~60 seconds. (Please refer to “Monitor setup”...

  • Page 30: Load Preset

    automatically with following icon. The front direction button will be only for PAN/TILT and Zoom can be controlled by Tele, Wide button of OSD Menu. Please press PTZ button either in Front panel or Function menu to use OSD Menu, Zoom, Focus, Preset, Aux. Focus Control focus with [Near] or [Far] buttons .

  • Page 31: Search & Playback

    Auxiliary Off Press [PTZ] button in PTZ screen to activate Aux Off menu. Using up / down button or mouse wheel to select the Aux Number. Select Off and press Enter button or click from mouse. Menu To access the connected PTZ’s menu, use up/down/left/right and enter key from front panel for setting the menu, and press ESC or PTZ button to exit the menu.

  • Page 32: Search Mode

    Search Mode This menu is to playback specific time data from the time frame and searching log at Playback mode. Theres Time, Calendar, Event, and Thumbnail mode. Press Search button on the front panel or click in Function menu. There are Time, Calendar, Event, Thumbnail mode. Press press Search button on the front panel or click in Function menu.

  • Page 33: Copy

    Thumbnail Search Search certain channel by thumbnail type. If a searched thumbnail is selected, selected date and time video will be played back. If thumbnail search is excuted, 16 cycles will be shown based on start time. Select one of them and playback recorded data. Copy This is for copying recorded video.

  • Page 34: Configuration

    Name Description Type Select RE4 using Up/Down key in front panel or moust wheel. Channel Select the channel location and press Enter or use mouse wheel to pop-up FAT32 Format Format USB memory or HDD by FAT32 type. Press Enter or click mouse button Caution : If a file is not backed up completely, it is not available to playback in PC.
  • Page 35 Time Configure date among “MM/DD/YYYY”, “YYYY/MM/DD”, “DD/MM/YYYY”. Apply User must push “Apply Date/Time” button. And you will see the below message box. <Caution> Except date/time configuration, other records automatically, but “date/time” configuration influences critical effect to HDD recording file system, It doesn’t record automatically.

  • Page 36: Disk Manager

    Disk MENU  SYSTEM  DISK It explains how to add or remove or format internal or external HDD. Over Write(Auto Deletion) If there is no space in HDD, old data will be deleted automatically. Disk Full Alarm Warning It gives notice if the recorded data is full up to configured limitation of all HDD disks which is connected to DVR.

  • Page 37: Disk Status

    Bad Blk Display bad block. In HDD. If no problem, “0” will be displayed. Others are Not shown anything at all. Size Display HDD size by MB unit Enabled Make HDD enable mode or disable mode. Yes: enable / No: Disable In case HDD YES - Enabled : Press [Enter] in No mode or scroll mouse wheel.
  • Page 38 HDD-4 FULL Recording HDD Recording HDD-3 HDD-4 HDD-4 HDD-3 HDD-2 HDD-1 HDD-1 HDD-2 Mirroring HDD HDD-3 FULL (1) HDDs will be set like the above. (2) Recording data of HDD-3 is mirroring with HDD-1 and recording data of HDD-4 is mirroring to HDD-2. (3) If there are 4 ea of HDDs are mounted on DVR and starts recording, HDD-4 will start recording.

  • Page 39: Mirroring Hdd Replacement

    <Note> 1. For Mirroring function, HDDs capacity and model for Recording and Mirroring should be same. If not, it won’t work. But, in case that HDD capacity is same but just different model, sometimes, it cannot work properly. Ex) Example for normal Mirroring and abnormal Mirroring 1) Normal Mirroring case Type Model...
  • Page 40 <Note> 1. For Mirroring HDD replacement, user must do it in HDD Change menu. 2. This time, HDD for replacement should be same model and capacity with the original HDD. 3. If user does not replace Mirroring HDD after replacement popup message – 0%, System will delete the oldest data in sequence and keep Mirroring.
  • Page 41 Function Authorization Administrator has all rights to all functions. He can allocate the right for the function per user. Auto Log out System supports Auto logout if log-in user is no further action during the certain time. It can be configure 1min to 60 min and admin and user can control it.
  • Page 42 Firmware Update Can update firmware by USB Memory. - Insert USB memory to USB port. - Press Firmware Update button. - Select [YES] on the pop up window. - System will reboot. - Firmware update is done. System Log Please, use up and down button of the front panel for scrolling and left and right button for page shift.

  • Page 43: Network

    Network MENU  NETWORK  NETWORK This is menu for configuring network Type Configure type of Network (Ethernet/xDSL). If connected to cable modem or Lan directly to DVR, configure by “Ethernet”. If DVR connects to xDSL- one of PPPoE type, configure xDSL. But if it is not type of PPPoE, configure ‘Ethernet’.
  • Page 44 Network Stream function is to configure resolution, frame, image quality for monitoring in Control Center, WebViewer, and Web Eye Application. The stream set by this menu makes smoother network monitoring. Bandwidth Bandwidth is to configure the maximum transmission speed. Its default value is 0.0Mbps and it means no limit for network data transmition.

  • Page 45: Device Set Up

    Radius MENU  NETWORK  RADIUS It makes to manage account information from several different DVRs to one account using Radius server. Please ask to Administrator before you use it.. To set Radius, Status, IP Address, Port should be set. Set ‘Enable’...

  • Page 46: Input Resolution

    Title Configure camera name. Text input box could be different depending on menu but its setting method is the same. Input Resolution This shows resolution of camera connected with DVR and user can’t change this. Monitor Set up MENU  DEVICE  MONITOR This menu is to configure option for Monitor Event Pop up If specific channel uses MD, Sensor Input, it makes the relevant...
  • Page 47 User sequence Configuration This menu is to edit function of user sequence configuration. User can configure 16 sequence modes and it is available to set from 1 to 60 seconds. In Sequence mode, users can configure channel or division mode and sequence time from 5 to 60 seconds.
  • Page 48 Select Audio for output. If user sets Mix On, all input audios output. But if user point out 1~4 audio input, selected audio only output. Text Set up MENU  DEVICE  TEXT Configure Text in Device menu. Recording Set On/Off of recording against Text input Sync Text with Select channel to synchronize with text.

  • Page 49: Event Set Up

    Interface Configure which interface user uses. COM1 is for RS-232C, COM2 and COM3 is for RS-485 Baud rate/Parity/Stop Bit/Data Bit In put suitable value according to external device. PTZ Set up Additional configuration for PTZ Address, Port PTZ. PTZ Home Shift to Home (preset 1) if it has no movement in certain time while PTZ control PTZ Idle Time...

  • Page 50: Sync Event

    If duration time is set off , Sync event will not be working. Normal Event source Users can configure Sensor, motion detection, V-loss, & Text. Model Sensor V-Loss Text HD400H HD800H HD1600M 16ea 16ea 16ea System Event source System Event source can configure Bad block, Disk full, Fan error, authorization failure, WRS registration failure, Mirroring Disk Full , Power on , &...

  • Page 51: Ftp Image Backup

    E-Mail Set up Input E-mail address to receive event alarm by E-Mail. E-Mail Address Input E-mail address with receiver’s E-mail information. E-mail format should be xxxx@xxxxxx.xxx and the users must only use combination of numbers and the English alphabet. Sender’s E-mail address Sender’s E-mail address is set when user use E-mail for output selection and user setup E-mail address as xxxx@xxxxxx.xxx.

  • Page 52: Twitter Synchronization

    Enter the password FTP Directory Select Folder to save image If folder is not indicated, the image is sent to the folder which server selects. Twitter Connection Twitter can be connected to send single image or a text message about an event information of the triggered channel.

  • Page 53: Motion Detection

    Send Test Message This will send a test message to Twitter to confirm correct configuration setup. Generate PIN If click this, It will generate URL for login. Forward URL with e-mail Configure whether transmit Authorized URL after running Generate PIN or not. We recommend making the option ON due to its authorized URL length.

  • Page 54: Recording Set Up

    This menu is to setup the existing sensor input and the type of sensors. Users can configure sensor by each channel. If sensor is selected as All, N.O, or N.C. it is applied to all channels. Users can set different options like N.O, N.C, or Off after selecting each channel. Name Description Normally-open (NO) contacts connect the circuit when the relay is activated;...

  • Page 55: Continuous Recording

    Continuous Recording Continuous and event recording mode is set to operate only after the system booting is complete. Schedule Recording It records according to the programmed schedule automatically. Make recording mode Schedule & Event and configure day and time. Check and select each program default value and select one of 9 programs from A to I.

  • Page 56: Program Setup

    • Record time after event : User can select between 1~30sec and time after event will be recorded as much as time set by user. Program Setup HD400H / HD800H MENU  RECORD  PROGRAM Using [Program], adjust frame rate and quality configure recording program for Continuous&Event, Manual&Event, and Schedule&Event..
  • Page 57 CH (Channel) Display the channel No. Input Res. It shows resolution per camera connected to each channel. Rec. Res It shows resolution for each recording channel. The DVR will automatically record in 720p or 1080p determined by the video input. Normal Event F (FPS)
  • Page 58 Recording Resolution It shows resolution for each recording channel. The DVR will automatically record in 720p or 1080p determined by the video input. Normal Configure general recording frame and image quality of Manual/Continuous/Schedule. Event Configure Event recording frame and image quality. Even though system is recording under Manual recording mode, if event occurs, system will record in accordance with Event recording configuration.

  • Page 59: Web Viewer

    Web Viewer WebViewer is Web application program loaded to monitor real-time image or to monitor the images recorded through Web browser to PC located remotely. System requirement Minimum Recommendation Core2Duo / 2.0Ghz Quad Core / 2.6GHz Main Memory Video Memory 128MB 512MB or higher Display...

  • Page 60: Monitor

    Authority configuration is almost all the same in DVR and Control Center. But quick recording, backup, audio, yes or no of using channel are only possible in Control Center. Monitor When it is authorized with User ID & Password input at Login page, it moves to monitor page.

  • Page 61: Move To Playback

    Double click on one of the playback screen to convert in 1 channel mode After conversion to 1channel mode, double click on screen to return to previous division channels. At division screen, it can change screen location using mouse drag If Ch3 image moves to Ch1, drag Ch3 image and drop on Ch1 location so as to exchange between 3ch and 1ch image.

  • Page 62: Using Microphone

    Using Microphone It can On or Off the use microphone. Default is Off and it is changed from the projected type button to orange when click the button for the use Mic. Event information It shows real time event data occurred at the bottom of monitoring page. Indicated Event data list are as follow.

  • Page 63: Using Ptz

    Using PTZ PTZ deletion is available after selecting channel which PTZ control is set clicking right button of mouse during monitoring. Pan, Tilt Control Mouse is on the image and click right button to pop-up menu for the selection or “PTZ” or button.

  • Page 64: Playback

    Playback This page is to playback recorded images, and user who has authority of ‘HDD’ among user ID or administrator can use this function. Playback that is made up 16 divisions can play the images by searching through colander by recording period and moving the period.

  • Page 65: Web Monitor Movement

    Back up There are re4 (Multi channel) and avi(single channel) Set From, To time and select the channel for backup Point out the location for backup. Input in Password/Verify. In case of playback backed up file, correct password should be input.

  • Page 66: Java Viewer

    ③ From left button, it can ‘Move a frame back’, ‘Play backward’, ‘Stop’, ‘Play’, ‘Move a frame forward’. ④ It is the function to set play speed. After click the button, it can set the play speed ‘0.5x, 1x, 2x, 4x, 16x, 32x, 64x, and All’.

  • Page 67: Appendix

    Trouble Shooting [FAQ] Way to Solve Trouble & symptom No system power and LED in front  Check the power of system panel doesn’t work at all  Check power voltage in out  Check or replace power supply if power doesn’t turn on after above procedure.
  • Page 68 2) For alarm sound cancel : Event record mode - Alarm (Motion detection/Video loss) – It erases alarm output. 3) For event cancel : Event record mode - Alarm (Motion detection/Video loss) – It turn off mode. No response in Live screen even [PTZ] ...

  • Page 69: Compatible Hdd

    DVD-R Manufacturer Mitsubishi( x 16 recommended) TDK( x 16 recommended) Imation( x 16 recommended) SONY ( x 16 recommended) Model name Manufacturer Keyboard WKC-100, WGI SPD1800/2600 WEBGATE Keyboard KBD300A, PELCO(P), PELCO(D) Pelco BOSCH AutoDome, TC8560X-4 BOSCH Sony EVI-D3x 소니 VT VPT-4x...

  • Page 70: Factory Default

    Nuvico Nuvico Factory Default System Time Zone UTC 00:00 Dublin Daylight Saving NTP Function Sync With NTP NTP Mode Client Date / Time NTP Server Loc. Public NTP Local Server IP 0.0.0.0 Interval 1(hour) Date Format MM/DD/YYYY Time Current Time Over Write(Auto Deletion) Disk Full Alarm Warning Block Playback...
  • Page 71 Band Width Limit(Mbps) User ID Guest xDSL Password ***** Status xDSL not connected Interval www.webgateinc.com Group Newbie Status Not Registered Status Disable Radius IP Address 0.0.0.0 Port 1812 Device Camera Camera Number Status Name Cam 1 Input Resolution Current Resolution Encoding Resolution 720p PTZ Home...

  • Page 72: Reset Value For Recording Program

    Motion Sensitivity Area Set All Sensor Sensor All, N.O. Channel Number Preset Preset Sensor1, Preset1 Record Record Mode Manual & Event Program Program D Record Pre Event Duration Post Event Duration Normal Input Res 720p30 Rec. Res 720p Frame Rate All 15 Quality All Q5...

  • Page 73: Menu Structure

    Menu Structure System Date/Time Time zone Standard Time zone Daylight Saving (DST) Time Setting Time Date Format Disk Recording Overwrite Disk Full Alarm Warning Playback Block Playback Block Recording Management Disk Manager Disk Status Disk Mirorring Disk Replace HDD Temp. Alarm User Setup Current User Auto Login / Logout...
  • Page 74 Monitor Event Pop-up Info Sequence Configuration Audio Audio Input Audio Channel Audio Recording Sync Video Channel Audio Gain Audio Output Mix Audio Ch Text Recording Sync Text With Device Description Device Serial Serial Port Device Properties Interface Baud Rate Framing Stop Bit Data Bit Parity Bit...

  • Page 75: Specification

    Specification HD400H HD800H HD1600M Video input Video input standard SMPTE 292M (HD-SDI) Resolution / Framerate SMPTE 274M(720p, 1280x720) : 25/50,, 30/60, 29.97/59.54 fps SMPTE 274M(720p, 1280x720) : SMPTE 296M(1080p, 1920x1080) : 25, 30, 29.97 fps 25/50,, 30/60, 29.97/59.54 fps (Input format auto detection, 720p&1080p can be mixed) SMPTE 296M(1080p, 1920x1080) : 25, 30, 29.97 fps...
  • Page 76 Streaming 1 HD H.264 same as recording 1 additional H.264 smaller than recording 1 JPEG for e-mail sending or mobile Security User Level 1 admin, 10 users User privilege Menu, PTZ, Relay, Playback, Power off, Power on, Copy, Network Mic IP Filtering supported Storage/Backup...

  • Page 77: Product Dimension

    Product Dimension...
  • Page 78 Open Source License Report on the software is modified by someone else and passed on, we want its recipients Product to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations. Finally, any free program is threatened constantly by software patents.
  • Page 79 storage or distribution medium does not bring the other work under the people have made generous contributions to the wide range of software scope of this License. distributed through that system in reliance on consistent application of that 3. You may copy and distribute the Program (or a work based on it, under system;...

  • Page 80: Terms And Conditions

    This program is distributed in the hope that it will be useful, Developers that use the GNU GPL protect your rights with two steps: (1) but WITHOUT ANY WARRANTY; without even the implied warranty of assert copyright on the software, and (2) offer you this License giving you MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.
  • Page 81 the public in source code form. A “Major Component”, in this context, requirement modifies the requirement in section 4 to “keep intact all means a major essential component (kernel, window system, and so on) of notices”. the specific operating system (if any) on which the executable work runs, or c) You must license the entire work, as a whole, under this License to a compiler used to produce the work, or an object code interpreter used to anyone who comes into possession of a copy.
  • Page 82 the product. A product is a consumer product regardless of whether the remove that term. If a license document contains a further restriction product has substantial commercial, industrial or non-consumer uses, but permits relicensing or conveying under this License, you may add to unless such uses represent the only significant mode of use of the a covered work material governed by the terms of that license product.
  • Page 83 License, of making, using, or selling its contributor version, but do not section 13, concerning interaction through a network will apply to the include claims that would be infringed only as a consequence of further combination as such. modification of the contributor version. For purposes of this definition, 14.
  • Page 84 rights. These restrictions translate to certain responsibilities for you if the Free Software Foundation, either version 3 of the License, or you distribute copies of the library or if you modify it. (at your option) any later version. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you.
  • Page 85 A "library" means a collection of software functions and/or data refer to the ordinary GNU General Public License, version 2, instead of prepared so as to be conveniently linked with application programs to this License. (If a newer version than version 2 of the ordinary GNU (which use some of those functions and data) to form executables.
  • Page 86 of the library already present on the user's computer system, rather and the section as a whole is intended to apply in other circumstances. than copying library functions into the executable, and (2) will It is not the purpose of this section to induce you to infringe any operate properly with a modified version of the library, if the user patents or other property right claims or to contest validity of any such installs one, as long as the modified version is interface-compatible...
  • Page 87 convey the exclusion of warranty; and each file should have at least the separable from, or merely link (or bind by name) to the interfaces of, "copyright" line and a pointer to where the full notice is found. the Work and Derivative Works thereof. "Contribution"...
  • Page 88 Copyright (c) 1989, 1991, 1993, 1994 The Regents of any Contribution intentionally submitted for inclusion in the Work by the University of California. You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding All rights reserved.
  • Page 89 Redistributions of source code must retain the above copyright THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS notice, this list of conditions and the following disclaimer. OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE Redistributions in binary form must reproduce the above IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A copyright notice, this list of conditions and the following disclaimer PARTICULAR PURPOSE.

  • Page 90: Openssl License

    PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE Original SSLeay License AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, Copyright (C) 1995-1998 Eric Young DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF (eay@cryptsoft.com) CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN All rights reserved.
  • Page 91 however, cannot be released under any other type of license. The requirement for fonts to remain under this license does not apply to any document created using the fonts or their derivatives. DEFINITIONS "Font Software" refers to the set of files released by the Copyright Holder(s) under this license and clearly marked as such.
  • Page 92 Manufacturer might service at user’s cost for following request made by customer. Customer notice.  Please make regular schedule to check unit status (Daily check is recommended).  Manufacturer will not take any responsibility on the physical/human damage caused by robbery, natural disaster.
  • Page 93 Warranty Product name Digital Video Recorder Warranty term Model name HD400H / HD800H / HD1600M Date of purchase Year Month 2 years after purchase Warranty term Year Month Serial number Customer’s address Name Contact Address of shop(Company name) Name Contact ◈...
