Housing Assembly
Tools required: Phillips screwdriver.
1. Install the reflector mount silicon pads (11) and lens pad (15) in the left barrel (7 or 8).
2. With the wave side of the lens facing toward the front of the fixture, install the wave/clear lens (21) into the rear lens
track.
3. Assembly items 16, 17 18 and 19 (Focus knob assembly). Rotate the focus knob full spot position. The arrow on the
focus knob will point approximately to the 11 O'clock position.
4. Place the focus knob assembly into the left barrel.
5. Install the lens stop (14) and the rotator spring clip (12) into the lens rotator (12 or 13).
6. Install the lens rotator into the left barrel.
7 . Install the rotator pressure clip (9) into the left barrel with screw (23).
8. Install the gel retainer clip (1) and the spring (22) into the right barrel (5 or 6).
9. Attach the right barrel to the left barrel using screws (3) in three places.
10. Check that the gel clip retainer (1) moves easily into position.
11. Check for smooth rotation of the lens rotator (12 or 13).
12. With the wave side facing inward, install the wave/stippled lens (20) into the lens rotator. See below for detailed
instructions on installing the front lens.
Spring clip
W/C lens
Focus knob
Retaining clip
Figure 5

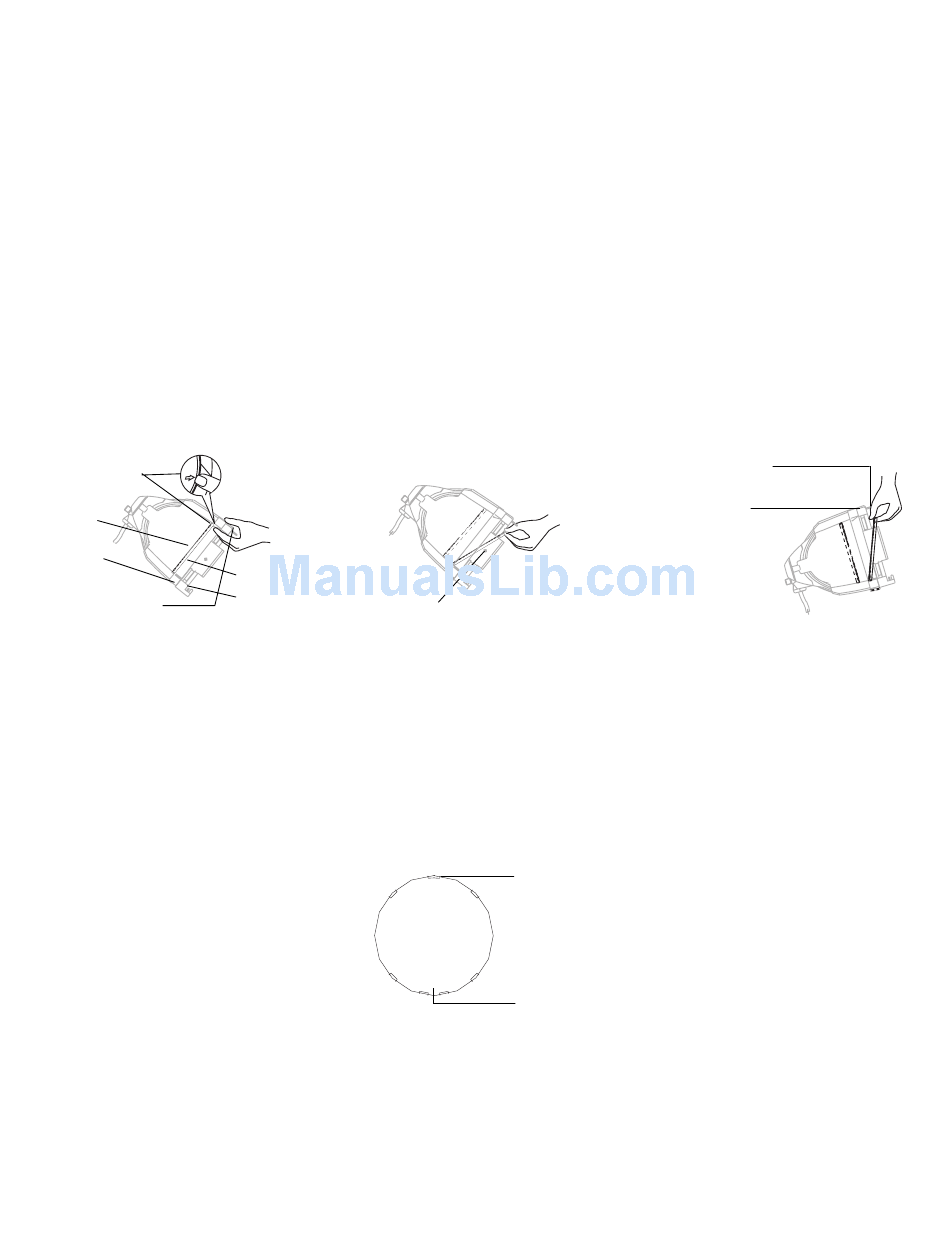

Installing a stippled/wave lens

1. Position the fixture with the front of the unit facing you, and tilted slightly down.
2. Rotate the focus knob to the full spot position.
3. Hold the lens by the edge, and position it so the wave side faces the rear of the fixture.
4. From the top of the fixture, slide the lens behind the lens catchers and position its base behind the tabs on the bottom
forth lens rotator ring.
5. Gently push the top of the lens inward until it snaps behind the spring clip.

Positioning the stippled/wave lens

1. There are seven "notches" cut into the stippled side of the lens. Position the lens so that the cluster of three notches
is on top. The center notch of the cluster coincides with the spring clip on the lens retaining ring.
2. The bottom of the lens has a cluster of four notches. Place the two center notches behind the tabs at the bottom of
the lens rotator ring.
Source Four PARNel Assembly Guide
W/S lens
Tab
Lens catcher
Figure 6
Top center notch
Bottom two
center notches
Figure 8
Retaining clip
Spring clip
Figure 7
