Lamp Burner Assembly

Reference Part
Number Number
1 7061A3023
2 7061A3024
3 W330-02
4 W330-03
5 W330-01
6 7060A3025
7 7061B7002
8 HW206
9 HW349
10 HW394
11 HW2125
12 W689
13 7061A4011
Source Four PARNel Assembly Guide
4
5
3
8
12
2

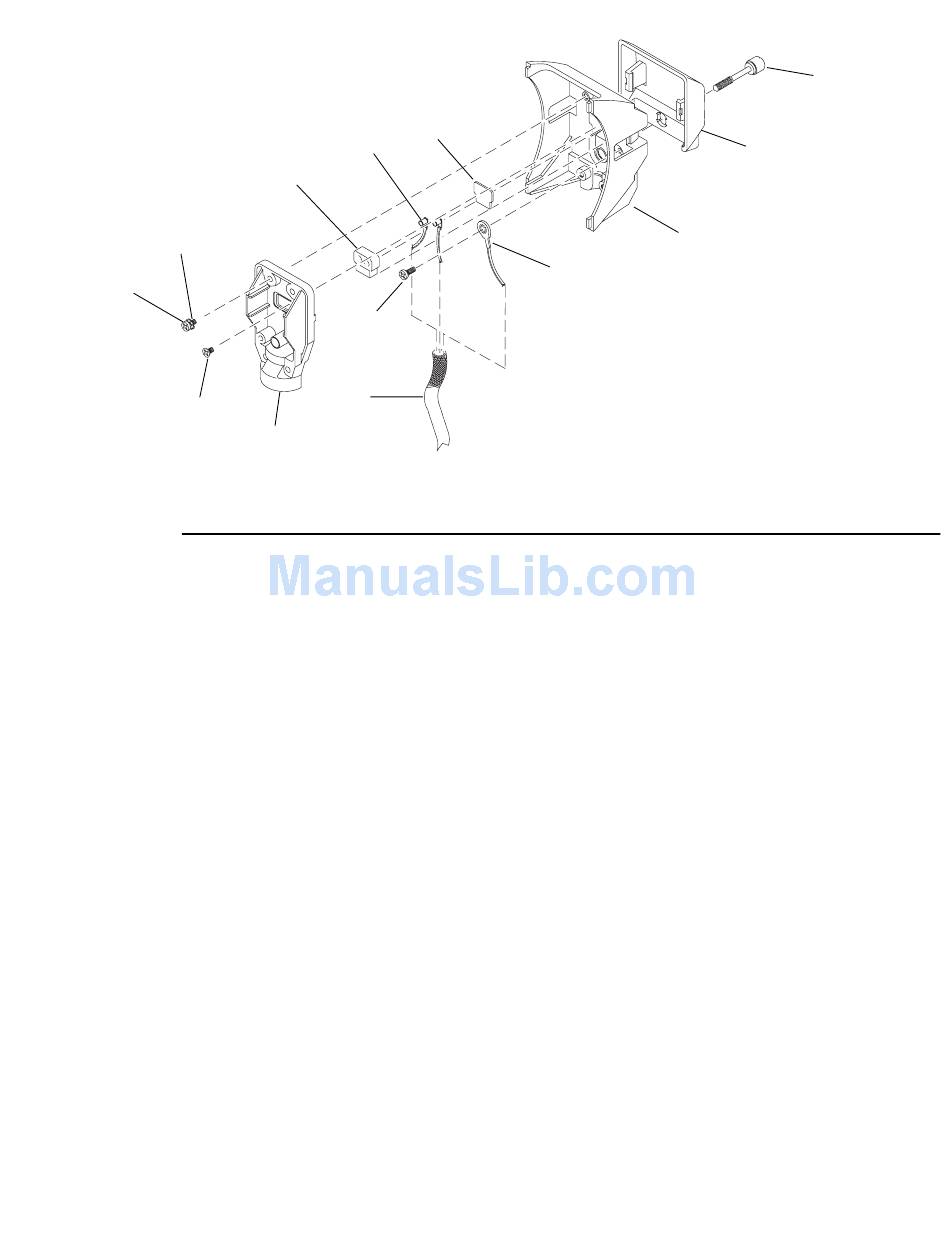

Figure 2
Description
Burner, casting, black
Strain relief, casting, black
TP22 CLCM assembly, ceramic
TP22 CLCM assembly, mica
TP22 CLCM assembly, 44" 16-AWG. 1/4" semi-stripped, silver contacts,
250º
Screw, 1/4-20, knurled head
48" W420 wire, 16-AWG, 200ºC/300V, green, UL 1180/CSA AWM with
J3209 #6 tooth ring crimp lug installed
Screw, 6-32 X 3/8, black zinc
Washer, #8
Screw, 8-32 X 1/2, PhPHMS
Screw, 6-32 X 1/4, self tap, black zinc
Sleeve, fiberglass
Handle
1
7
6
13
Quantity
Required
1
1
1
1
2
1
1
1
4
4
1
1
1
4
