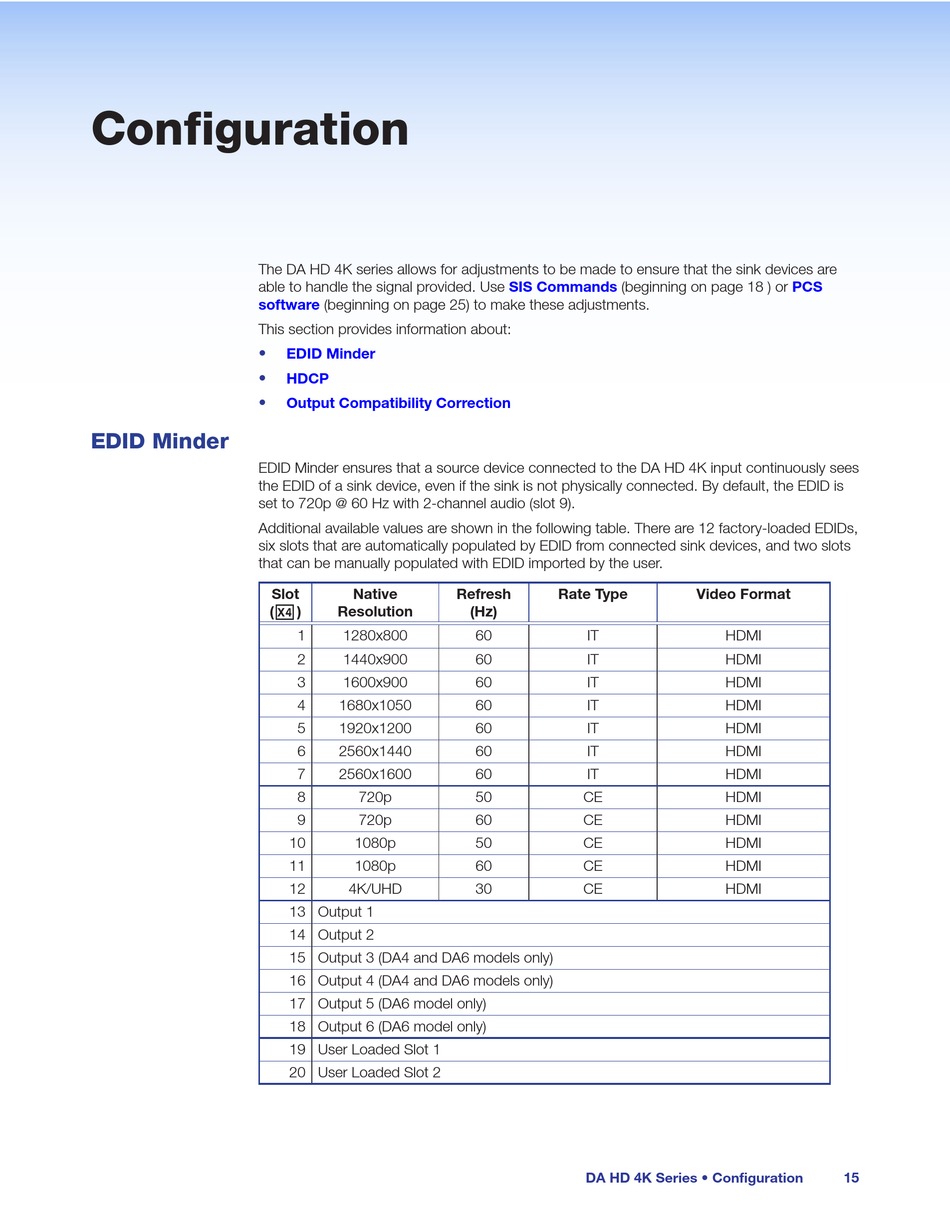

The DA HD 4K series allows for adjustments to be made to ensure that the sink devices are
able to handle the signal provided. Use
software
This section provides information about:
•
•
•
EDID Minder
EDID Minder ensures that a source device connected to the DA HD 4K input continuously sees
the EDID of a sink device, even if the sink is not physically connected. By default, the EDID is
set to 720p @ 60 Hz with 2-channel audio (slot 9).
Additional available values are shown in the following table. There are 12 factory-loaded EDIDs,
six slots that are automatically populated by EDID from connected sink devices, and two slots
that can be manually populated with EDID imported by the user.
(
(beginning on page 25) to make these adjustments.
EDID Minder
HDCP
Output Compatibility Correction
Slot
Native
X$
)
Resolution
1
1280x800
2
1440x900
3
1600x900
4
1680x1050
5
1920x1200
6
2560x1440
7
2560x1600
8
720p
9
720p
10
1080p
11
1080p
12
4K/UHD
13 Output 1
14 Output 2
15 Output 3 (DA4 and DA6 models only)
16 Output 4 (DA4 and DA6 models only)
17 Output 5 (DA6 model only)
18 Output 6 (DA6 model only)
19 User Loaded Slot 1
20 User Loaded Slot 2
SIS Commands
(beginning on page 18 ) or
Refresh
Rate Type
(Hz)
60
IT
60
IT
60
IT
60
IT
60
IT
60
IT
60
IT
50
CE
60
CE
50
CE
60
CE
30
CE
DA HD 4K Series • Configuration
PCS
Video Format
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
HDMI
15
