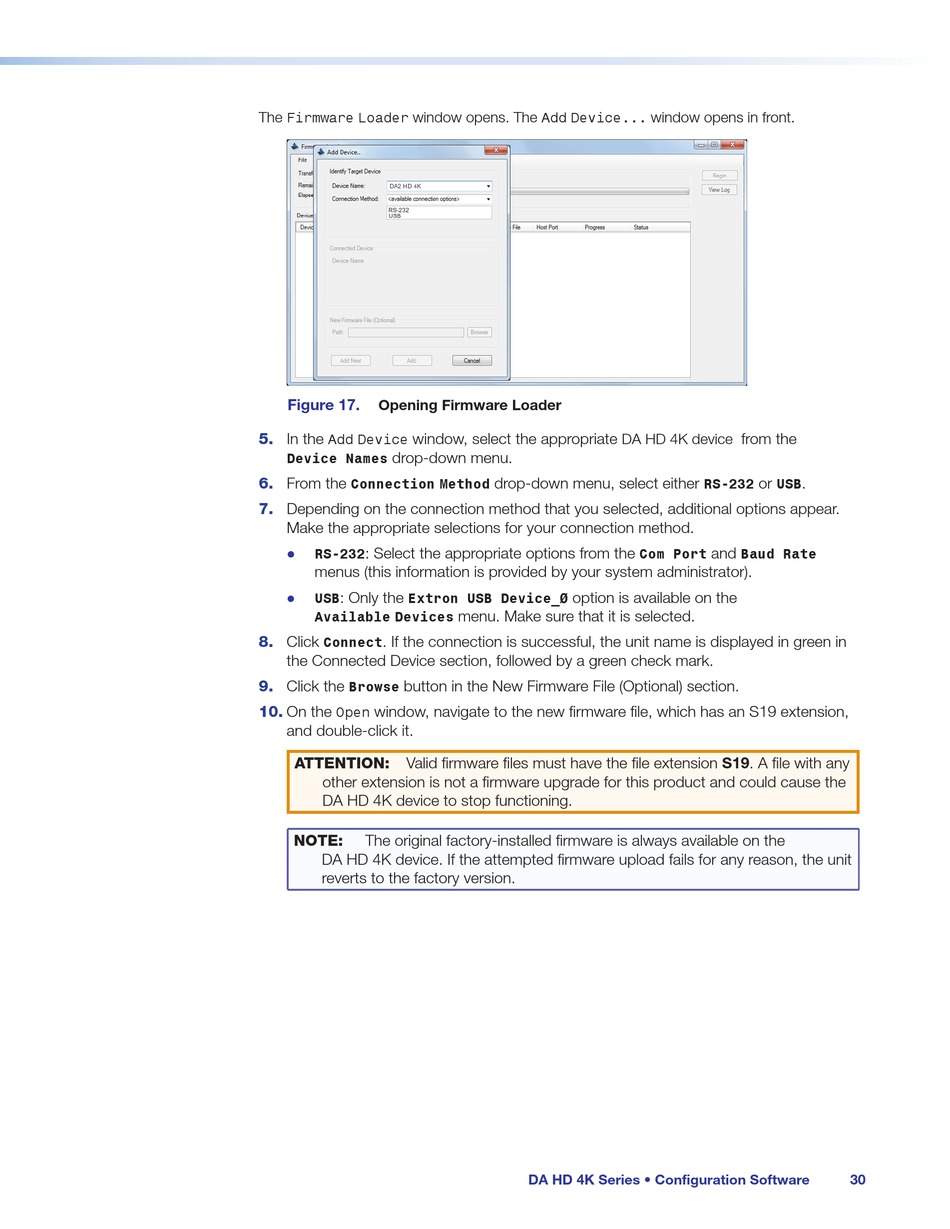

The Firmware Loader window opens. The
Figure 17.
Opening Firmware Loader
5. In the window, select the appropriate DA HD 4K device from the
Add Device
drop-down menu.
Device Names
6. From the
Connection Method
Depending on the connection method that you selected, additional options appear.
7.
Make the appropriate selections for your connection method.
: Select the appropriate options from the
RS-232
z
menus (this information is provided by your system administrator).
: Only the
USB Extron USB Device_0
z
Available Devices
8. Click . If the connection is successful, the unit name is displayed in green in
Connect
the Connected Device section, followed by a green check mark.
Click the button in the New Firmware File (Optional) section.
9.
Browse
10. On the window, navigate to the new firmware file, which has an S19 extension,
Open
and double-click it.
Valid firmware files must have the file extension S19. A file with any
ATTENTION:
other extension is not a firmware upgrade for this product and could cause the
DA HD 4K device to stop functioning.
NOTE: The original factory-installed firmware is always available on the
DA HD 4K device. If the attempted firmware upload fails for any reason, the unit
reverts to the factory version.
Add Device...
drop-down menu, select either
option is available on the
menu. Make sure that it is selected.
DA HD 4K Series • Configuration Software
window opens in front.
or .
RS-232 USB
and
Com Port Baud Rate
