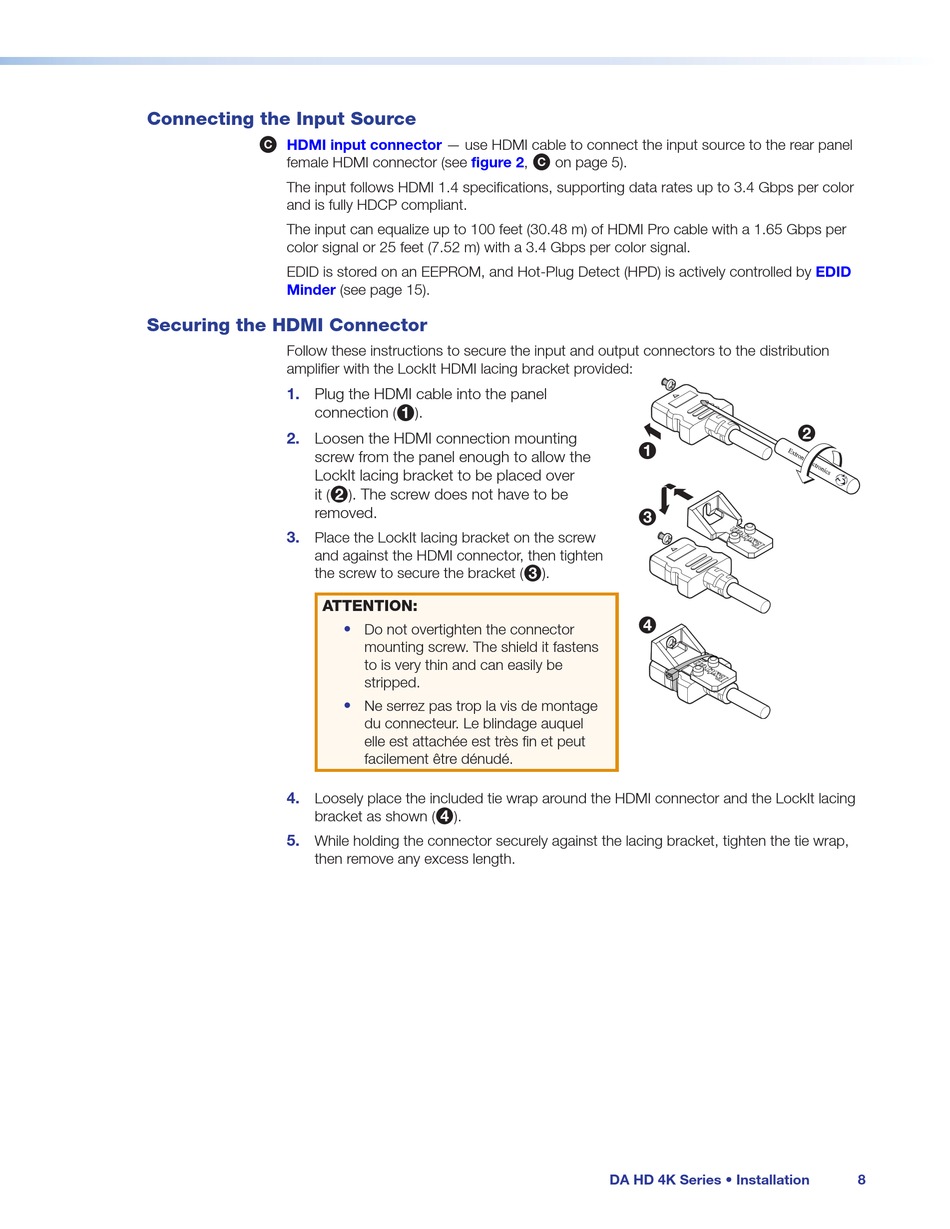

Connecting the Input Source

C HDMI input connector
female HDMI connector (see
The input follows HDMI 1.4 specifications, supporting data rates up to 3.4 Gbps per color
and is fully HDCP compliant.
The input can equalize up to 100 feet (30.48 m) of HDMI Pro cable with a 1.65 Gbps per
color signal or 25 feet (7.52 m) with a 3.4 Gbps per color signal.
EDID is stored on an EEPROM, and Hot-Plug Detect (HPD) is actively controlled by
Minder

Securing the HDMI Connector

Follow these instructions to secure the input and output connectors to the distribution
amplifier with the LockIt HDMI lacing bracket provided:
1. Plug the HDMI cable into the panel
connection (
2.
Loosen the HDMI connection mounting
screw from the panel enough to allow the
LockIt lacing bracket to be placed over
it (
removed.
3.
Place the LockIt lacing bracket on the screw
and against the HDMI connector, then tighten
the screw to secure the bracket (
ATTENTION:
4.
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing
bracket as shown (
5.
While holding the connector securely against the lacing bracket, tighten the tie wrap,
then remove any excess length.
— use HDMI cable to connect the input source to the rear panel
figure
(see page 15).
.
1 )
) . The screw does not have to be
2
•
Do not overtighten the connector
mounting screw. The shield it fastens
to is very thin and can easily be
stripped.
• Ne serrez pas trop la vis de montage
du connecteur. Le blindage auquel
elle est attachée est très fin et peut
facilement être dénudé.
4 ).
2, C on page 5).
1 1
3 3
3 ).
4 4
3
DA HD 4K Series • Installation
EDID
2 2
